This historic quadrangular lattice through truss bridge once carried an abandoned railroad spur over the Fox River in Carpentersville

Carpentersville, Kane County, Illinois

Owner: Private Owner

Status: Removed

Built 1926 using a span fabricated c. 1880

by

Leighton Bridge and Iron Works of Rochester, New York

for

Chicago & North Western Railway

Design:
99' quadrangular lattice through truss, steel stringer and timber pile trestle

Description:
Quadrangular lattice through truss bridge over Fox River

Significance:

This deck plate girder bridge carries the former Chicago, Burlington & Quincy Railroad over the East Branch of Big Rock Creek west of Big Rock

Big Rock, Kane County, Illinois

Owner: BNSF Railway

Status: In Use

Built 1960 using spans fabricated 1911 and 1926

by

Pennsylvania Steel Company of Steelton, Pennsylvania and Unknown

for

Chicago, Burlington & Quincy Railroad

Design:
75' and 2-39' deck plate girders

Description:
Deck plate girder bridge over East Branch Big Rock Creek

Significance:

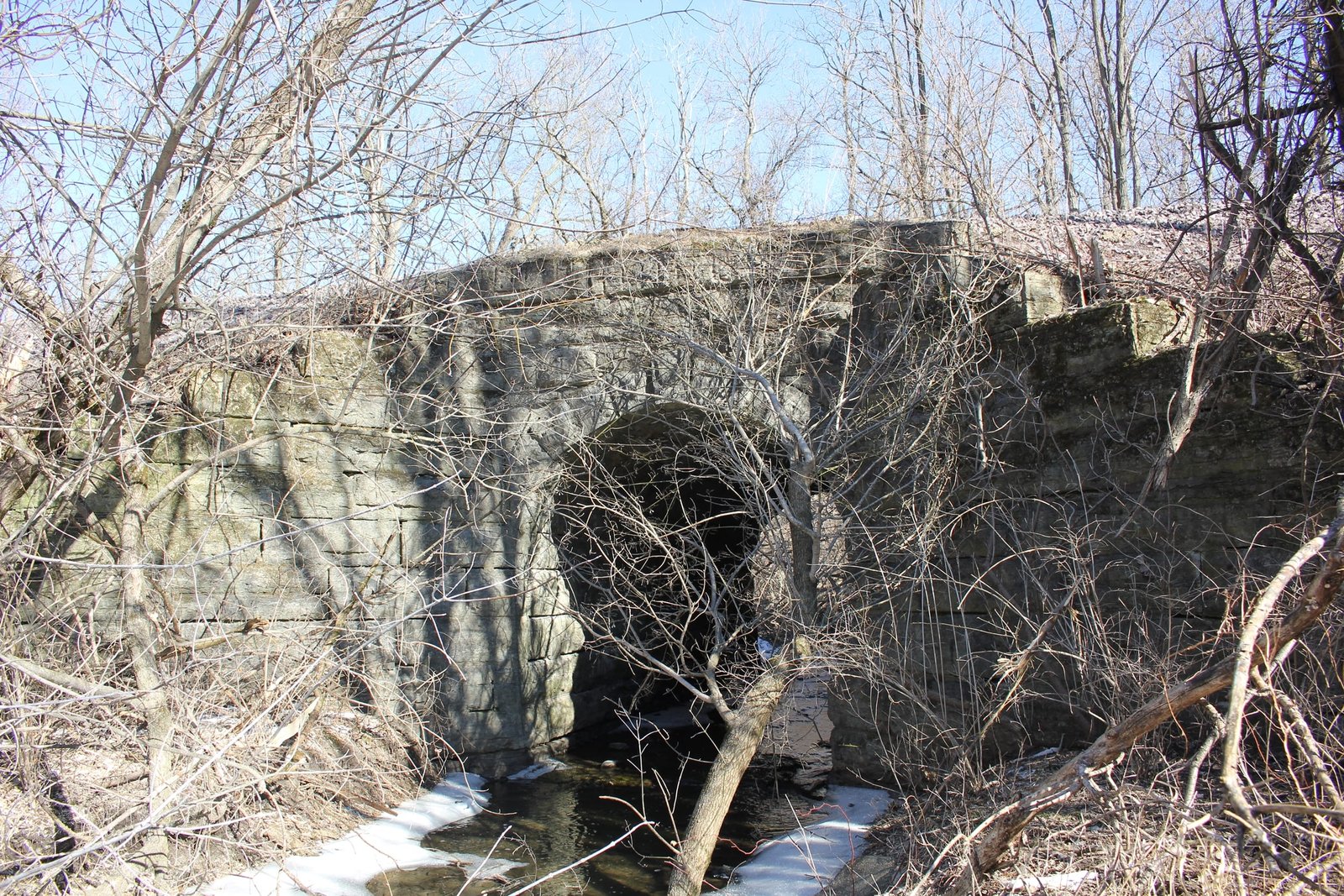

This historic stone arch bridge carries the former Chicago & North Western Railway over Poplar Creek on the south side of Elgin

Elgin, Kane County, Illinois

Owner: Union Pacific Railroad

Status: In Use

Built 1861

by

Unknown

for

Galena and Chicago Union Railroad

Design:
2-14' stone arches

Description:
Stone arch bridge over Poplar Creek

Significance:

This small concrete arch culvert carries the Great Western Trail over an unnamed creek along Illinois Route 64 in Wasco

Campton Hills, Kane County, Illinois

Owner: Forest Preserve District of Kane County

Status: Open to Pedestrian Traffic

Built c. 1910

by

Unknown

for

Chicago Great Western Railway

Design:
5' concrete arch culvert

Description:
Concrete arch culvert over unnamed creek

Significance:

This through plate girder bridge carries the former Chicago, Burlington & Quincy Railroad over the West Branch of Big Rock Creek west of Big Rock

Big Rock, Kane County, Illinois

Owner: BNSF Railway

Status: In Use

Built 1960 using spans fabricated 1898 and c. 1930

by

Union Bridge Company of Athens, Pennsylvania and unknown

for

Chicago, Burlington & Quincy Railroad

Design:
100' through plate girder and 2-47' deck plate girder

Description:
Through plate girder bridge over West Branch Big Rock Creek

Significance:

This large deck plate girder bridge carries the former Chicago Great Western Railway over Illinois Route 31 (2nd Street) in St. Charles

St. Charles, Kane County, Illinois

Owner: Union Pacific Railroad

Status: Abandoned

Built 1960

by

Unknown and Powers-Thompson Construction Company of Joliet, Illinois

for

Chicago Great Western Railway

Design:
100' and 2-65' deck plate girder

Description:
Deck plate girder bridge over Illinois Route 31 (2nd Street)

Significance:

This small steel stringer bridge carries the former Aurora, Elgin & Fox River Electric Company over an unnamed creek near Woodcliff Station in South Elgin

South Elgin, Kane County, Illinois

Owner: Fox River Trolley Museum

Status: In Use

Built c. 1905

by

Unknown

for

Elgin, Aurora & Southern Traction Company

Design:
18' steel stringer

Description:
Steel stringer bridge over unnamed creek

Significance:

This deck plate girder bridge carries the former Chicago & North Western Railway over Highland Avenue in Elgin

Elgin, Kane County, Illinois

Owner: Union Pacific Railroad

Status: In Use

Built 1893

by

Lassig Bridge & Iron Works of Chicago

for

Chicago & North Western Railway

Design:
72' deck plate girder

Description:
Deck plate girder over Highland Avenue

Significance:

This historic pony truss bridge carries the former Chicago & North Western Railway over the former Illinois Central Railroad near Stearns Road in South Elgin

South Elgin, Kane County, Illinois

Owner: Union Pacific Railroad

Status: In Use

Built 1887

by

Detroit Bridge & Iron Works of Detroit, Michigan and Unknown

for

Chicago & North Western Railway

Design:
87' double intersection Warren pony truss

Description:
Double intersection Warren pony truss bridge over Canadian National Railway

Significance:

This concrete slab bridge carries the former Chicago, Burlington & Quincy Railroad over Spring Street in Aurora

Aurora, Kane County, Illinois

Owner: BNSF Railway

Status: In Use

Built 1922

by

Chicago, Burlington & Quincy Railroad

Design:
2-24' and 2-11' concrete slabs

Description:
Concrete slab bridge over Spring Street
