Name CN 95th Street Bridge
Built By Wisconsin Central Railway
Currently Owned By Canadian National Railway
Superstructure Contractor Unknown
Length 106 Feet Total, 23 Foot Main Span
Width 1 Track

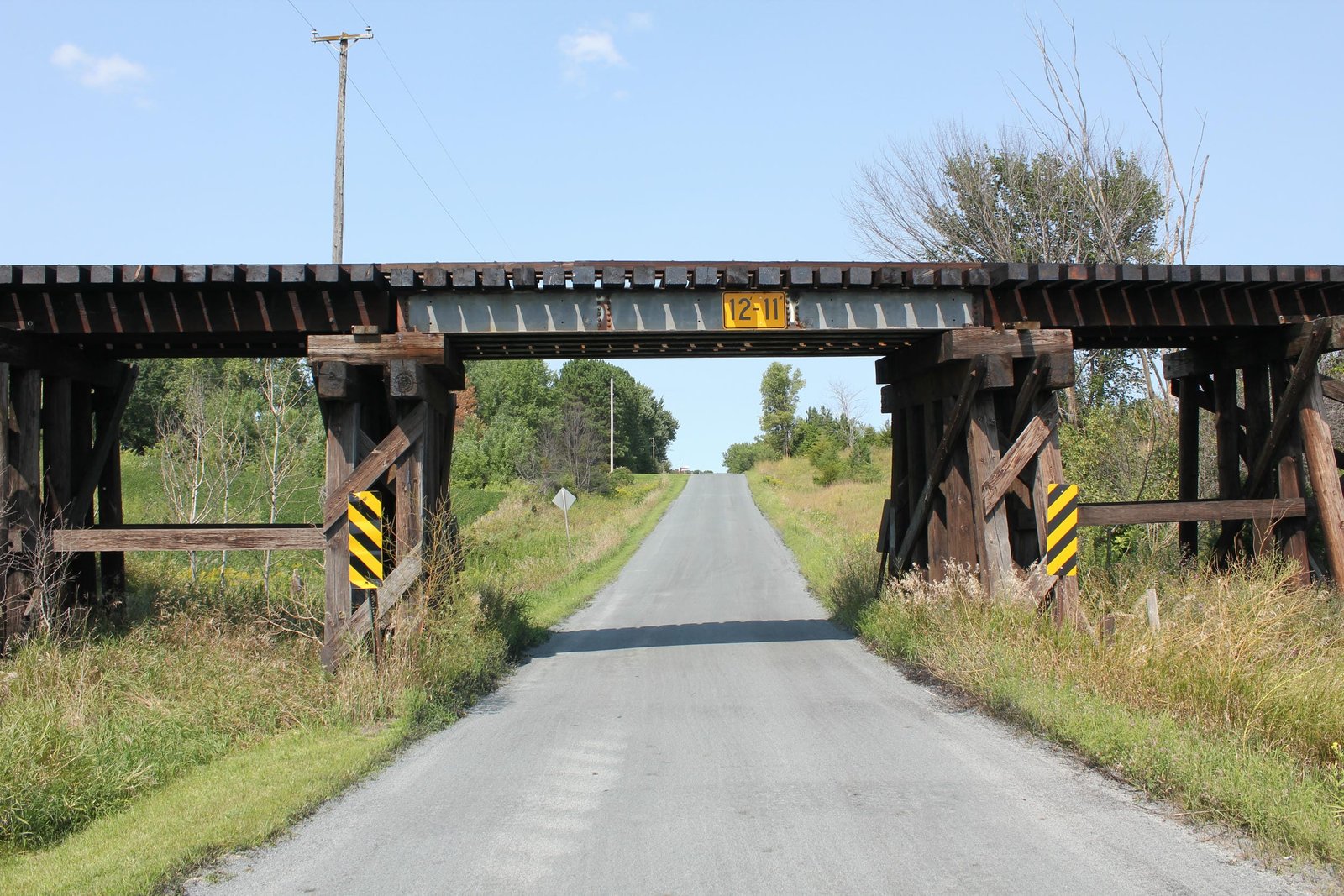

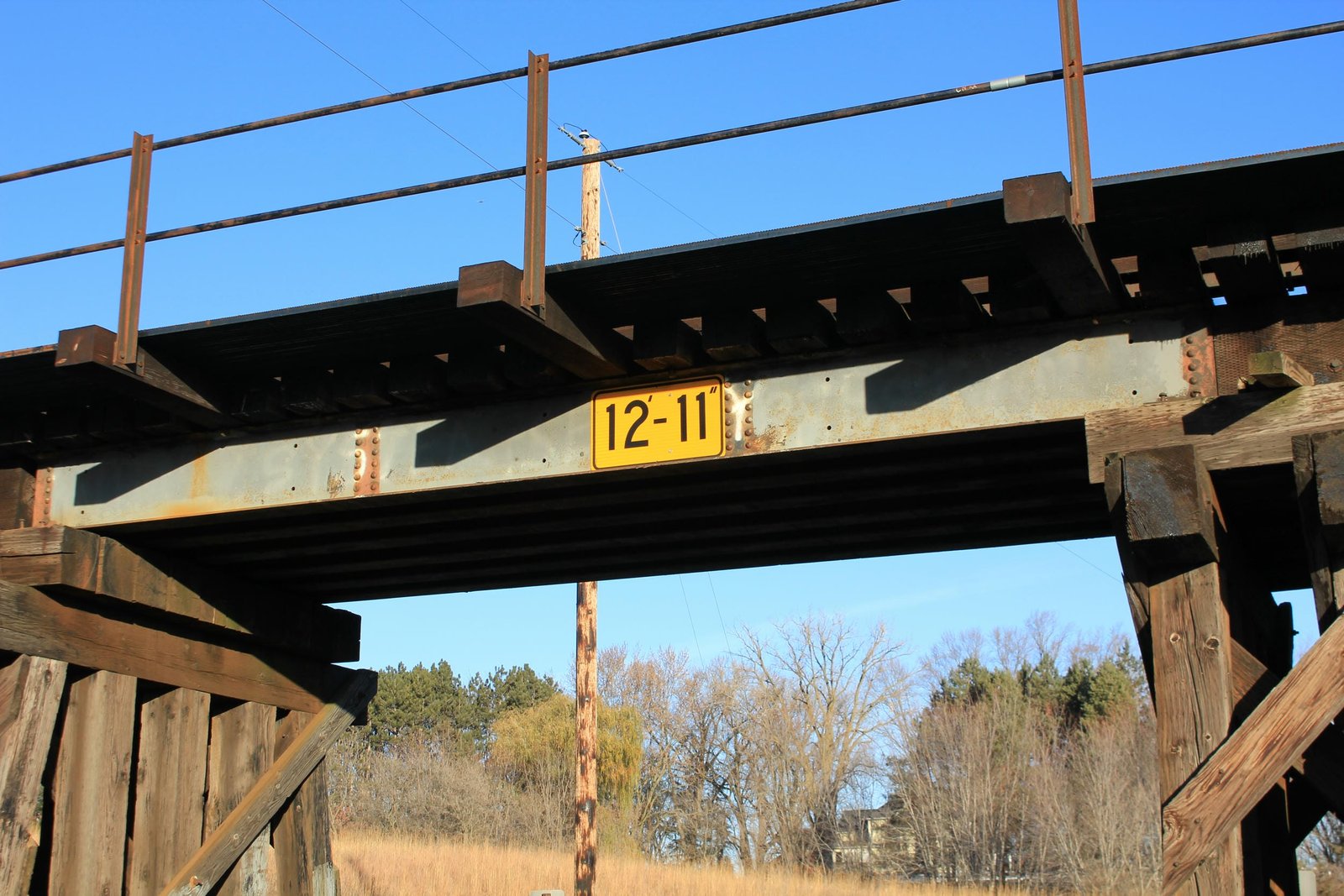

Height Above Ground 12 Feet 11 Inches
Superstructure Design Steel Stringer and Timber Pile Trestle
Substructure Design Timber Pile
Date Built c. 1950
Traffic Count 5 Trains/Day (Estimated)
Current Status In Use
Canadian National Railway Bridge Number 417.35
Significance Local Significance
Documentation Date 8/26/2015; 11/24/2023

In 1880, the Wisconsin and Minnesota Railroad (W&M) would complete 54 miles of new railroad extending from Abbotsford to Chippewa Falls, Wisconsin.  By 1885, 109 additional miles would be completed from Chippewa Falls to St. Paul, Minnesota.  In 1888, the W&M would be acquired by the Wisconsin Central Railroad, which would be renamed the Wisconsin Central Railway (WC) in 1899.  The WC had previously completed a mainline, extending from Chicago to Abbotsford.  In 1909, the WC would be leased by the Minneapolis, St. Paul & Sault Ste. Marie Railway (Soo Line), which itself was controlled by the Canadian Pacific Railway (CP). The Soo Line had constructed a large network of railroads, connecting the Upper Midwest with Canadian Railroads.

In 1910, the WC began a series of projects to reconstruct the route.  The largest project was a new 18-mile alignment between Withrow and New Richmond, Wisconsin and the bridge over the St. Croix River, which opened in 1911.  This new alignment reduced the amount of grades and curves, and provided a connection to the Soo Line tracks at Withrow.  Additional relocations included 19 miles between Owen and Spencer which bypassed Abbotsford, and 11 miles between Colfax and Howard.  The old St. Croix River bridge would be scrapped in 1916, the Abbotsford to Curtiss segment abandoned in 1934, and the Curtiss to Owen segment abandoned in 1938.  By 1961, the WC, Soo Line and Duluth, South Shore & Atlantic would be merged to form Soo Line Corporation, a holding company controlled by Canadian Pacific Railway.  The segment between St. Paul and Carnelian Junction would be abandoned in 1980, and acquired by the Minnesota DNR. In 1984, the Soo Line would be reorganized as the Soo Line Corporation in advance of a pending purchase of the Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road).

After the Soo Line acquired the Milwaukee Road in 1986, this route became less important, as the Milwaukee Road purchase provided Soo with additional connections between Chicago and St. Paul.  In 1987, the route would be sold to Wisconsin Central, Ltd. Known as the "new" Wisconsin Central, the railroad acquired several excess rail lines from the Soo Line and C&NW, before being acquired as the American subsidiary of Canadian National Railway in 2001.  Today, the Gateway Trail utilizes the line between Carnelian Junction and St. Paul, while CN operates the remainder of the line as the Minneapolis Subdivision, part of the principal CN connection between Minneapolis and Chicago.

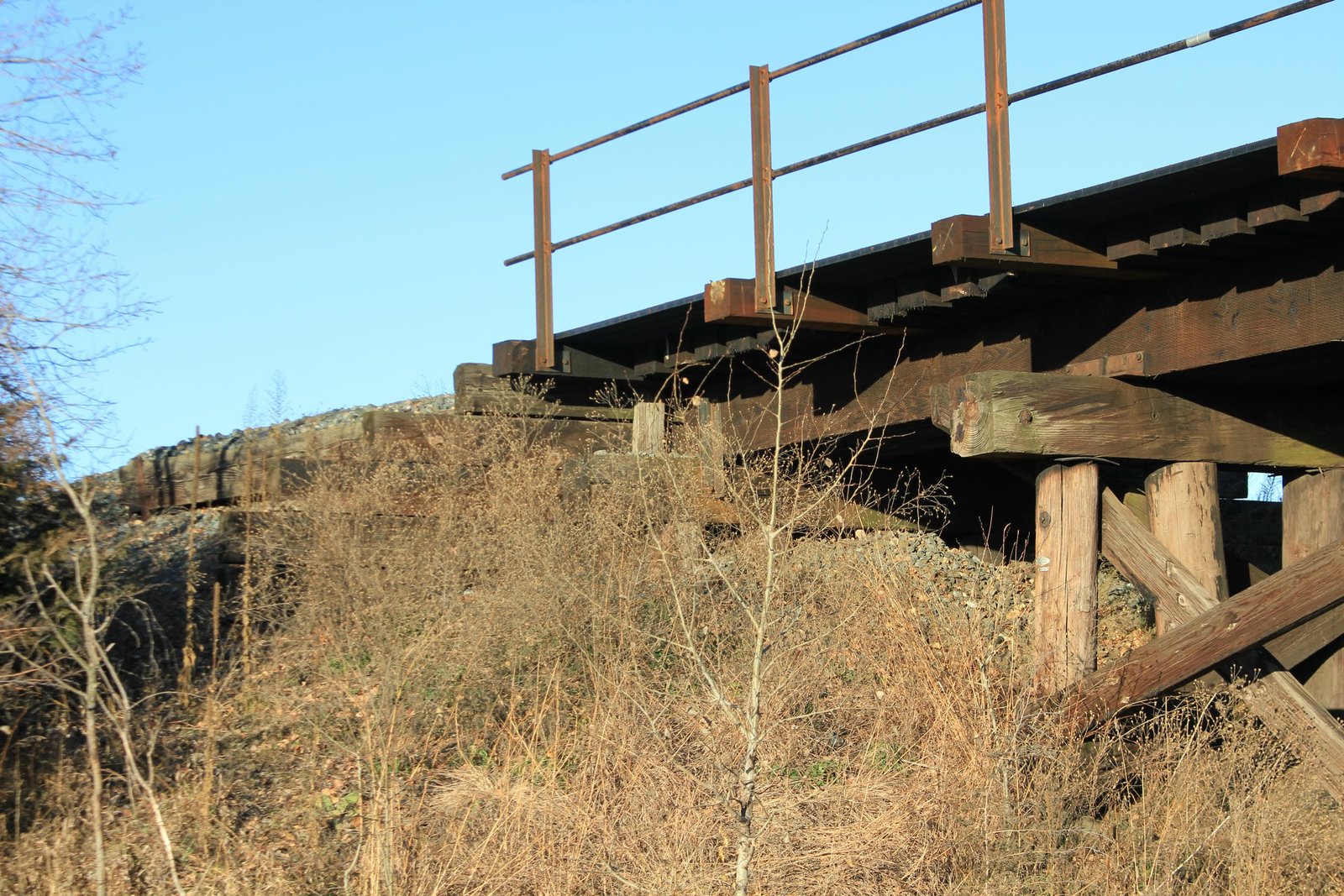

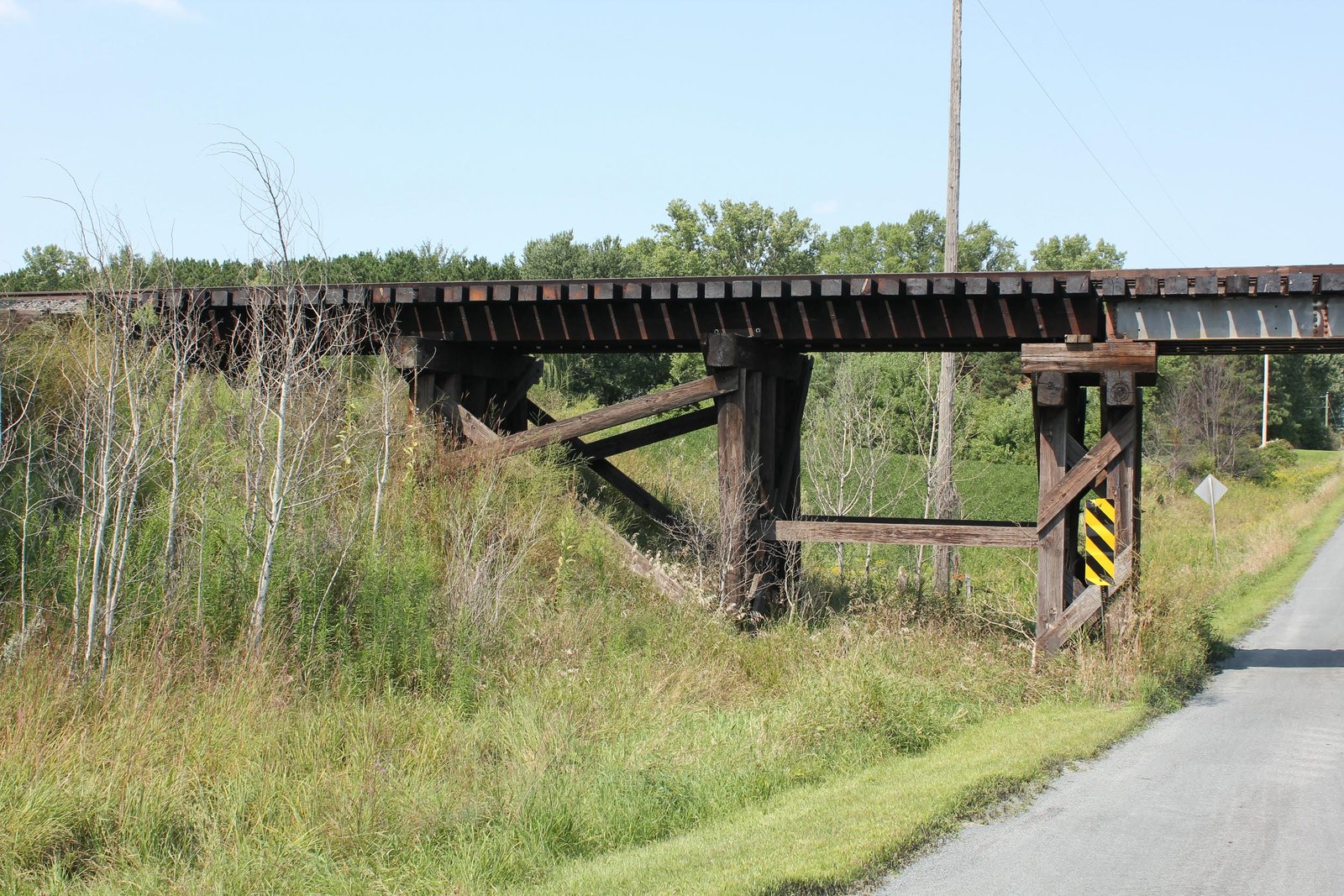

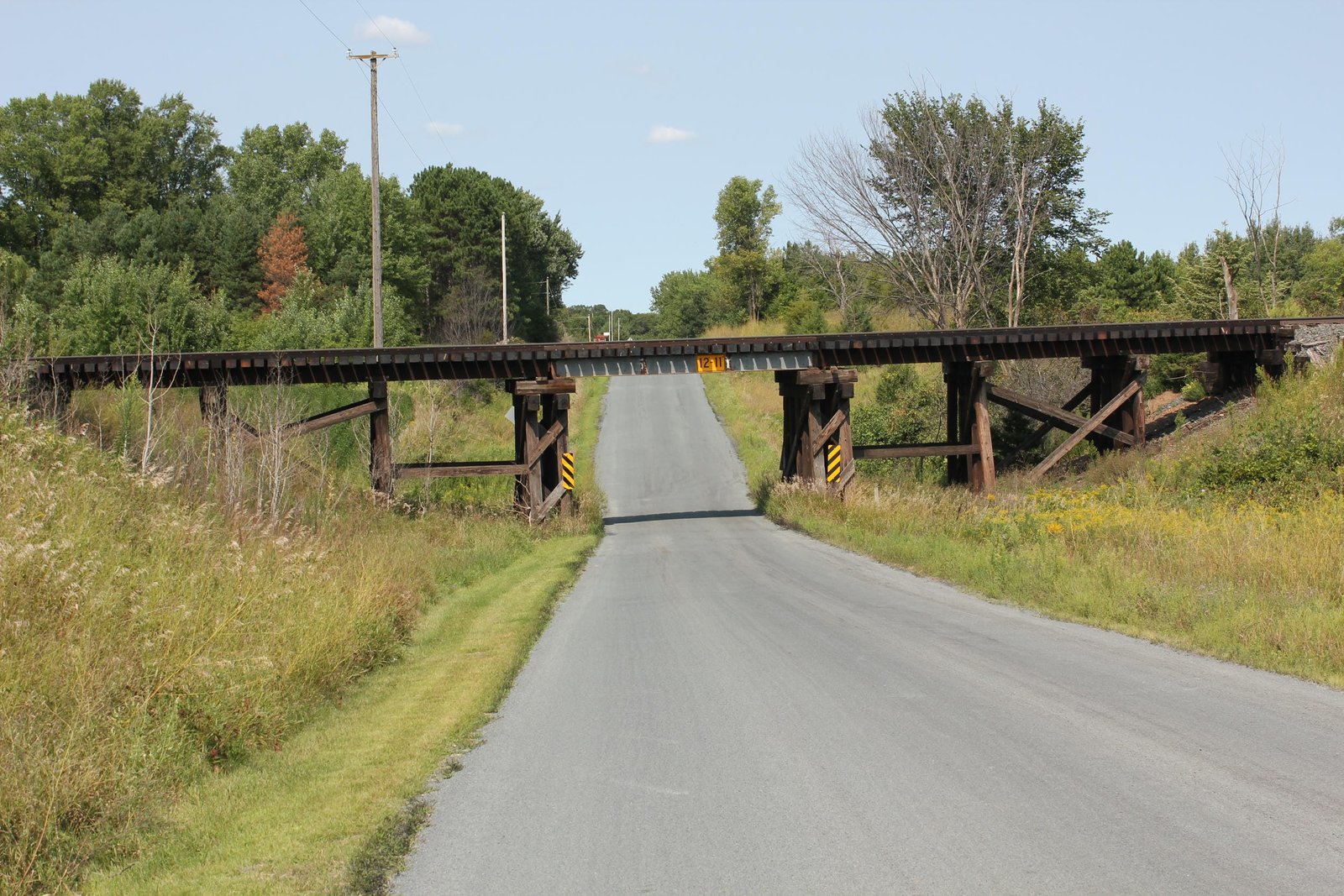

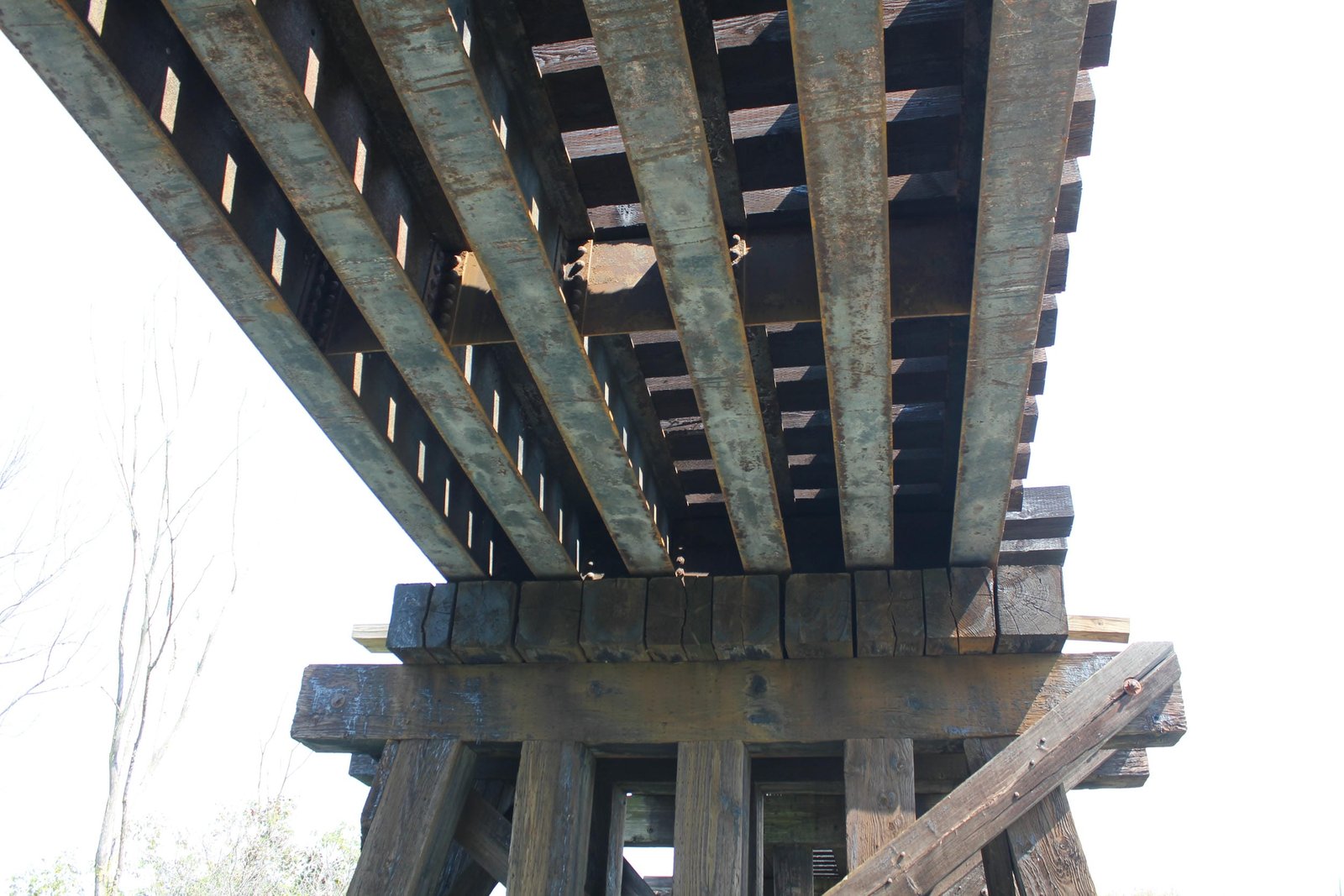

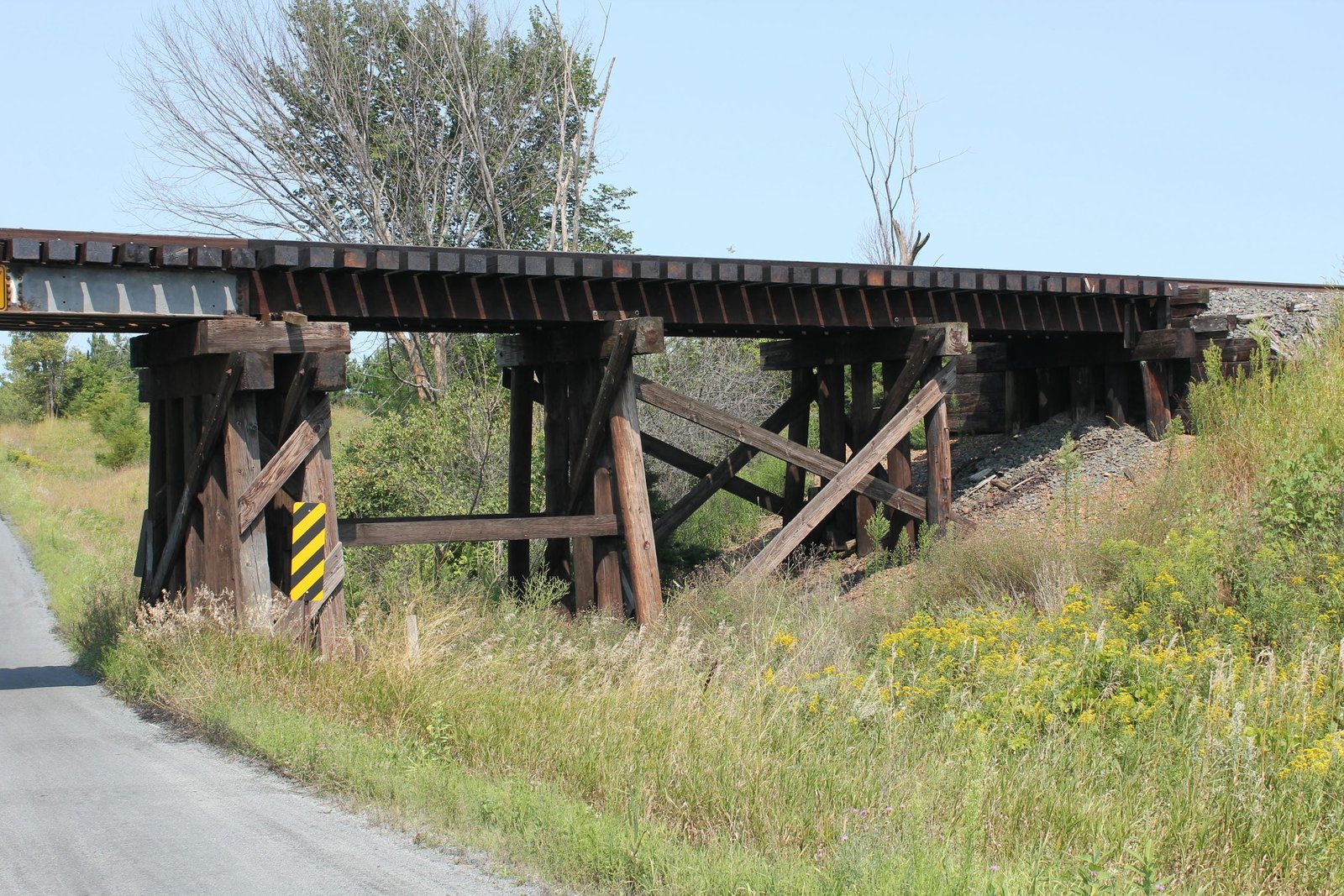

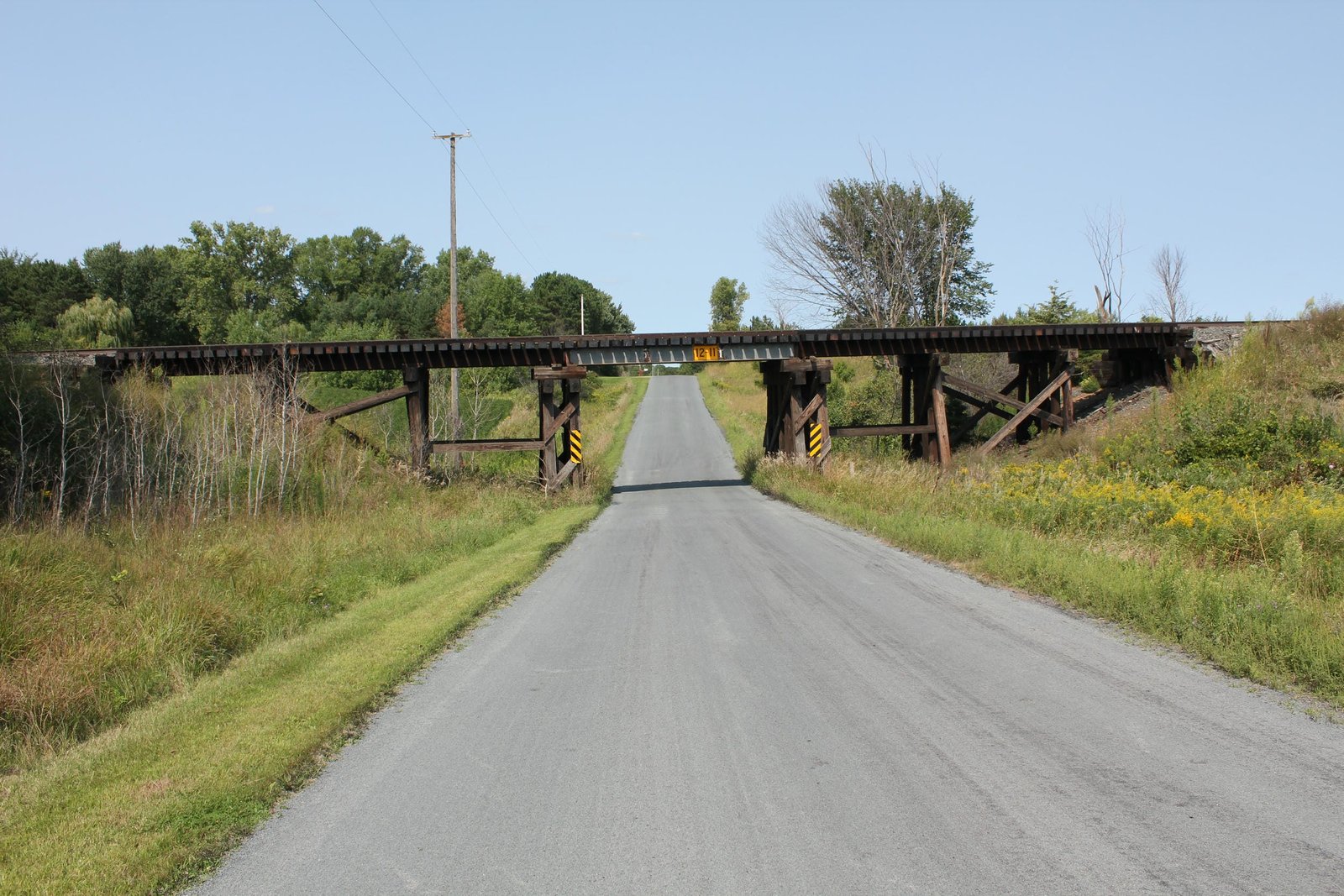

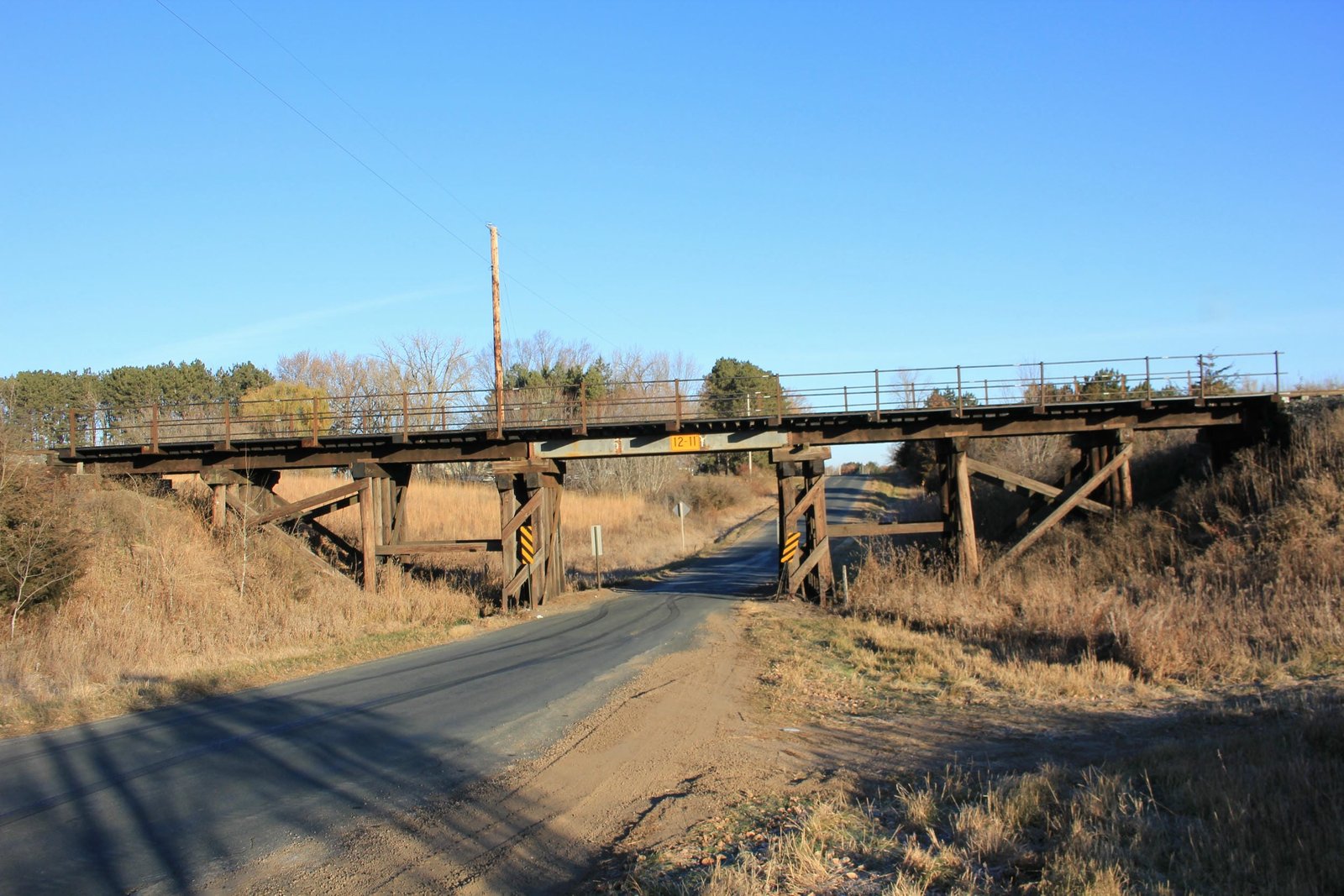

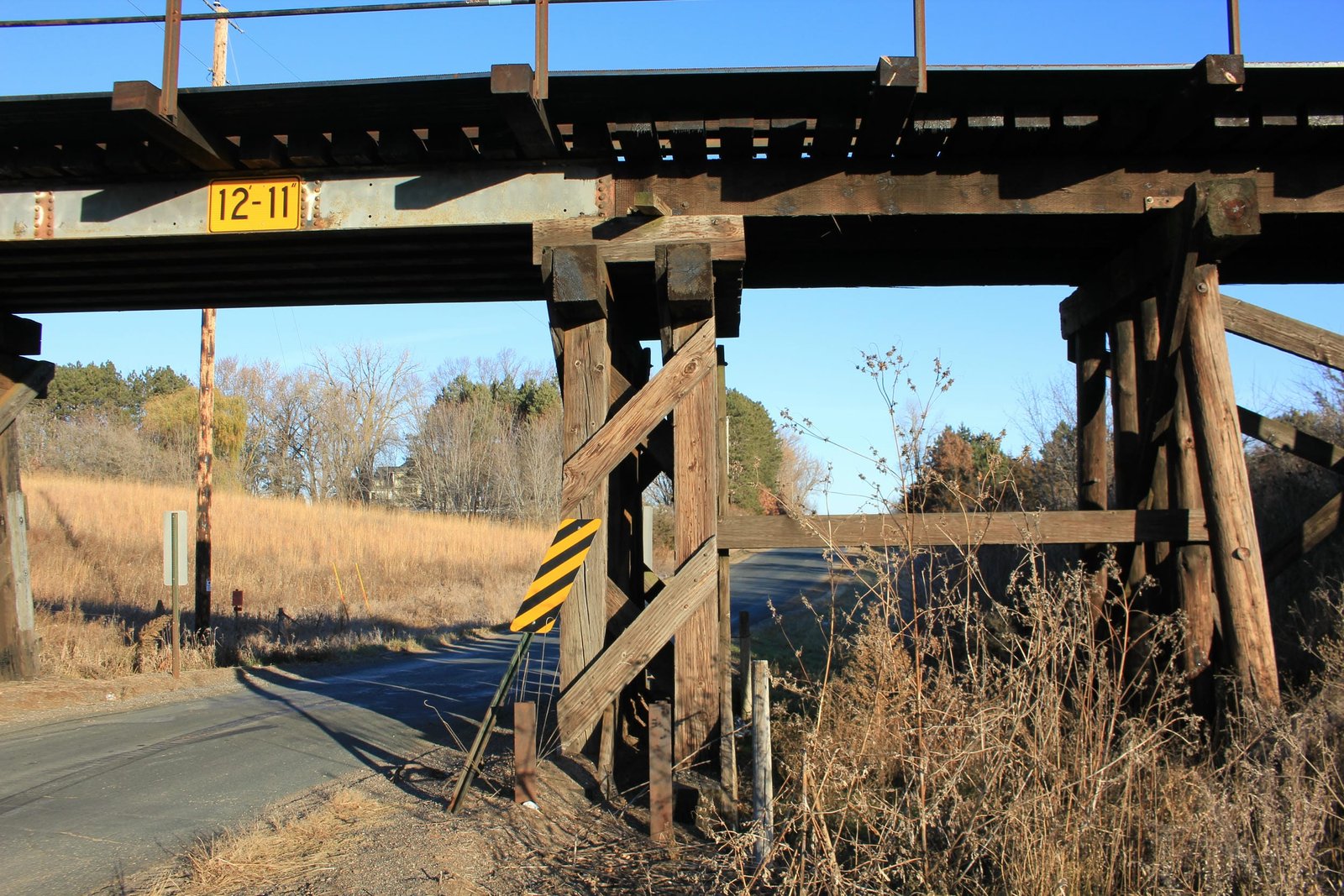

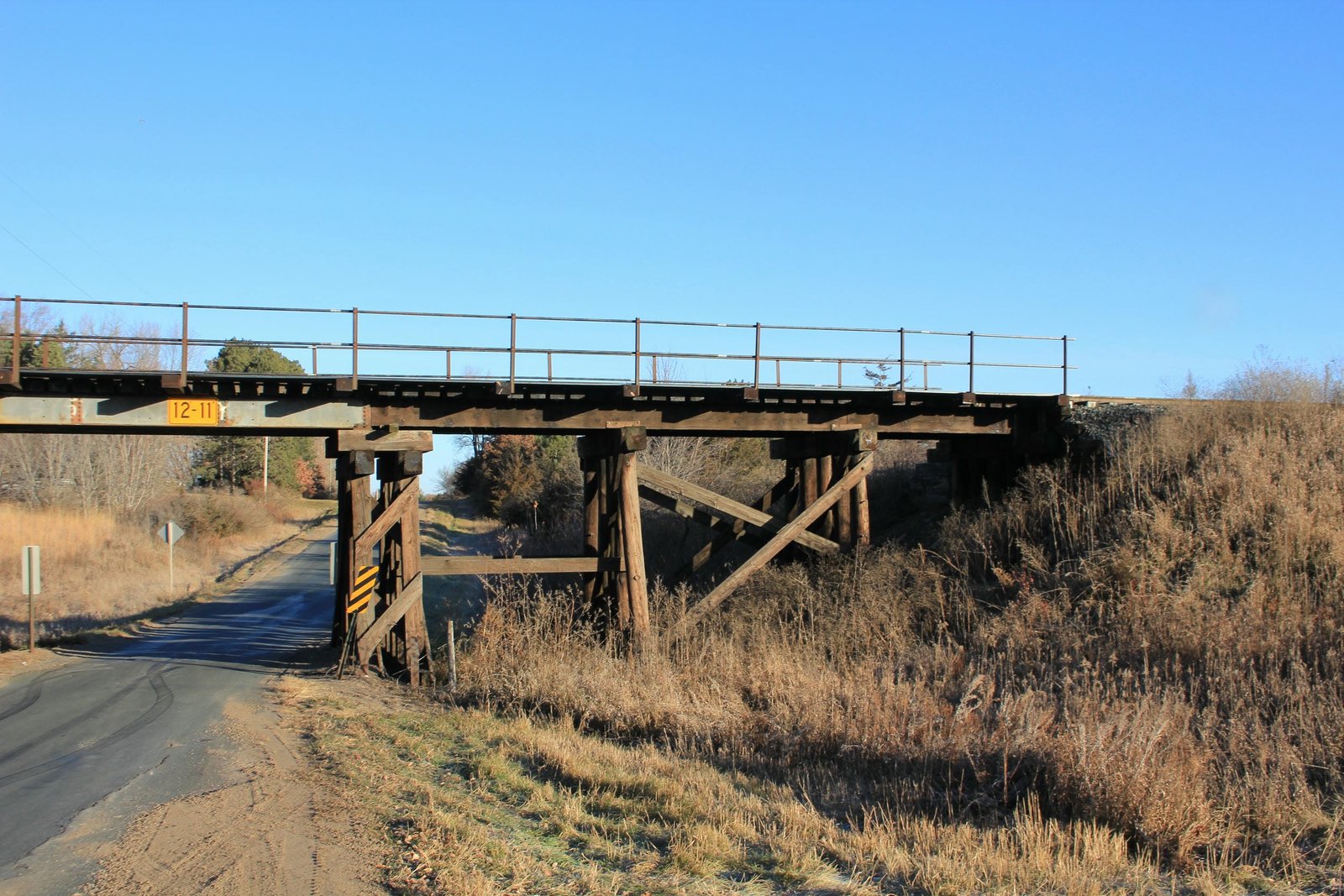

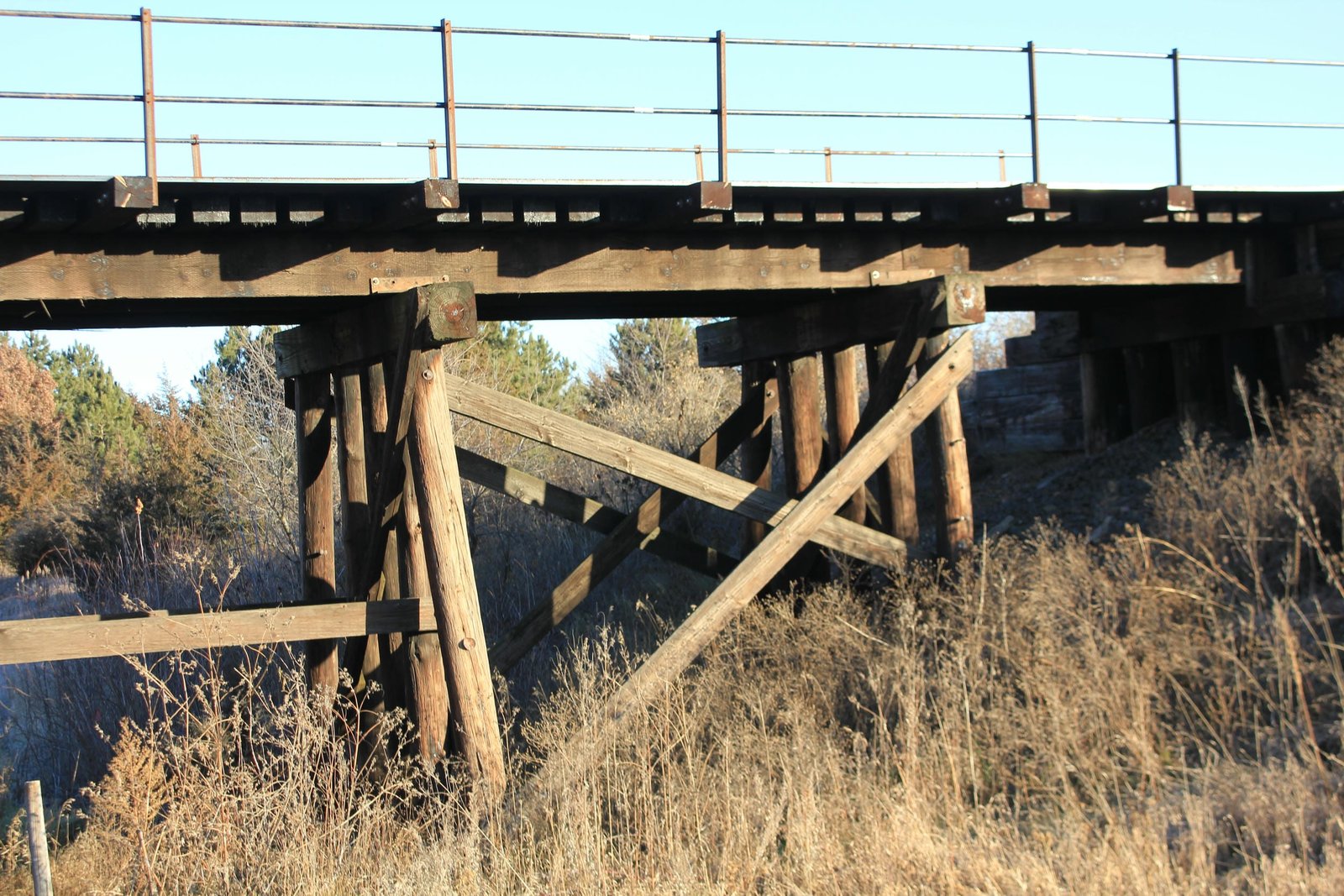

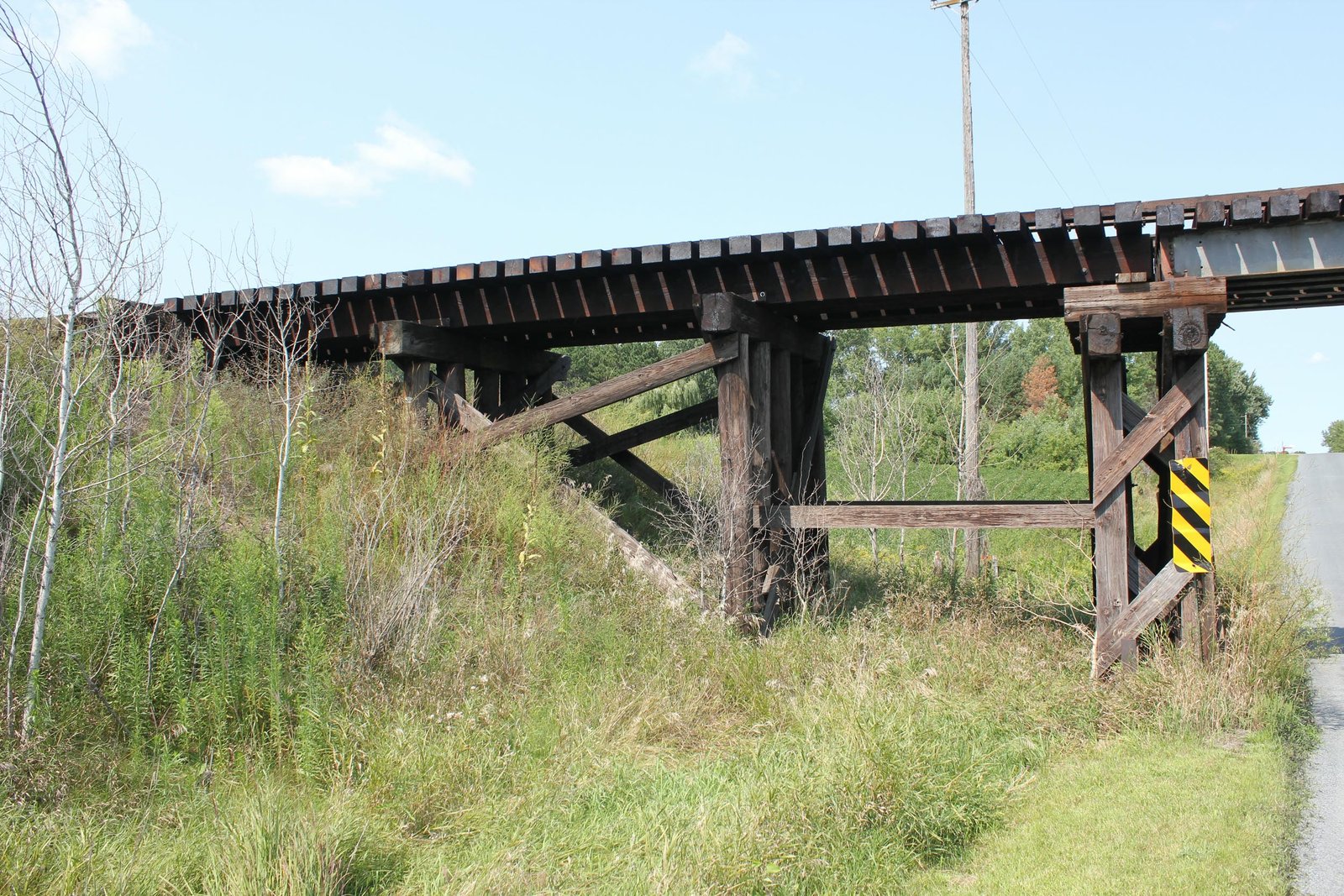

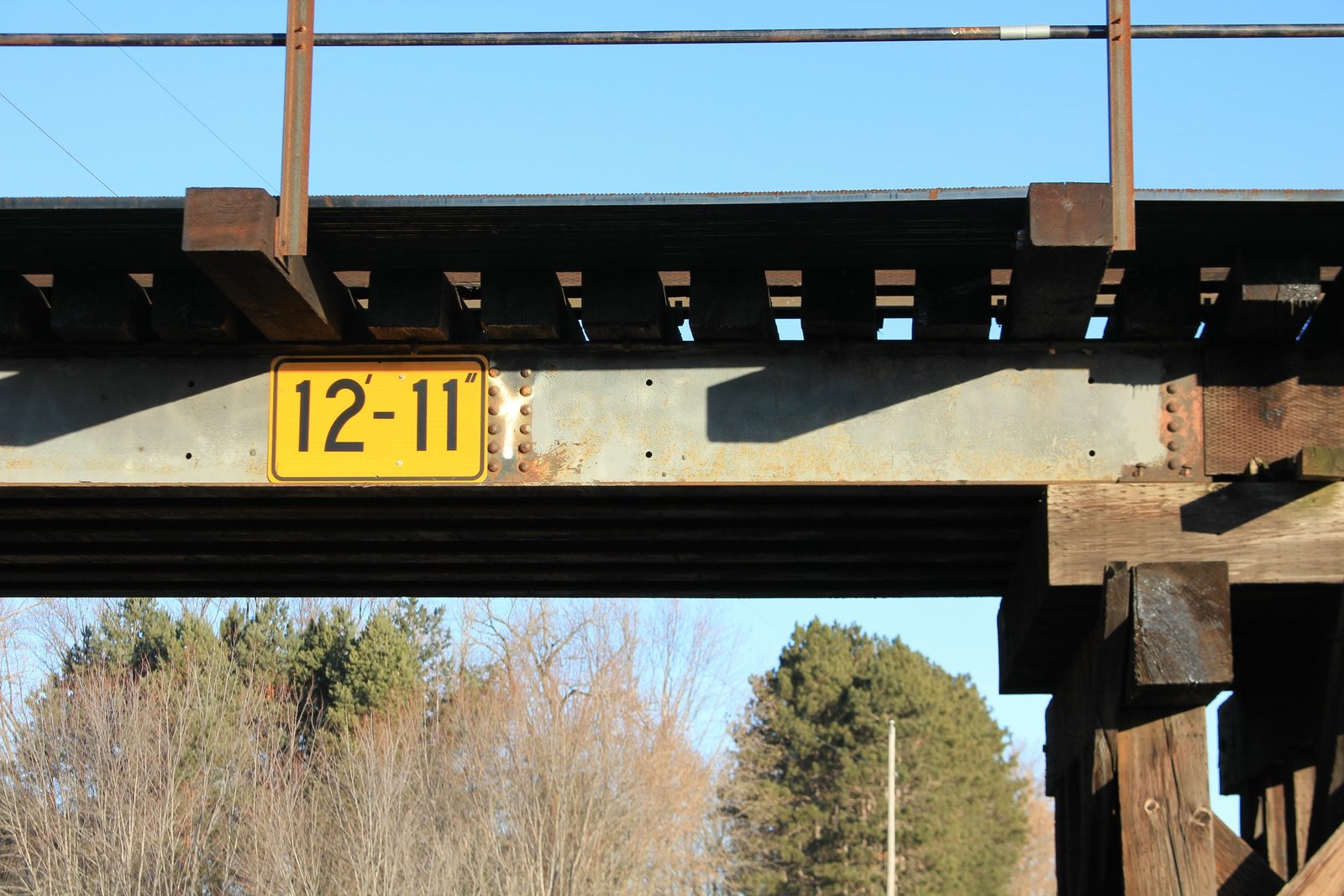

Located west of New Richmond, this standard steel stringer and timber pile trestle bridge carries the former Soo Line over 95th Street. Little is known about the history of this bridge. A previous bridge at this location was constructed exclusively of wood. It is believed that the current bridge was constructed in approximately 1950. The bridge consists of a 23-foot steel stringer span, set onto timber pile piers and approached by three timber pile trestle spans on either end. The main span of the bridge uses six beams, slightly more heavily constructed than similar Soo Line bridges. It is unknown what contractor fabricated the steel span, and it is likely that the bridge was erected by railroad company forces. Steel stringer and trestle bridges were exceptionally common along railroads throughout the United States, as they were cost effective and easy to construct. It is also unknown if this bridge was constructed using material from another location, as empty rivet holes in the center span are apparent. Overall, the bridge appears to be in fair condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
