Name IAIS Capitol Street Bridge
Chicago, Rock Island & Pacific Railroad Bridge #2370
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Iowa Interstate Railroad
Contractor Cedar Rapids Construction Company of Cedar Rapids, Iowa
Length 74 Feet Total
Width 2 Tracks
Height Above Ground 15 Feet (Estimated)
Superstructure Design Concrete Encased Beam
Substructure Design Concrete
Date Built 1925
Traffic Count 5 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 2370
Iowa Interstate Railroad Bridge Number 237.00
Significance Local Significance
Documentation Date 9/10/2017

In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed 55 miles of new railroad, extending from Davenport, Iowa to Iowa City, Iowa.  As part of the work, a wooden bridge was constructed across the Mississippi River, connecting Rock Island, Illinois and Davenport.  In 1862, the line was extended an additional 31 miles to Marengo, Iowa; followed by an additional 20 miles to Brooklyn, Iowa in 1863 and 26 miles to Kellogg, Iowa in 1864.  In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island), which constructed an additional 44 miles to Des Moines, Iowa in 1867.  In 1869, the line would continue to be extended west towards the Missouri River.  At Davenport, this line connected to an existing Rock Island line, which extended east to Chicago, Illinois.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.

In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.  Due to heavy traffic over this line, portions of the line between Davenport and West Liberty was double tracked in the late 1890s.  The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs, Iowa; including the Davenport to Des Moines section.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Iowa City Subdivision between Davenport and South Amana, as well as the Newton Subdivision between South Amana and Des Moines.

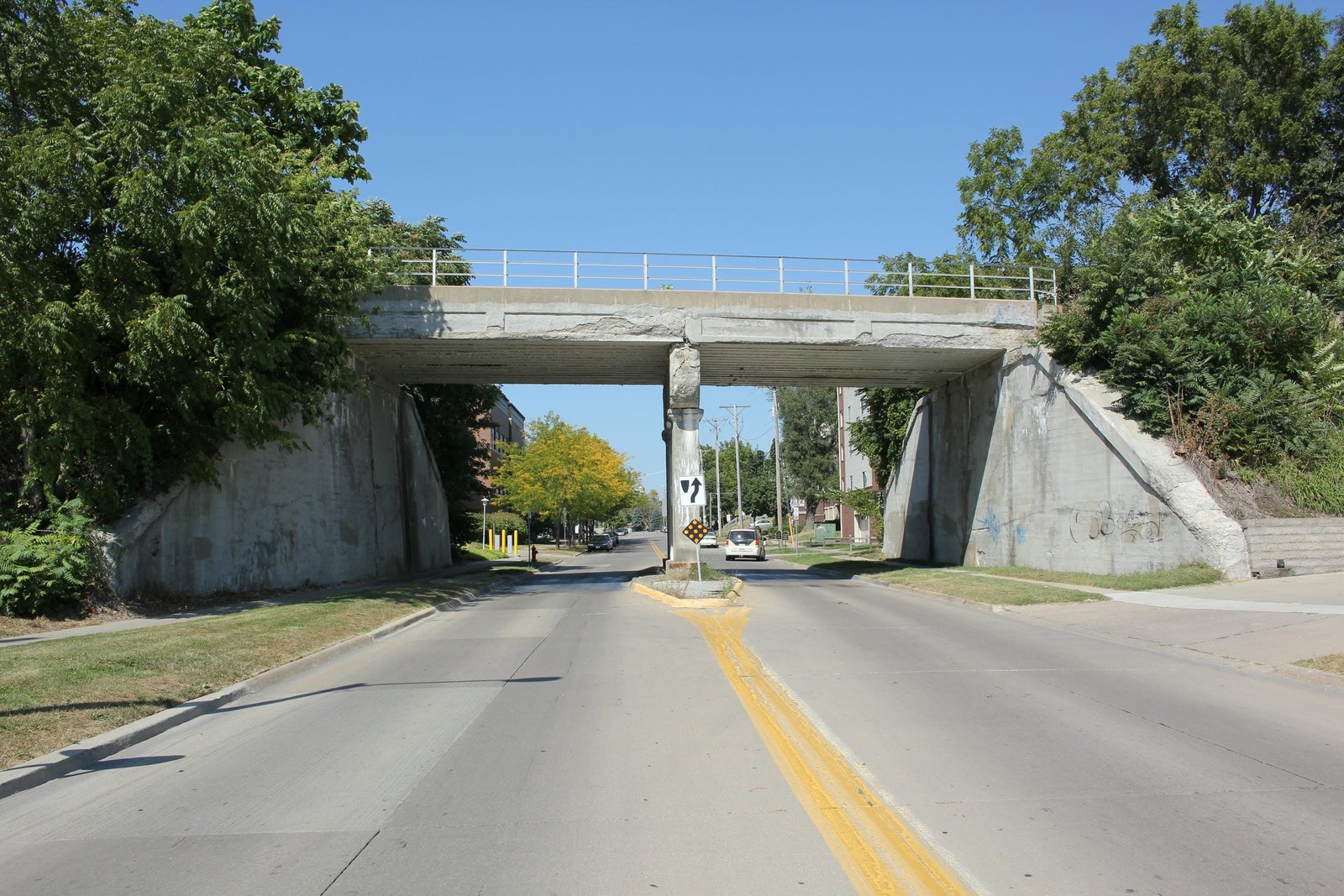

Located near downtown Iowa City, this concrete encased beam bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over Capitol Street. Originally, the Rock Island crossed through Iowa City on a lengthy large timber pile trestle and timber truss bridge, crossing city streets, Ralston Creek and the Iowa River. In 1869-70, the Rock Island began a series of improvements in Iowa City aimed at improving operations and filling the trestle with a permanent embankment and bridging. That year, a new stone arch was constructed over Ralston Creek, and a 74-foot timber deck truss bridge on stone abutments was constructed at Capitol Street. The bridge remained in this configuration until October 1881, when the wooden bridge was replaced with an iron deck plate girder span, reusing the original stone abutments. It is unclear if this bridge was upgraded in the first years of the 20th Century, when the Rock Island made another round of improvements in Iowa City. By the 1920s, the City had deemed the old bridge outdated and sought for the Rock Island to construct a new bridge. The railroad agreed in late 1924, and work on the replacement bridge occurred between May and November 1925. It is unclear if the previous metal span was reused at another location.

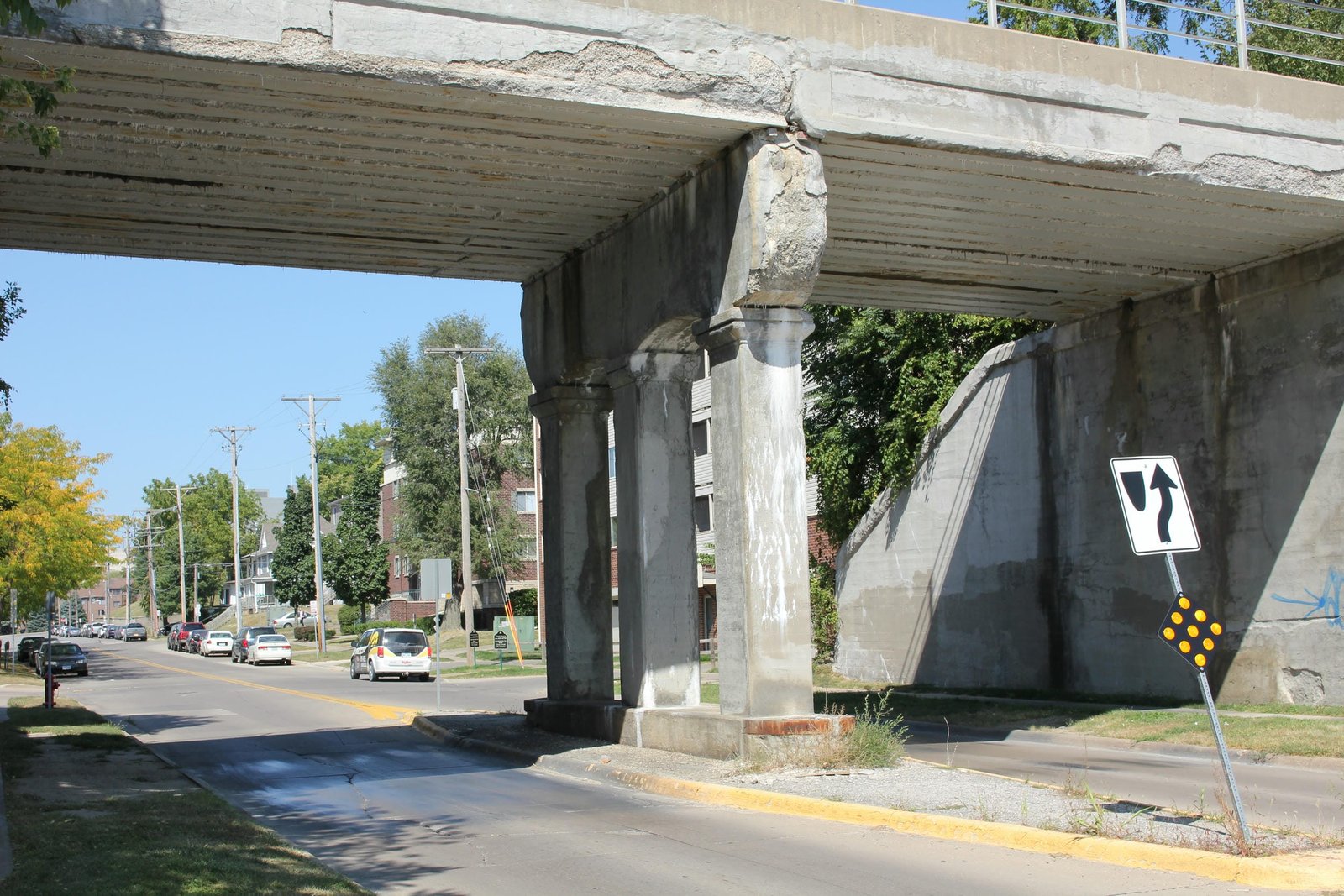

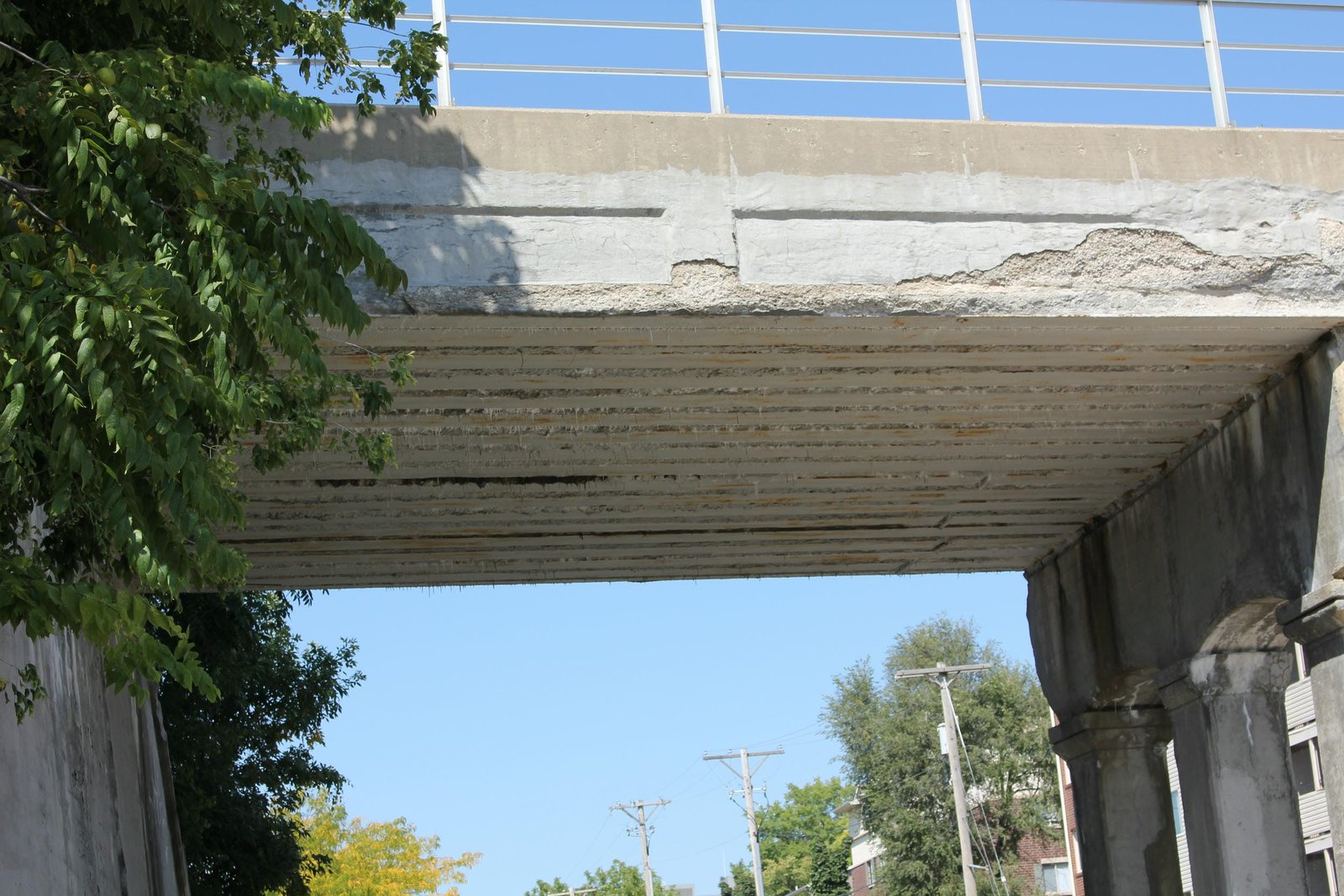

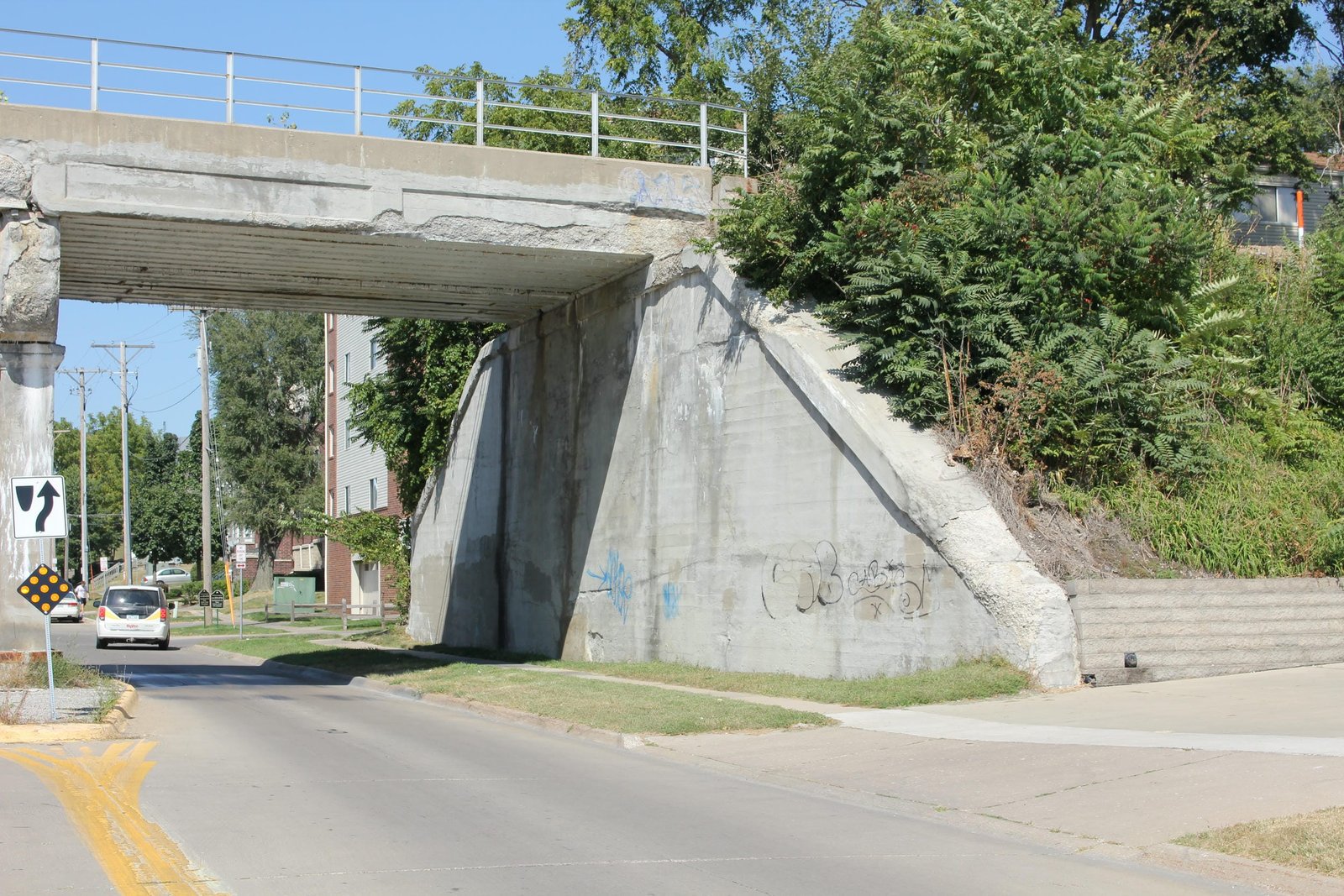

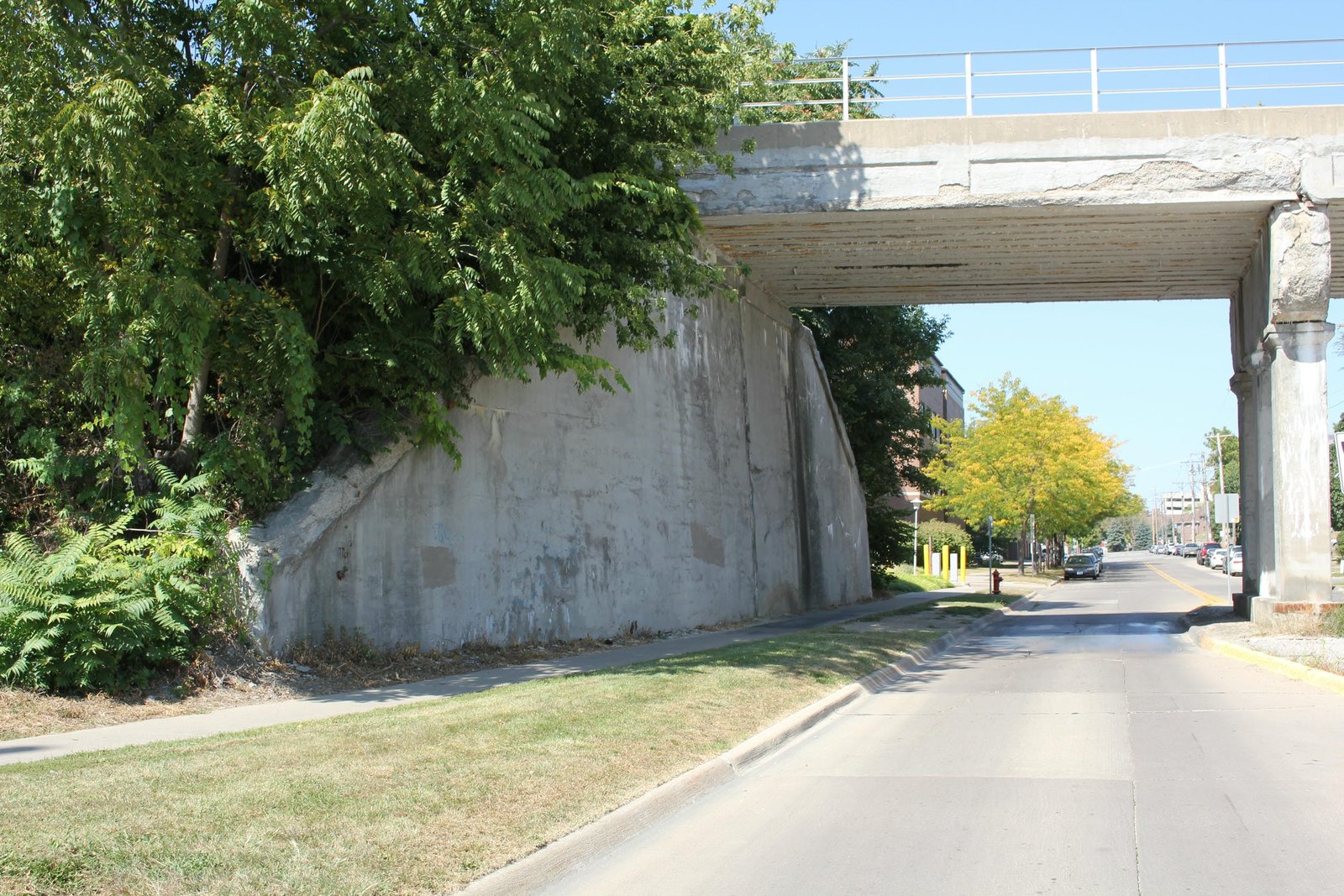

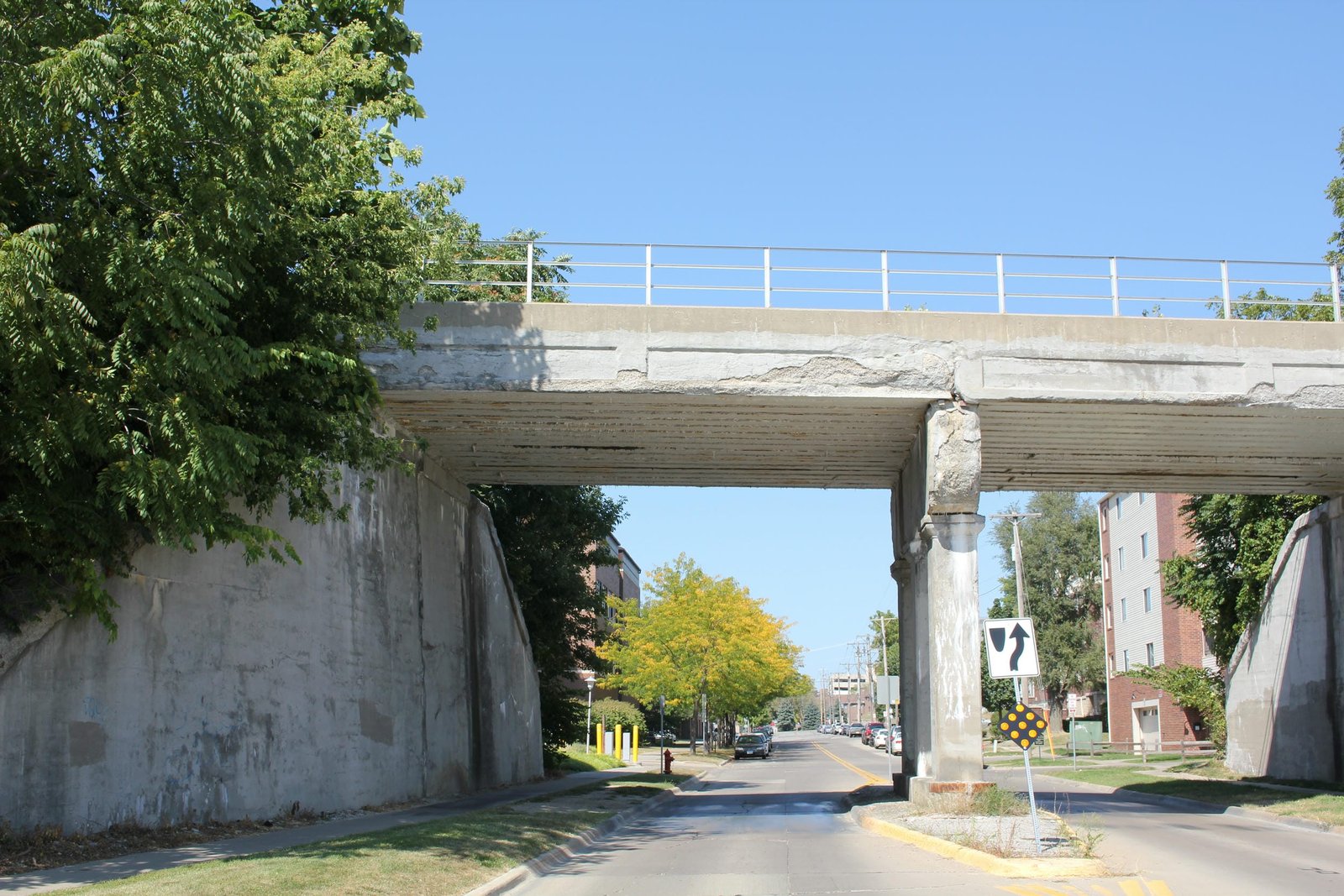

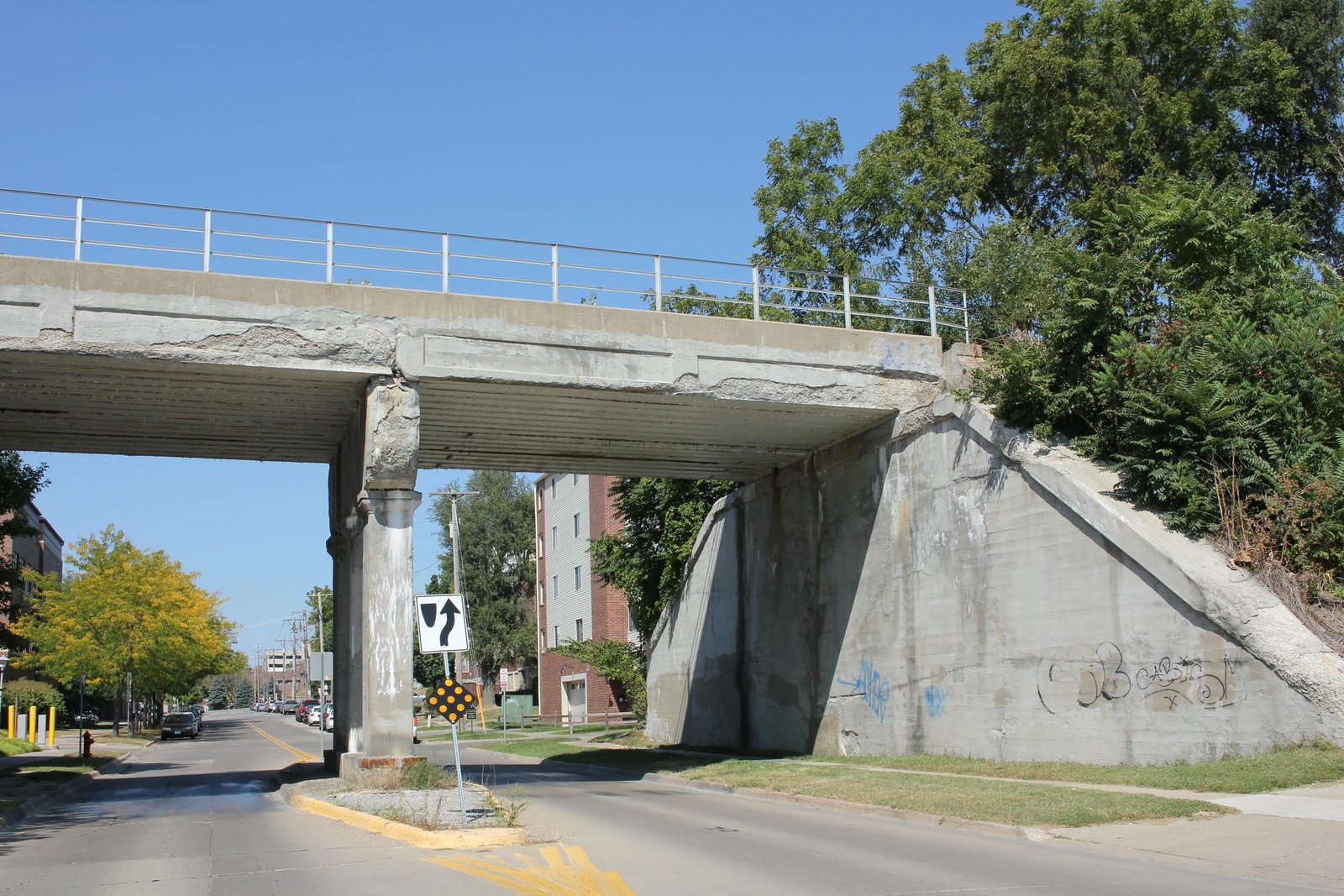

Currently, the bridge consists of two 37-foot concrete encased beam spans, constructed for two tracks and set onto concrete substructures. The superstructure follows a typical design for the era, with several parallel I-beams with cast-in-place concrete encasement. At the outsides of the superstructure, decorative paneling is present, typical of bridges from this era. The center pier uses a decorative design, consisting of three concrete columns connected by an arched concrete beam at the top. Both abutments use a standard design, with sloped wing walls extending parallel to the roadway below. It is believed that the bridge was constructed by the Cedar Rapids Construction Company, which the Rock Island worked with extensively during the first half of the 20th Century. Concrete encased beam spans became popular in the early 20th Century, as the design allowed for longer and more attractive spans than traditional reinforced slabs or steel girder spans. Typical of grade separations from this era, several elements of the bridge are decorative, which enhances the surrounding area. Since the initial construction, the bridge has seen no significant alterations. Today, the north track remains in use as part of an Iowa Interstate Railroad mainline. Overall, the bridge appears to be in fair condition, with some deterioration noted throughout the structure. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Builder and build date Iowa City Press-Citizen; July 14, 1925
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
