CN South Side Drive Bridge


Click the photo to view the full-size version

1/17
Date Taken:
Author:
Caption:

Name CN South Side Drive Bridge
Illinois Central Railroad Bridge #A-750.2
Built By Illinois Central Railroad
Currently Owned By Canadian National Railway
Superstructure Contractor Unknown
Substructure Contractor Unknown
Length 155 Feet Total, 52 Foot Largest Span
Width 1 Track
Height Above Ground 13 Feet 9 Inches
Superstructure Design Steel Stringer
Substructure Design Concrete
Date Built 1962
Traffic Count 5 Trains/Day (Estimated)
Current Status In Use
Illinois Central Railroad Bridge Number A-750.2
Canadian National Railway Bridge Number 750.2
Significance Minimal Significance
Documentation Date 10/21/2023

In 1851, the State of Illinois authorized the construction of a series of railroad lines, extending from Cairo, Illinois; located on the Ohio River, to the Mississippi River at East Dubuque, Illinois and to Chicago, Illinois.  The State awarded the Illinois Central Railroad with the land necessary to construct the new lines.  Surveys began in 1851, and the first segments were completed by 1853.  From East Dubuque, the railroad would run west through Galena to Freeport; turning south and crossing the Illinois River at La Salle.  The railroad then continued through Bloomington, Clinton, Decatur, Pana and Vandalia before reaching Centralia.  At Centralia, the railroad met the branch line to Chicago, before continuing south to Cairo.  The 341 miles of railroad from East Dubuque to Centralia would be completed in 1855, and the line would be completed to Cairo in 1856, providing the first main lines extending the length of Illinois.  The IC continued to build other railroad lines throughout Illinois, mainly stemming from this line.  By the 20th Century, the IC was a respected railroad, operating an extensive railroad network through the central United States.

During the late 20th Century, traffic on this line began to disappear.  In 1972, the IC merged with the Gulf, Mobile & Ohio Railroad (GM&O) to form the Illinois Central Gulf (ICG).  After the merger, this line became less important, as the GM&O had other parallel routes which were better built.  In 1981, the line would be abandoned between Junction City (Centralia) and Assumption.  In 1984, the line would be abandoned between Clinton and Maora, as well as between Heyworth and El Paso.  Further portions of the line were abandoned in 1986, when the segment between Freeport and El Paso was abandoned.  In 1985, the line from Freeport to East Dubuque was sold to the Chicago Central & Pacific Railroad (CC&P).  In 1988, the ICG was reorganized as the Illinois Central Railroad (IC).  In 1990, the segment between Decatur and Maora would be abandoned, and in 1993 the segment between Decatur and Assumption was sold to the Decatur Junction Railway (DT).  In 1998, IC was purchased by the Canadian National Railway (CN).  Today, much of the route is abandoned.  CN operates a segment between Clinton and Heyworth and a small section in Decatur.  DT continues to operate the line between Decatur and Assumption.  In La Salle, a cement plant continues to own a short segment of railroad and the bridge across the Illinois River.

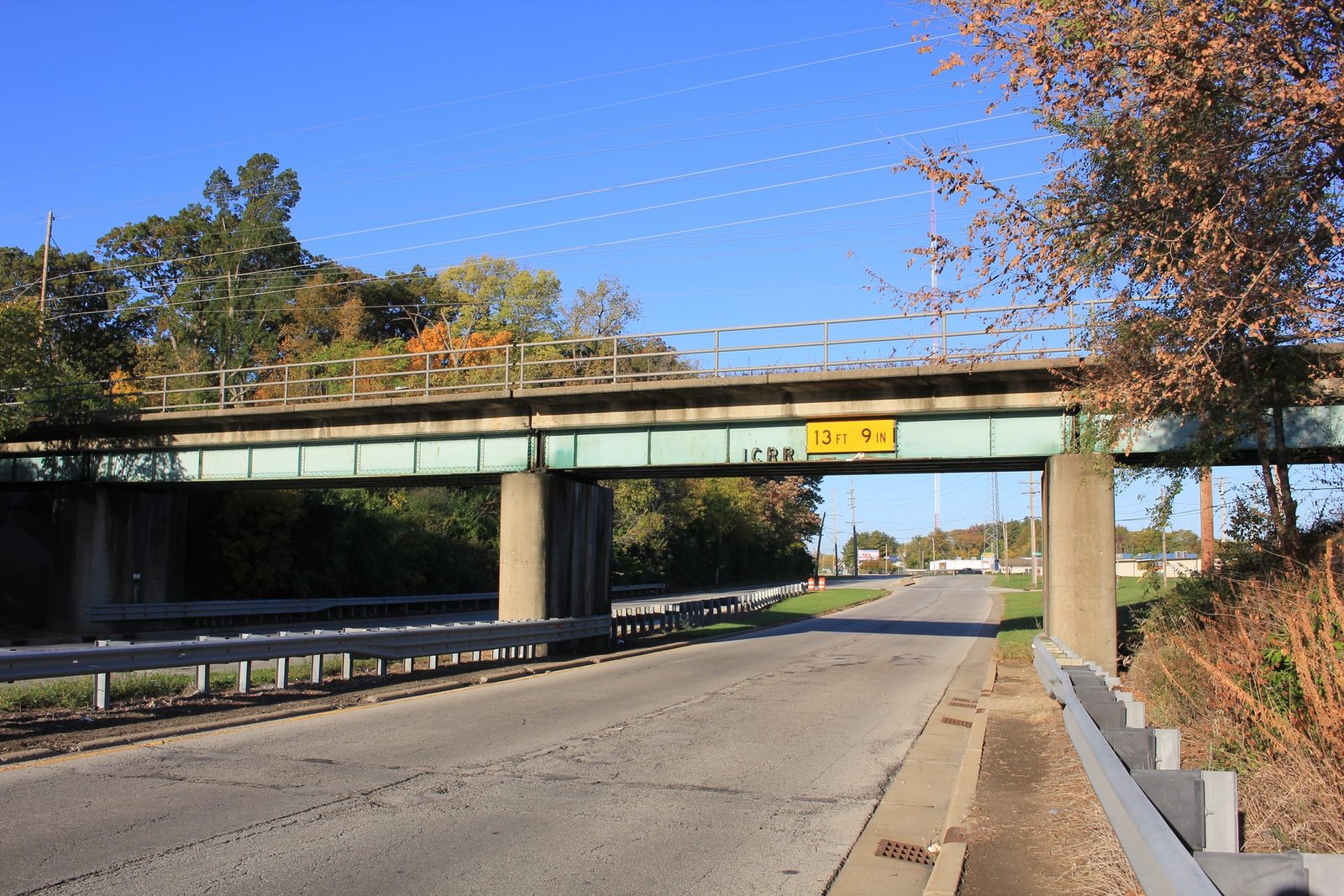

Located on the south side of Decatur, this steel stringer bridge carries the former Illinois Central Railroad over Illinois Route 105 (South Side Drive). During the mid-20th Century, a number of improvements to roadways were constructed throughout Decatur, including the construction of a number of grade separations. Built in 1962, the bridge consists of a 52-foot, a 39-foot, a 33-foot and a 30-foot steel stringer span, set onto concrete substructures. The 52-foot span over the eastbound roadway lanes uses a design visually similar to a deck plate girder, with additional rivets throughout the span. The remaining spans use a typical steel stringer design, which follows a standard design for the era. In addition, the bridge has other features which were standard to Illinois Highway Department grade separations from the era, including the shape of the piers and use of a ballast deck. This type of bridge was popular for grade separations, as it was durable, cost effective and easy to construct. Since the initial construction, the only significant modification to the bridge is a new coat of paint, which was applied in 1987. Overall, the bridge appears to be in good condition, with no significant deterioration noted. The author has ranked this bridge as being minimally significant, due to the newer age and common design.


Citations

Build date National Bridge Inventory (NBI)
Builder (substructure) The Decatur Daily Review; January 27, 1962
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
