Name Abandoned 67th Drive Bridge
Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge #E-38
Built By Chicago, Milwaukee, St. Paul & Pacific Railroad
Currently Owned By Wisconsin Department of Natural Resources
Superstructure Contractor Unknown (Center Span)
Unknown (Approach Spans
Substructure Contractor Unknown
Length 105 Feet Total, 35 Foot Spans
Width 1 Track
Height Above Ground 11 Feet 8 Inches
Superstructure Design Steel Stringer
Substructure Design Concrete and Timber Pile
Date Built 1947, Using Spans Fabricated c. 1910
Original Location Unknown (Center Span)
Unknown (Approach Spans
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned
Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge Number E-38
Significance Local Significance
Documentation Date 10/7/2023

In 1855, the Racine and Mississippi Rail Road (R&MRR) constructed 69 miles of new railroad, extending from Lake Michigan at Racine, Wisconsin; to Beloit, Wisconsin.  The railroad would be reorganized as the Racine and Mississippi Railroad (R&M) in 1856.  In 1857, the R&M completed an additional 35 miles of railroad to Freeport, Illinois.  Between 1861 and 1865, the Northern Illinois Railroad (NIR) completed an additional 76 miles between Freeport and Port Byron, Illinois, running through Savanna, Illinois. In 1862, the Warsaw, Rock Island and Galena Railroad (WRI&G) constructed an additional 9 miles from Port Byron to Rock Island, Illinois.  The NIR became part of the Western Union Rail Road (WURR) in 1866, the R&M was consolidated into the WURR in 1868 and the WRI&G was consolidated in 1872.  In 1879, the railroad would be leased by the Chicago, Milwaukee & St. Paul Railway, known as the Milwaukee Road.  The railroad would be purchased outright by the Milwaukee Road in 1900.  The railroad connected to the Davenport, Rock Island & North Eastern Railway (DRI&NW) at East Moline.

The Milwaukee Road had become a prominent railroad in the United States, operating a network of railroad lines primarily in the Midwest.  The railroad sought for a shortened route for traffic going between Chicago and Kansas City.  In addition to constructing a new line in Iowa, the Milwaukee Road built a cutoff between Ashdale Junction and Ebners in 1902.  This line allowed trains to bypass the steep grades and congested conditions at Savanna.  The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928.  During the 20th Century, this line served as a secondary connecting line between the Quad Cities and mainline to Kansas City with Lake Michigan.  The Ashdale Cutoff would be abandoned in 1952.  Throughout the 20th Century, conditions on the Milwaukee Road continued to deteriorate.  The railroad entered bankruptcy in 1977, and was forced to liquidate  unprofitable lines.  Much of the Rockton to Kittredge line was abandoned in 1980, as well as the line from Savanna to Albany.  In 1980, the segment from Beloit to Clinton, Wisconsin was sold to the Chicago & North Western Railway (C&NW); and the segment from Allens Grove to Elkhorn was sold to the Wisconsin Southern Railroad (WSOR).

By 1985, a suitor for the Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986.  In 1995, the segment from East Moline to Cordova was acquired Burlington Northern Railroad (BN) when the DRI&NW was dissolved.   C&NW was merged into Union Pacific Railroad (UP) in 1995, and BN was merged with Atchison, Topeka & Santa Fe Railway in 1996 to form BNSF Railway.   In 1997, CP would sell the portion of this line between Savanna and Kittredge to I&M Rail Link, which was purchased by the Dakota, Minnesota & Eastern Railroad (DM&E) subsidiary Iowa, Chicago & Eastern Railroad (IC&E). Portions of the route between Albany and Cordova would be abandoned in 2006.  The DM&E/IC&E were purchased by Canadian Pacific in 2008.  CP merged with Kansas City Southern Railway in 2023 to form CPKC.

Today, much of the line is abandoned, but some portions remain in service.  Between Rock Island and Cordova, BNSF Railway continues to operate the line as the Nitrin Subdivision.  Between Savanna and Kittredge, the line is operated as part of the larger CPKC Chicago Subdivision.  UP operates the State Line Industrial Lead between Beloit and Clinton; and Wisconsin & Southern continues to operate the Elkhorn Branch.  Between Elkhorn and Kansasville, the White River State Trail now uses the railroad grade.  Some industrial trackage in Burlington is still in use.  Between Sturtevant and Kansasville, the railroad is operated by CPKC as an industrial lead.

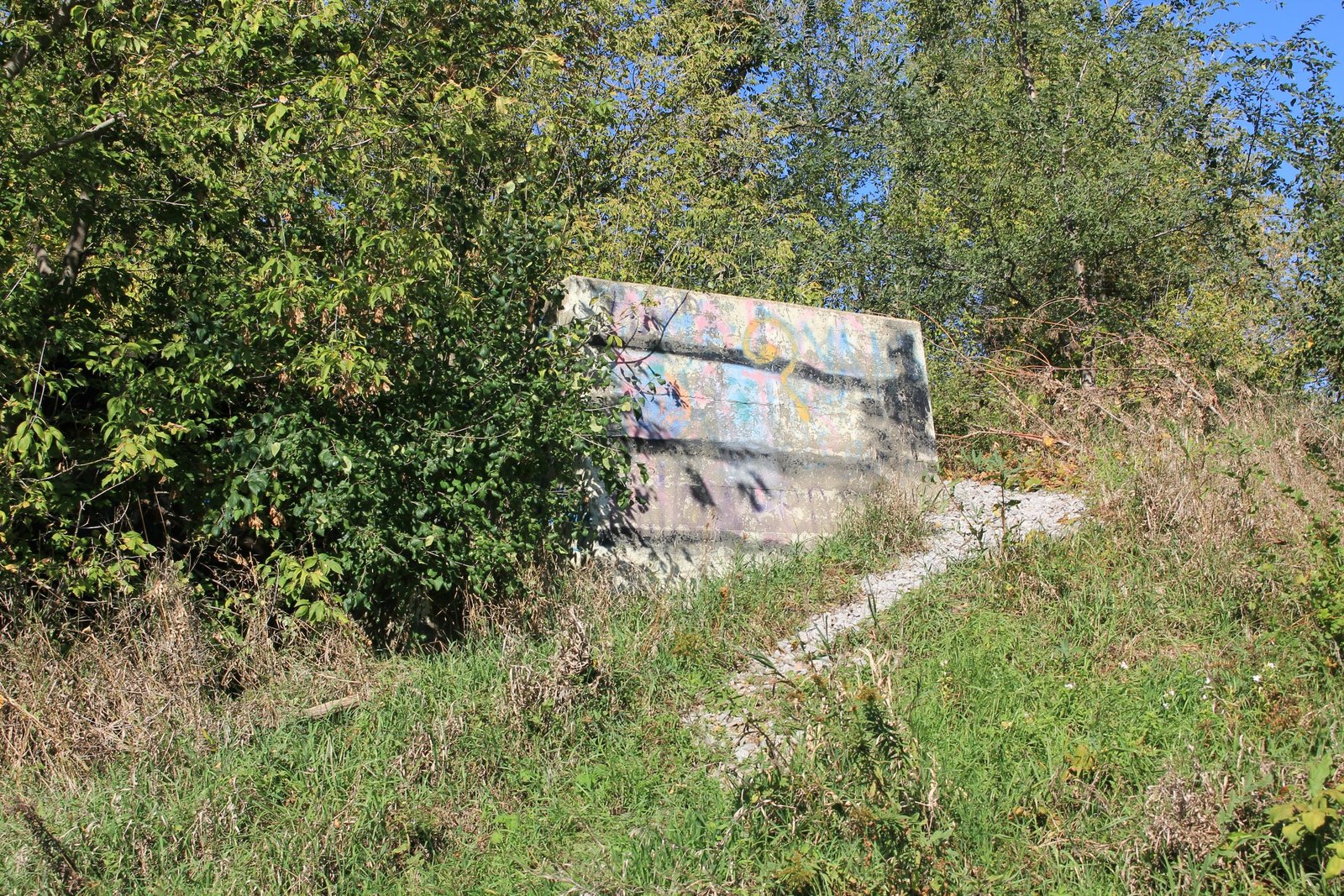

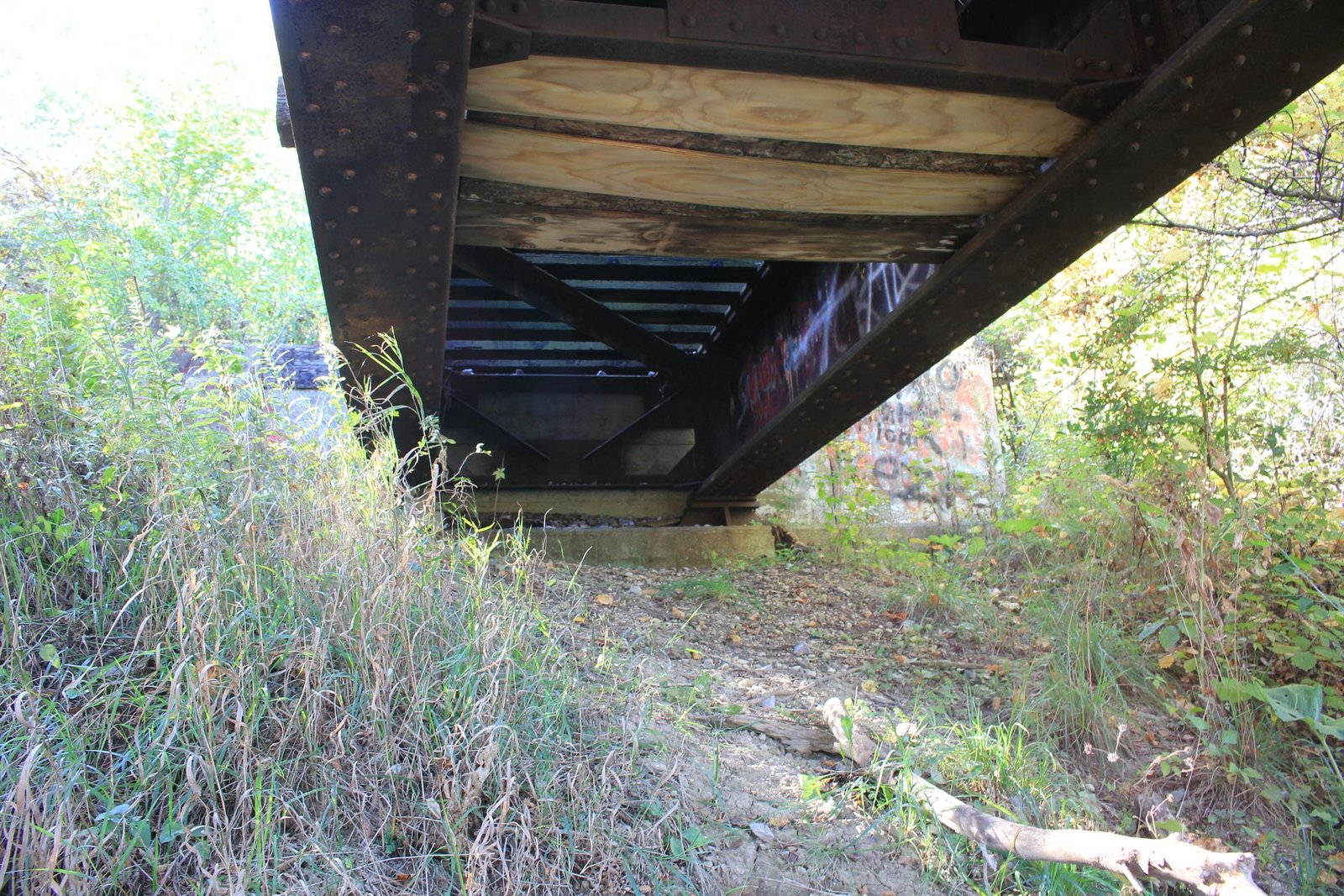

Located east of Union Grove, this steel stringer bridge carries a former Chicago, Milwaukee, St. Paul & Pacific Railroad line over 67th Drive. The first bridge at this location was a timber pile trestle bridge, constructed when the line was first built. In 1947, the bridge would be replaced by the present steel stringer bridge. Currently, the bridge consists of three steel stringer spans, set onto concrete abutments and timber pile piers which are capped with concrete. It is believed that all three spans were reused from other unknown location(s), and were likely fabricated in approximately 1910. The center span uses four shallow beams, which are equally spaced. The approach spans use two beams, which function similar to deck plate girders. The bracing of these spans uses an "X" shape, also similar to deck plate girder spans. Unknown contractor(s) fabricated the superstructure, and it is unknown if the substructure was constructed by an unknown contractor or by railroad company forces. Railroads often reused steel and iron spans, as it provided a cost effective way to upgrade branch line bridges. Steel stringer spans were popular for railroad use, as they were durable and easy to construct. Since the 1947 construction, the bridge has seen few significant alterations. Currently, the bridge is abandoned with the rails removed, and may be reused as a trail in the future. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design and unknown history.


Citations

Build date Milwaukee Road Bridge Index, located at the Milwaukee Road Archives at the Milwaukee Public Library
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
