Name WSOR Parker Drive Bridge
Chicago, Milwaukee & St. Paul Railway Bridge #F-14
Built By Chicago, Milwaukee & St. Paul Railway
Chicago & North Western Railway
Currently Owned By State of Wisconsin (Operated by Wisconsin & Southern Railroad)
Superstructure Contractor American Bridge Company of New York
Substructure Contractor Jutton-Kelly Company of Milwaukee, Wisconsin
Length 100 Feet Total
Width 2 Tracks, 1 In Use
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1941
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
Chicago, Milwaukee & St. Paul Railway Bridge Number F-14
Chicago & North Western Railway Bridge Number 145
Significance Local Significance
Documentation Date 3/20/2022

In 1853, the Southern Wisconsin Rail Road completed an 8 mile spur from an existing railroad at Milton Junction, Wisconsin to Janesville, Wisconsin.  In 1856, the railroad would be acquired by the Milwaukee & Mississippi Rail Road (M&M), which owned the existing mainline at Milton Junction.  At the same time, the Mineral Point Railroad (MPR) constructed 17 miles of new railroad between Warren, Illinois and Darlington, Wisconsin.  In 1857, the M&M completed an additional 34 miles of railroad to Monroe, Wisconsin.  In addition, the MPR completed an additional 15 miles north to Mineral Point, Wisconsin.  The M&M was acquired by the Milwaukee and Prairie du Chien Railway (M&PdC) in 1861, which was sold to the Milwaukee & St. Paul Railway (M&StP) in 1867.  In 1874, the M&StP changed its name to the Chicago, Milwaukee & St. Paul Railway (Milwaukee Road).  In 1880, the MPR was acquired by the Milwaukee Road, and the following year an additional 22 miles would be constructed to connect Monroe to Gratoit.

This line served as a secondary route for the Milwaukee Road, mainly providing access to valuable metal deposits in southwest Wisconsin.  The route also allowed for the construction of numerous branch lines, including branches to Shullsburg, Wisconsin and Platteville, Wisconsin.  By the 20th Century, the Milwaukee Road had become a prominent railroad in the United States, operating an expansive network of railroad lines, primarily in the Midwest.  The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. The branch between Gratoit and Warren was abandoned in 1923.  In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928. Throughout the 20th Century, conditions on the Milwaukee Road continued to deteriorate.  This line began to fall into disrepair, and was downgraded to a branch line.

The railroad again entered bankruptcy in 1977, and was forced to liquidate unprofitable lines.  By the late 1970s, much of the railroad was extremely overgrown, and the tracks in very poor condition. In 1980, the entire branch was sold to the State of Wisconsin, which leased it to the Chicago, Madison and Northern Railway (CM&N) that year. The CM&N was short lived, and became part of the Central Wisconsin Railroad in 1982, which became part of the Wisconsin & Calumet Railroad (WICT) in 1985.  The same year, the entire branch west of Monroe was abandoned and turned into a trail.  In 1993, the WICT was acquired by the Wisconsin Southern Railroad, and was formally merged in 1997.  Since WSOR began operations of the line, significant upgrades have been made to the line, significantly improving service.  Today, WSOR continues to operate the Milton Junction to Janesville segment as part of the Madison Subdivision and the Janesville to Monroe segment as the Monroe Subdivision.  The Cheese Country Trail currently uses the right-of-way between Monroe and Mineral Point.

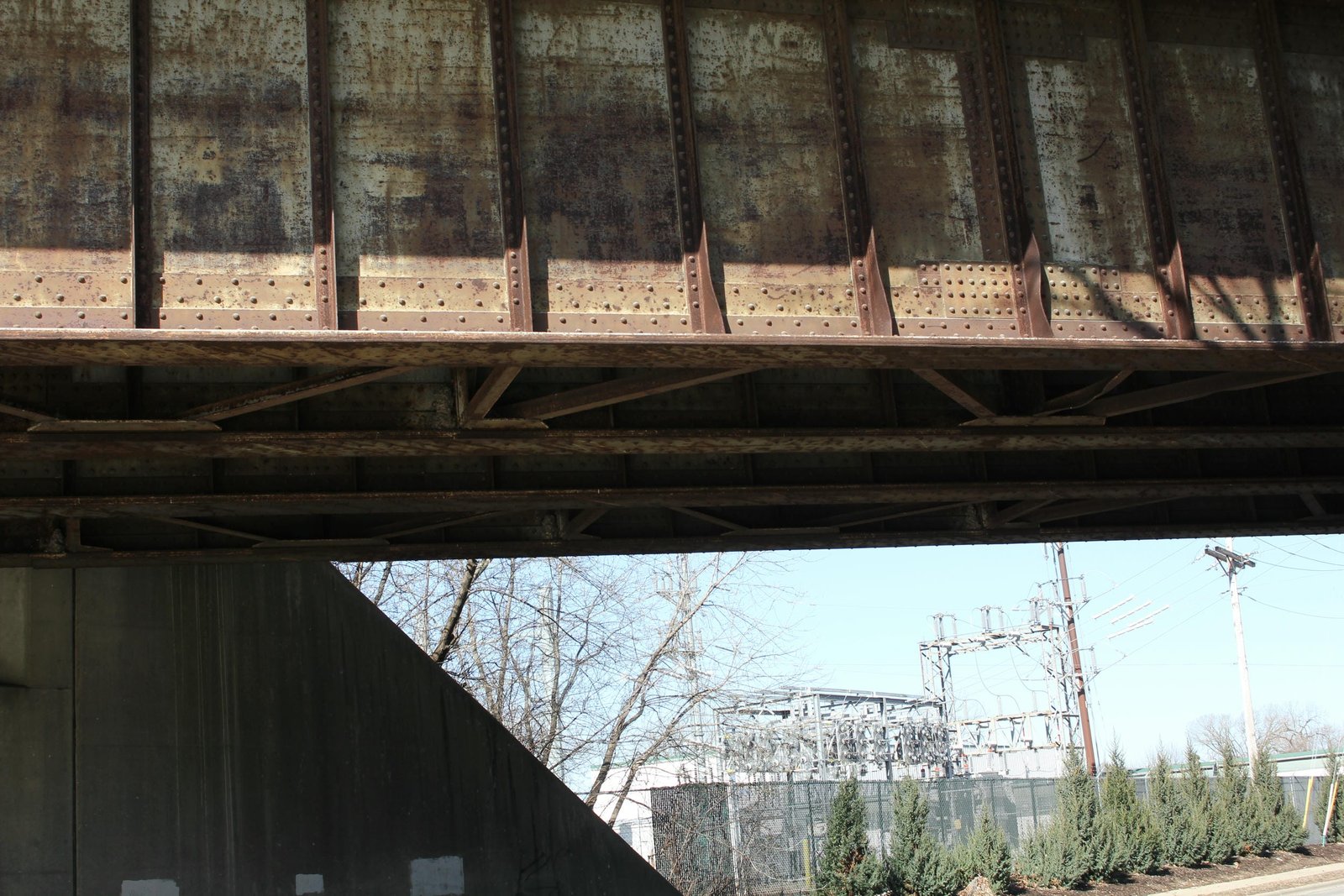

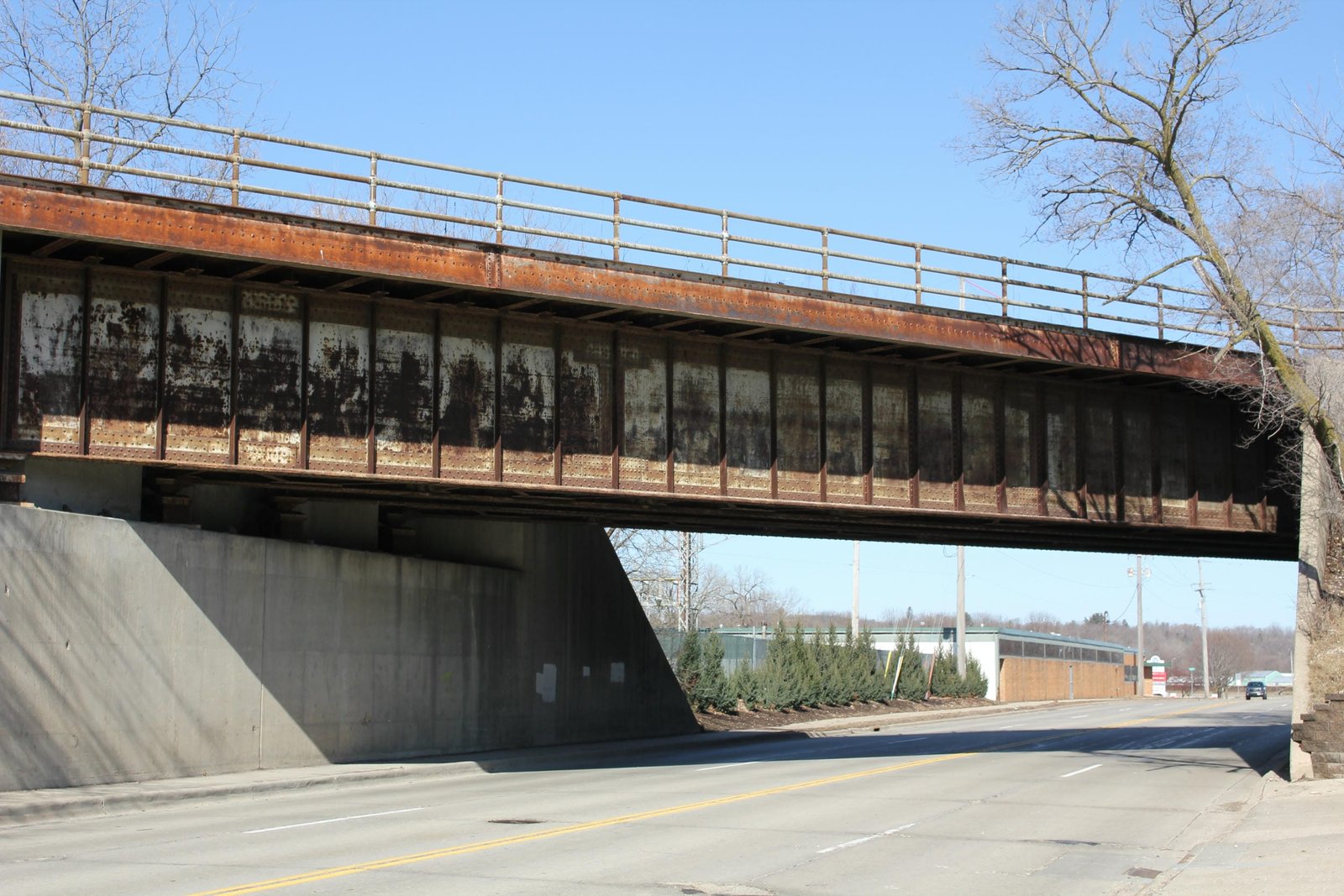

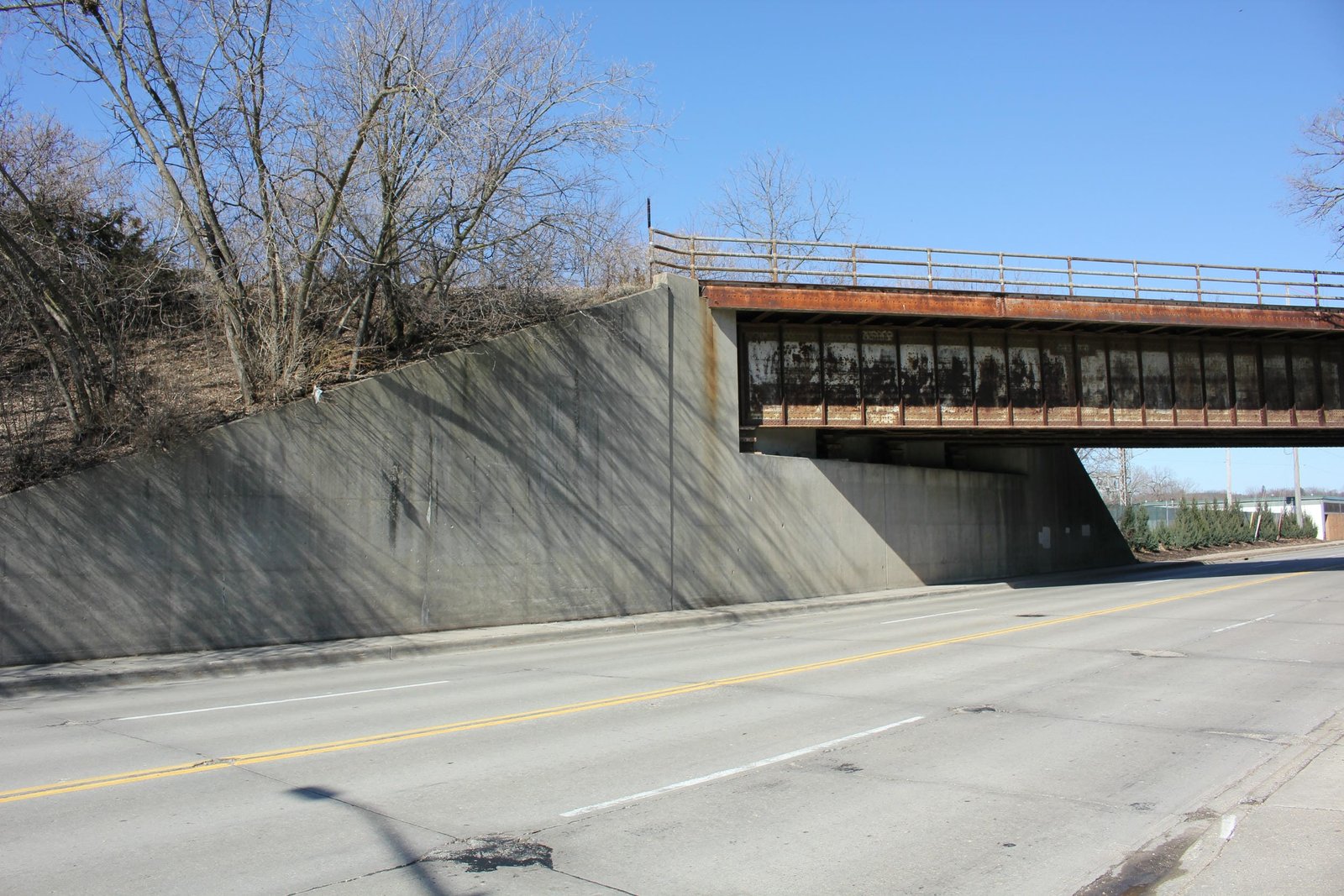

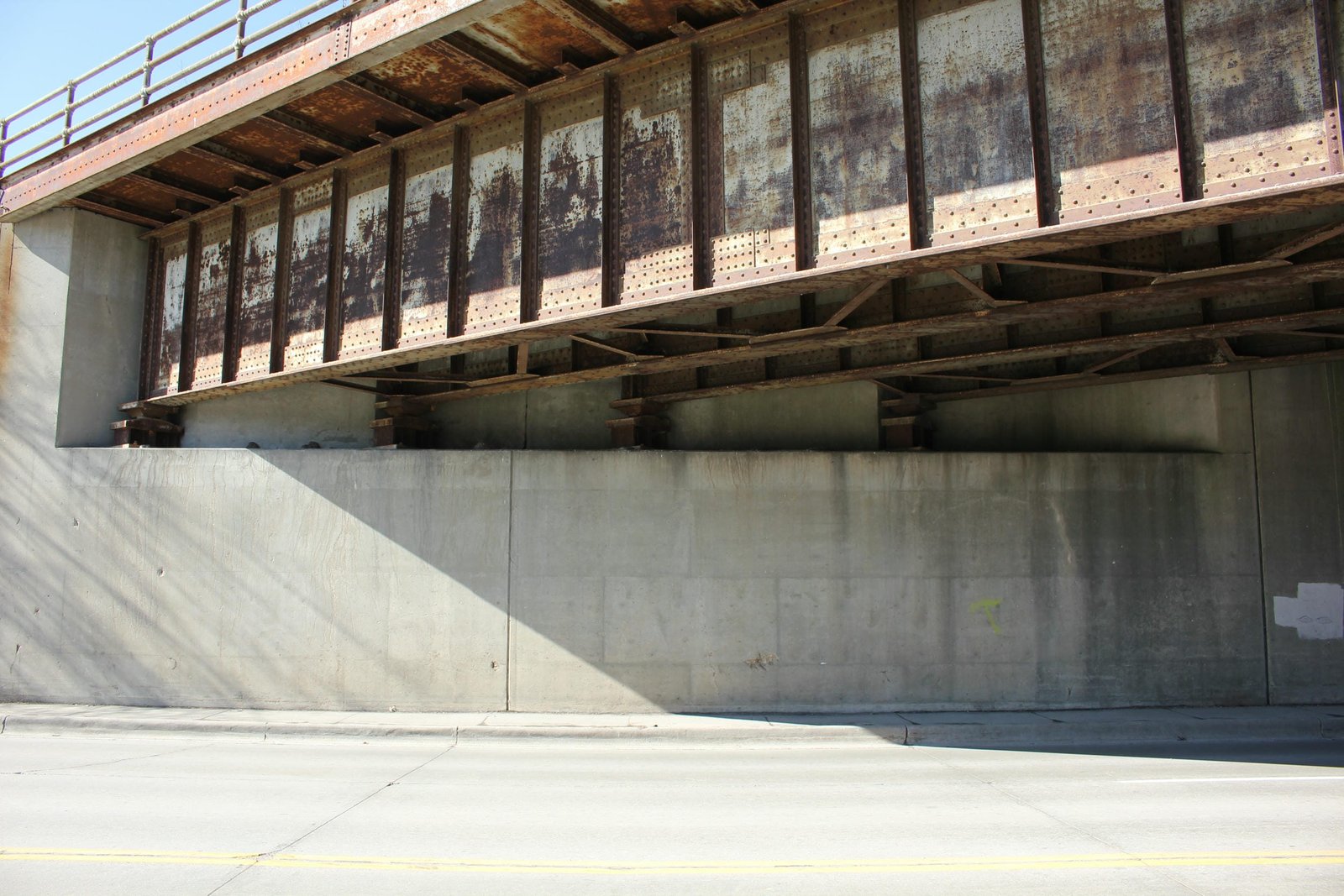

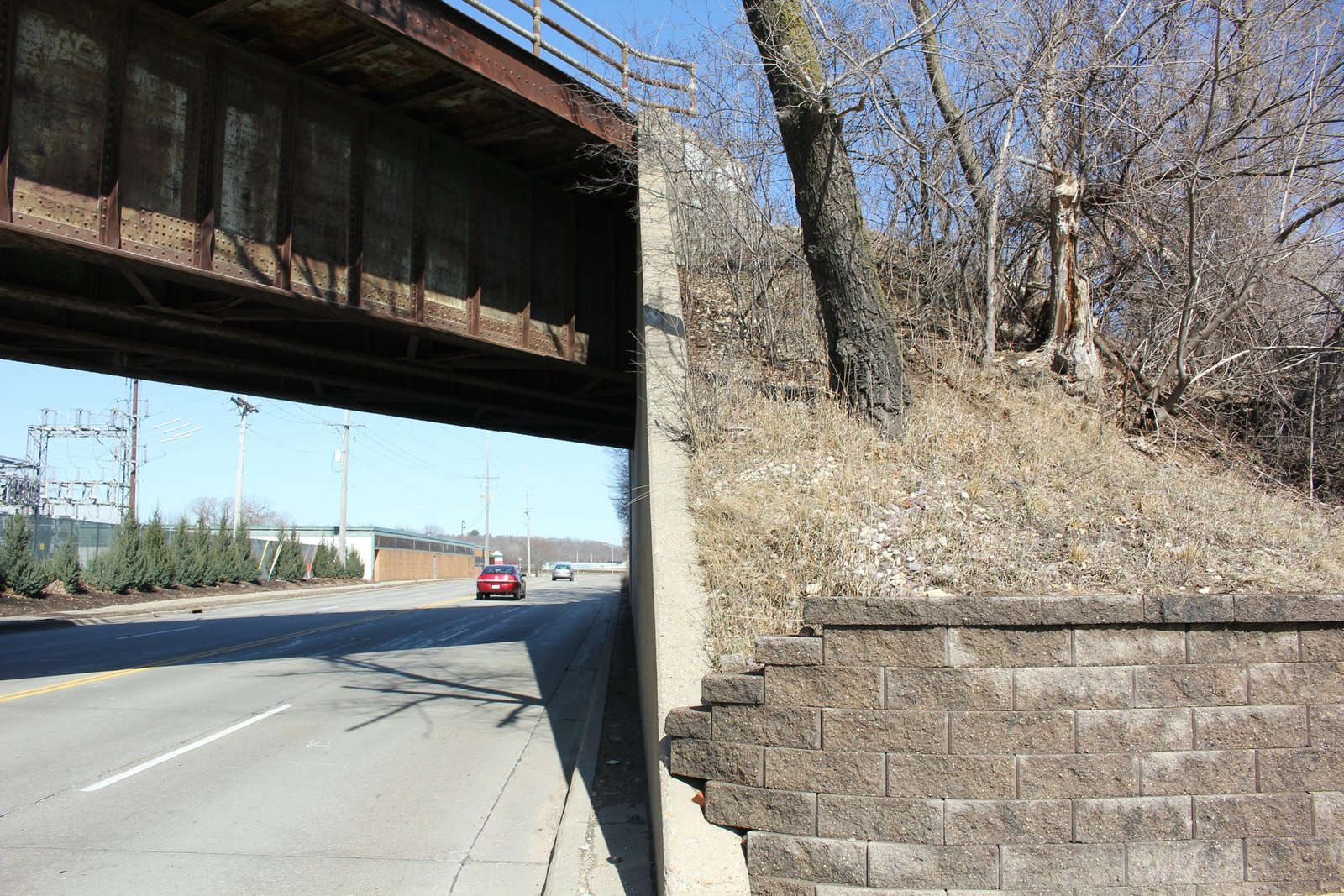

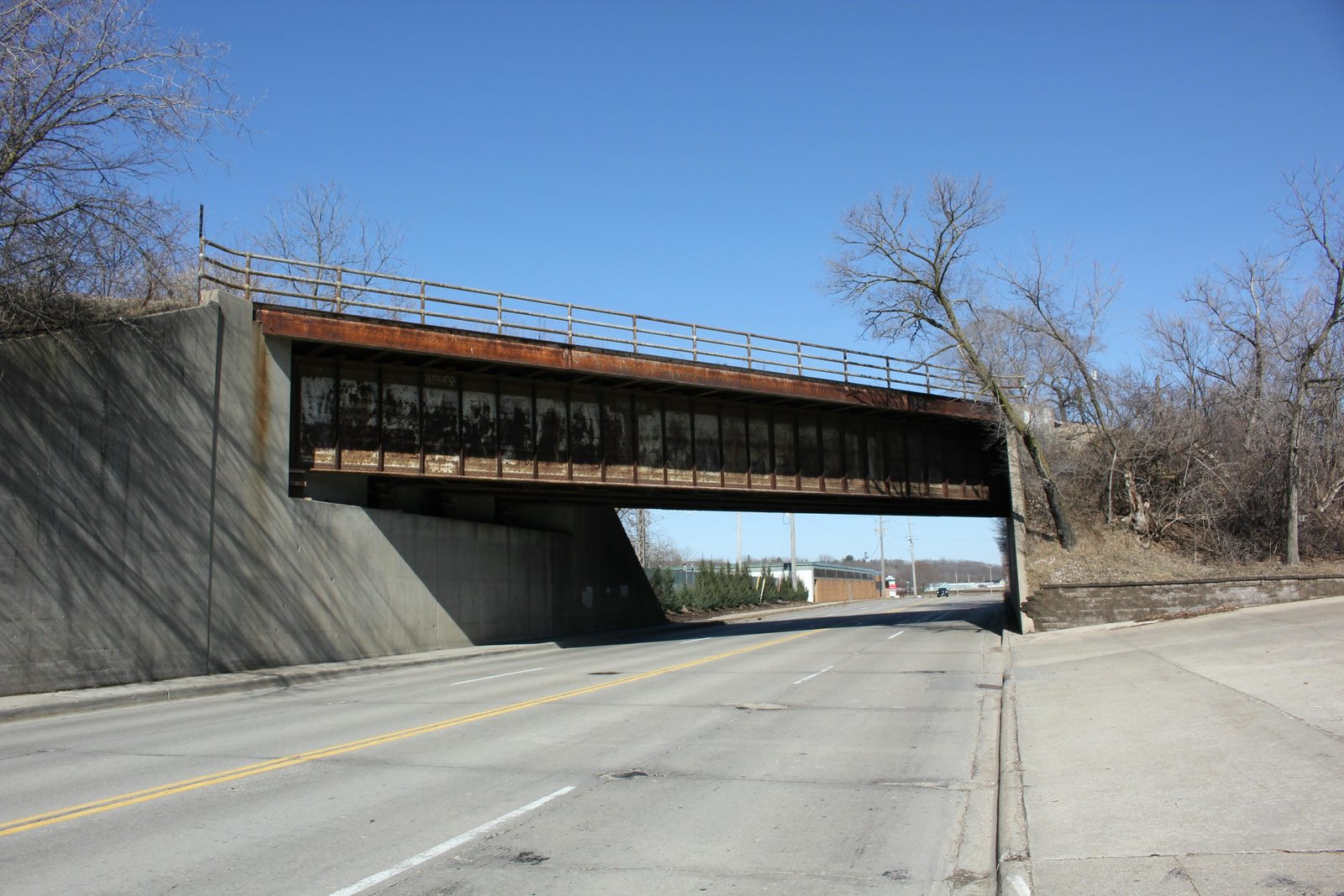

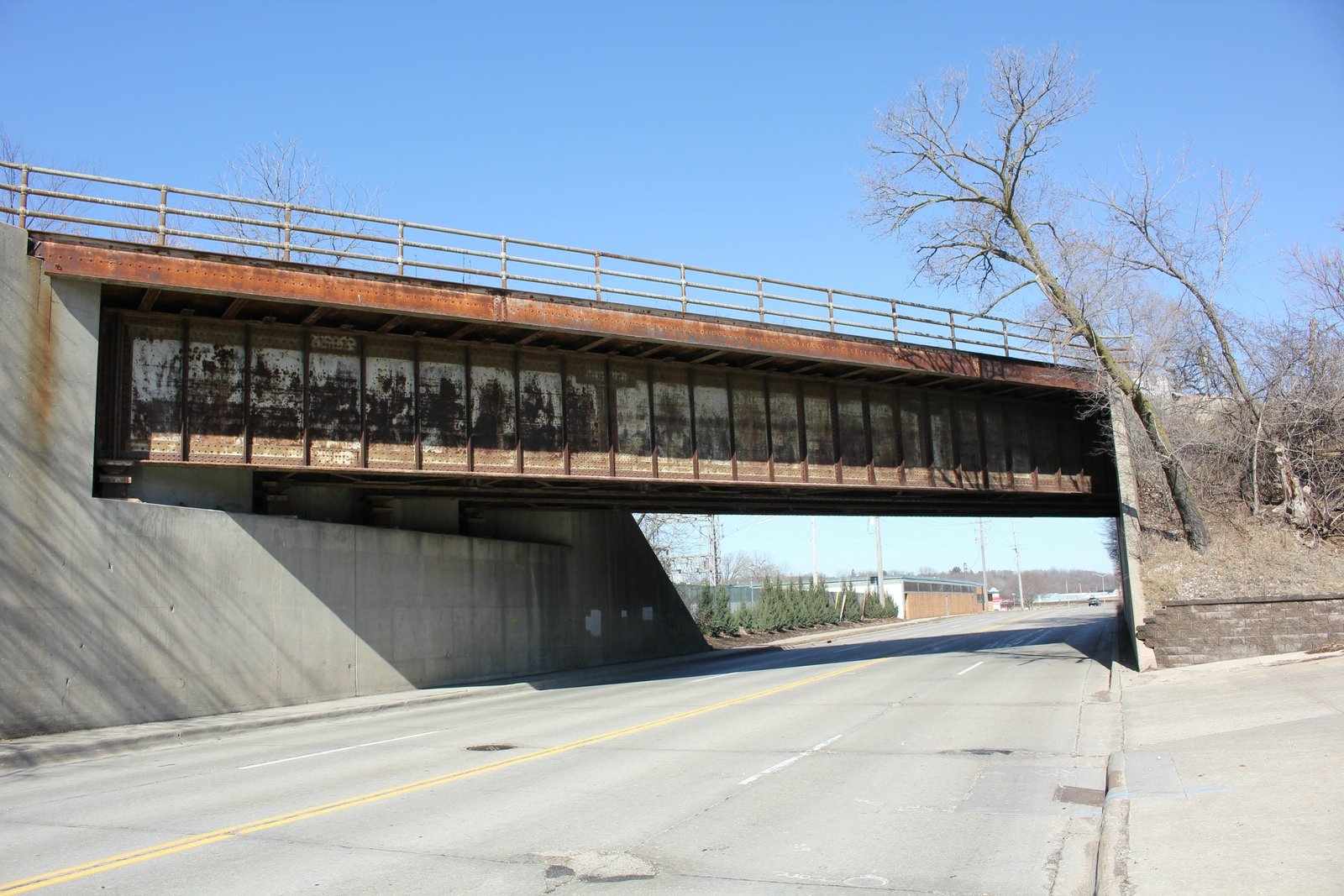

Located in Janesville, this deck plate girder bridge carries the former joint line of the Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) and the Chicago & North Western Railway (C&NW) across Main Street. It is believed a bridge was first built at this location in the 1850s or 1860s, and likely consisted of a timber pile trestle bridge. In the early 1880s, the Milwaukee Road and C&NW made a number of improvements to their joint line through Janesville, constructing permanent stone and iron bridges. In 1883, a new iron bridge would be constructed at this location. This bridge consisted of a 66-foot iron deck truss span, set onto new stone abutments. In 1890, the Milwaukee Road replaced the west track of the bridge, and in 1896, the C&NW replaced the east track of the bridge. In 1941, the Wisconsin State Highway Commission worked with the railroads to replace the bridge with a modern structure to cross a wider roadway. Currently, the bridge consists of a 100-foot deck plate girder span, set onto concrete abutments. The superstructure uses a typical design, with heavy plate girders and a ballast deck. The substructures consist of a standard design, with sloped wing walls extending parallel to the roadway. American Bridge Company fabricated the superstructure, while the Jutton-Kelly Company constructed the abutments. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations, and the east track remains in use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Builders and build date The Bridgemens Magazine; April 1941
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
