Name DAIR Dry Creek Bridge (East)
Chicago & North Western Railway Bridge #S-783
Built By Chicago & North Western Railway
Currently Owned By City of Hawarden
Superstructure Contractor Paxton-Vierling Steel Company of Omaha, Nebraska
Length 170 Feet Total, 45 Foot Main Span
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Steel Stringer and Timber Pile Trestle
Substructure Design Timber Pile
Date Built 1962
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned
Chicago & North Western Railway Bridge Number S-783
Significance Minimal Significance
Documentation Date 9/25/2021

In 1881, the Toledo & Northwestern Railway (T&NW) began construction on a 160-mile railroad line extending from Eagle Grove, Iowa towards Hawarden, Iowa. The T&NW had been leased by the Chicago & North Western Railway (C&NW) in 1879, and was awarded funding to construct additional lines in northern Iowa.  The first 30 miles were completed to Bradgate, Iowa at the end of the year, followed by an additional 115 miles between Bradgate and Hawarden in 1882. In 1883, the Dakota Central Railway (DC) continued the line, constructing an additional 125 miles between Hawarden and Iroquois, South Dakota.  The DC was another railroad leased by the C&NW, and was also awarded funding to complete railroad lines in South Dakota.  The T&NW was purchased by the C&NW in 1890, and the DC was purchased by the C&NW in 1902.  By the early 20th Century, the C&NW had developed into a significant railroad network in the midwest, with lines radiating north and west from Chicago.  In particular, the C&NW developed dozens of secondary and branch lines in Iowa to serve agricultural industries and small towns. This line served as a secondary mainline, connecting lines in western Iowa and South Dakota.  In addition, the line connected the Dakota Division mainline at Iroquois to the Iowa Division mainline at Tama, Iowa.

Due to the rapid expansion of the C&NW in the late 19th and early 20th Century, this line paralleled several other routes.  By the mid-20th Century, this line had largely become a branch line, connecting agricultural industries and small towns in western Iowa and eastern South Dakota.  By the 1970s, the C&NW sought to abandon excess trackage and consolidate service.  The first segment abandoned was from Orange City, Iowa to Hawarden in 1975.  The Beresford, South Dakota to Iroqouis segment was abandoned in 1979, and the Hawarden to Beresford segment sold to the State of South Dakota in 1980. The Marathon, Iowa to Orange City segment was also abandoned in 1980.  The D&I Railroad began operations over the Beresford Branch in 1980.  The line was further abandoned in 1982, when the Alton, Iowa to Orange City segment was abandoned.  The Eagle Grove to Rolfe, Iowa segment was abandoned in 1988, and would be sold to Wright, Humboldt and Pochahontas Counties for trail usage.  In 1995, the C&NW would be purchased by the Union Pacific Railroad (UP).  Currently, UP operates the Rolfe to Marathon segment as part of the Laurens Subdivision, and the D&I operates the Hawarden to Beresford segment.  The State of South Dakota sold the Hawarden to Beresford segment to D&I in 2021 as part of an effort to sell state-owned railroad lines.  The Rolfe to Eagle grove segment used as part of the Three Rivers Trail.  Remaining segments have been abandoned and the right-of-way largely reverted to adjacent landowers.

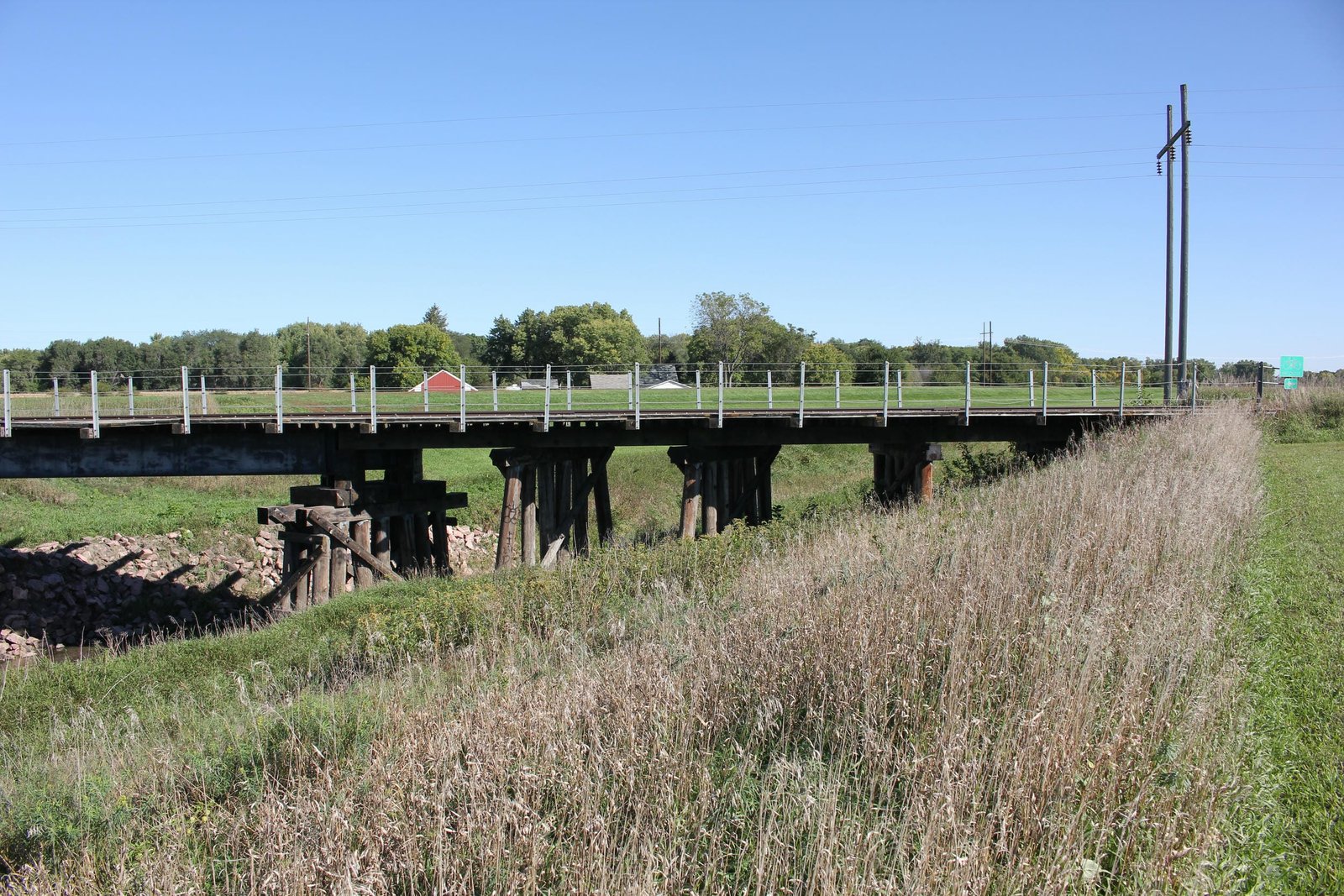

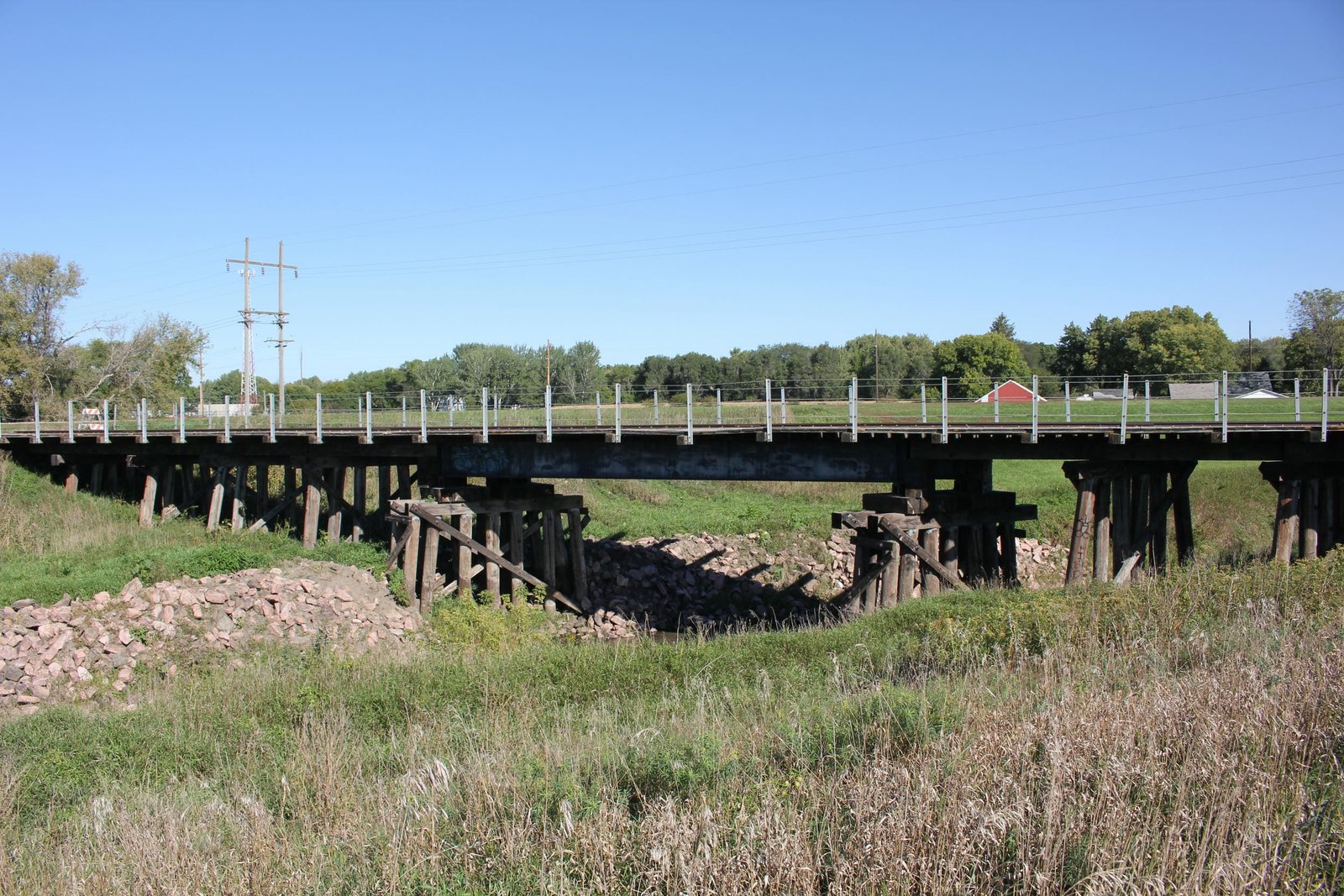

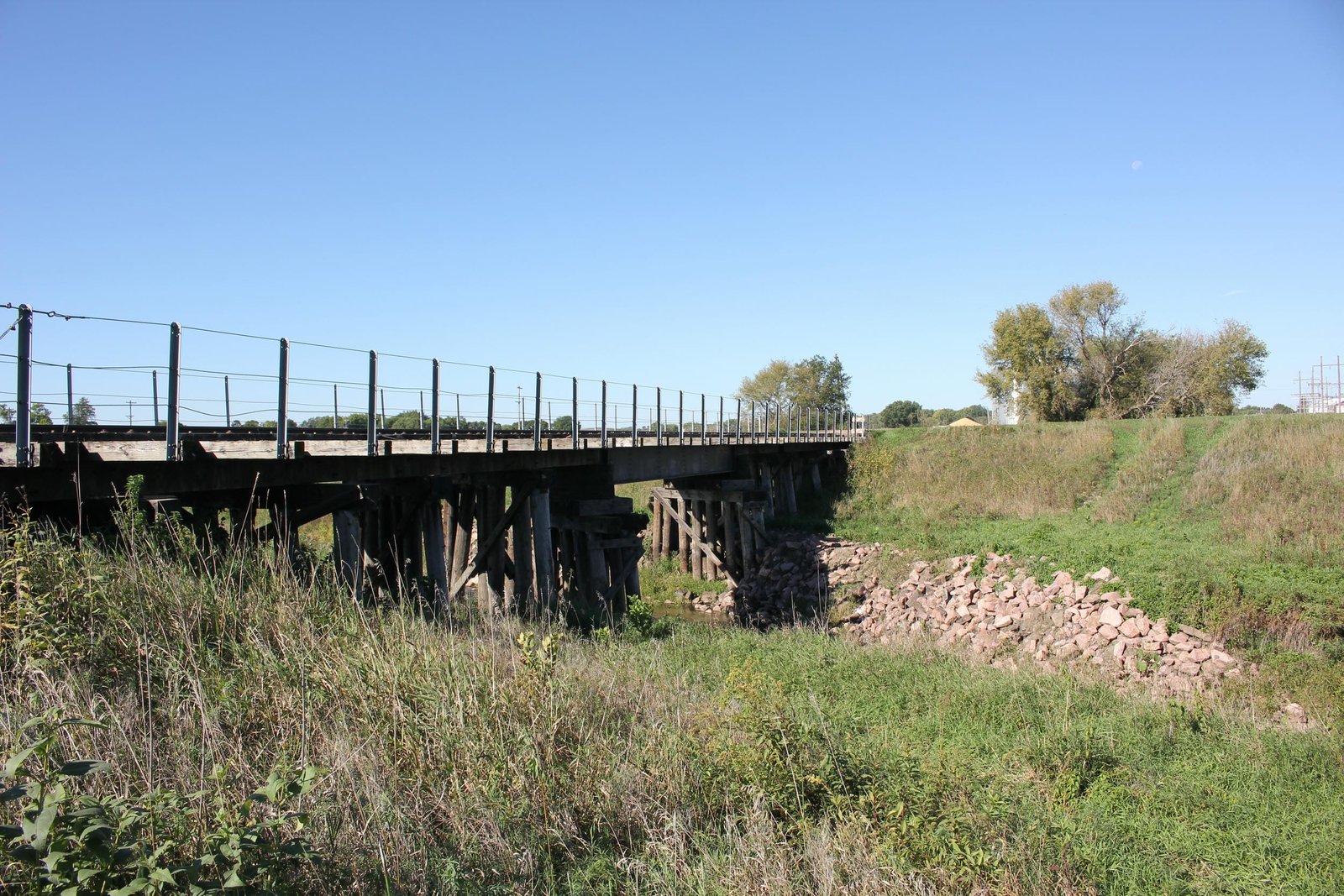

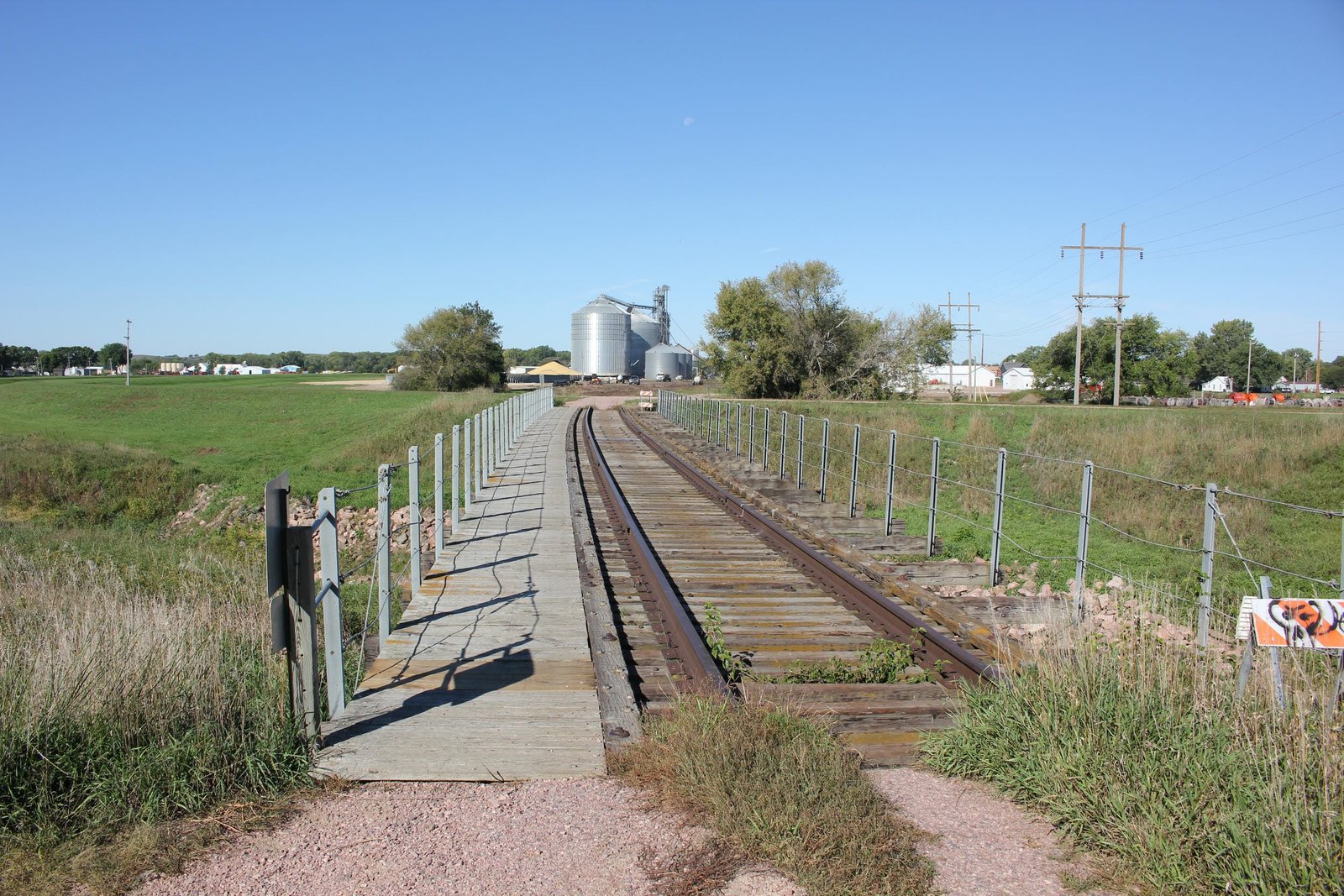

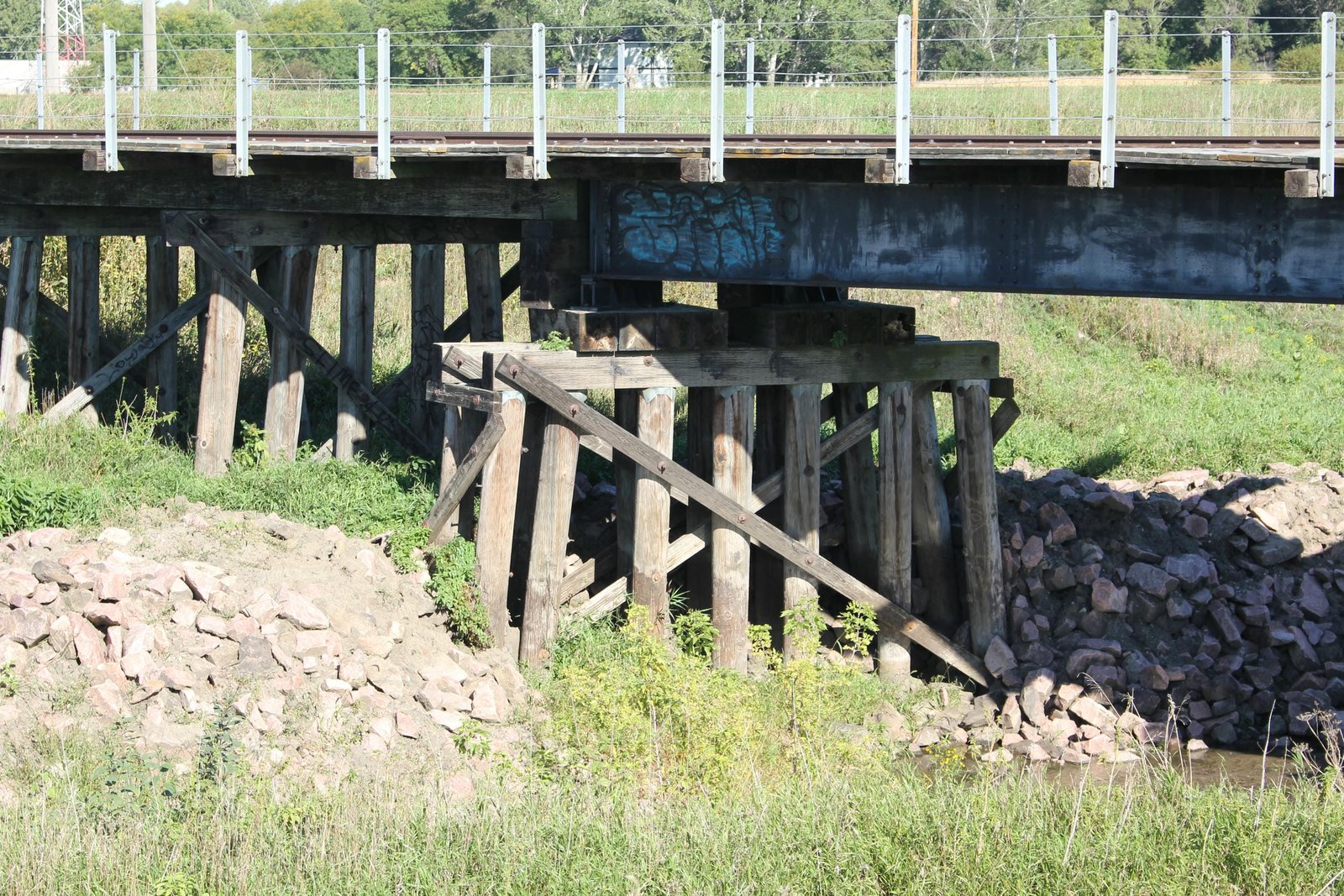

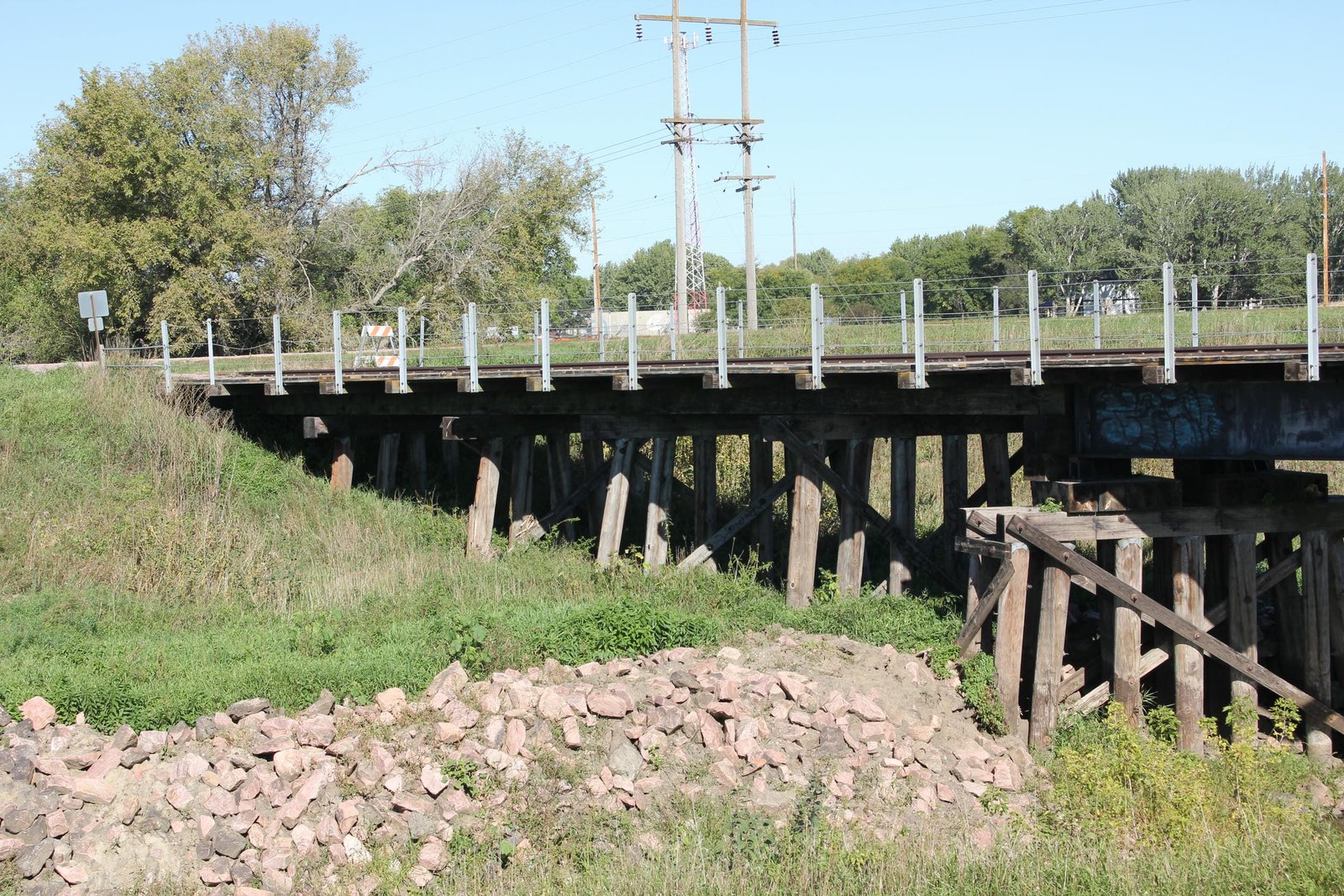

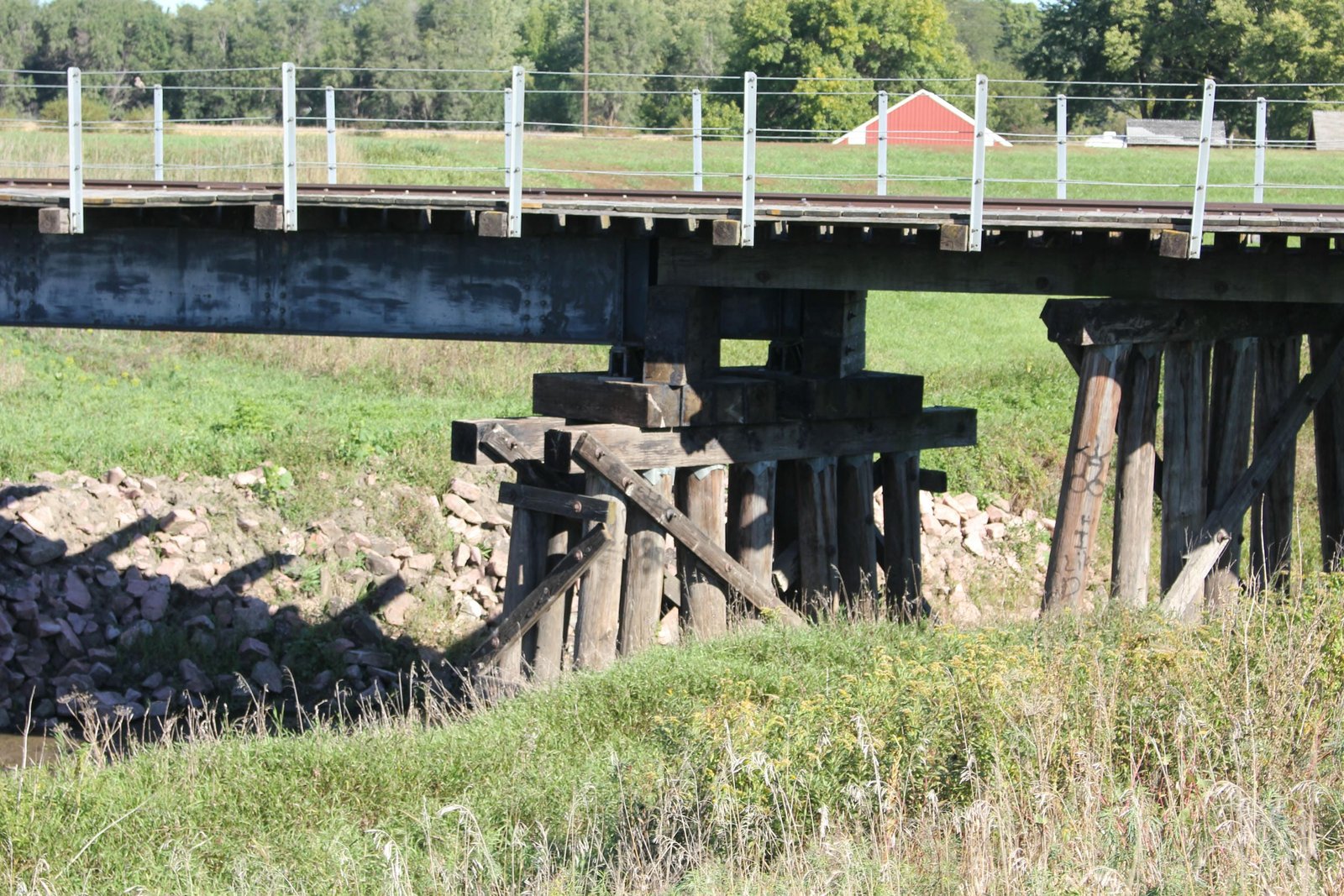

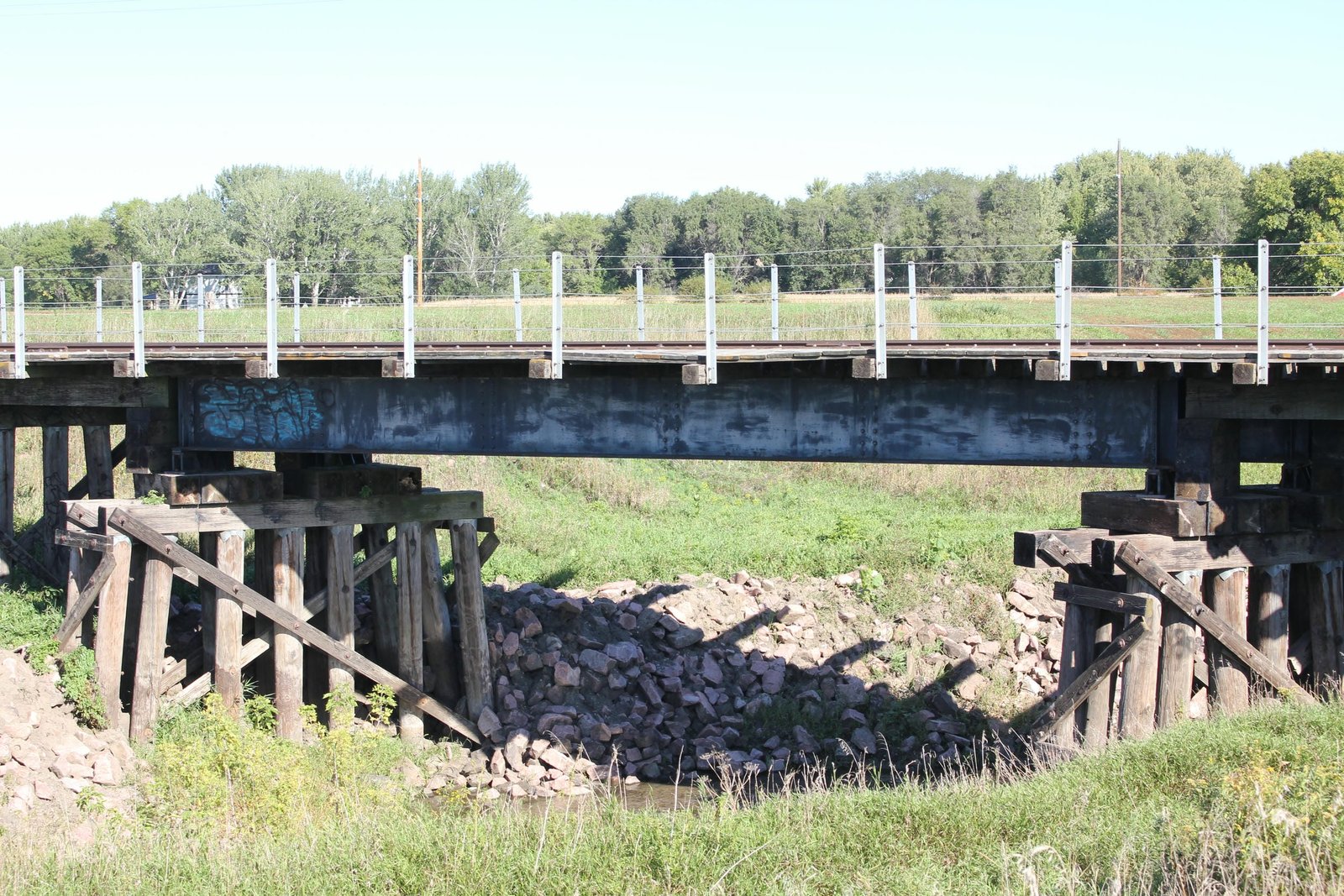

Located in Hawarden, this steel stringer bridge carries a former Chicago & North Western Railway line across Dry Creek. Originally, Dry Creek crossed underneath a timber pile trestle bridge, located immediately east of this structure. Historically, Dry Creek had become known for flooding, often cutting new channels due to the soil underneath Hawarden. In the early 1960s, it was decided to channelize the creek and construct earthen levees. The present bridge was constructed in 1962 as part of this project. Currently, the bridge consists of a 45-foot steel stringer span, set onto timber pile piers and approached by timber pile trestle spans on either end. The main span follows a standard design, with four shallow beams arranged into two sets of two. Paxton-Vierling Steel Company fabricated the main span, and the timber components were constructed by railroad company forces. Steel stringer spans were commonly used by railroads, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations. The bridge remained in use to switch railcars until the 2010s. The rails were removed from the bridge in 2021 or 2022, and the bridge is now abandoned. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being minimally significant, due to the common design and newer age.


Citations

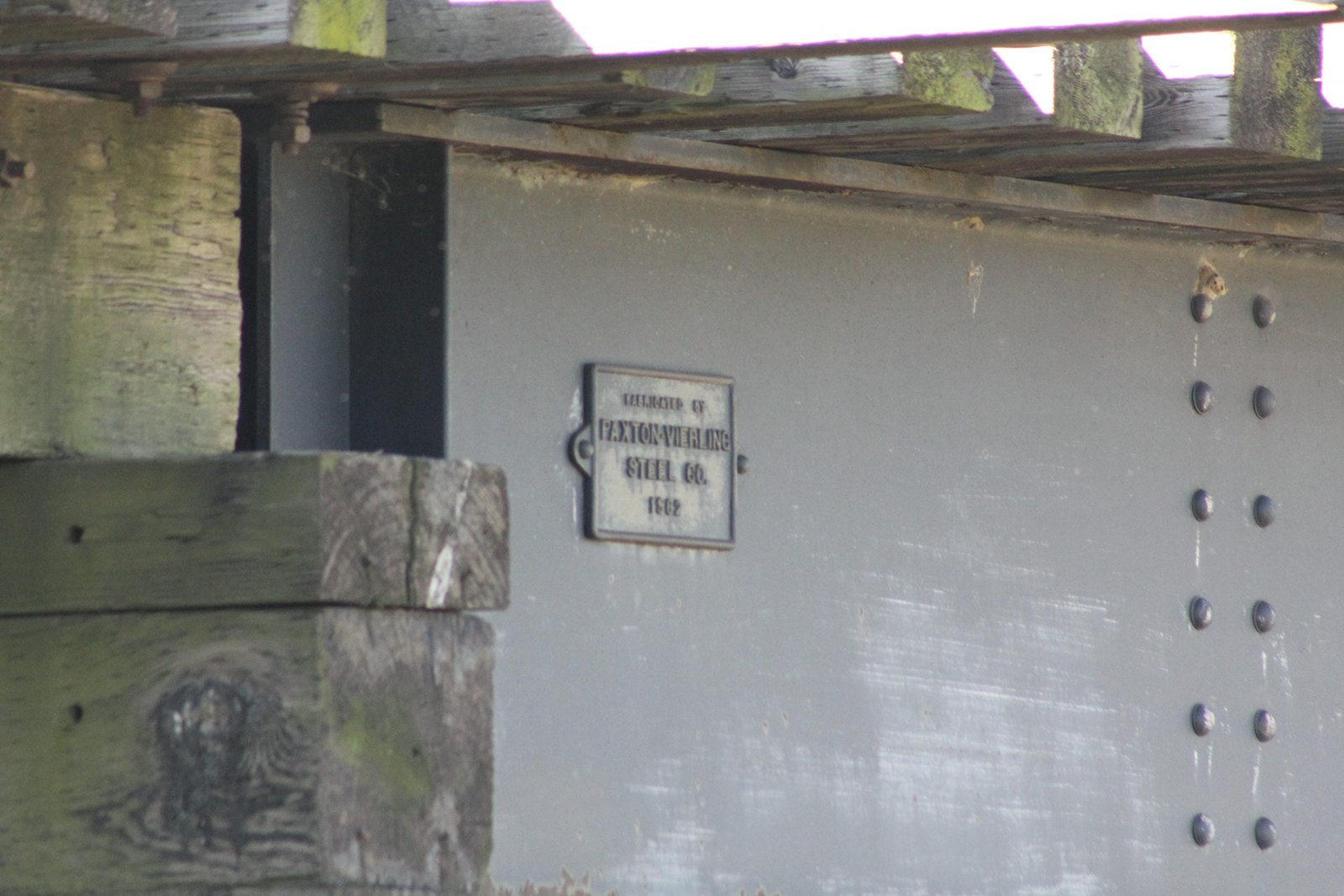

Build date and builder (superstructure) Paxton-Vierling Steel Company plaque
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
