| Name | IAIS 1st Street Bridge (Newton) Chicago, Rock Island & Pacific Railroad Bridge #3226 |
| Built By | Chicago, Rock Island & Pacific Railway |
| Currently Owned By | Iowa Interstate Railroad |
| Contractor | Cedar Rapids Construction Company of Cedar Rapids, Iowa |
| Length | 60 Feet Total, 40 Foot Main Span |
| Width | 2 Tracks, 1 In Use |
| Height Above Ground | 15 Feet (Estimated) |
| Superstructure Design | Concrete Encased Beam |
| Substructure Design | Concrete |
| Date Built | 1920 |
| Traffic Count | 5 Trains/Day (Estimated) |
| Current Status | In Use |
| Chicago, Rock Island & Pacific Railroad Bridge Number | 3226 |
| Iowa Interstate Railroad Bridge Number | 322.60 |
| Significance | Local Significance |
| Documentation Date | 2/22/2020 |
In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed 55 miles of new railroad, extending from Davenport, Iowa to Iowa City, Iowa. As part of the work, a wooden bridge was constructed across the Mississippi River, connecting Rock Island, Illinois and Davenport. In 1862, the line was extended an additional 31 miles to Marengo, Iowa; followed by an additional 20 miles to Brooklyn, Iowa in 1863 and 26 miles to Kellogg, Iowa in 1864. In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island), which constructed an additional 44 miles to Des Moines, Iowa in 1867. In 1869, the line would continue to be extended west towards the Missouri River. At Davenport, this line connected to an existing Rock Island line, which extended east to Chicago, Illinois. In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway. The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s. This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.
In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures. Due to heavy traffic over this line, portions of the line between Davenport and West Liberty was double tracked in the late 1890s. The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability. After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline. The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability. Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations. In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island. During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated. Many of the lines and equipment were scrapped. Profitable sections of railroad were prepared for sale.
In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa. In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs, Iowa; including the Davenport to Des Moines section. In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees. Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984. After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa. Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations. Today, IAIS continues to operate the Iowa City Subdivision between Davenport and South Amana, as well as the Newton Subdivision between South Amana and Des Moines.

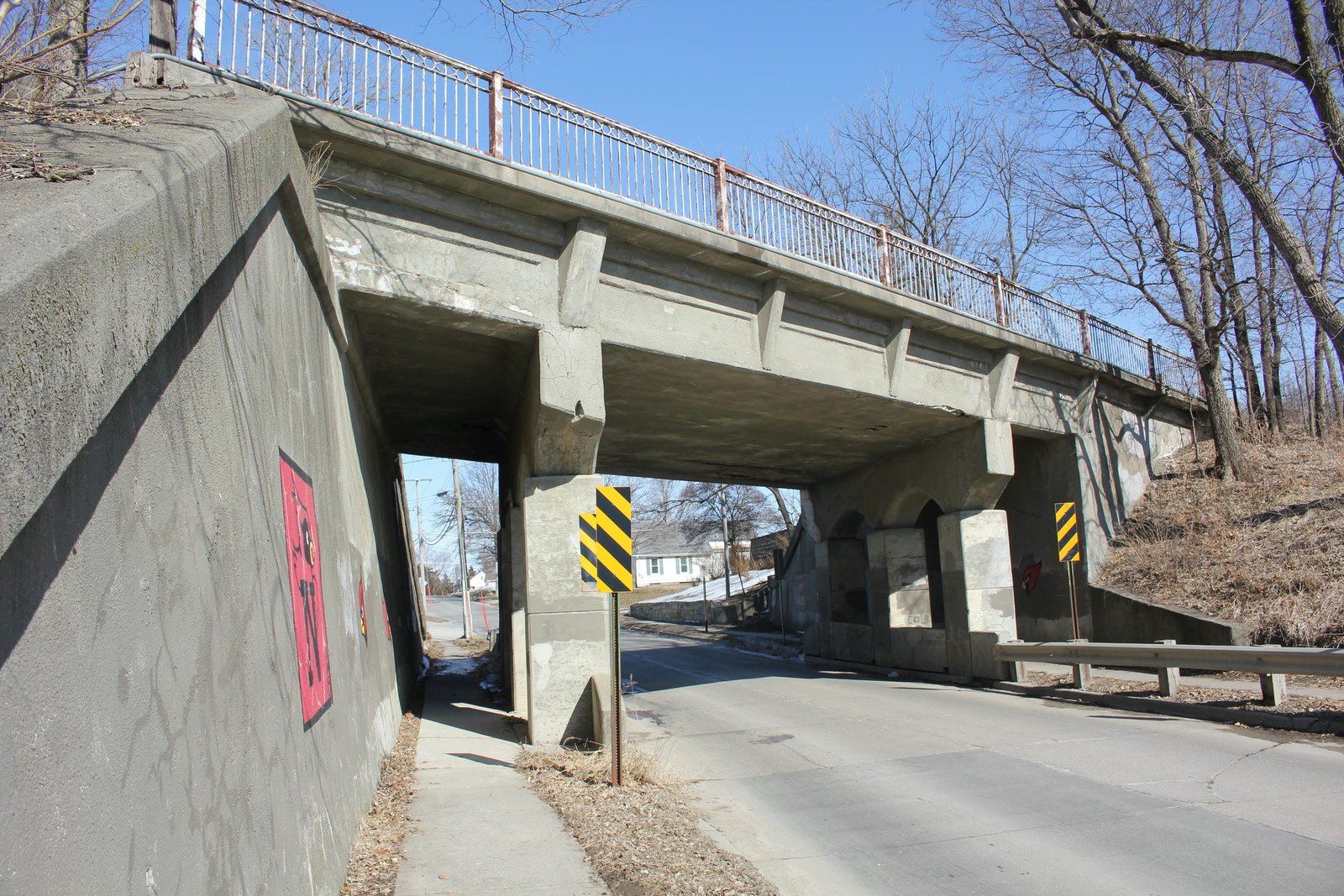

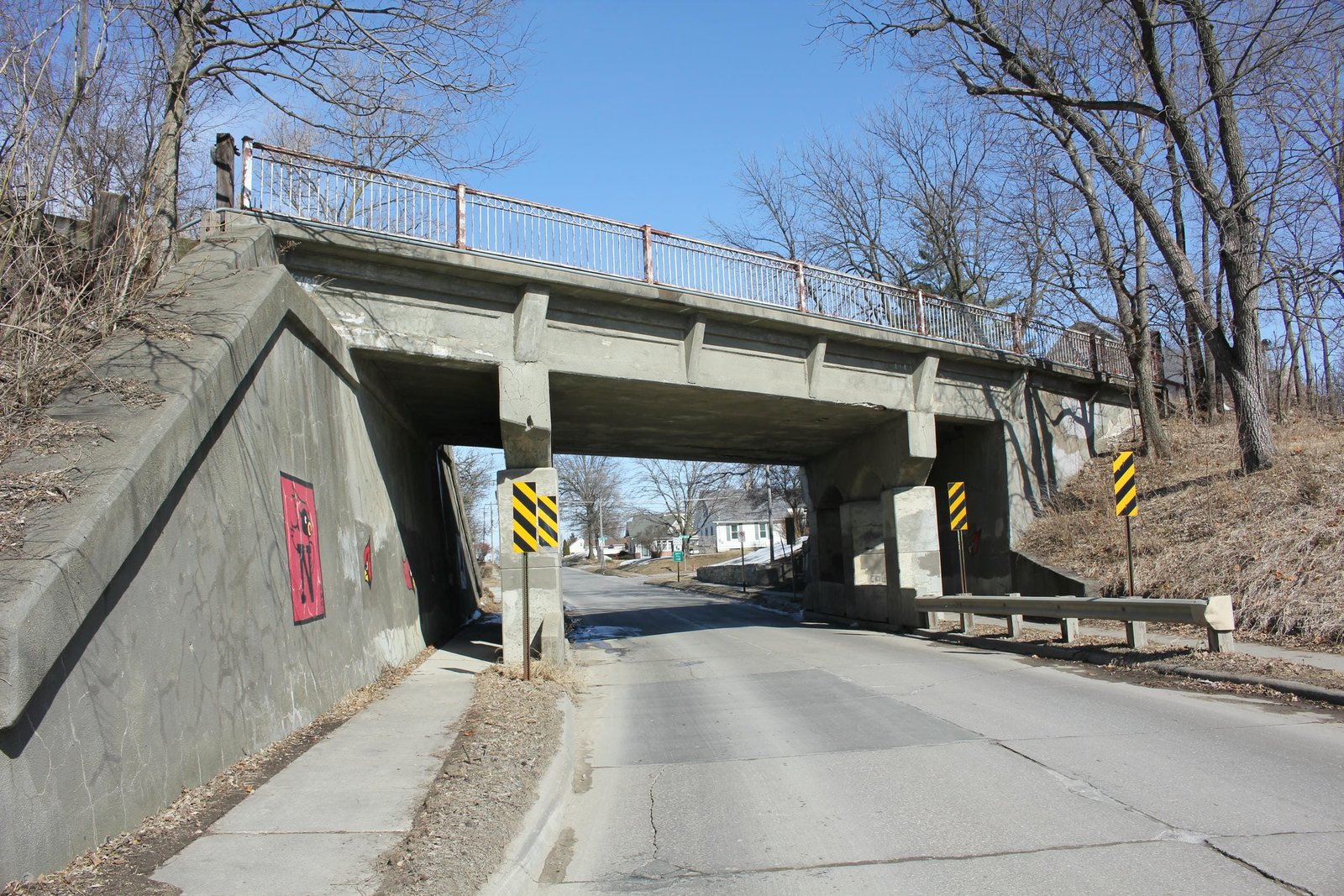

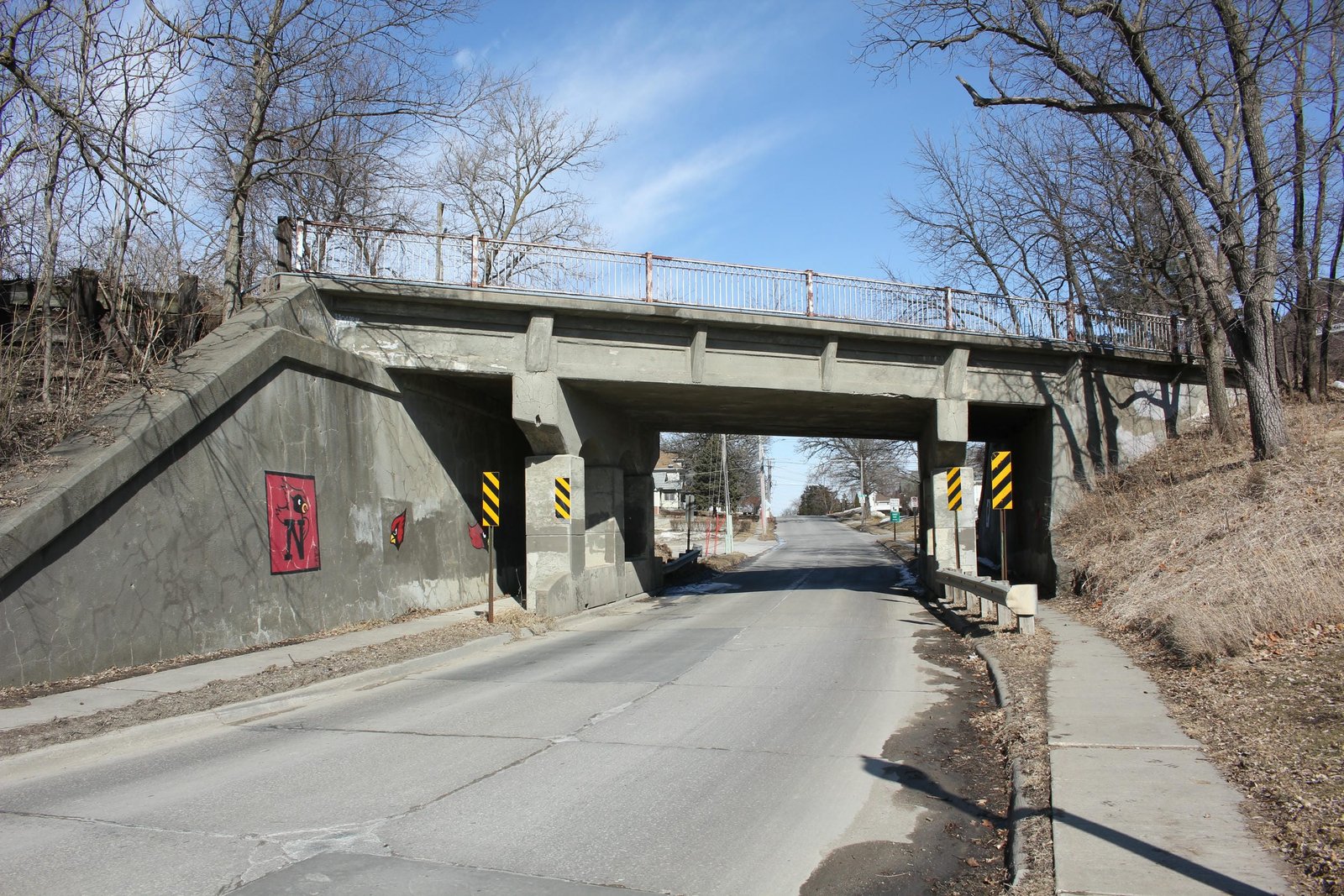

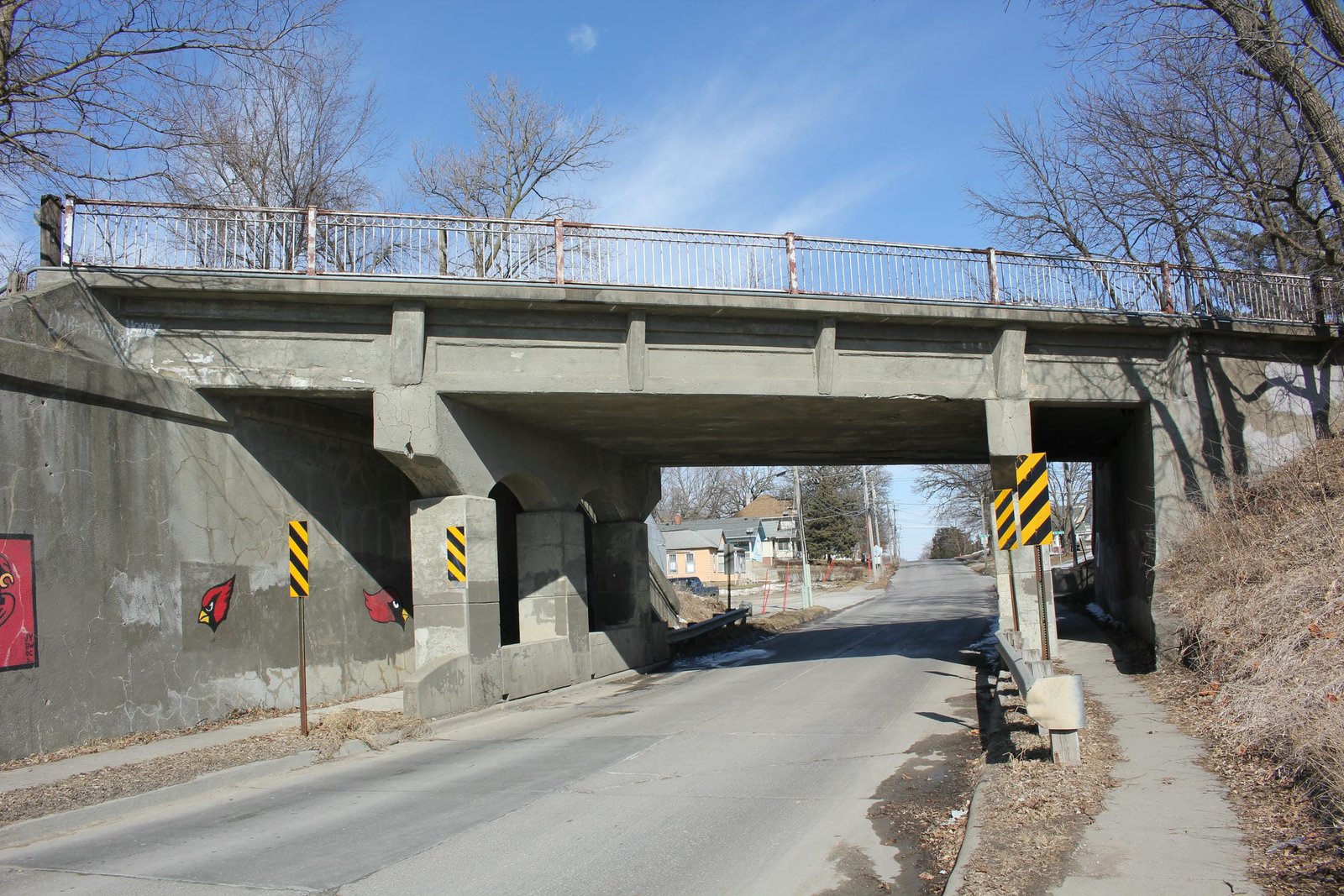

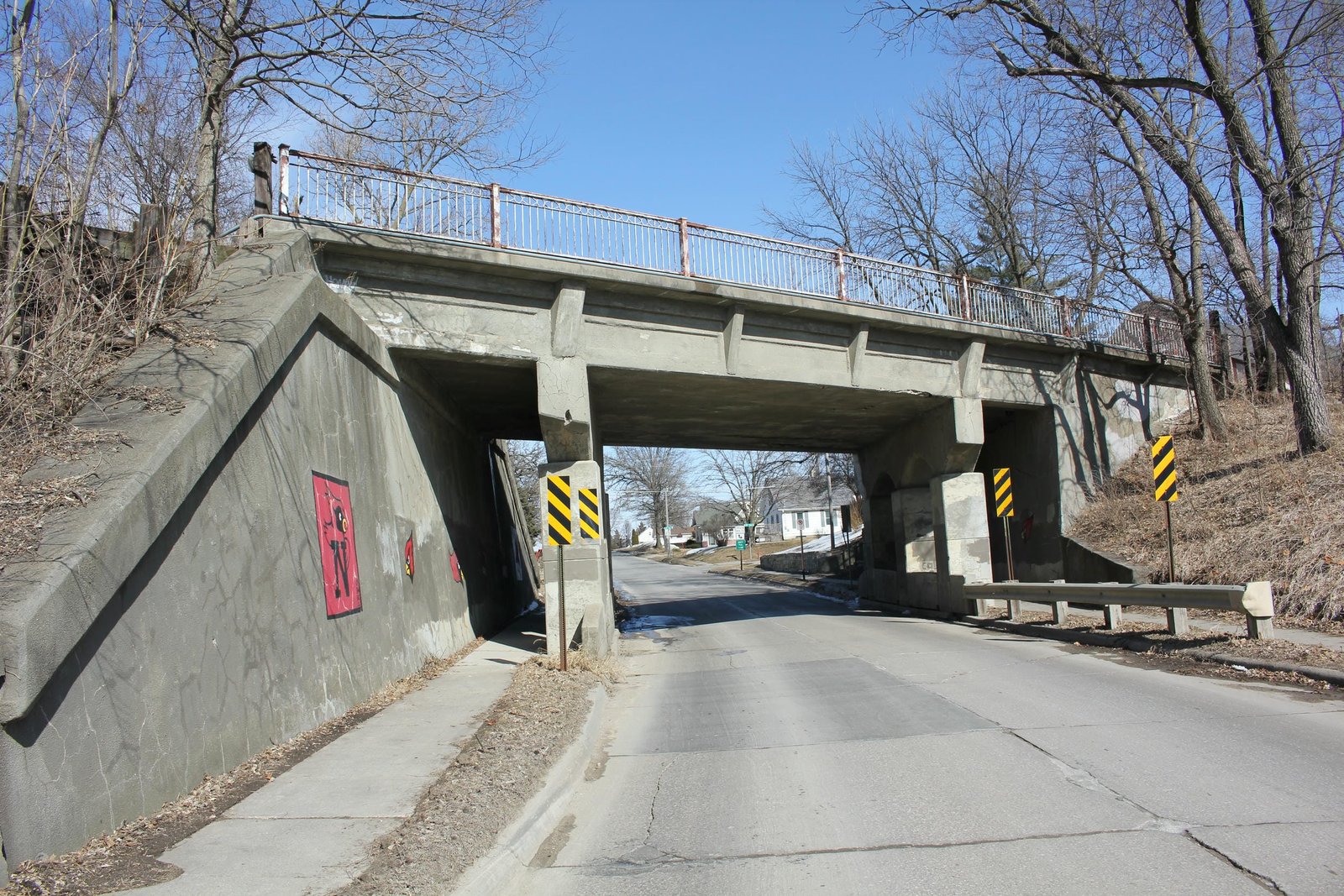

Located near the historic depot in Newton, this attractive concrete encased beam bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over 1st Street. The first bridge at this location was reportedly constructed in 1867 when the railroad initially reached Newton. This first bridge consisted of a standard timber pile trestle bridge, which also crossed a nearby creek. The section over the adjacent creek was reportedly filled and replaced by a stone arch in 1874. In the 1880s, it is believed that the original timber bridge over 1st Street was replaced by an iron girder structure, set onto stone abutments. In 1915, the bridge was reportedly reconstructed with new steel girders and the stone abutments modified to provide a larger roadway opening. By the end of the 1910s, the bridge had become a bottleneck for the railroad, only capable of serving a single track and the community viewed the structure as outdated and dilapidated. After negotiations between the City of Newton and the railroad, a new underpass was agreed upon in early 1920. Work on the structure began in September of that year, and was substantially completed by the end of the year. This new underpass was wide enough for two tracks, as well as a 6-foot-wide sidewalk to reach the depot; and underneath it allowed for two way traffic and sidewalks on both sides of the road.

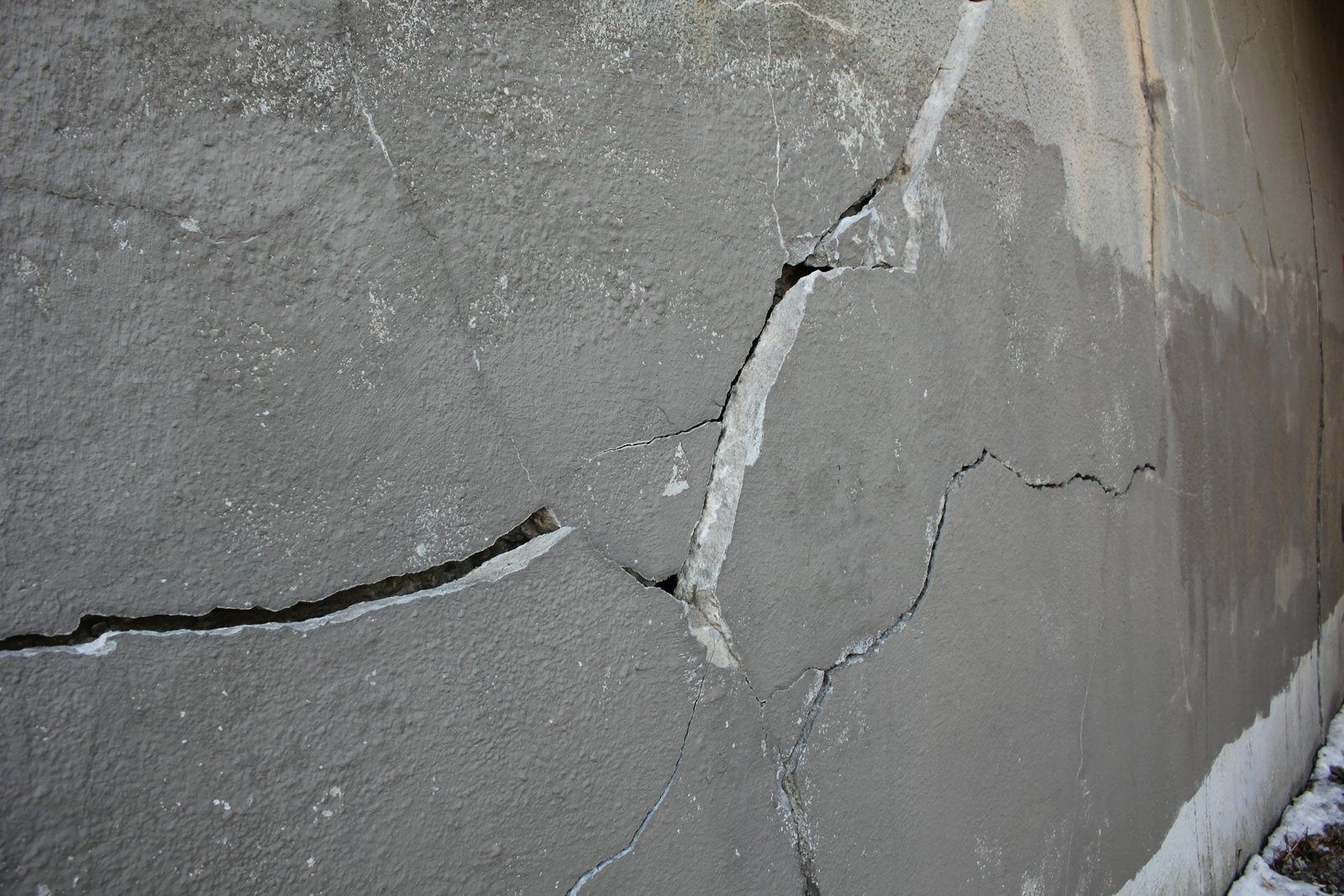

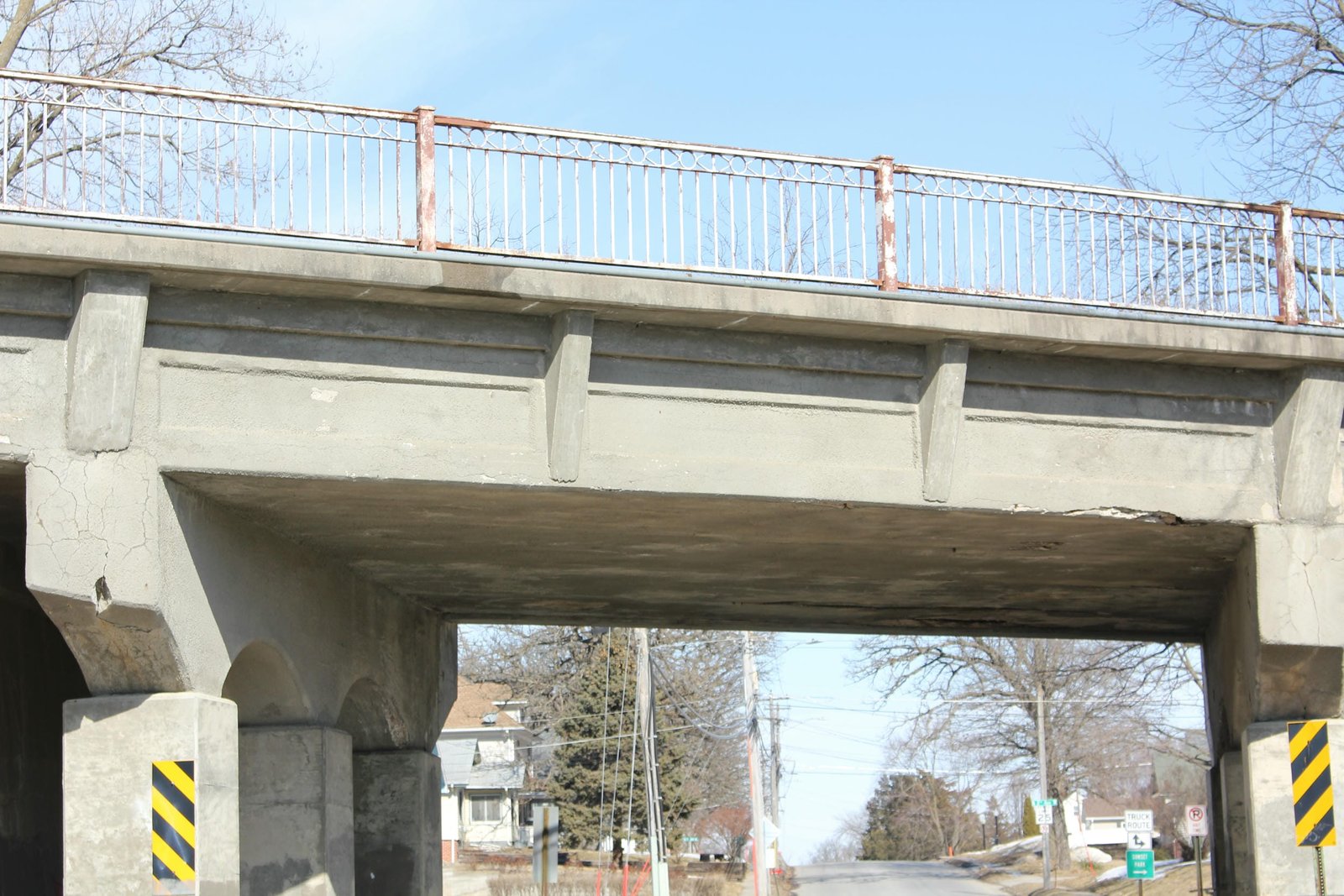

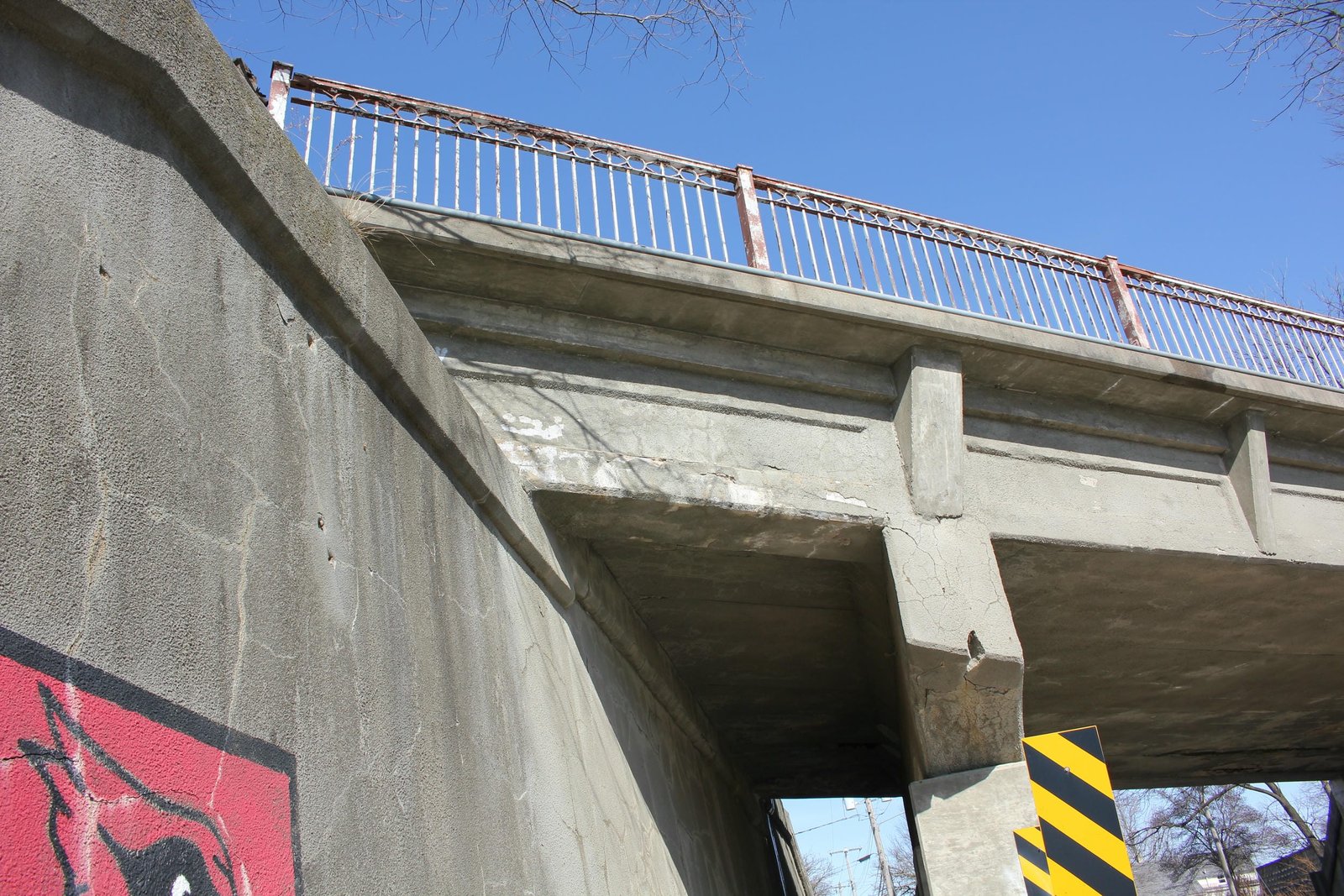

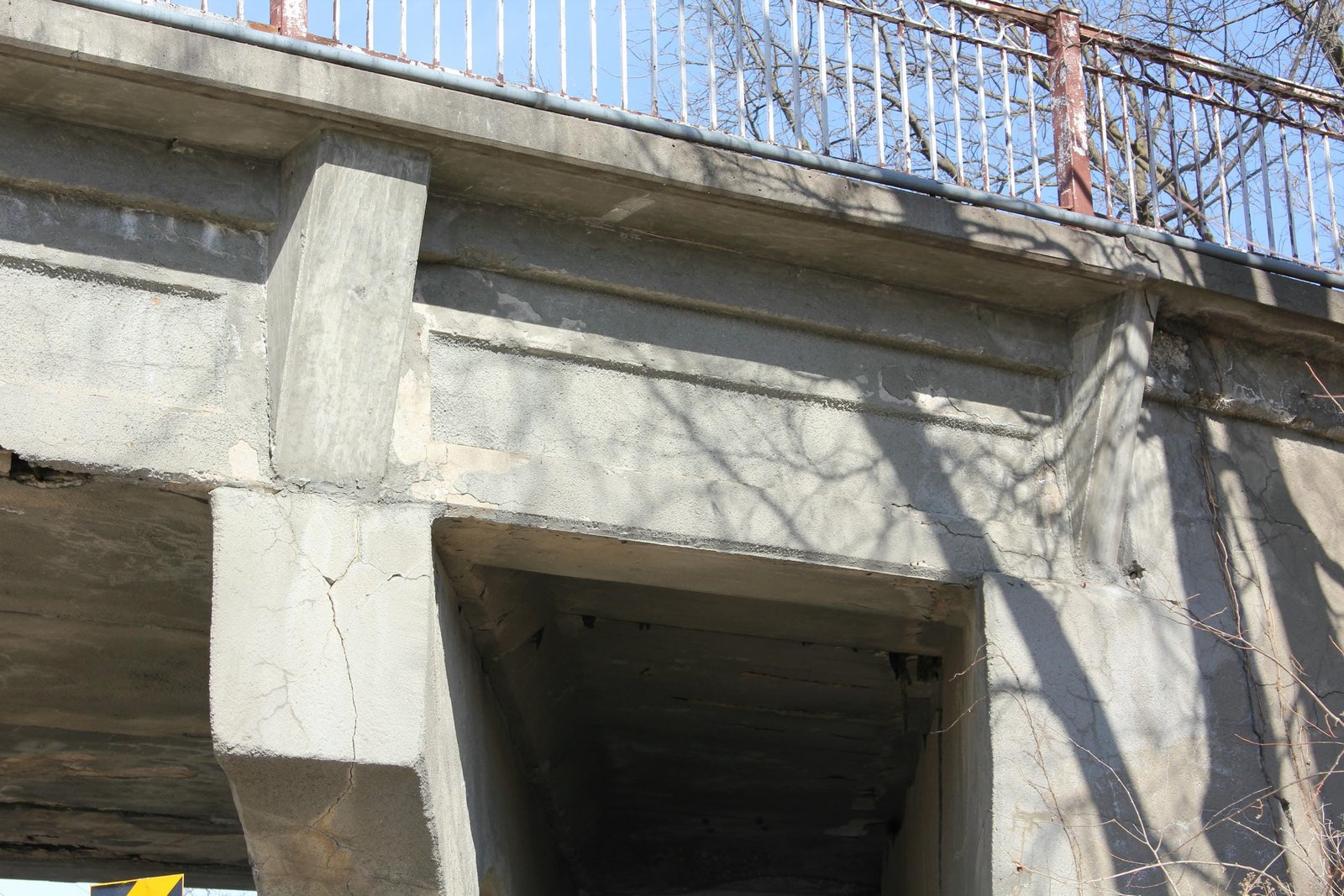

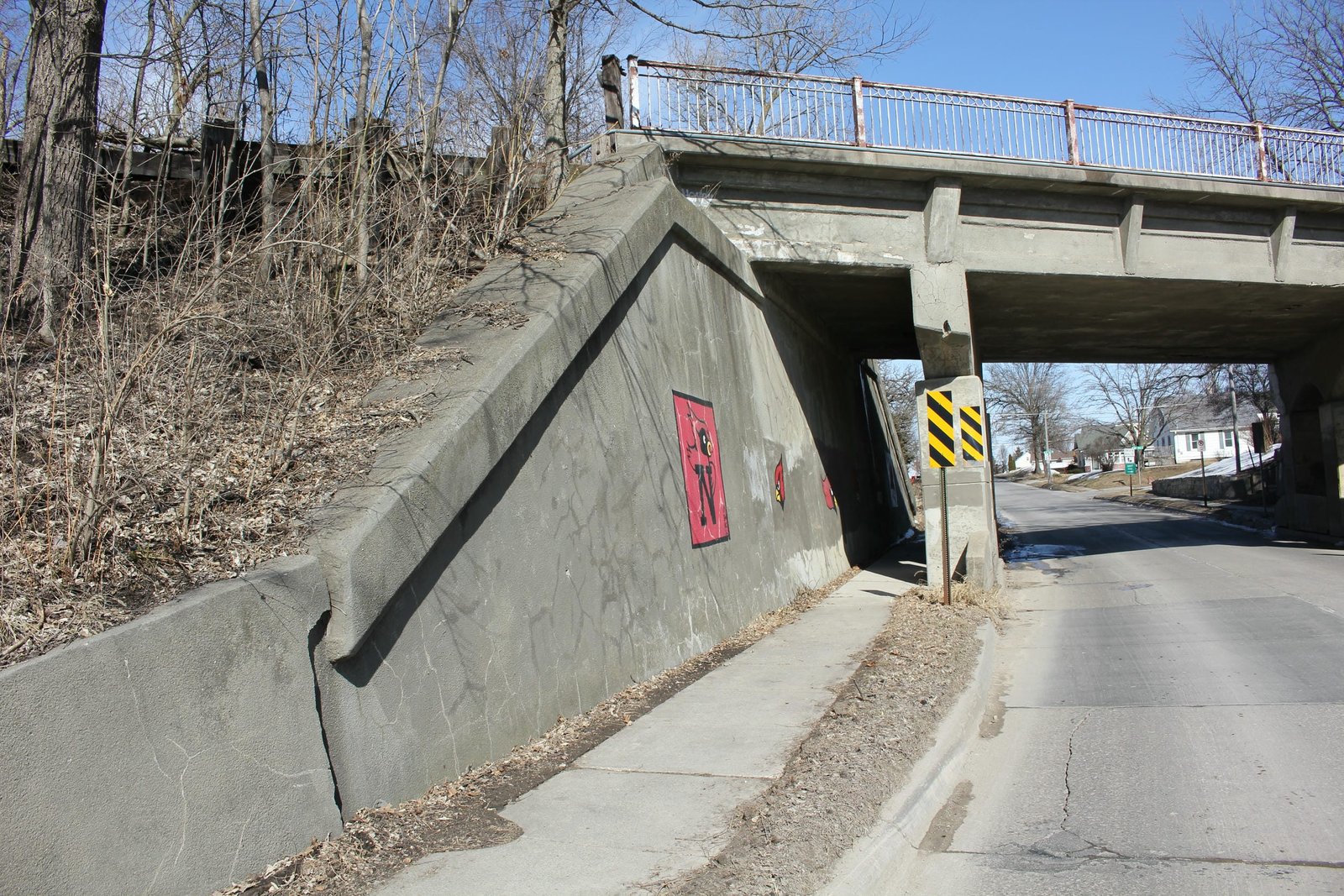

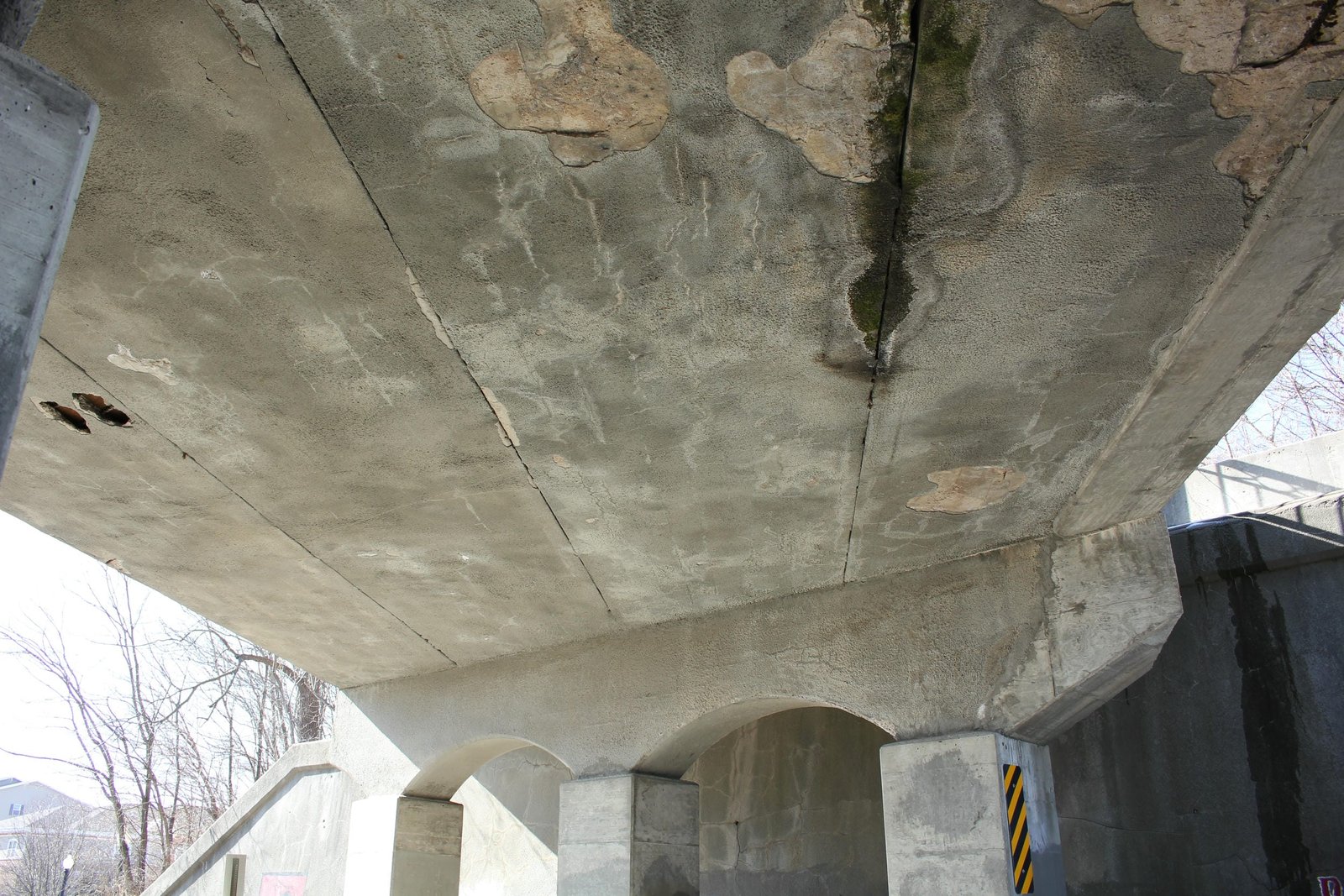

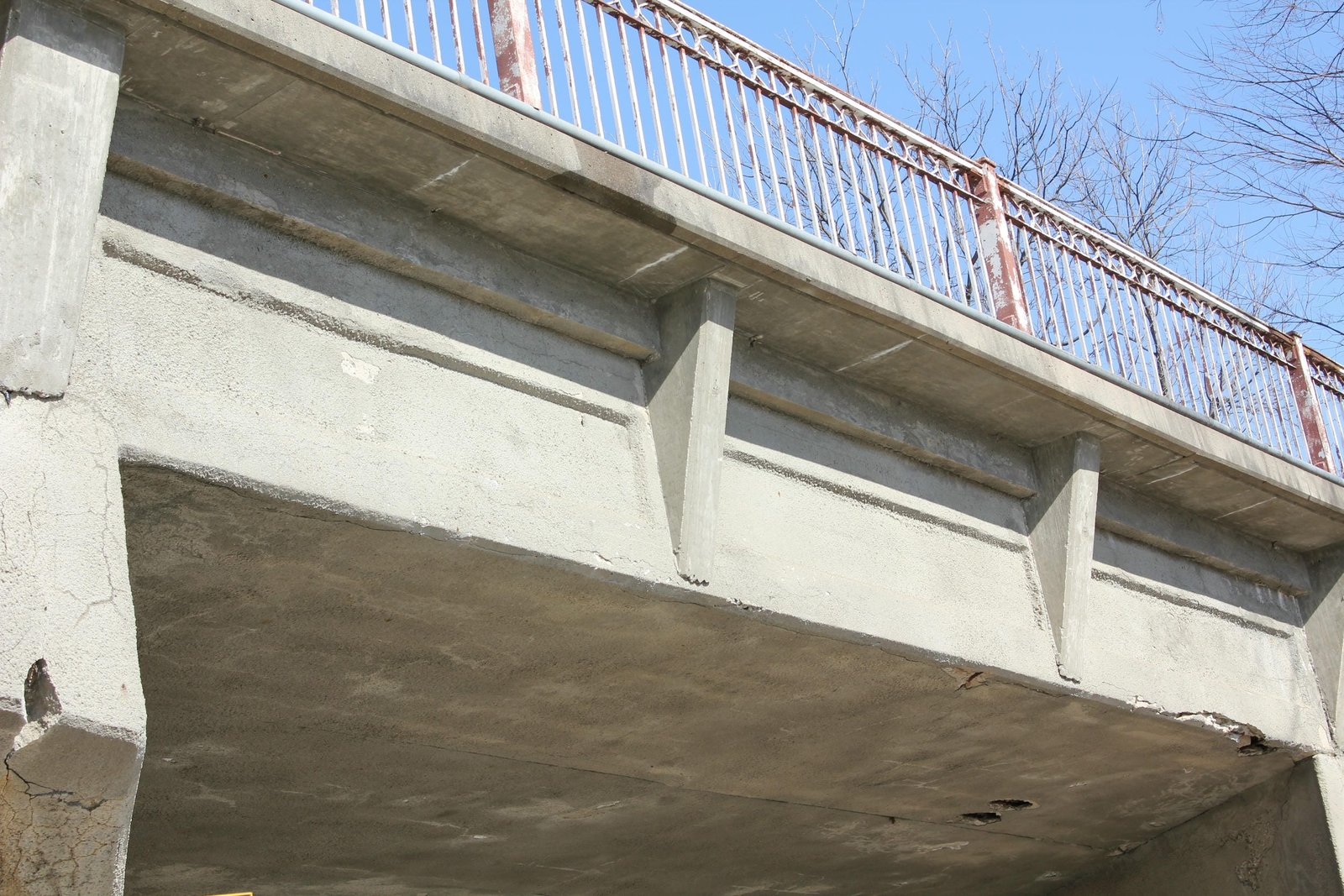

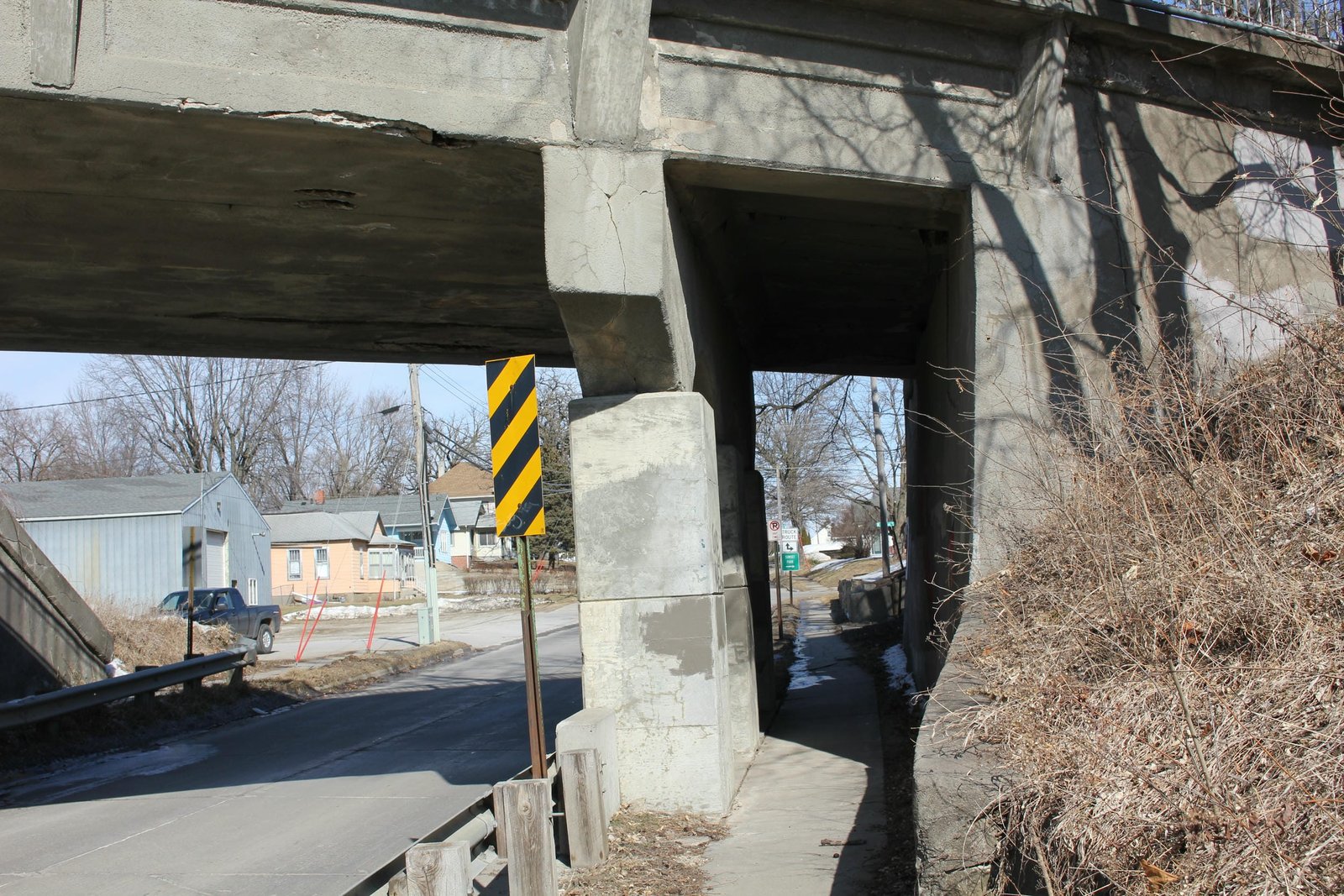

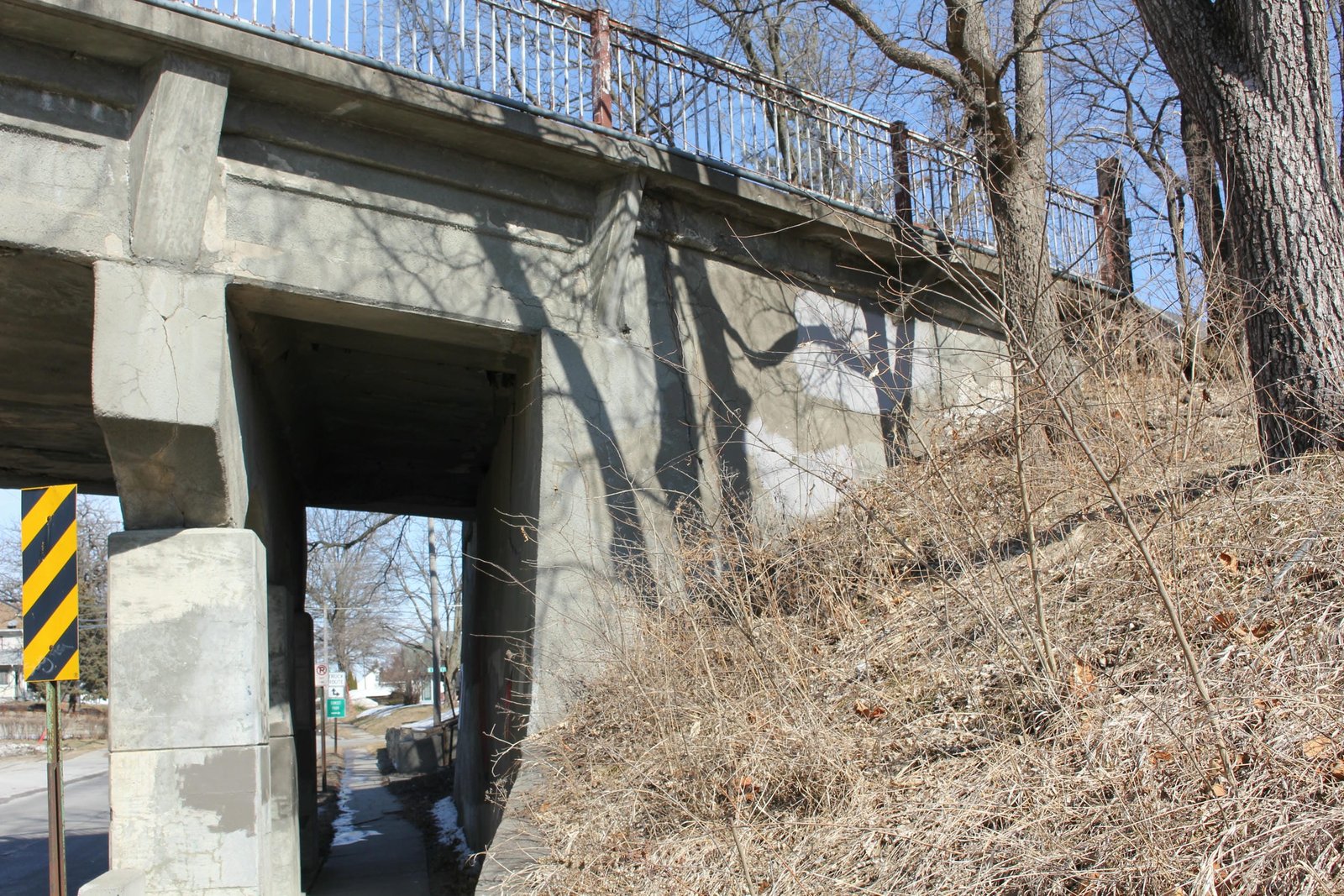

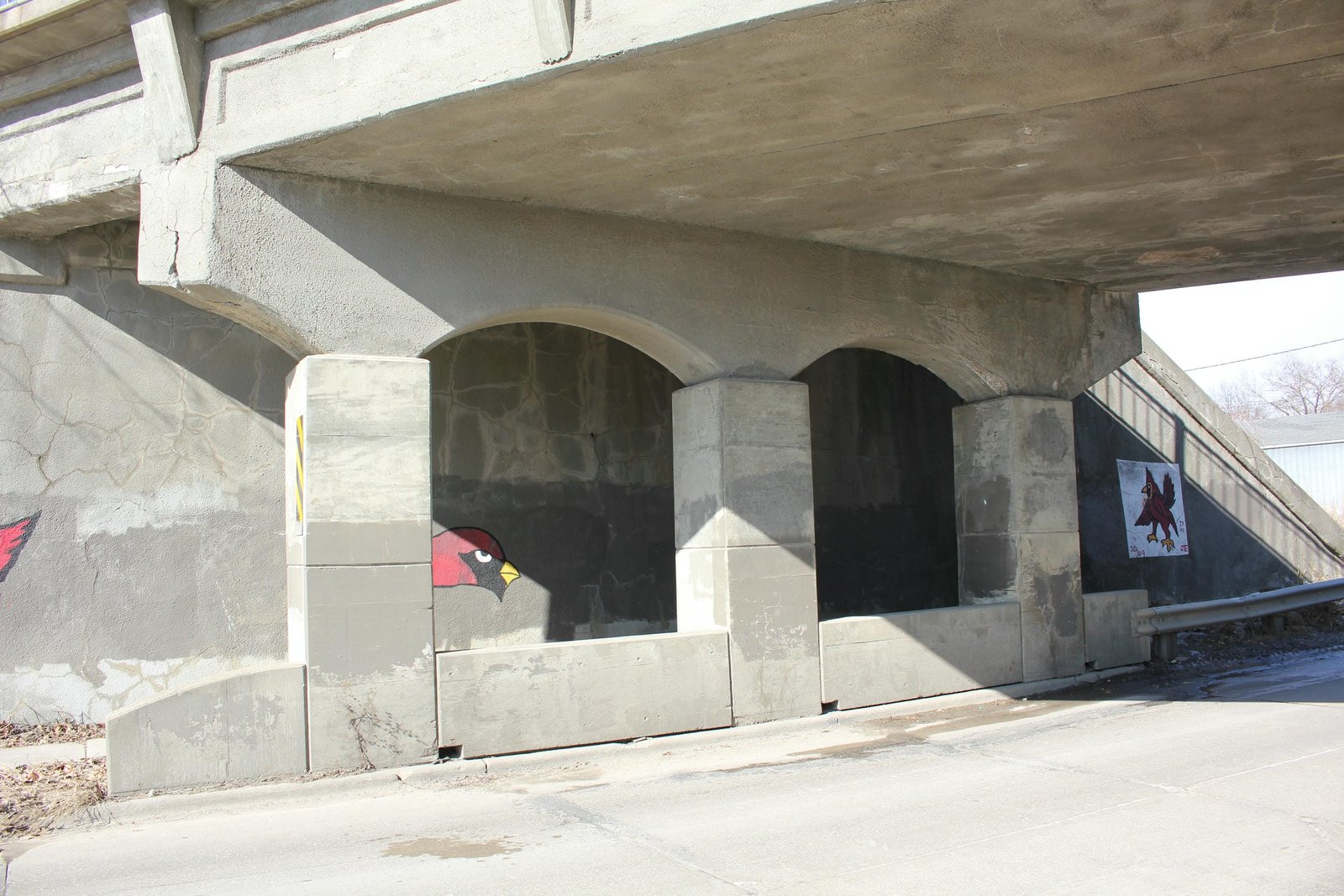

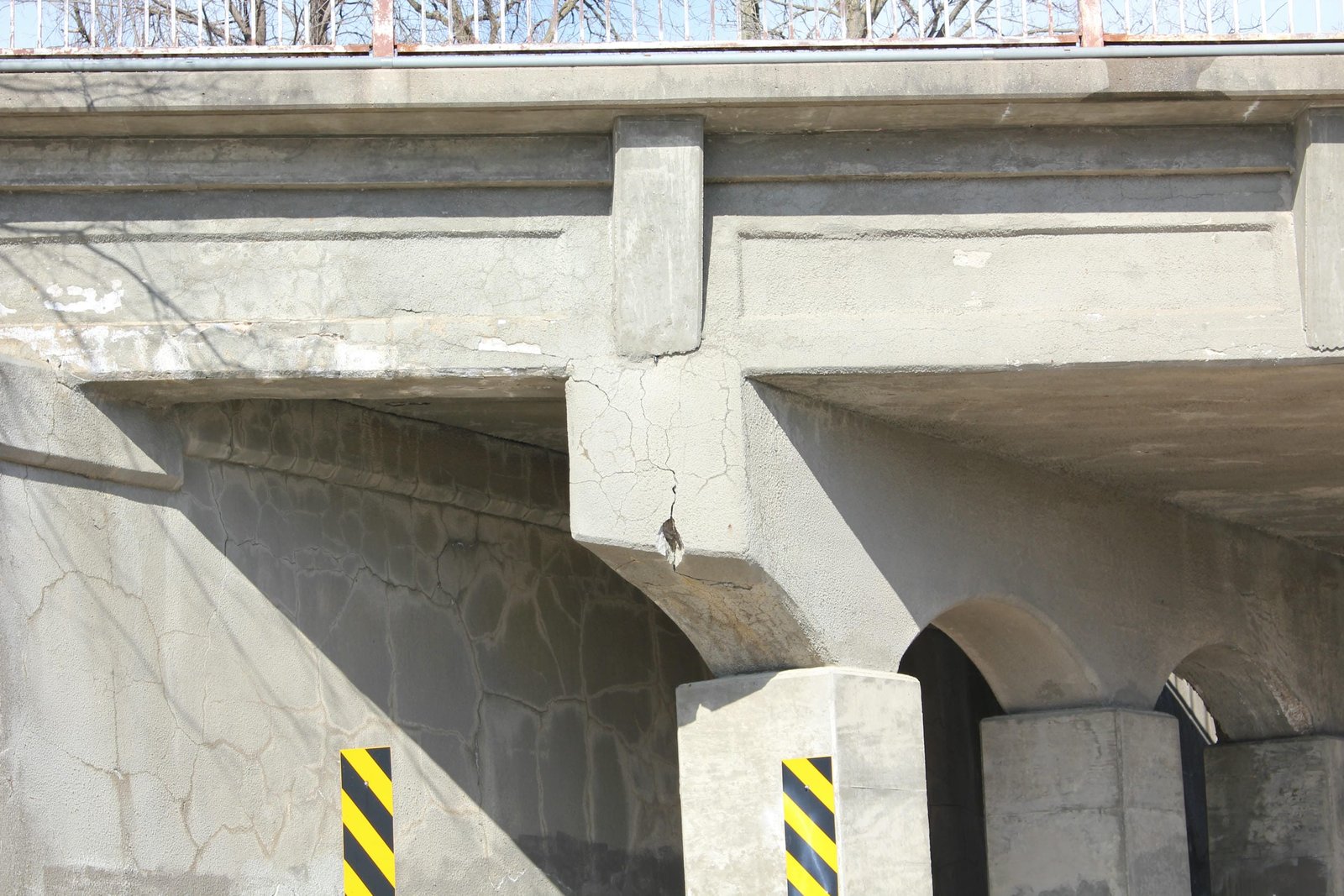

Currently, the bridge consists of one 40-foot concrete encased beam span, approached by a 10-foot span of the same design on either end. The entire bridge is set onto concrete substructures, and runs at a slight skew. The superstructure follows a standard design for the era, with precast concrete slabs which are reinforced with twenty-four beams per span. These spans also include walkways on either side, which are protected with ornamental iron railing. The piers use a typical art-deco design for the era, with three columns connected by concrete arches at the top. Both abutments use a standard design, with sloped wing walls extending parallel to the roadway below. Cedar Rapids Construction Company constructed the substructures, and it is believed that they also constructed the individual slabs of the superstructure. These slabs were originally cast as four slabs per span, and were poured in the depot grounds immediately east of this bridge. Railroad company forces reportedly placed the spans onto the substructures. Concrete encased beam spans became popular in the early 20th Century, as the design allowed for longer and more attractive spans than traditional reinforced slabs or steel girder spans. Typical of grade separations from this era, several elements of the bridge are decorative, which enhances the surrounding area. Since the initial construction, the bridge has seen no significant alterations. Today, the north track remains in use as part of an Iowa Interstate Railroad mainline. Overall, the bridge appears to be in fair condition, with some deterioration noted throughout the structure. Portions of the pier columns have been reinforced with concrete encasements, likely to fix severe spalling. The author has ranked this bridge as being locally significant, due to the common design.
Citations
| Builder and build date | The Newton Record; December 17, 1920 |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
