UP Wolf Creek Bridge (Chariton)


Click the photo to view the full-size version

1/21
Date Taken:
Author:
Caption:

Name UP Wolf Creek Bridge (Chariton)
Chicago, Rock Island & Pacific Railroad Bridge #170
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Union Pacific Railroad
Superstructure Contractor American Bridge Company of New York

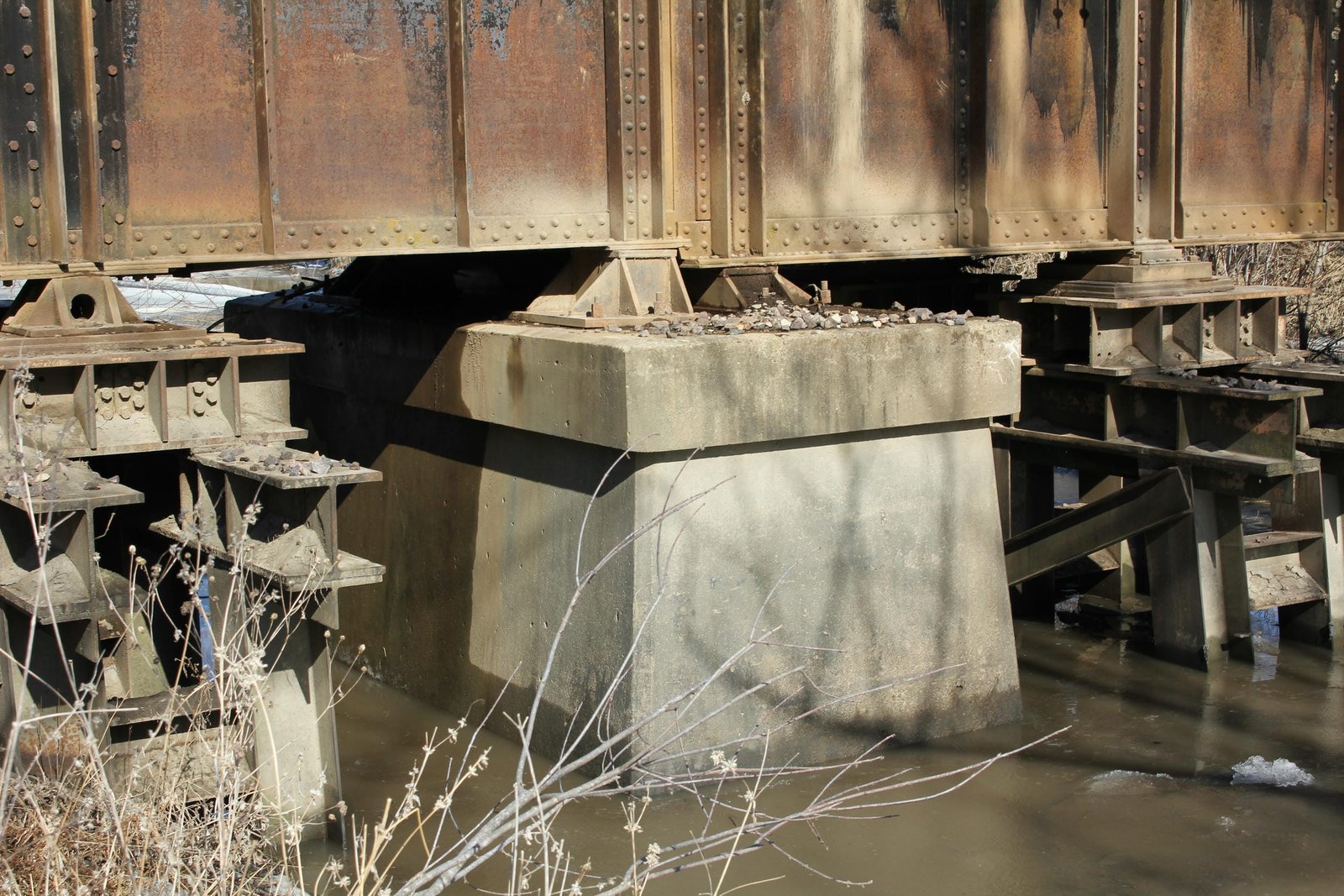

Substructure Contractor J.C. Dunn of Chicago, Illinois (Pier and South Abutment)

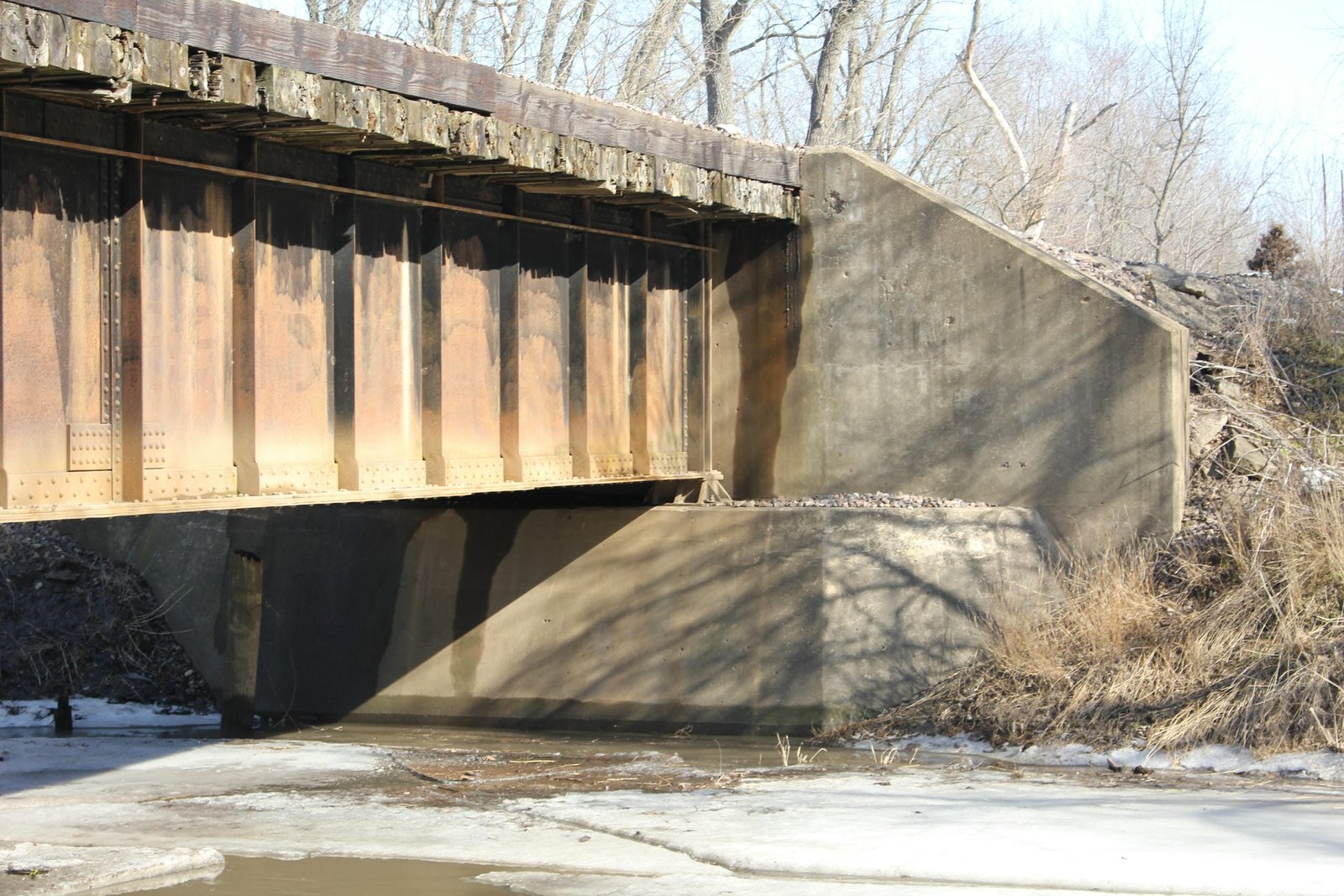

F.K. Ketler Company of Chicago, Illinois (North Abutment)
Length 135 Feet Total, 70 Foot Main Soan
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1912, North Span Added 1941
Traffic Count 10 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 170
Union Pacific Railroad Bridge Number 17.00
Significance Local Significance
Documentation Date 2/27/2021

In 1871, the Chicago & South Western Railway constructed 61 miles of new railroad between Shearwood, Missouri and Allerton, Iowa, as part of a larger project to construct a line between Leavenworth, Kansas and Washington, Iowa.  In 1873, the Des Moines, Indianola & Missouri Railroad (DMI&M) constructed a 21 mile railroad line, extending from Des Moines, Iowa south to Avon, Iowa; and west to Indianola, Iowa.  Both railroads would be sold to the Iowa Northern & Missouri Southern Railroad in 1876, which was merged into the Chicago, Rock Island & Pacific Railway in 1880.  The Rock Island had acquired and constructed a network of railroads, particularly in Iowa.  This route served as a branch line to a small town near Des Moines.  During the 1880s and 1890s, the Rock Island expanded westwards, reaching Colorado and New Mexico.  Additions to the system during the early 1900s included a number of new lines in Minnesota and northern Iowa.  In 1911, the St. Paul & Kansas City Short Line Railroad, a subsidiary of the Rock Island, constructed 65 miles between Avon, Iowa and Allerton, Iowa; connecting the two lines.  This new line was built as part of a larger project to connect the northern and southern portions of the system. To reach Kansas City, the Rock Island utilized trackage rights over the Chicago, Burlington & Quincy Railroad from Cameron Junction to Kansas City.  In 1931, the Rock Island constructed a new line from near Trenton to Birmingham, located just outside of Kansas City.  From Polo to Birmingham, the route would parallel the Chicago, Milwaukee, St. Paul & Pacific Railroad tracks, and the two railroads operated as a double track route, with separate mainlines.  In 1945, a new bridge across the Missouri River was jointly constructed by the two railroads.

The Rock Island had constructed and acquired a large railroad network throughout the Midwest.  The Kansas City-Des Moines-St. Paul route would become known as the "Spine Line".  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes.  The Rock Island struggled to compete with a stronger and better constructed Union Pacific system.  By 1964, the Rock Island began attempts to merge with Union Pacific, and restructure railroads west of the Mississippi River.  This merger was eventually denied, and Rock Island turned its last profit in 1965.  In the mid-1970s, the railroad was in serious decline.  The railroad received loans to attempt to fix slow orders, received new equipment and turn a profit.  By 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.  The Chicago & North Western Railway (C&NW) and Soo Line both had interest in the Spine Line, with the C&NW eventually purchasing the route.  During 1982 and 1983, significant money was allocated for rebuilding the deteriorated route, and trains began using the route.  In 1995, C&NW was purchased by Union Pacific Railroad (UP).  Union Pacific continues to operate this route as the Trenton Subdivision.  CPKC now operates the former Milwaukee Road portion of this segment.


View an article discussing the construction of this line (digitized by Google)

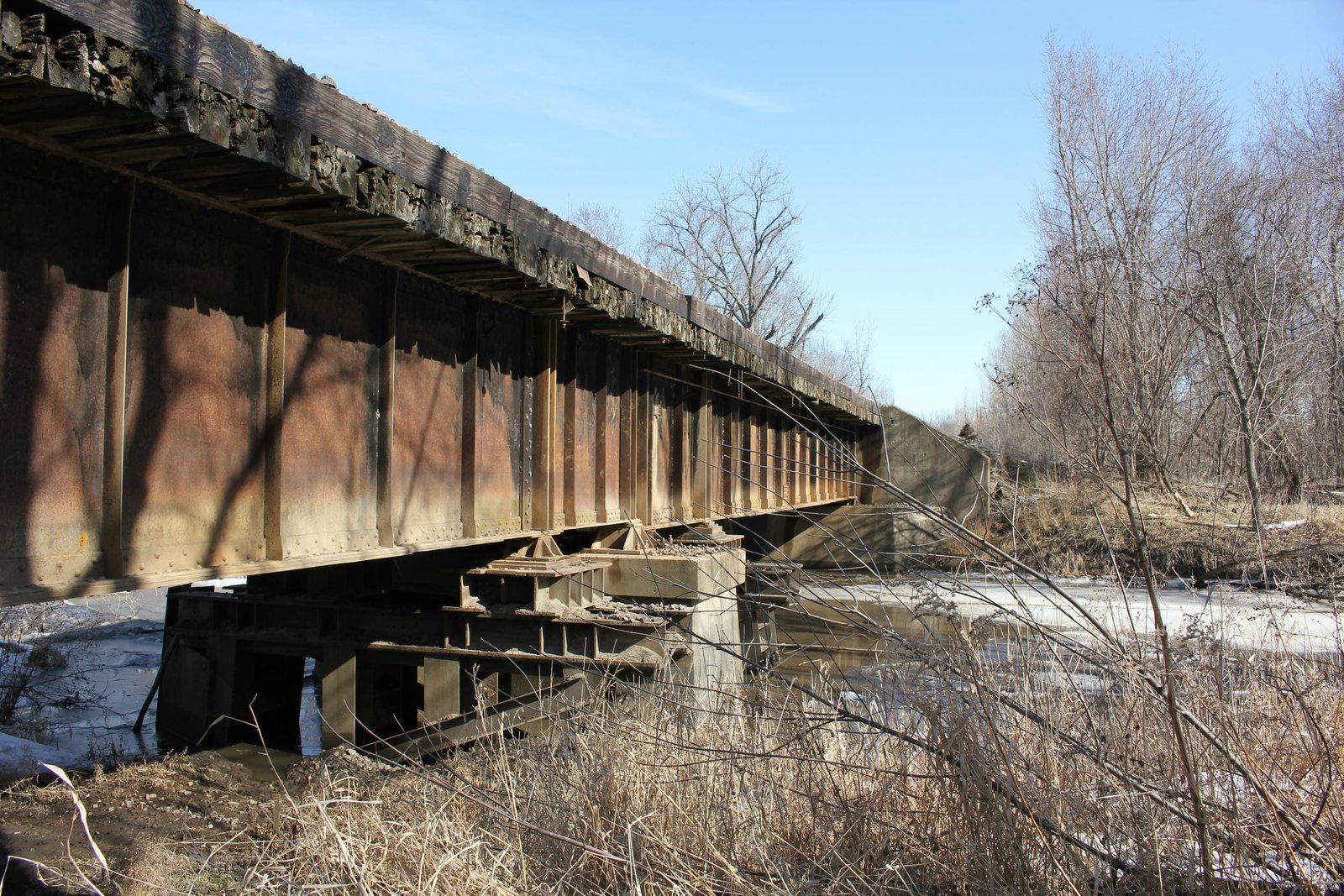

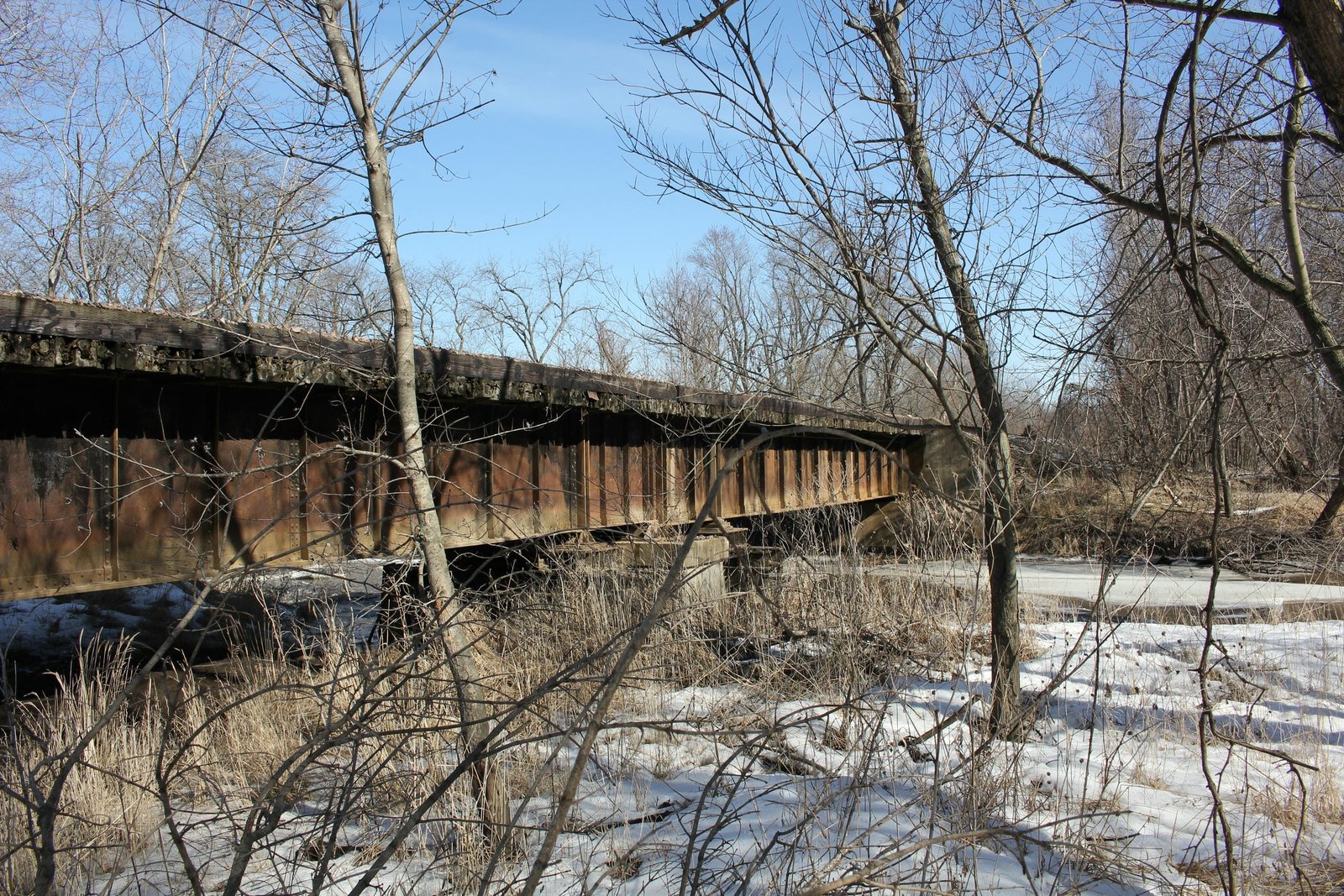

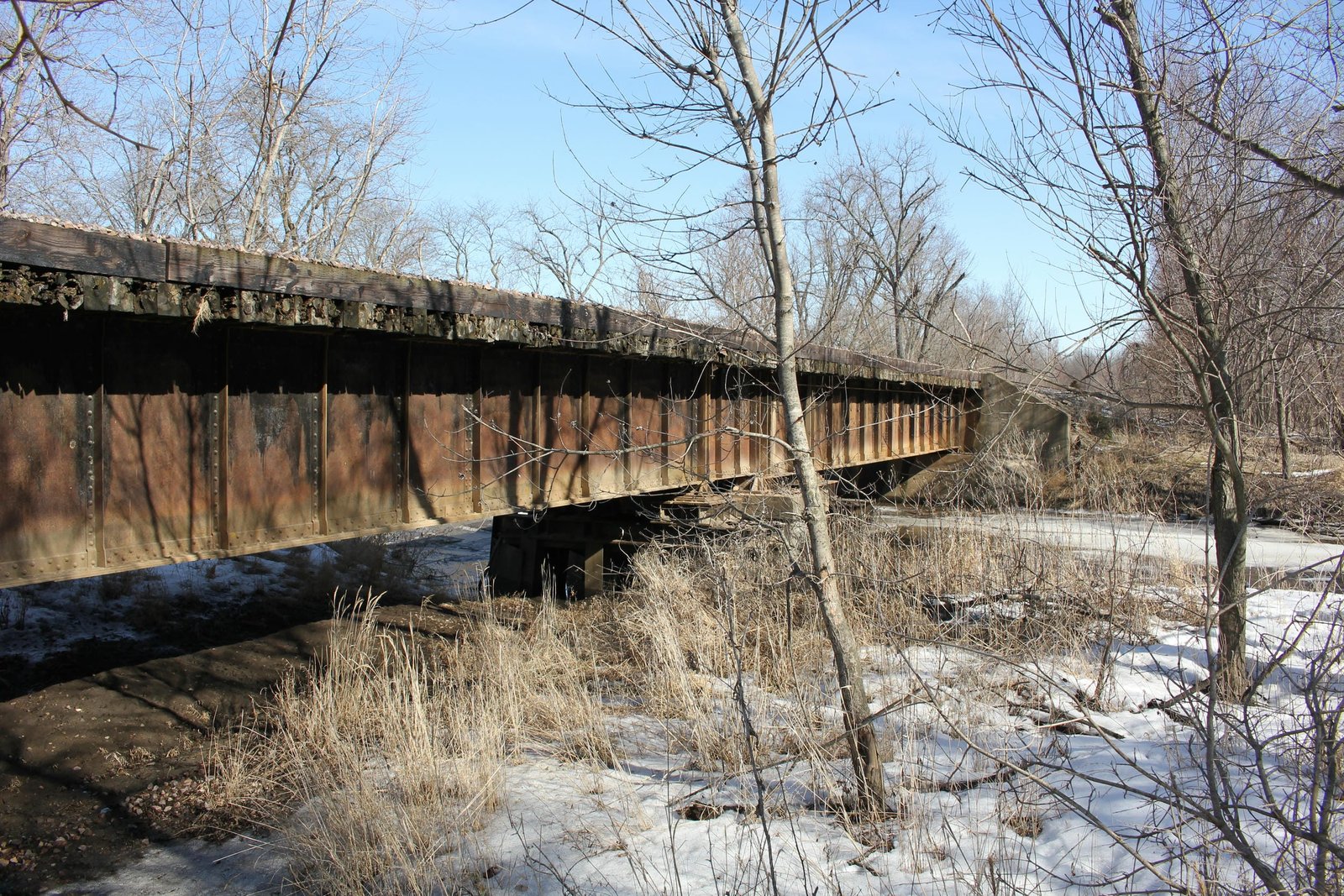

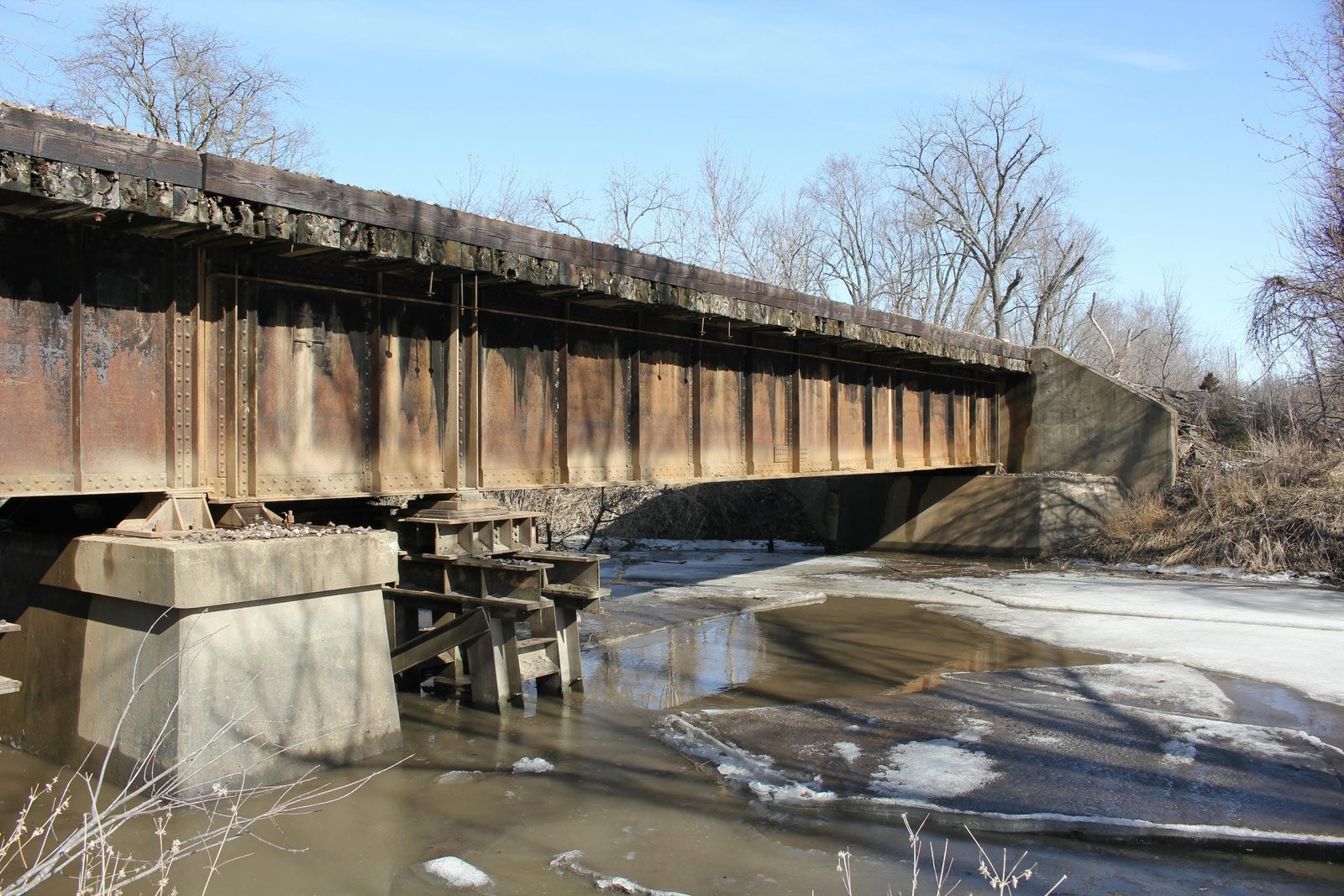

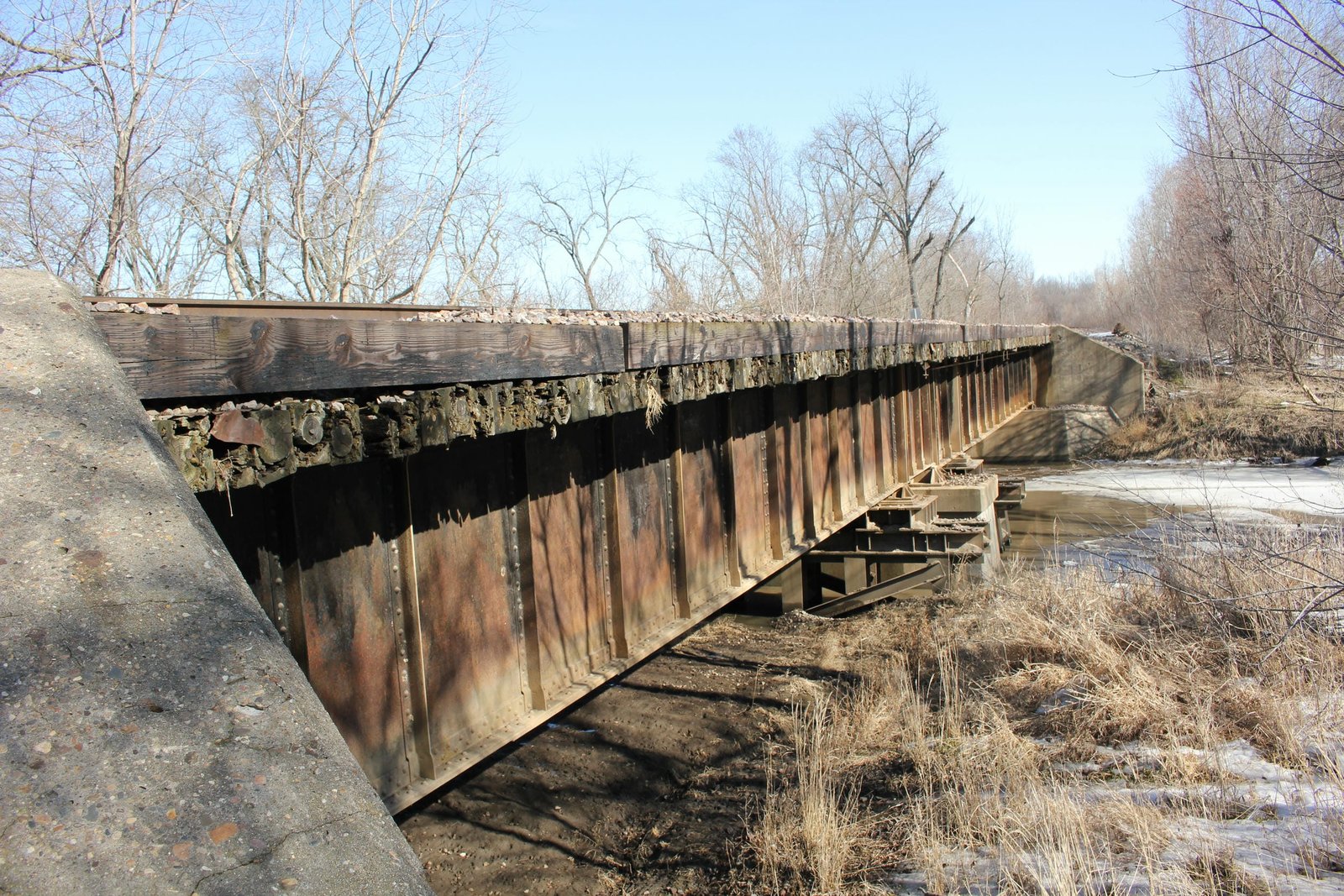

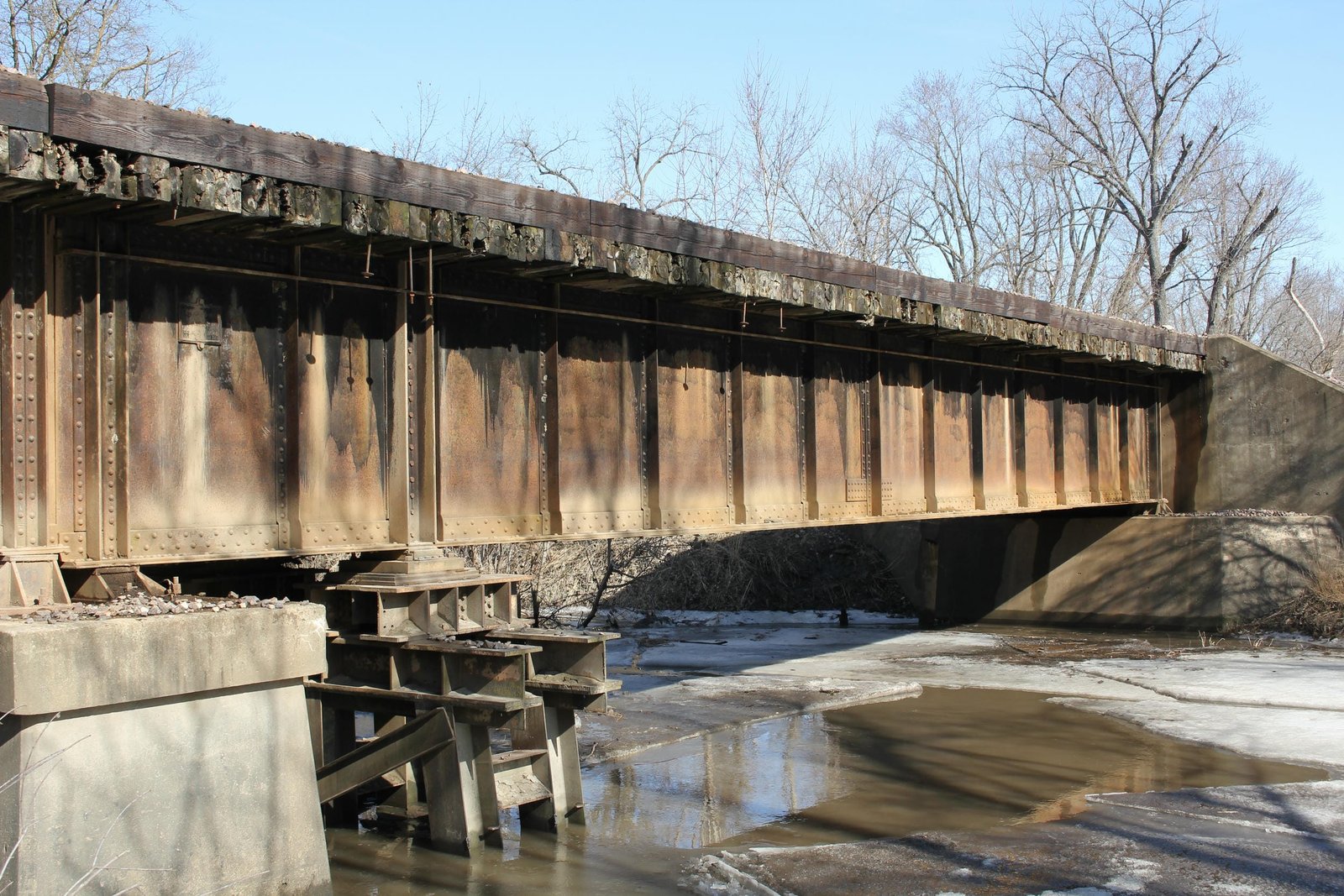

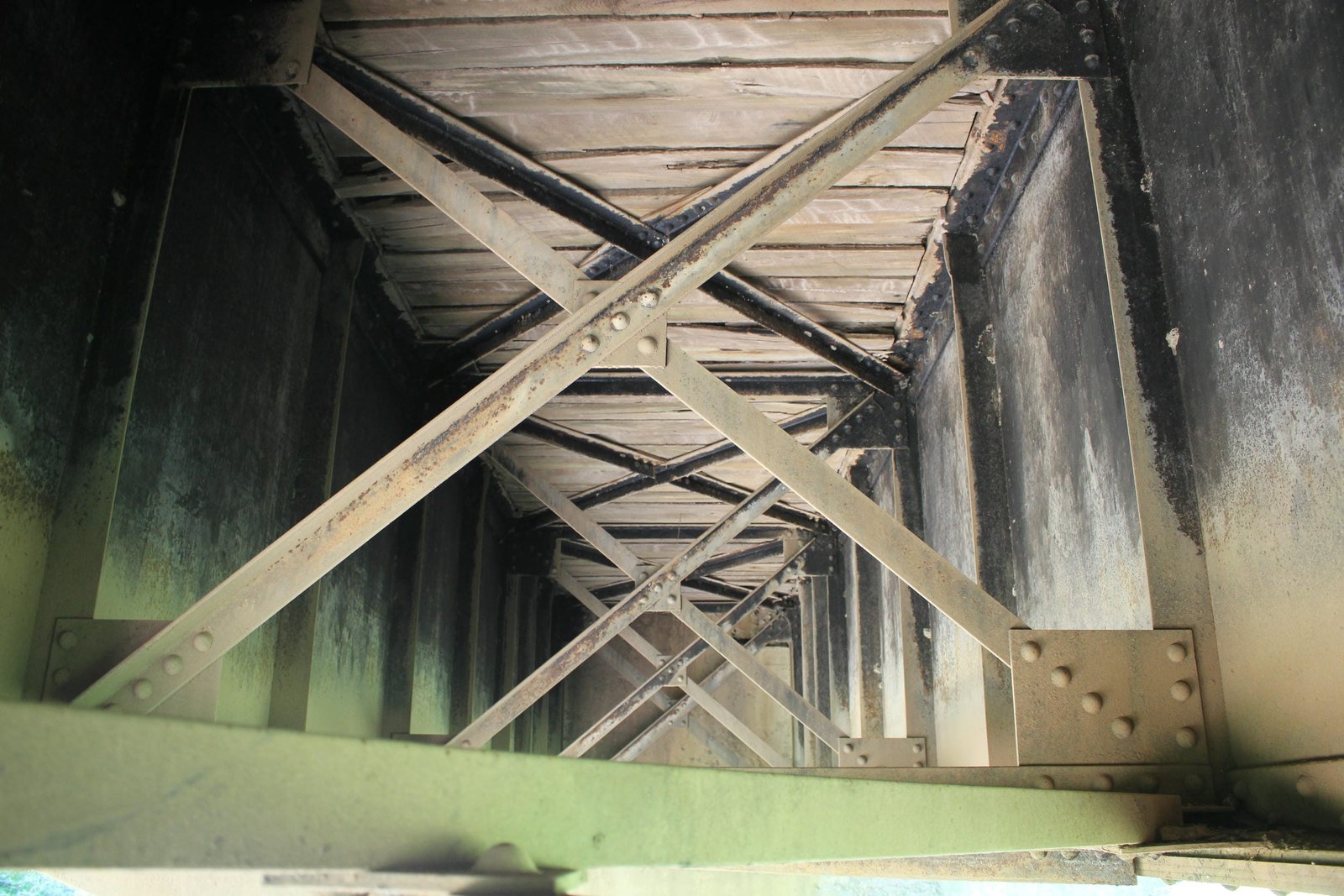

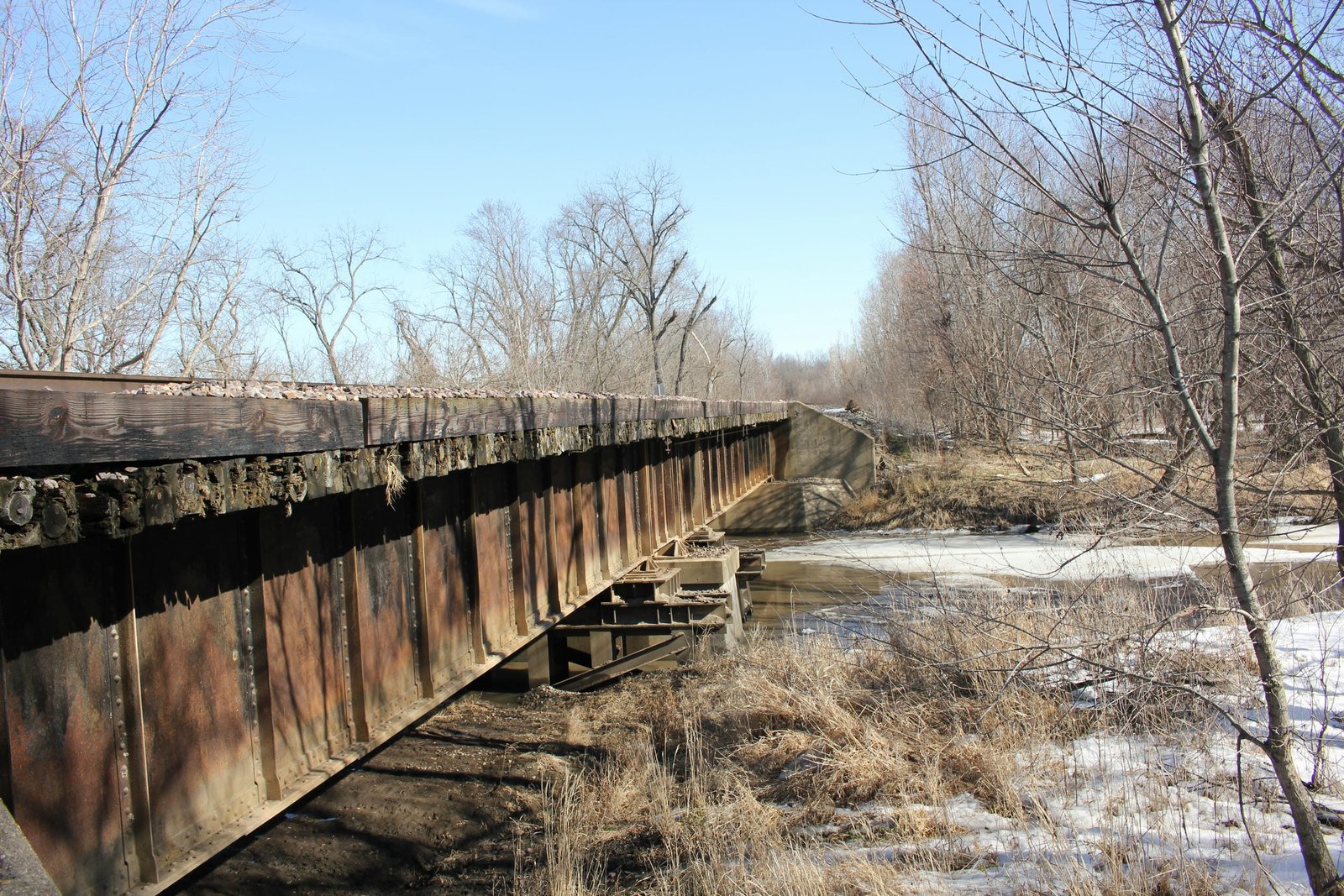

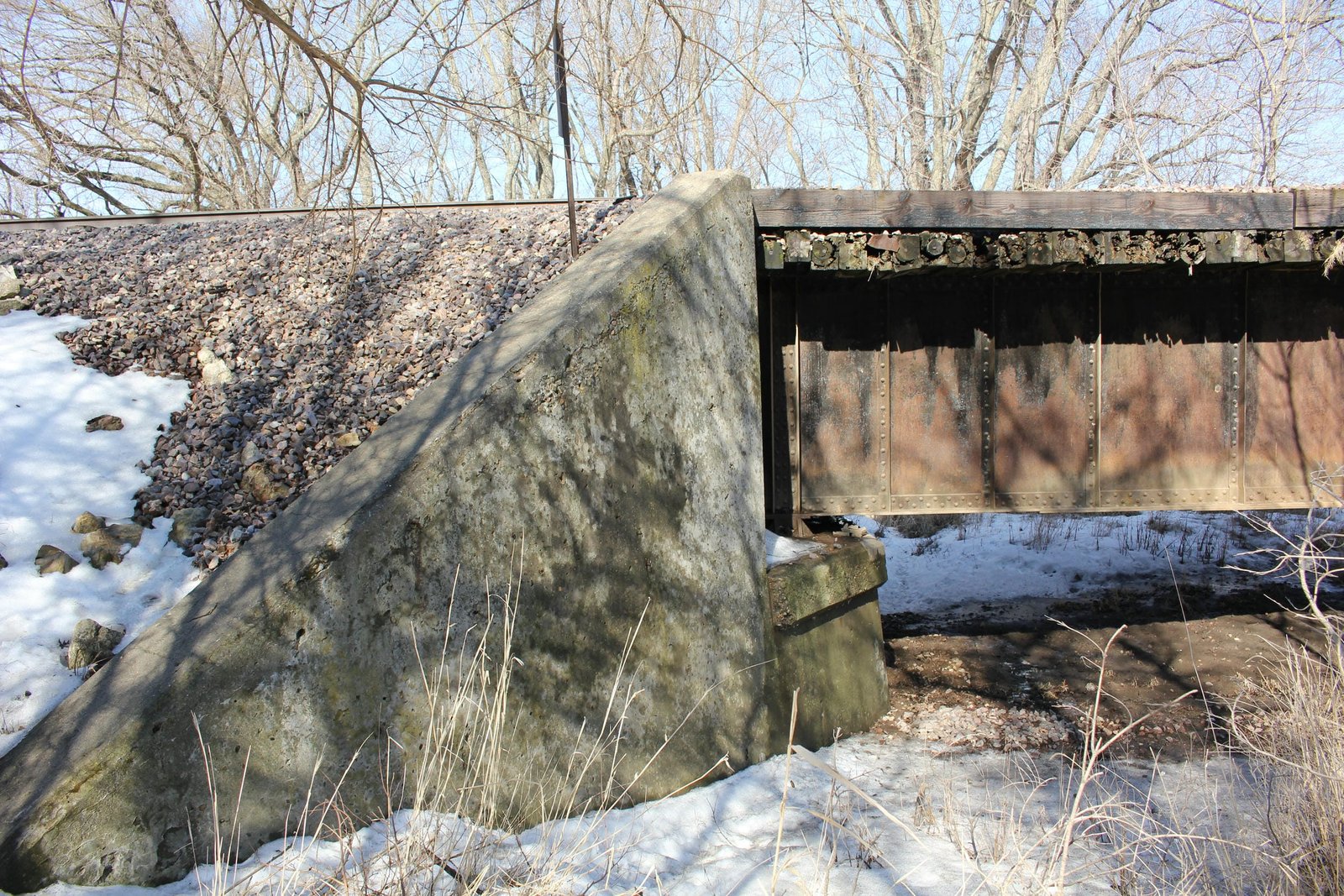

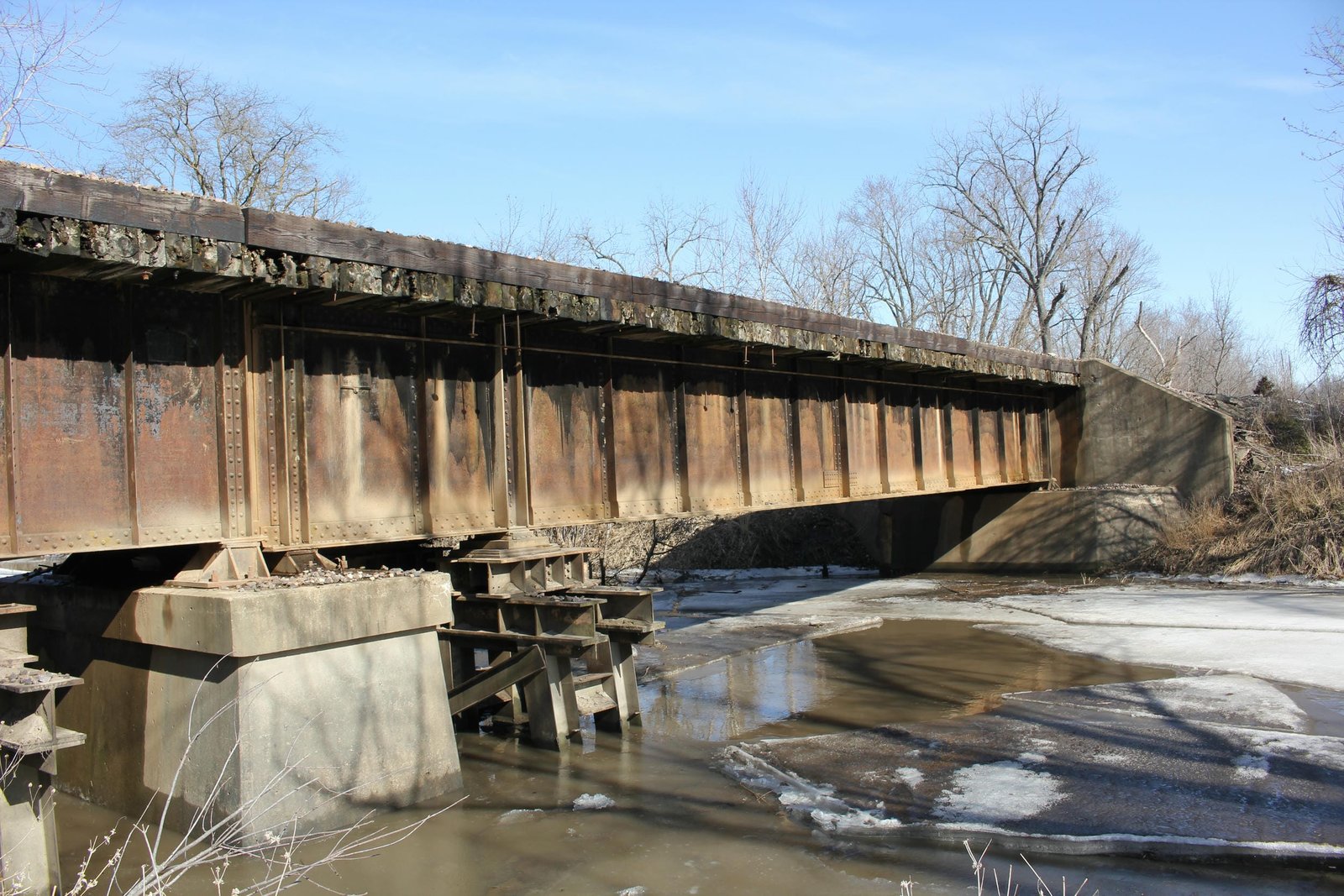

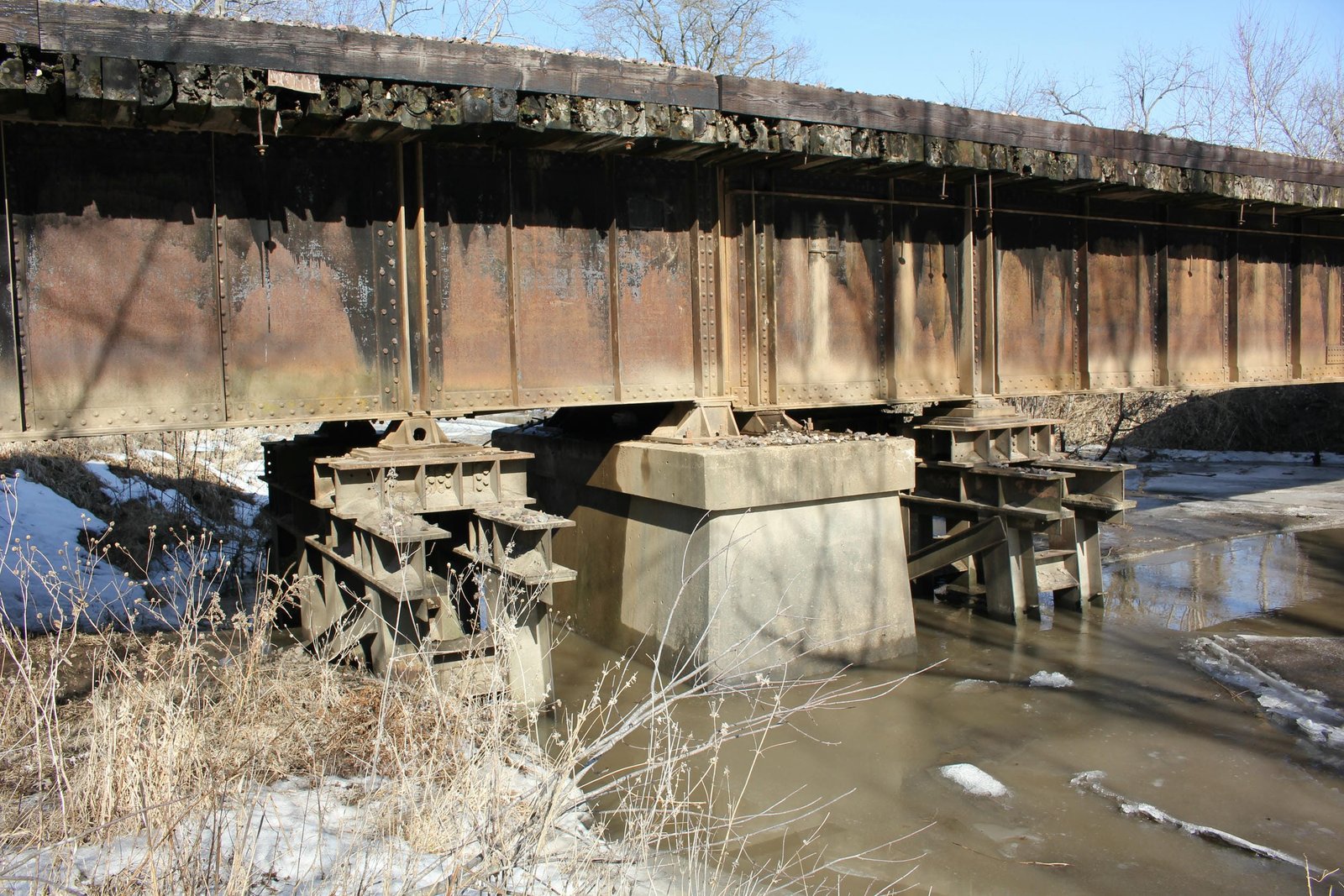

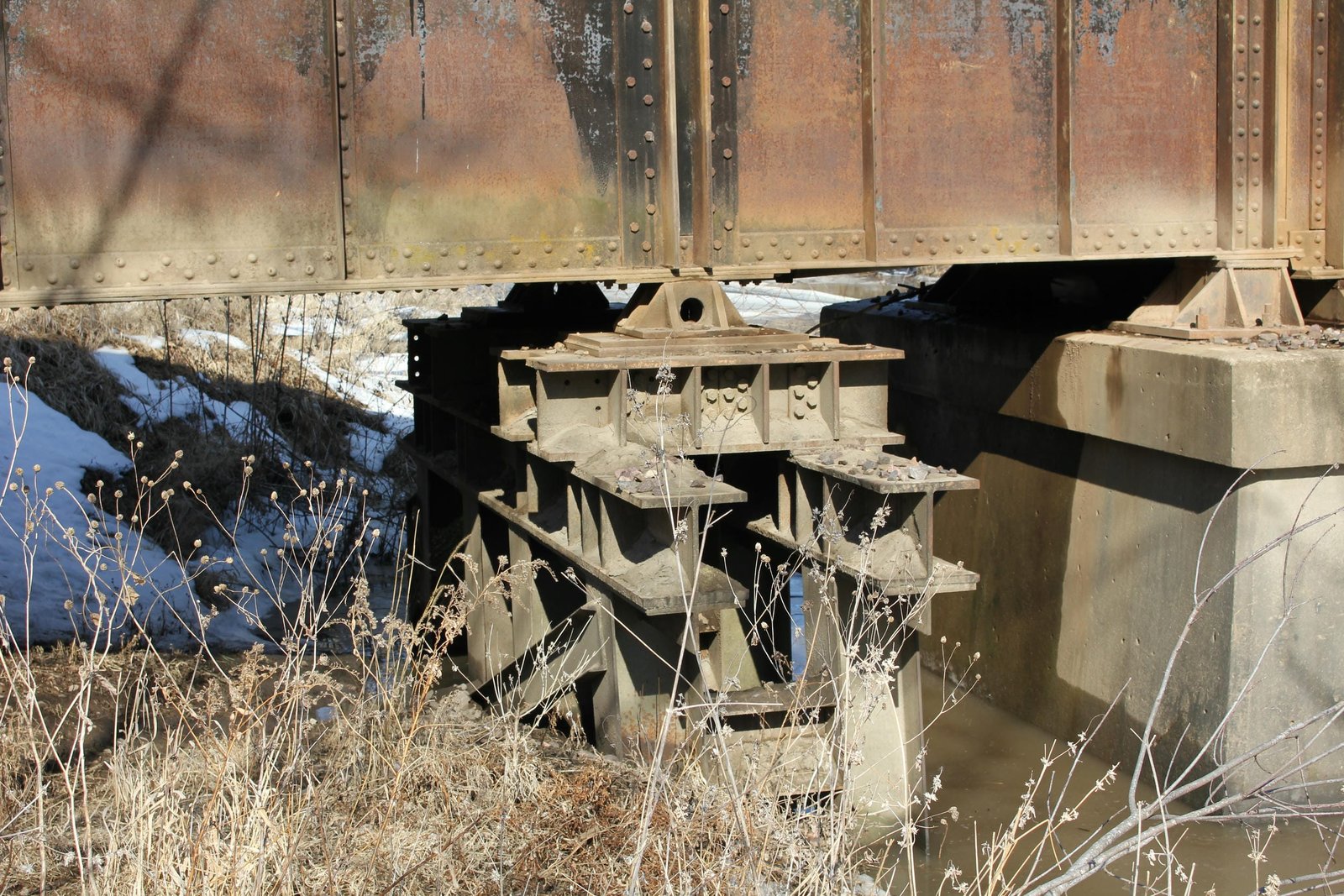

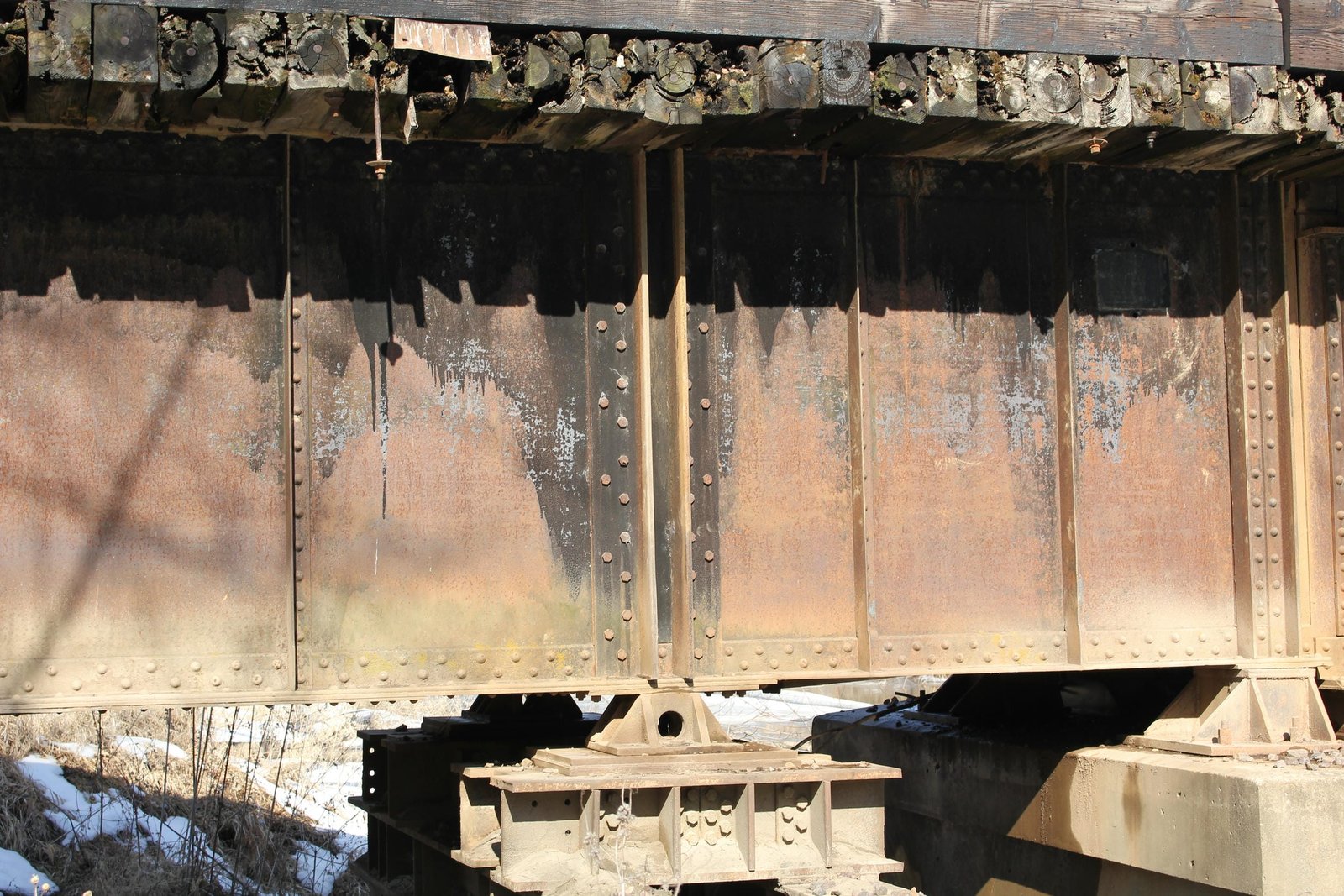

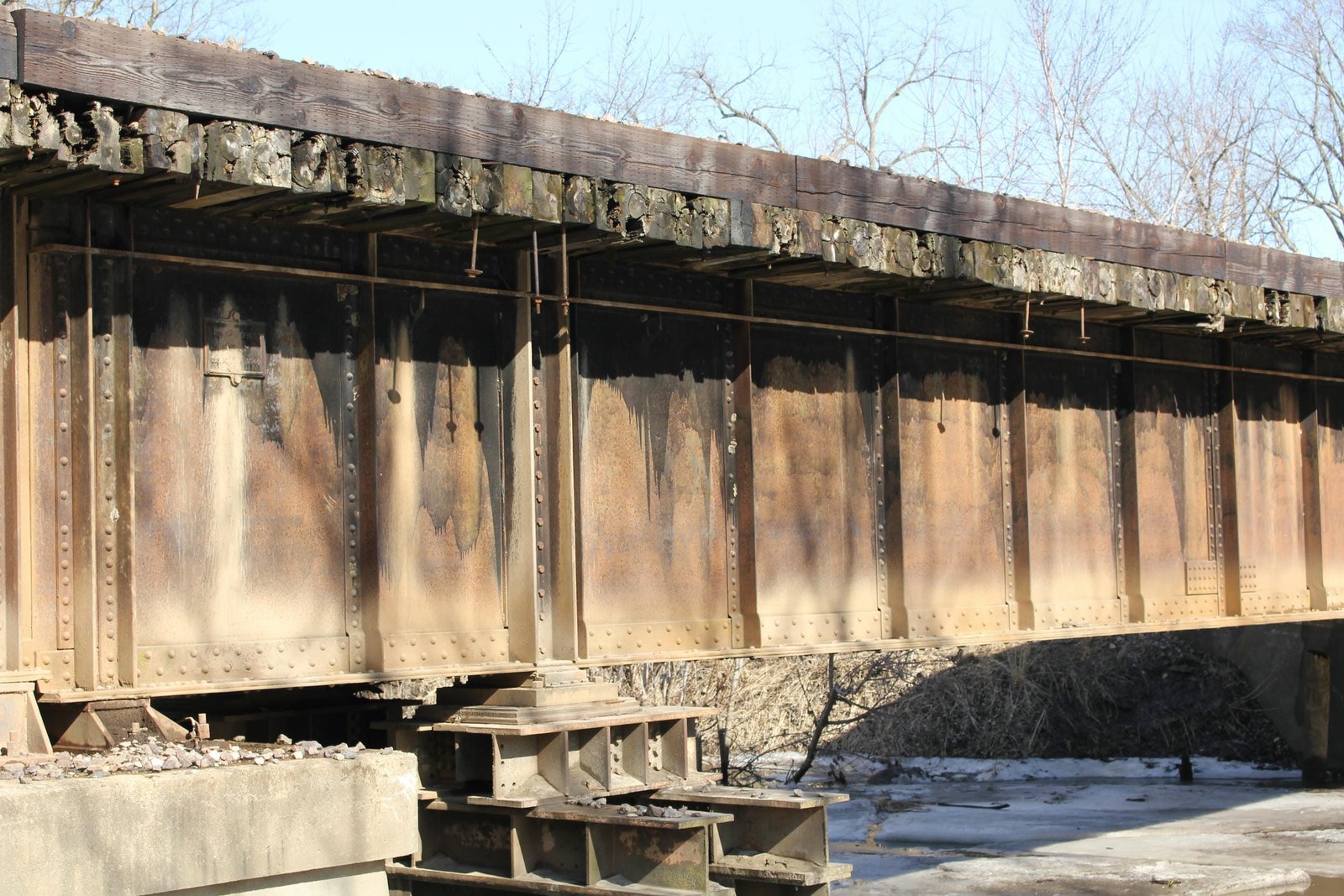

Located south of Chariton, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over Wolf Creek. When the Rock Island constructed the St. Paul & Kansas City Short Line between 1911 and 1913, this was one of a handful of steel bridges constructed along the line. Initially, this bridge consisted of a single deck plate girder span, set onto concrete piers and approached by timber pile trestle spans on the north end. Timber approaches were commonly used to allow approach embankments to settle without damaging the steel and concrete portions of the bridge. The intention was to either fill or replace these approaches with steel spans as soon as practical. By the early 1940s, the embankments had settled enough to allow for permanent spans to be installed. In late 1940, a contract was awarded to construct an additional deck plate girder at the north end, set onto a new abutment. It is believed that the work was completed in early 1941. Currently, the bridge consists of a 65-foot deck plate girder and a 70-foot deck plate girder span, set onto concrete substructures. Both spans are very similar, and consist of two heavy plate girders covered by a timber ballast deck. The pier uses a standard rectangular design, while both abutments use a standard design with sloped wing walls angled diagonally from the bridge. American Bridge Company fabricated both spans, while the pier and south abutment were built by J.C. Dunn as part of a larger contract for concrete work along this line. F.K. Ketler constructed the north abutment and erected the north span. Deck plate girder spans were popular for railroad use, as they were durable and easy to construct. Since the approach was reconstructed in 1941, the bridge has seen no significant alterations. Helper bents consisting of scrap steel beams were added near the center pier in the late 20th Century, although it is unclear why these were added. There is no clear evidence of settlement or failure of the pier. Today, the bridge remains in use as part of a Union Pacific Railroad mainline. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked the bridge as being locally significant, due to the common design.


Citations

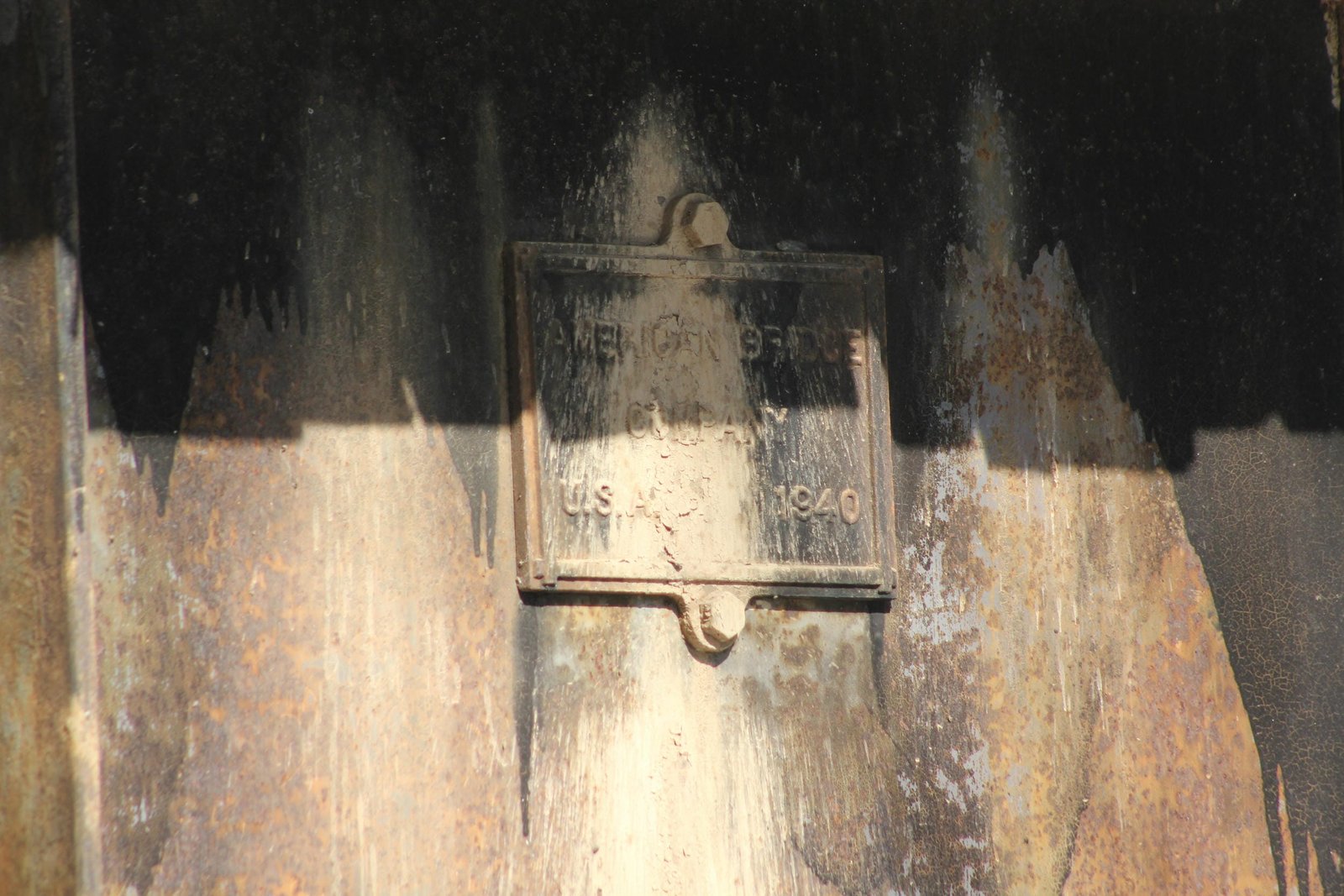

Build dates and builder (superstructure) American Bridge Company plaques
Builder (pier and south abutment) The Railway and Engineering Review; May 27, 1911
Builder (north abutment) Railway Age; Volume 109, Issue 10
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
