| Name | CPKC 2nd Avenue Bridge (Washington) Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge #I-1072 1/2 |
| Built By | Chicago, Milwaukee, St. Paul & Pacific Railroad Chicago, Rock Island & Pacific Railroad |
| Currently Owned By | Canadian Pacific Kansas City Limited |
| Superstructure Contractor | Bethlehem Steel Company of Bethlehem, Pennsylvania |
| Substructure Contractor | Massman Construction Company of Kansas City, Missouri |
| Length | 52 Feet Total, 38 Foot Main Span |
| Width | 7 Tracks, 1 In Use (144 Feet) |
| Height Above Ground | 13 Feet 4 Inches |
| Superstructure Design | Steel Stringer and Concrete Slab |
| Substructure Design | Concrete |
| Date Built | 1939 |
| Traffic Count | 10 Trains/Day (Estimated) |
| Current Status | In Use |
| Chicago, Milwaukee, St. Paul & Pacific Railroad Bridge Number | I-1072 1/2 |
| Chicago, Rock Island & Pacific Railroad Bridge Number | 2484 |
| Significance | Local Significance |
| Documentation Date | 1/27/2018 |
In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed a 12-mile railroad line, extending from Wilton, Iowa to Muscatine, Iowa. In 1859, the line was extended an additional 35 miles to Washington, Iowa. In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island). Between 1869 and 1870, the Chicago & South Western Railway (C&SW) constructed an additional 268 miles of railroad, extending from Washington, Iowa to Stillings Junction, Missouri (opposite of Leavenworth, Kansas). The C&SW became part of the Iowa Southern & Missouri Northern Railroad (IS&MN) in 1876, and the IS&MN and Rock Island were consolidated to form the Chicago, Rock Island & Pacific Railway (Rock Island) in 1880. In 1881, the Rock Island completed an additional 26 miles of railroad, extending from Davenport, Iowa to Muscatine. The Rock Island had constructed and acquired a large railroad network in the central United States during the late 19th Century. This line formed one of the principal mainlines, connecting the eastern and western portions of the system. In 1931, a new cutoff was constructed between Trenton, Missouri and Kansas City, reducing the importance of the western section of this line. The segment between Wilton and Muscatine was abandoned in 1934 in favor of the Davenport-Muscatine line. Between 1944 and 1948, almost the entire line between Washington and Centerville, Iowa was rebuilt on a new alignment. The new line instead turned southwest at Ainsworth, roughly paralleling the old route on a straighter and flatter alignment. With the exception of the line between Ainsworth and Washington and a short spur into Centerville, the entirety of the old line was abandoned.
The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability. After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. Further improvements were made in 1950, when portions between Centerville and Allerton, Iowa were realigned. The segment from Trenton to Stillings Junction was abandoned in approximately 1973. By the mid-1970s, the railroad was in serious decline. The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability. Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations. In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island. During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated. Many of the lines and equipment were scrapped. Profitable sections of railroad were prepared for sale.
The segment between Davenport and Washington was sold to the Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) in 1981 to replace their line between Muscatine and Washington. The segment between Allerton and Trenton was sold to the Chicago & North Western Railway (C&NW) in 1981 as part of a sale for the St. Paul-Kansas City "Spine Line". A short segment southeast of Centerville was sold to the Appanoose County Community Railroad (APNC) in 1984. The remainder of the line between Ainsworth and Allerton was abandoned. In the early 1980s, both the Milwaukee Road and C&NW made improvements to deteriorated Rock Island track on their purchased segments. By 1985, a suitor for the struggling Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986. In 1995, Union Pacific Railroad (UP) purchased the C&NW. In 2016, the APNC was purchased by the Iowa Southern Railway (ISRY), which is operated by Progressive Rail. CP merged with Kansas City Southern Railway in 2023 to form CPKC. Today, CPKC operates the Davenport to Washington segment of this line as part of the Ottumwa Subdivision; UP operates the Allerton to Trenton portion of this line as part of the Trenton Subdivision and ISRY continues to operate a short segment of track near Centerville. The remainder of the line has been reverted to adjacent landowners.

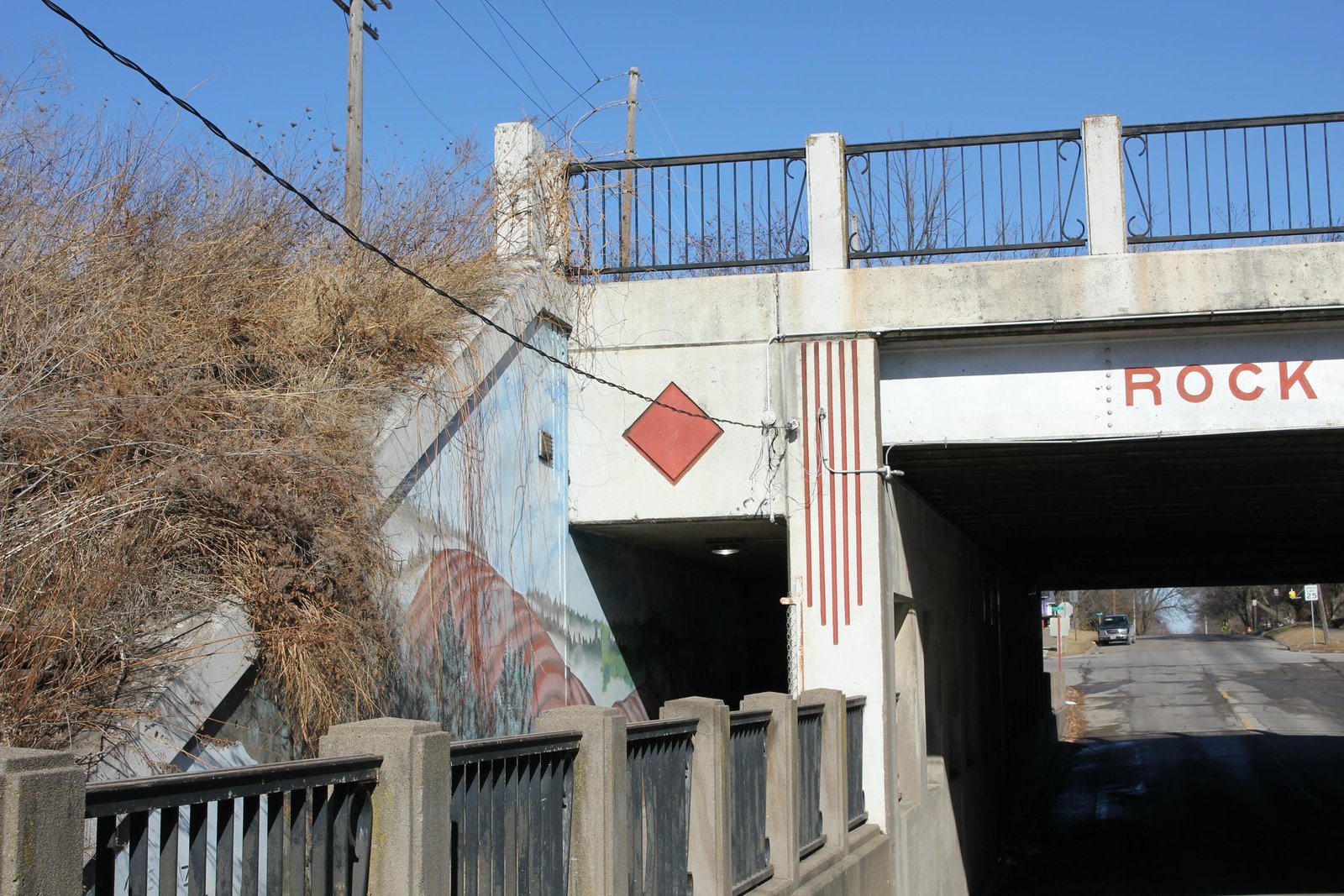

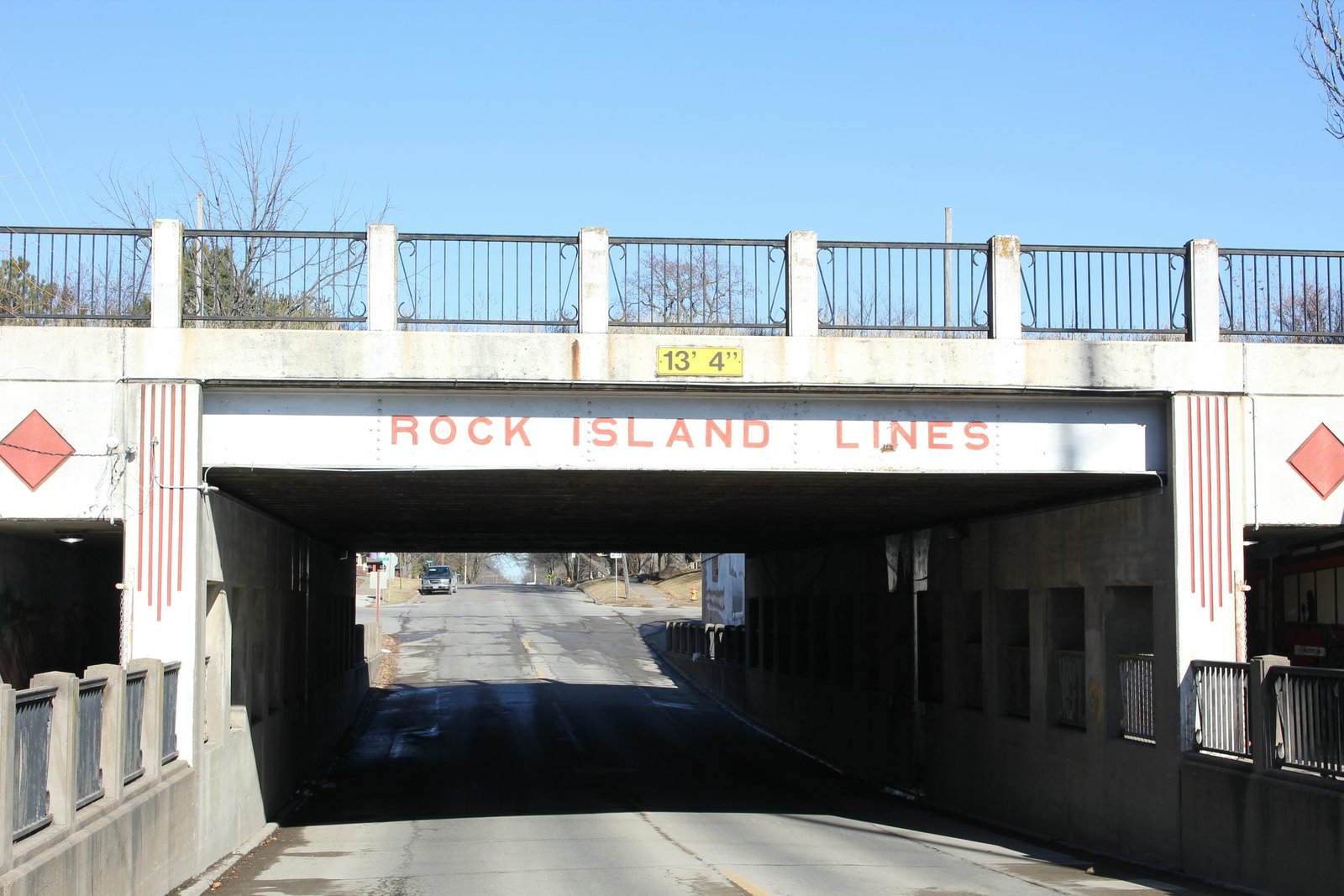

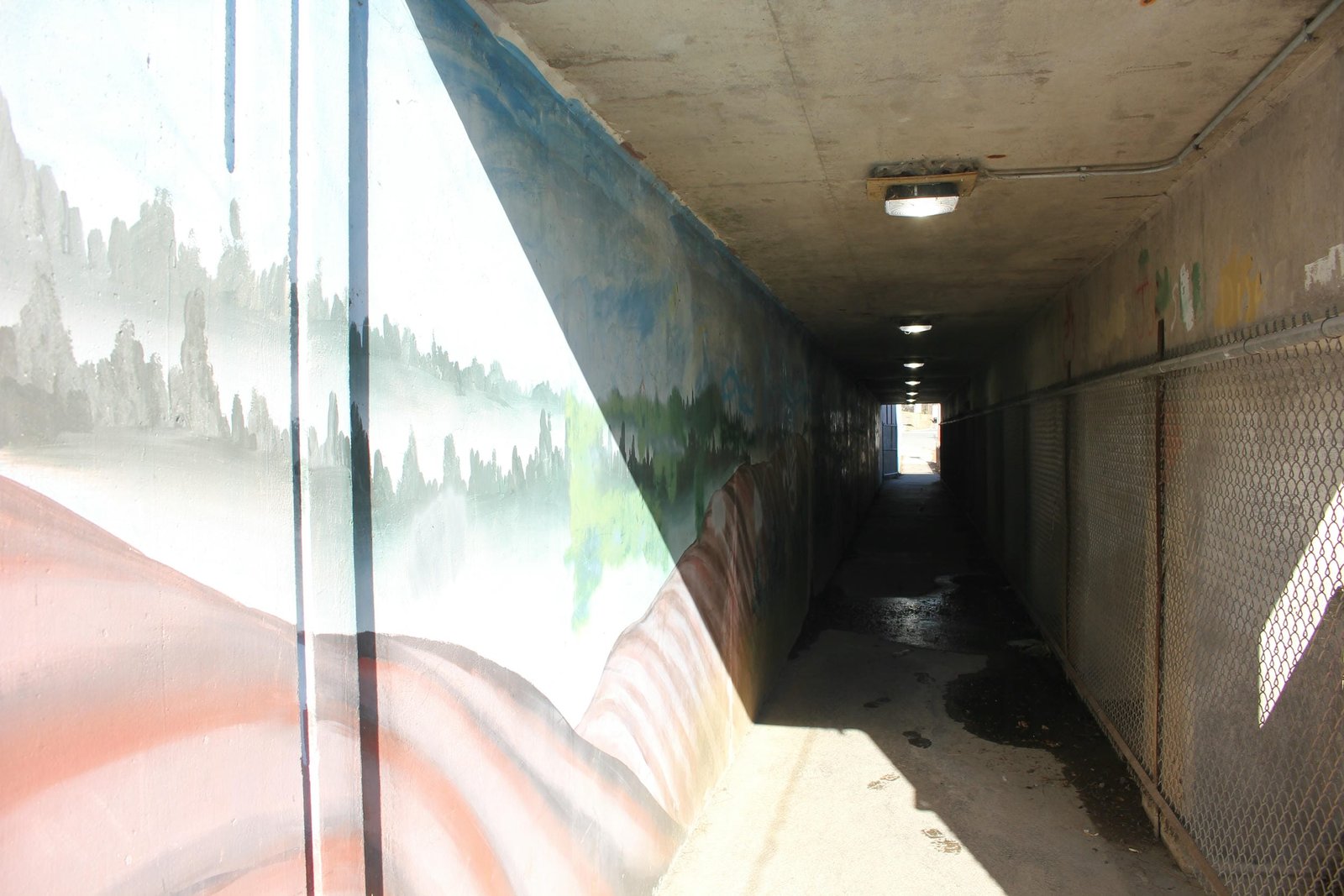

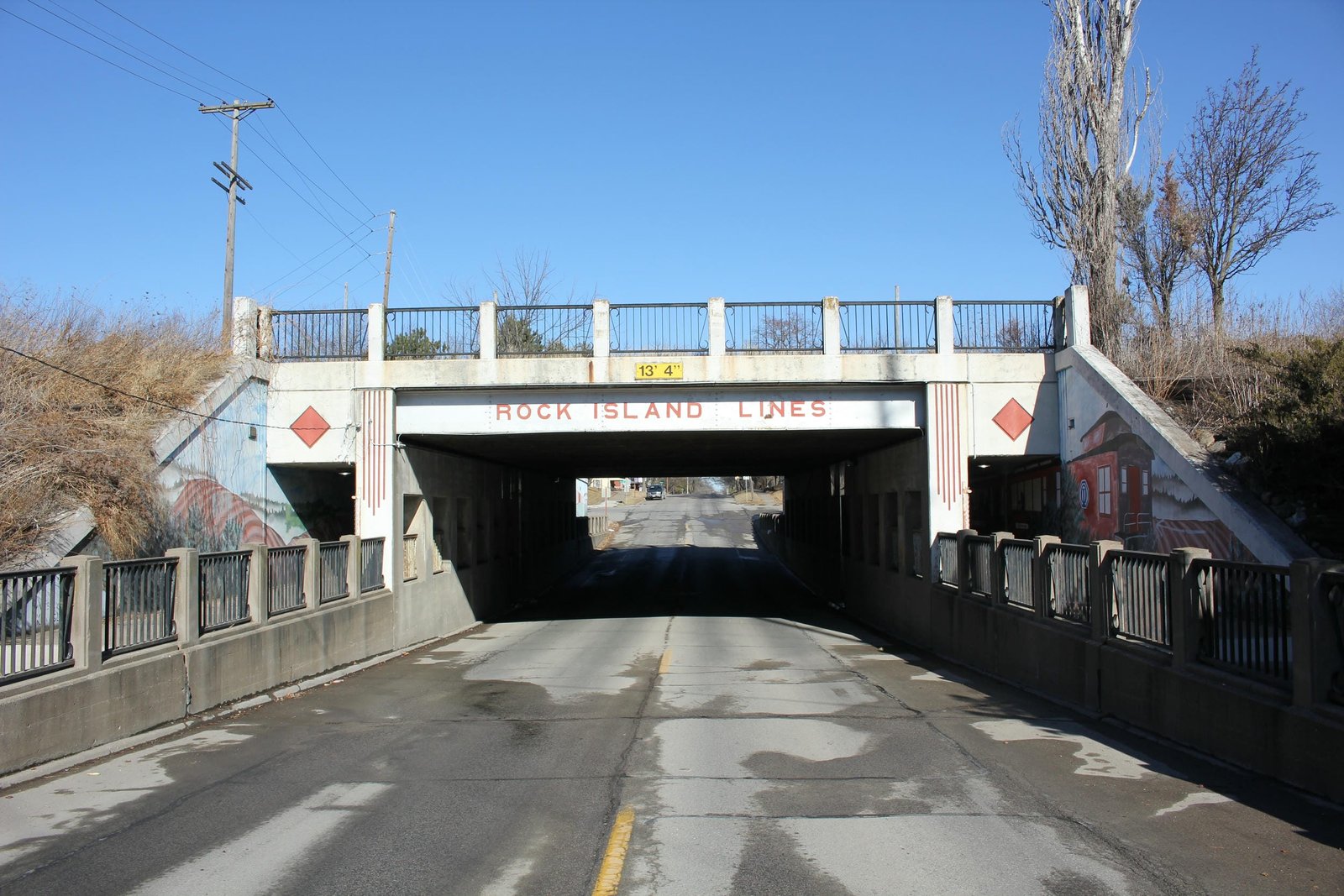

Located in downtown Washington, this attractive grade separation carries former Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) and Chicago, Rock Island & Pacific Railroad (Rock Island) mainlines over 2nd Avenue (formerly Iowa Highway 1). Prior to the construction of this bridge, a grade crossing existed at this location. Starting in the 1920s, the Iowa State Highway Commission (ISHC) worked with railroads throughout the state to construct grade separations at busy and dangerous grade crossings. In the mid-1930s, the Rock Island and Milwaukee Road both operated extensive facilities and dozens of trains through Washington. As a result, an underpass was planned to carry Iowa Highway 1 (2nd Avenue) underneath the tracks of the two railroads. Contracts were let in August 1938, and the construction was completed the following year. Currently, the bridge consists of a 38-foot steel stringer span, approached by a 7-foot concrete slab span on either end. The entire bridge is set onto concrete substructures, and was constructed for seven tracks at a width of 144 feet. In addition, a pump station was constructed as part of the project to prevent flooding underneath the bridge.

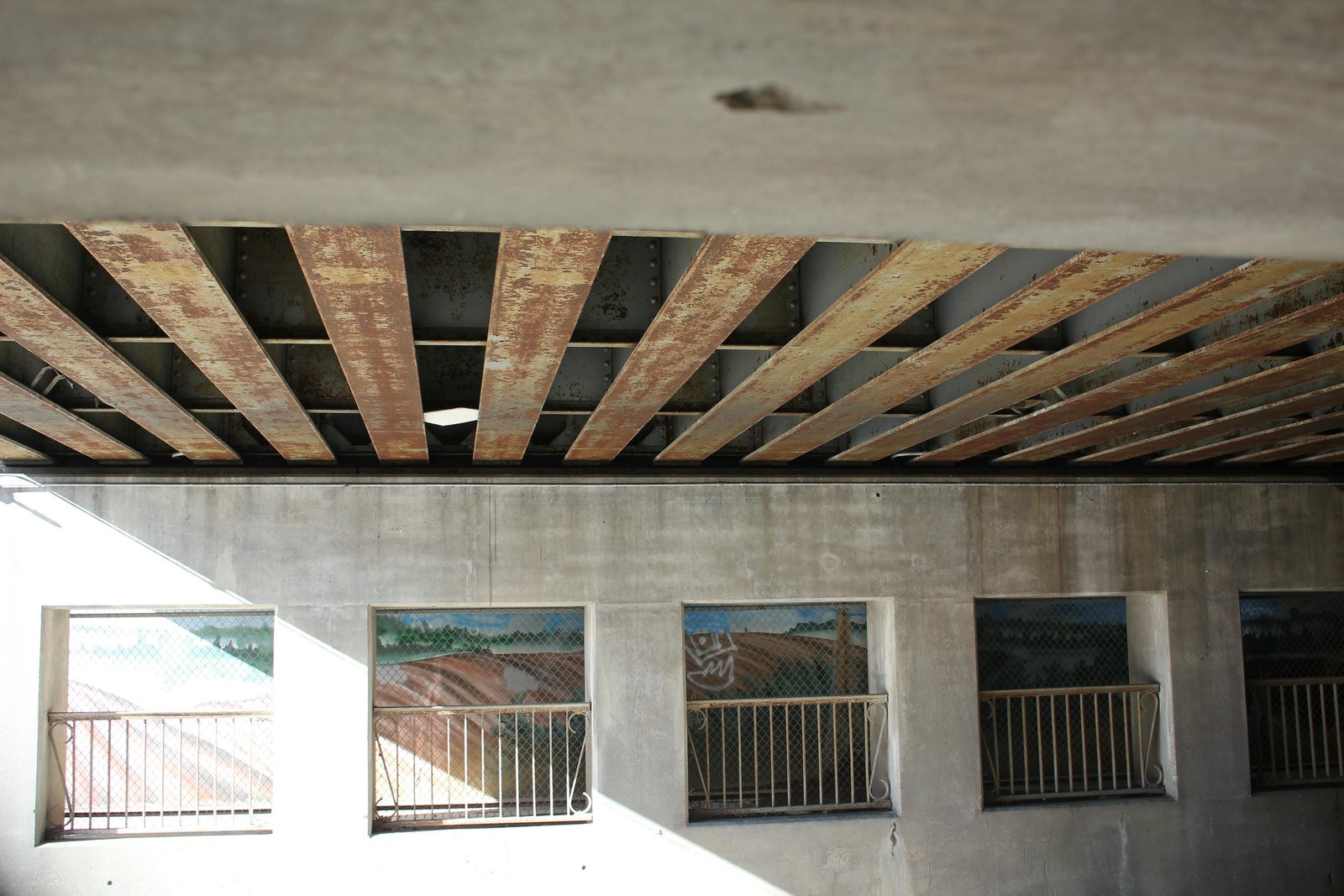

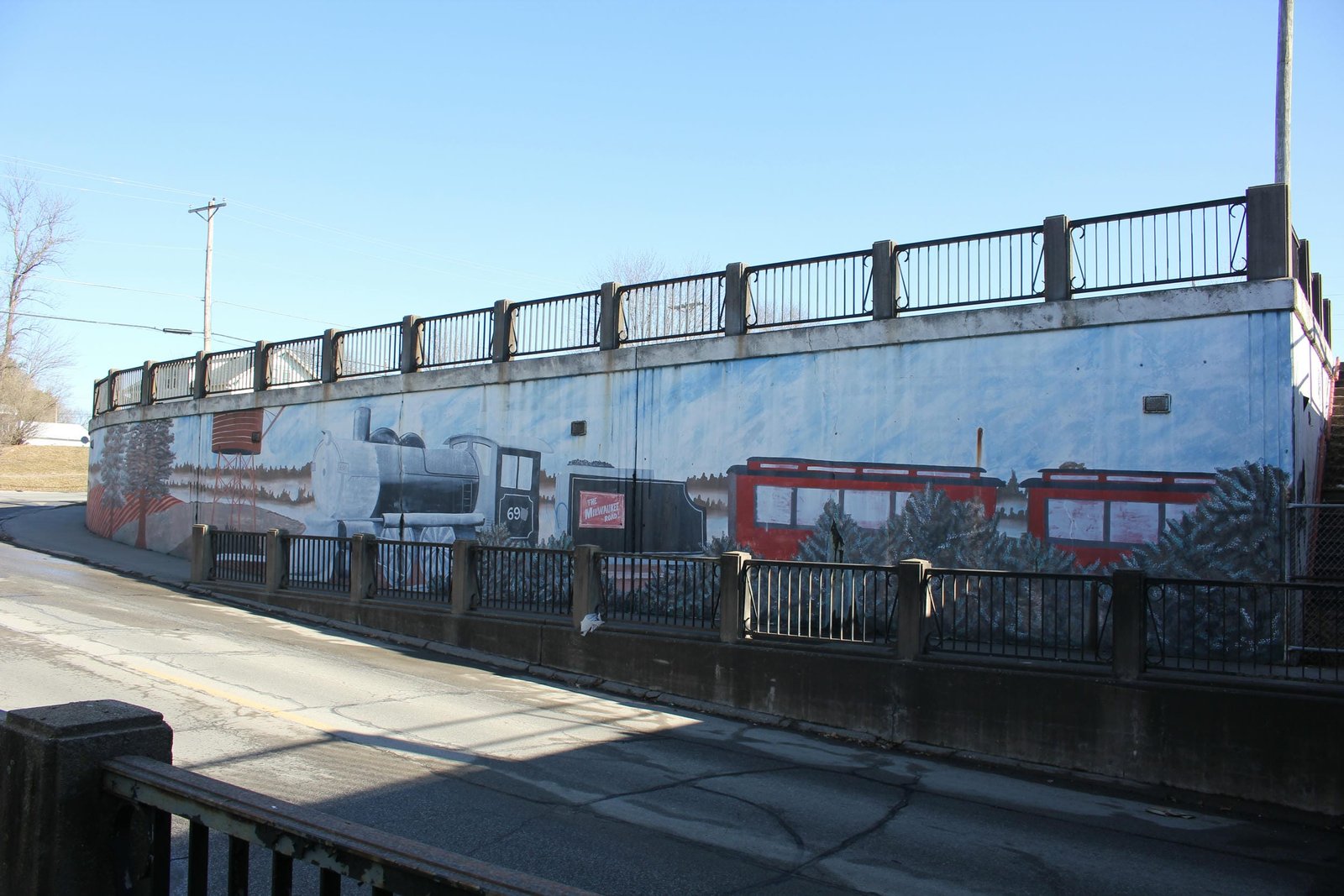

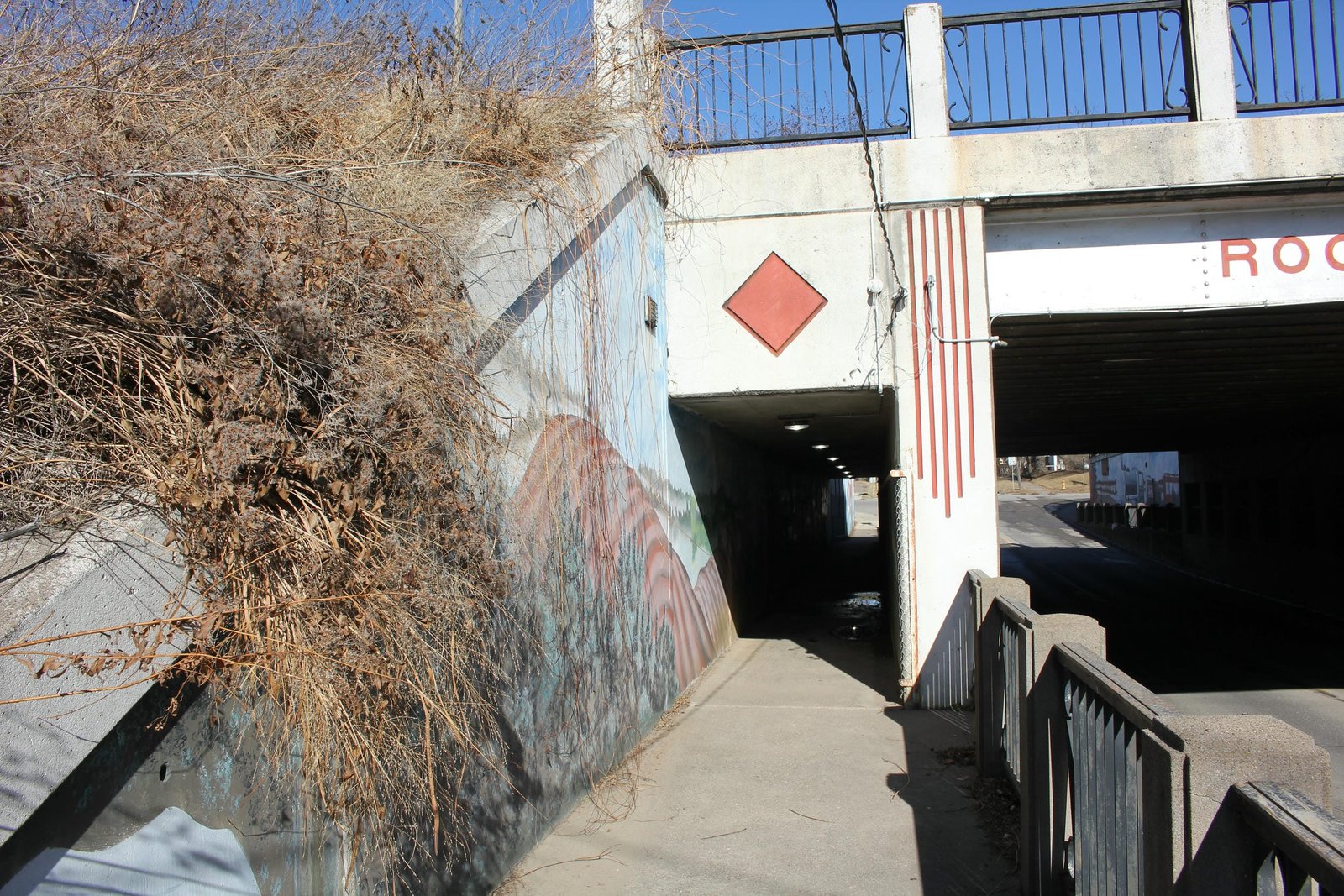

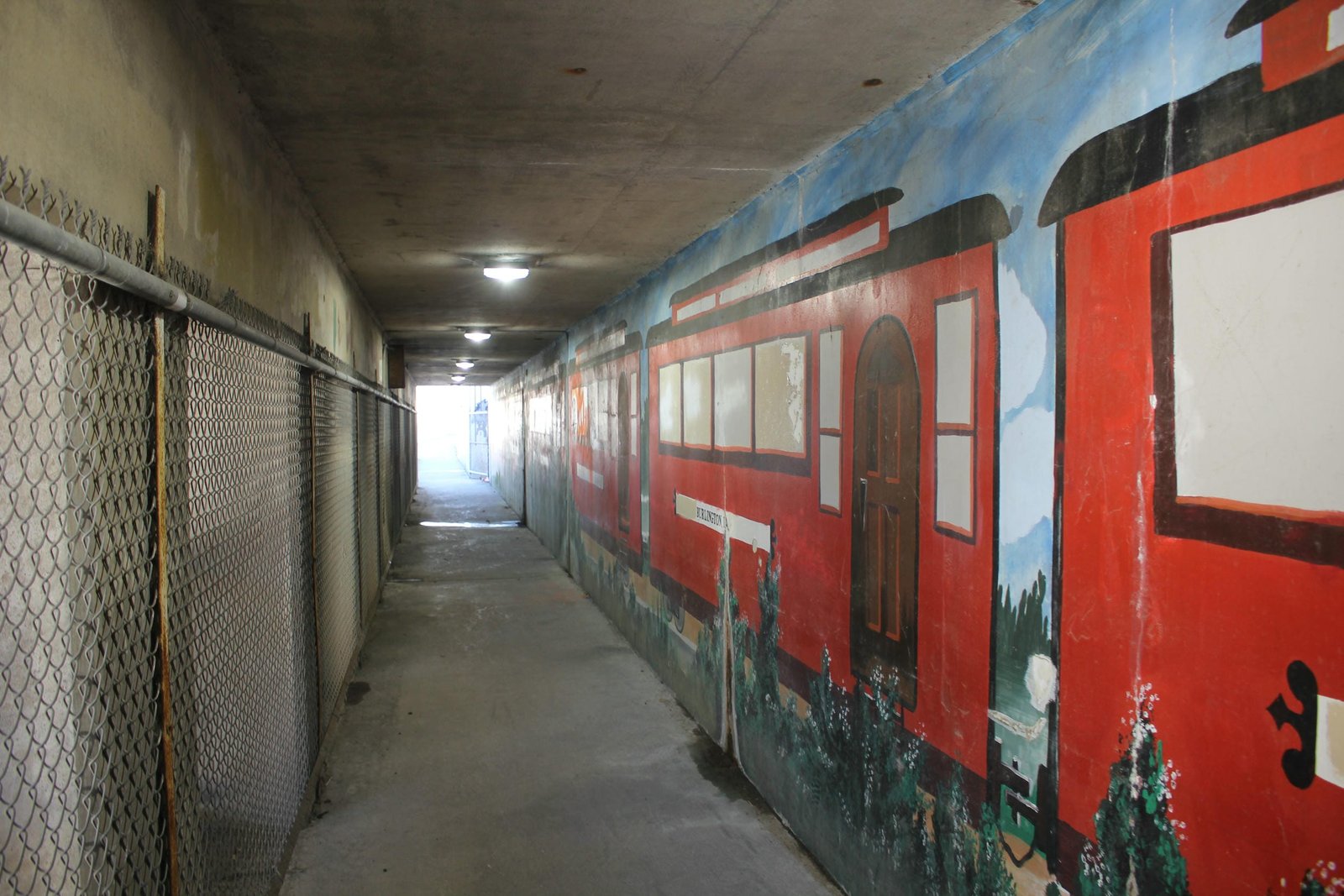

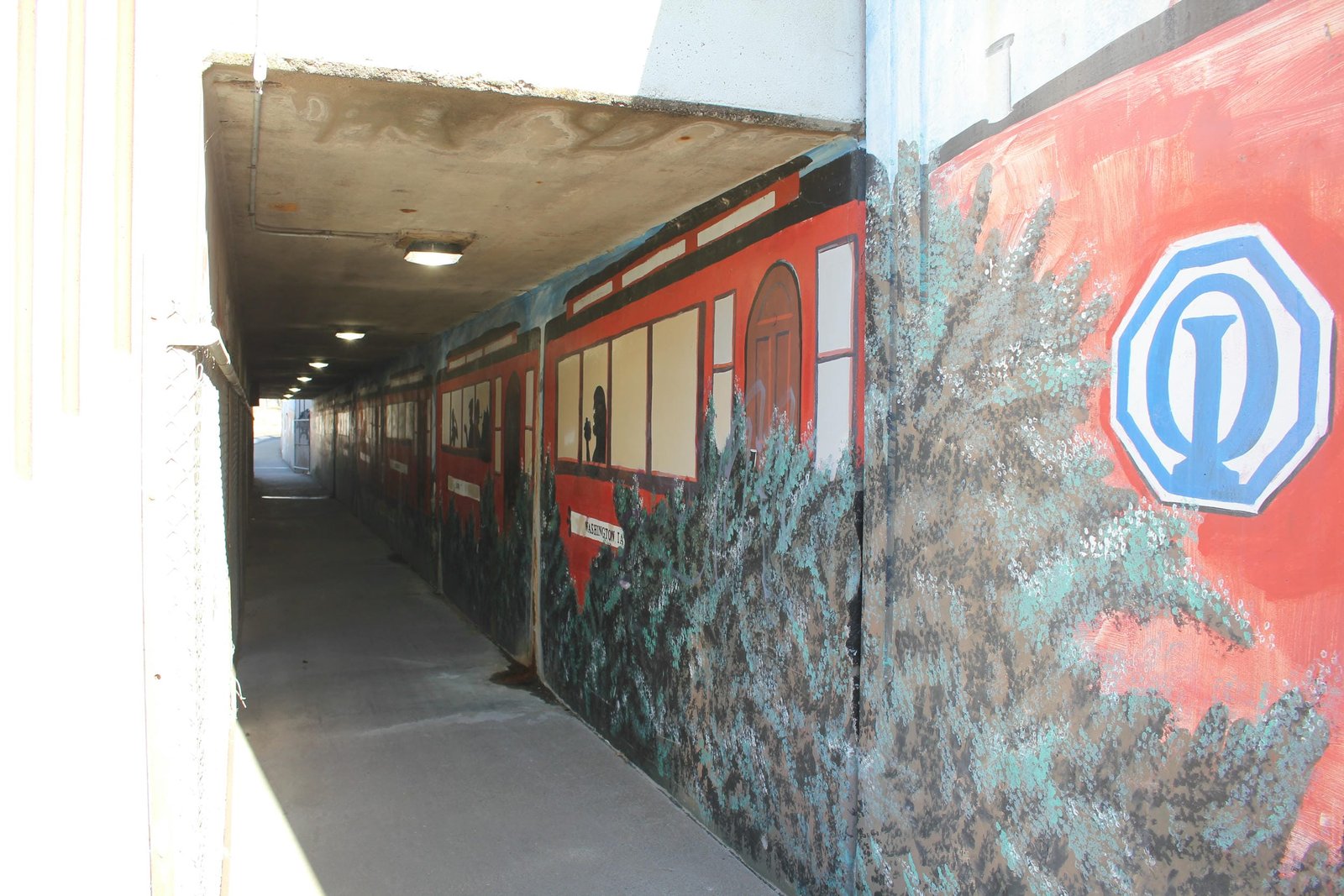

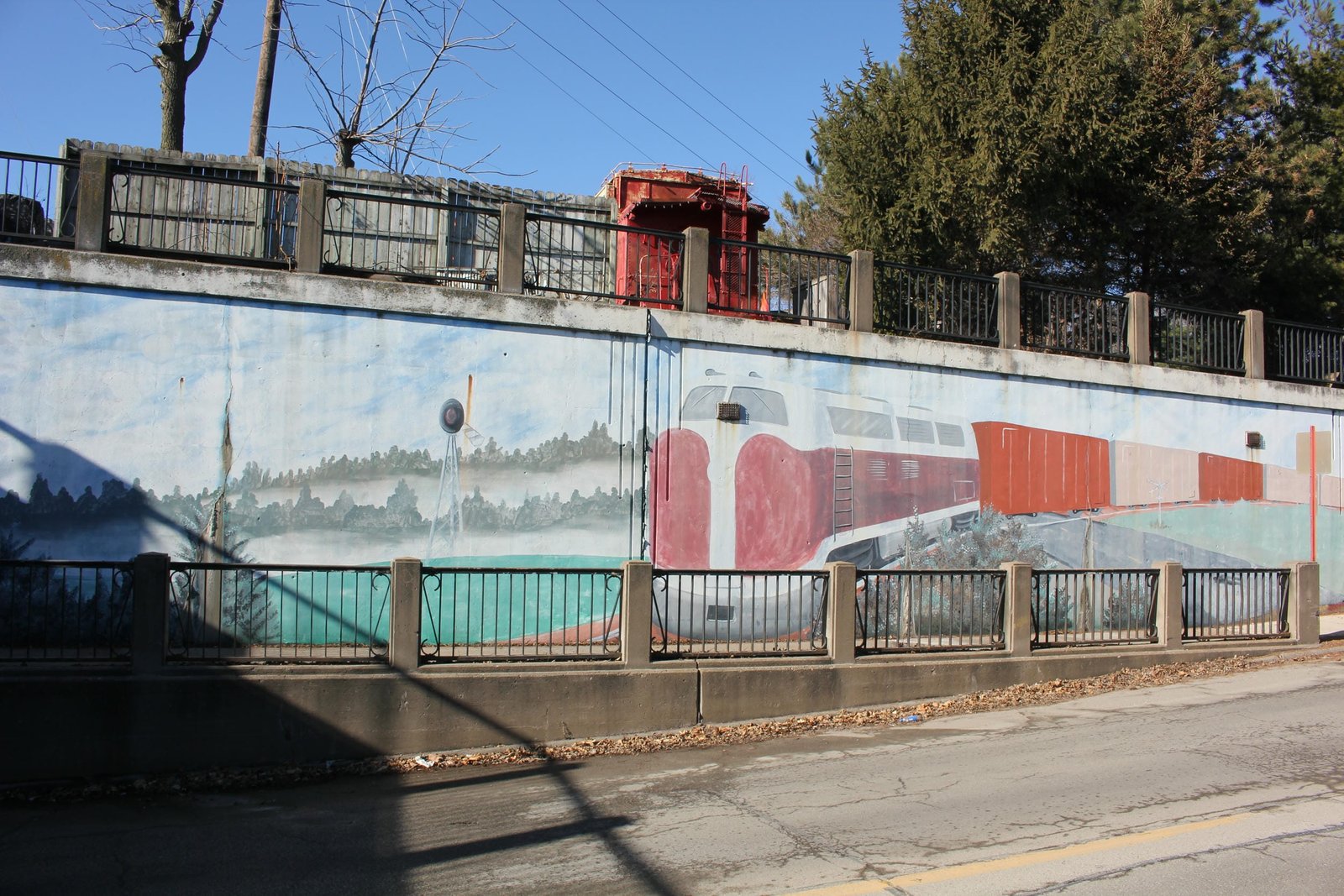

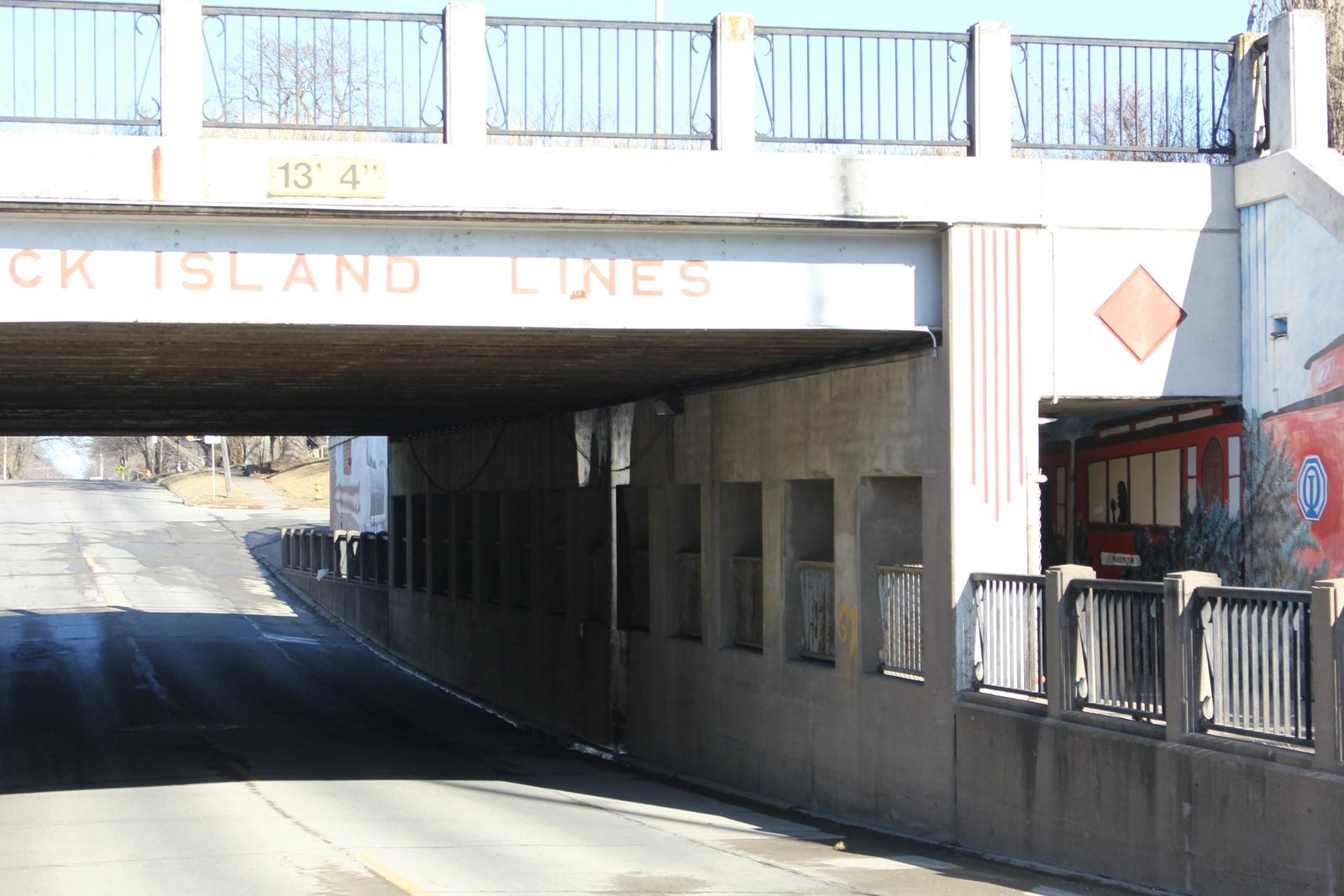

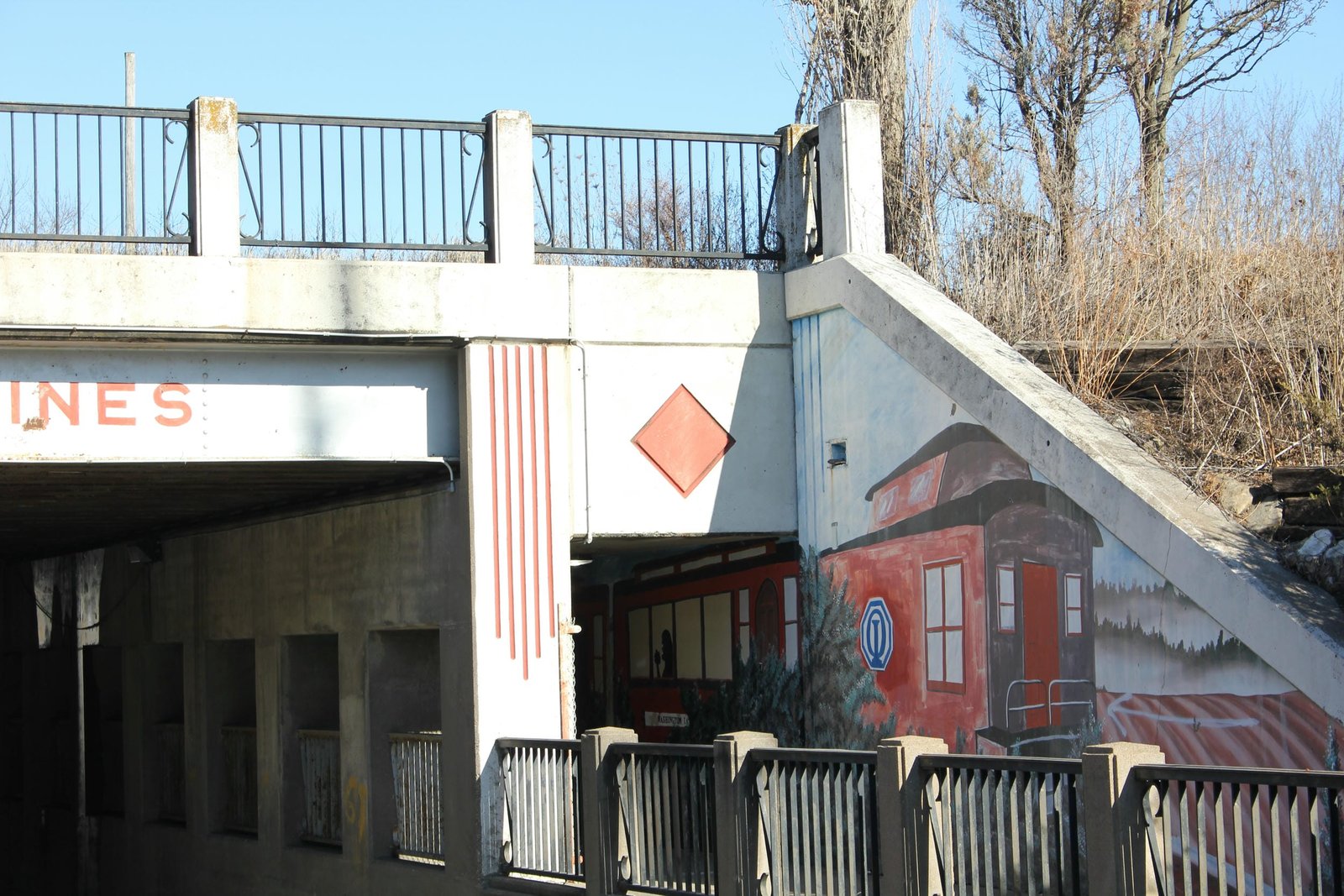

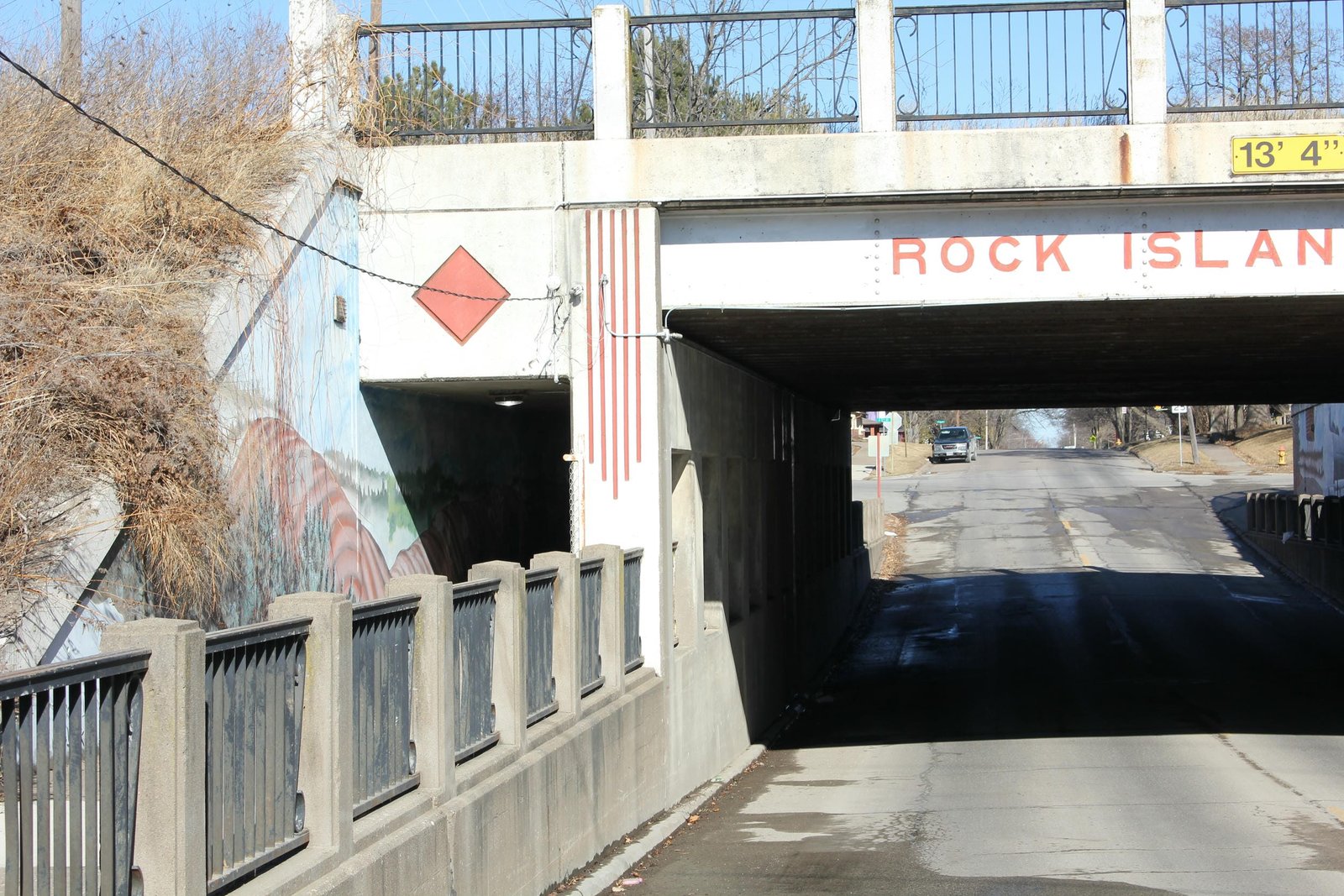

The main span follows a standard design, with dozens of parallel steel stringers, covered by a ballast deck. The approach spans also follow a standard design for the era, and consist of thick concrete slabs that were constructed monolithically with the substructure. The piers consist of several concrete columns, connected by a thick beam at the top; and the abutments use a standard design with sloped wing walls. Several decorative features are visible on the underpass, including decorative railings on the bridge and along the sidewalks and decorative stamps on the concrete portions of the bridge. Later additions included several attractive murals on the abutments and retaining walls and accent paint on the concrete. Bethlehem Steel Company fabricated the main span, while the Massman Construction Company completed the concrete portions of the bridge. Steel stringer spans were popular for railroad use, as they were durable and easy to construct. This style of underpass was used throughout the United States, particularly in urban areas where an enhanced appearance was desired. Since the initial construction, the bridge has seen no significant alterations, and remains in regular use. Today, only one of the seven tracks is intact, and the remaining areas are used as an access road. Overall, the bridge appears to be in fair to good condition, and seems to be well maintained. In addition to the bridge, an attractive Milwaukee Road depot (constructed 1902) and park are located at the northwest quadrant of the bridge. The author has ranked this bridge as being locally significant, due to the common design.
Citations
| Build date and builder (superstructure) | The Bridgemens Magazine; September 1938 |
| Builder (substructure) | Railway Age; Volume 105, Issue 9 |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
