Name DAIR Big Sioux River Bridge (Elk Point)
Chicago, Milwaukee & St. Paul Railway Bridge #T-480
Built By Chicago, Milwaukee & St. Paul Railway
Currently Owned By D&I Railroad
Superstructure Contractor Lassig Bridge & Iron Works of Chicago
Length 440 Feet Total, 152 Foot Main Span
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Pratt Through Truss, Steel Stringer and Concrete Modular Girder

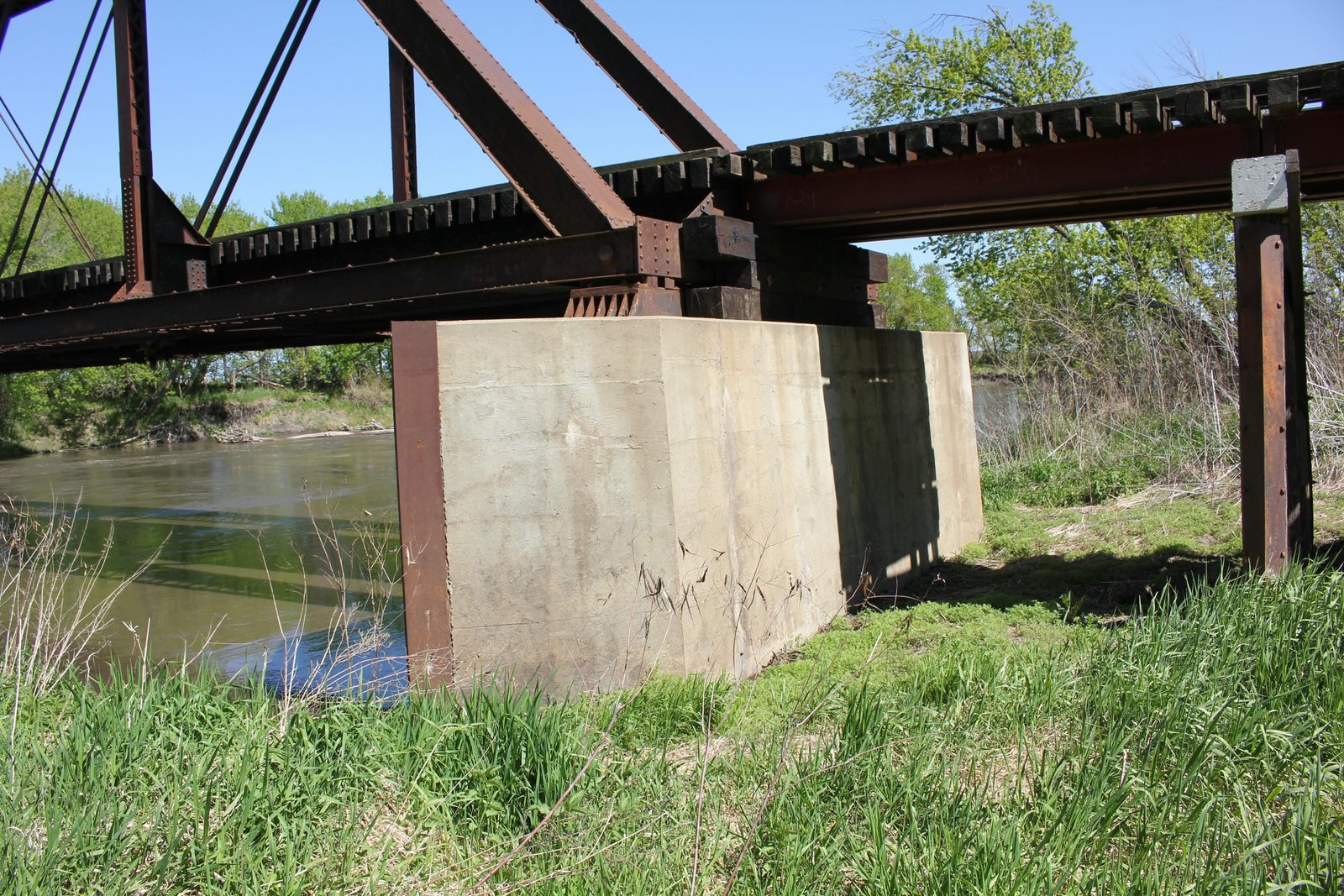

Substructure Design Concrete, Timber Pile and Steel Pile
Date Built 1908 Using a Span Fabricated 1900 (Truss)
2011 (South Approach)
2019 (North Approach)
Original Location Bridge #Z-814; Cedar Rapids, Iowa
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
Chicago, Milwaukee & St. Paul Railway Bridge Number T-480
Significance Regional Significance
Documentation Date 5/5/2017

In 1878, the Sioux City and Pembina Railway (SC&P) began construction on a line extending from Elk Point, South Dakota to Sioux Falls, South Dakota.  Concurrently, the Southern Minnesota Railway (SM) began construction on a line extending from Egan, South Dakota to Sioux Falls.  In 1879, the SC&P merged with the Dakota Southern Railroad to form the Sioux City & Dakota Railroad (SC&D).  In 1880, the SM would be conveyed to the Chicago, Milwaukee & St. Paul Railway, and in 1881 the SC&D would be acquired by the same company.  Work was quickly completed on the line.  Known as the Milwaukee Road, the railroad had constructed a significant network of lines throughout the Midwest, connecting several states with Chicago.

The Milwaukee Road operated this route as a secondary route, connecting cities and other lines in South Dakota. The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928. As the Milwaukee Road continued to face financial turmoil, branch lines began to see deteriorated conditions. In 1980, the Milwaukee Road sought to abandon significant trackage in South Dakota, including this line.  The Dell Rapids to Egan segment would be abandoned, while the Elk Point to Dell Rapids segment sold to the State of South Dakota.  The D&I Railroad was selected to operate the line.  The State of South Dakota sold the line to the D&I in 2021, and today, D&I continues to operate the line.

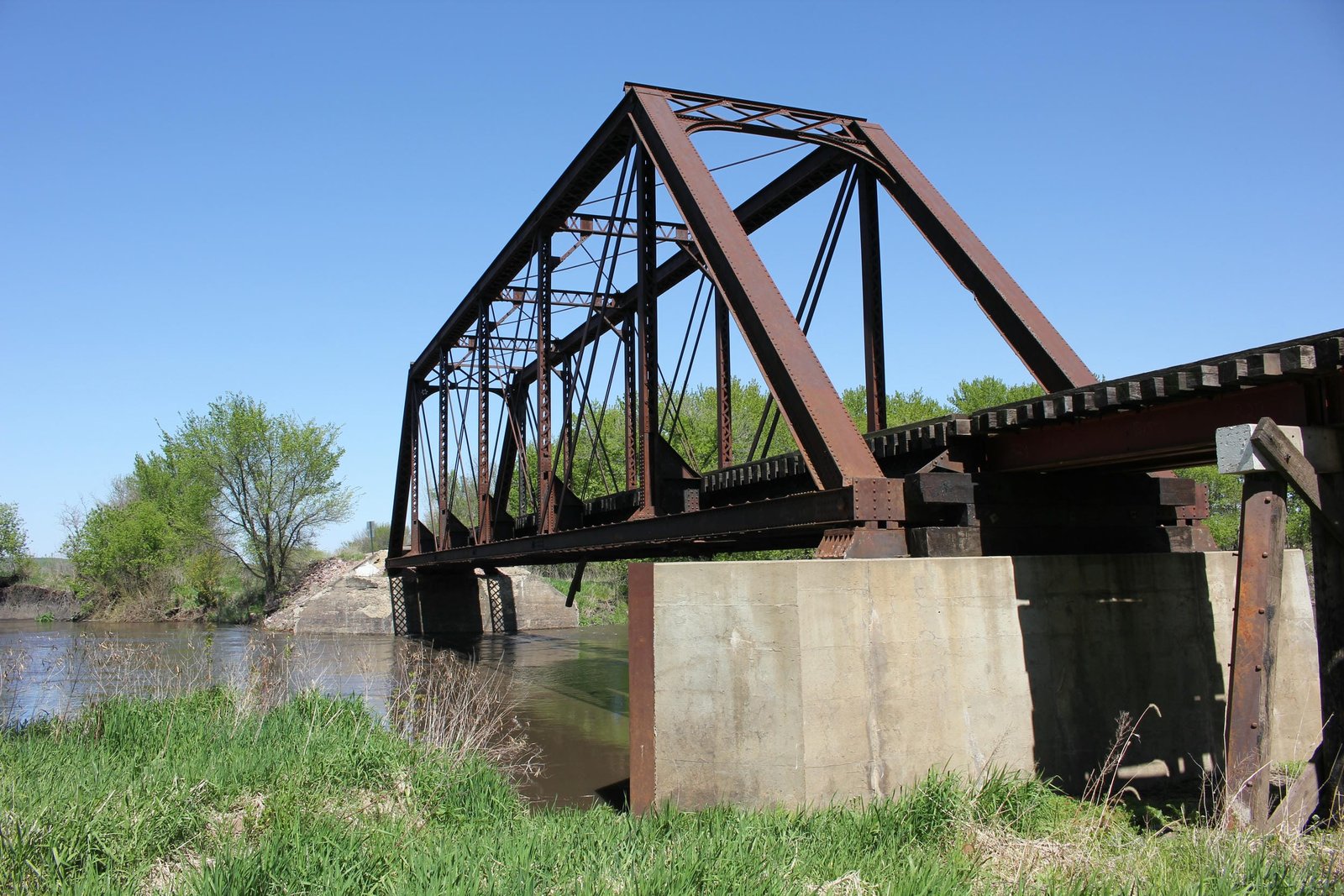

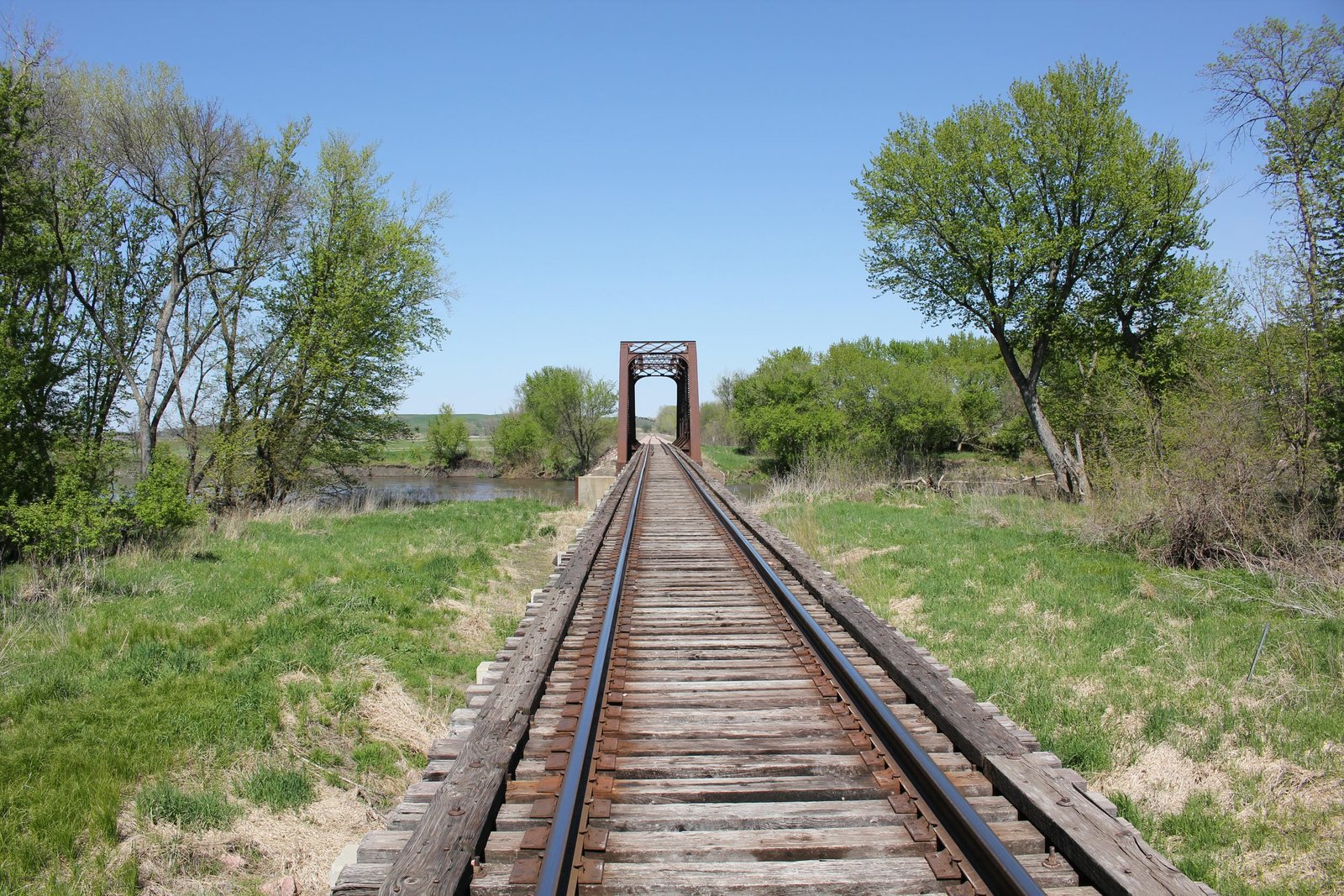

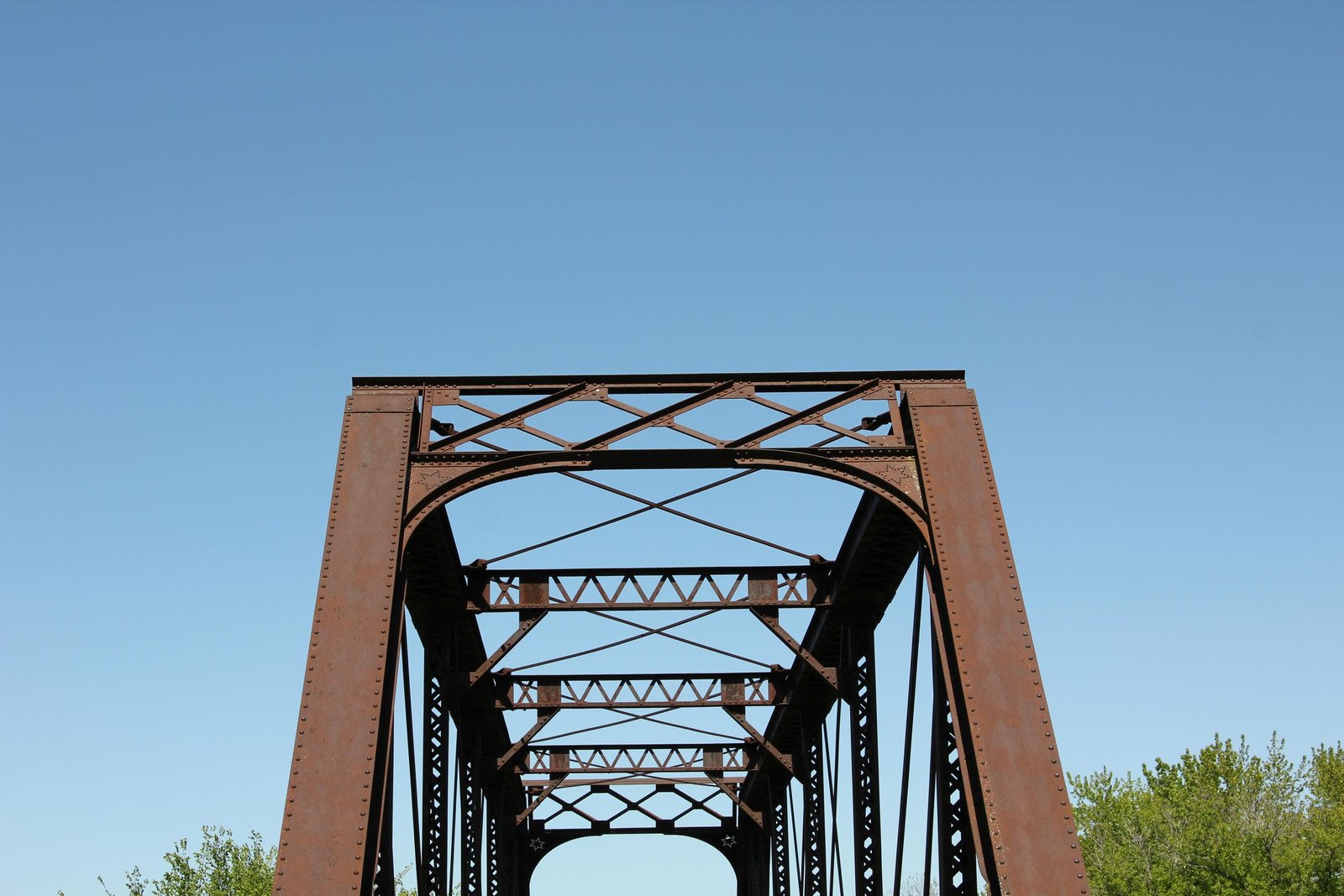

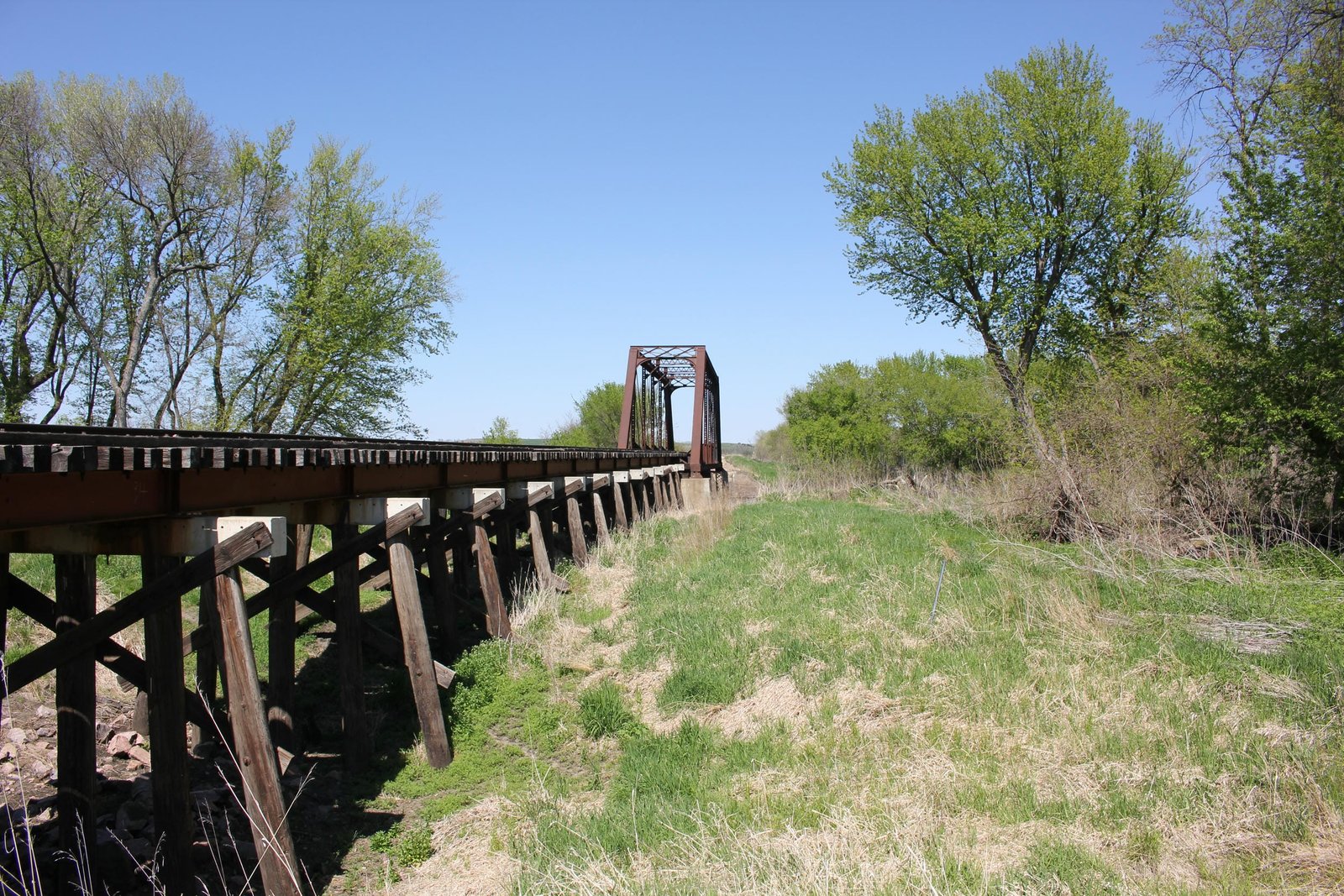

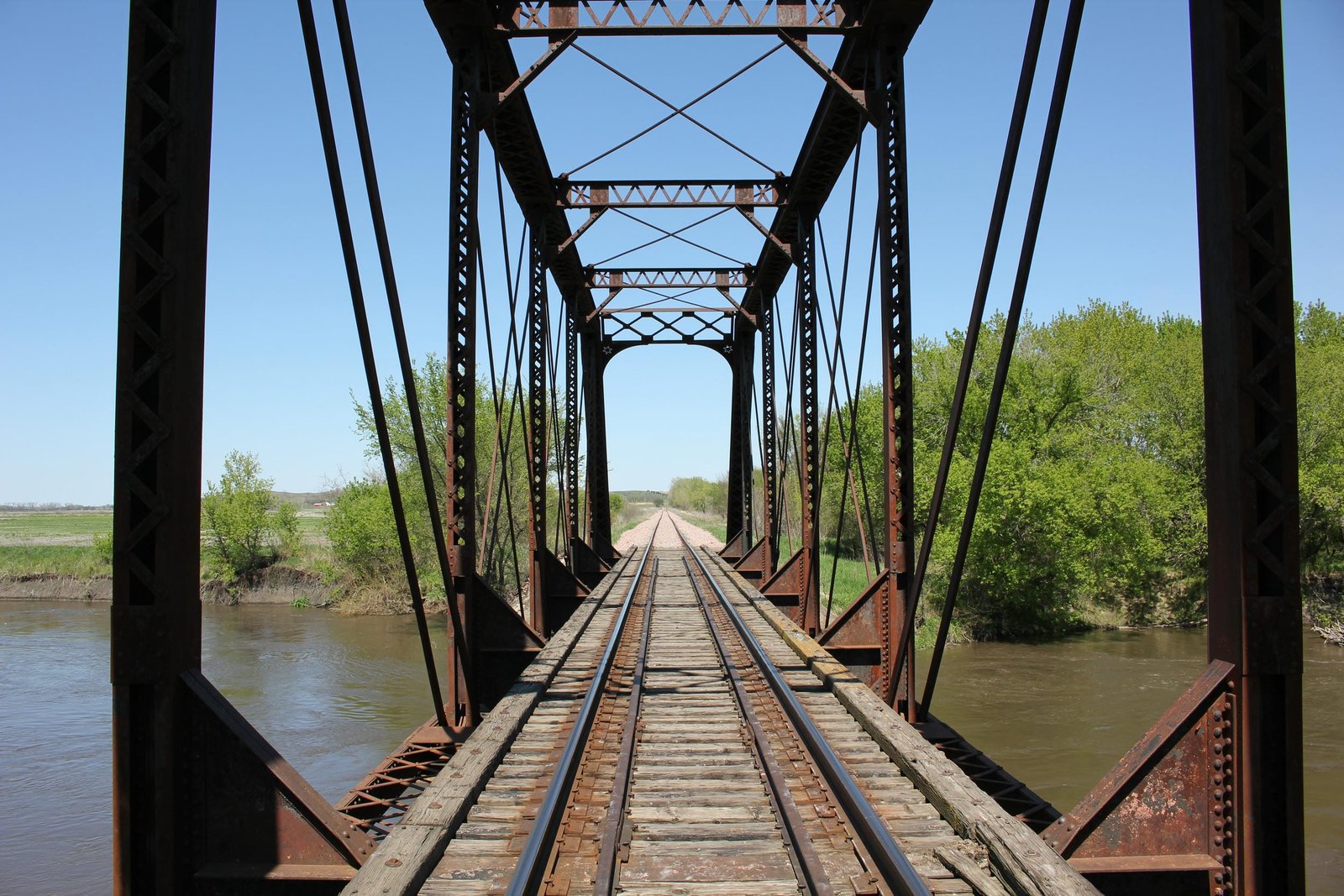

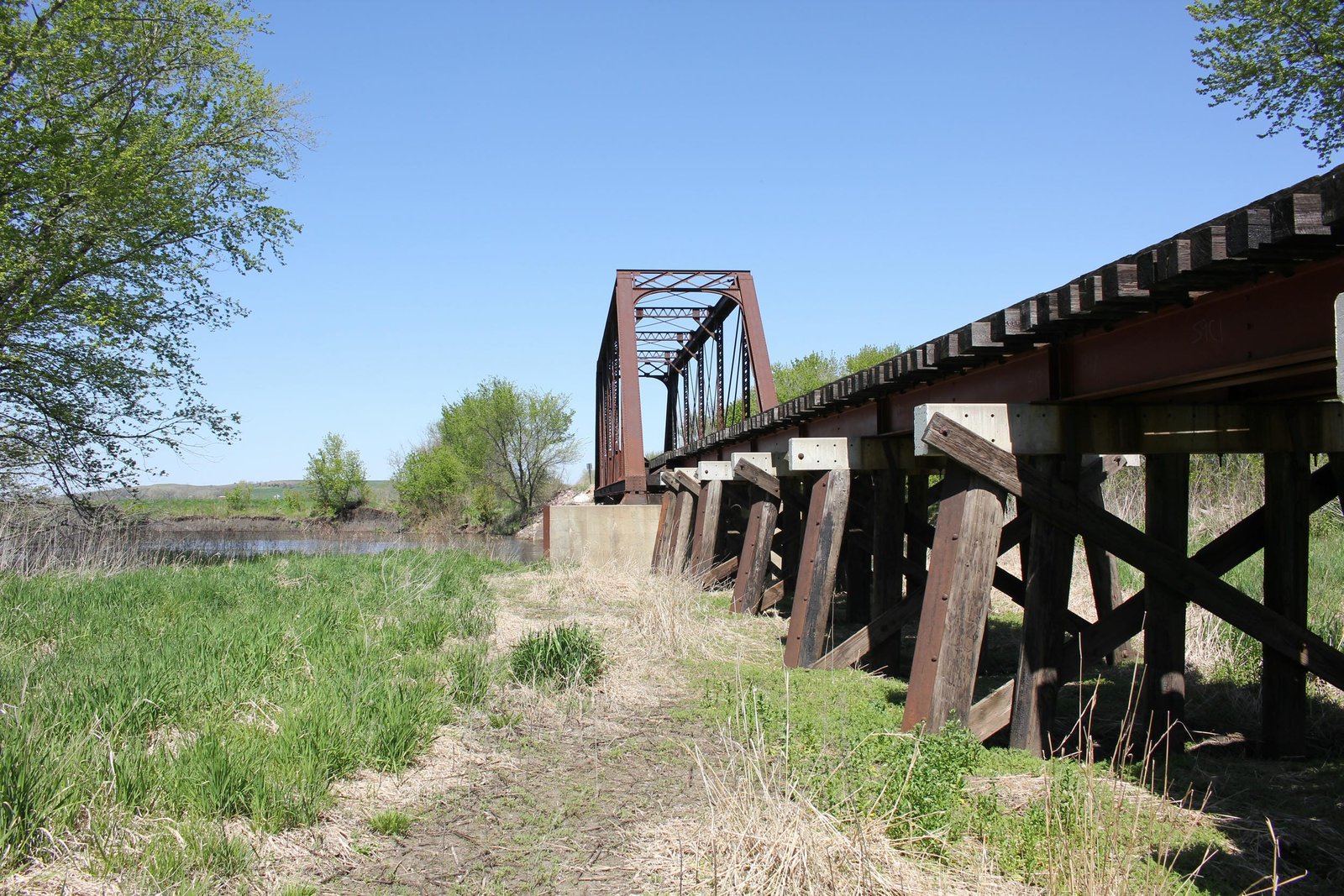

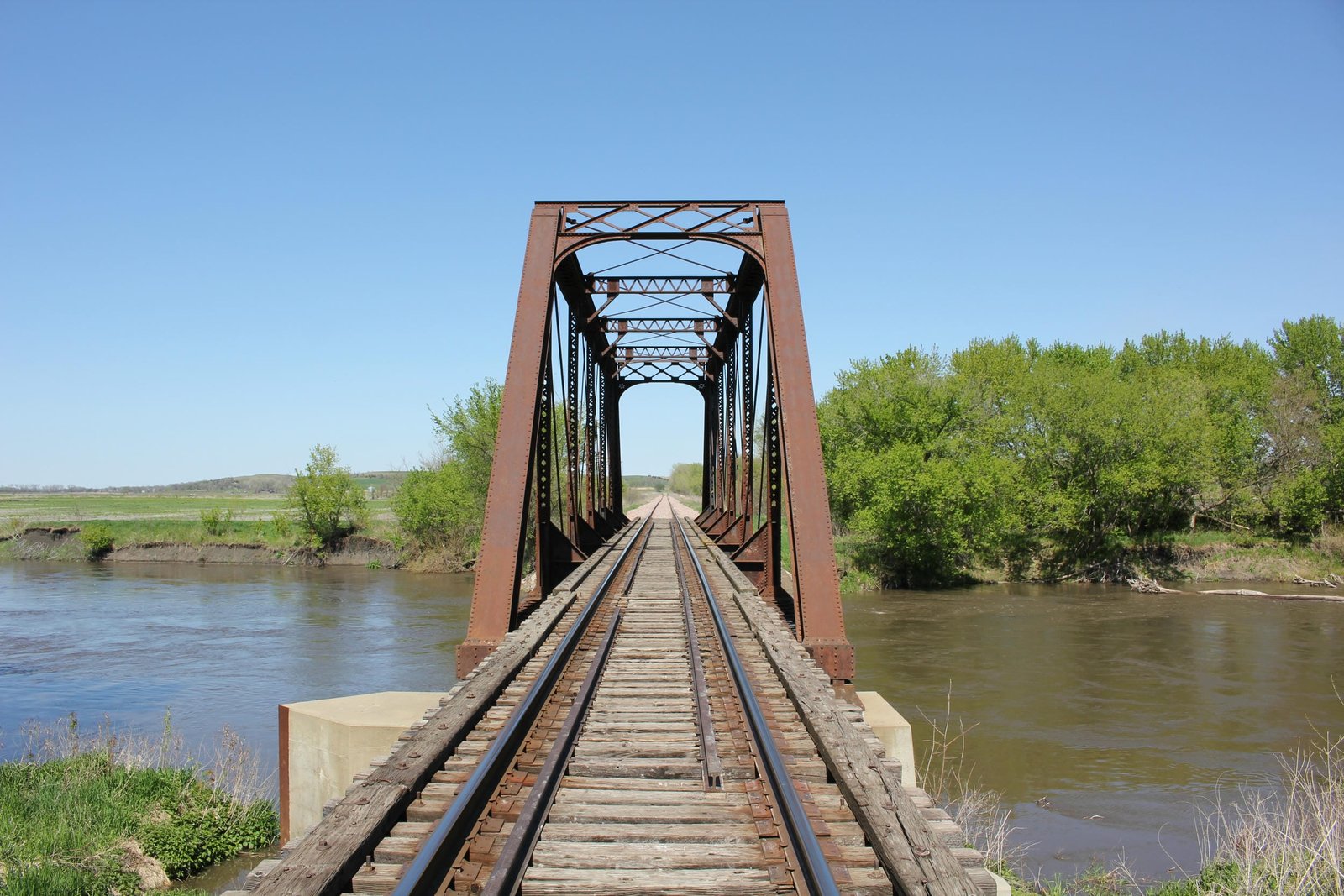

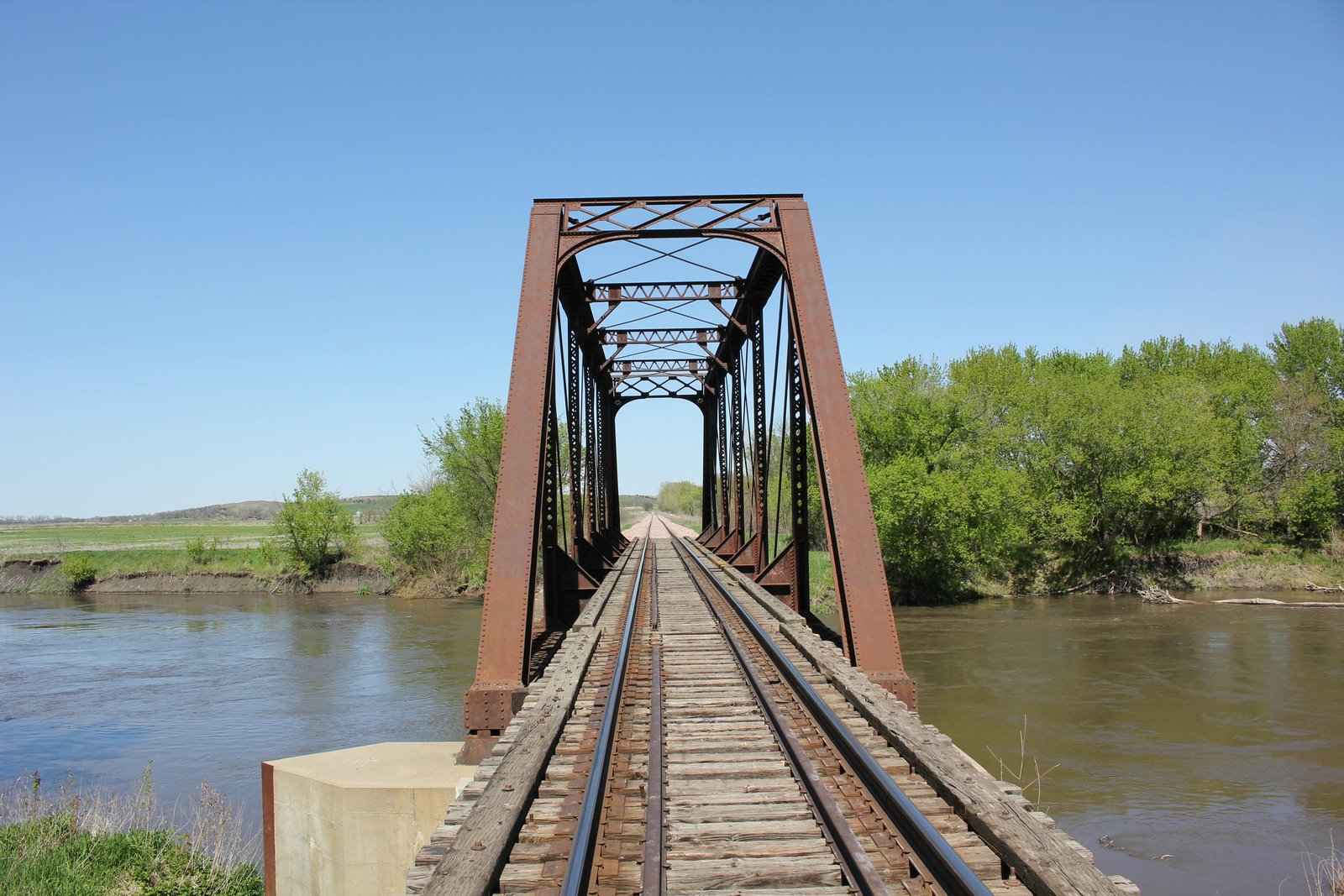

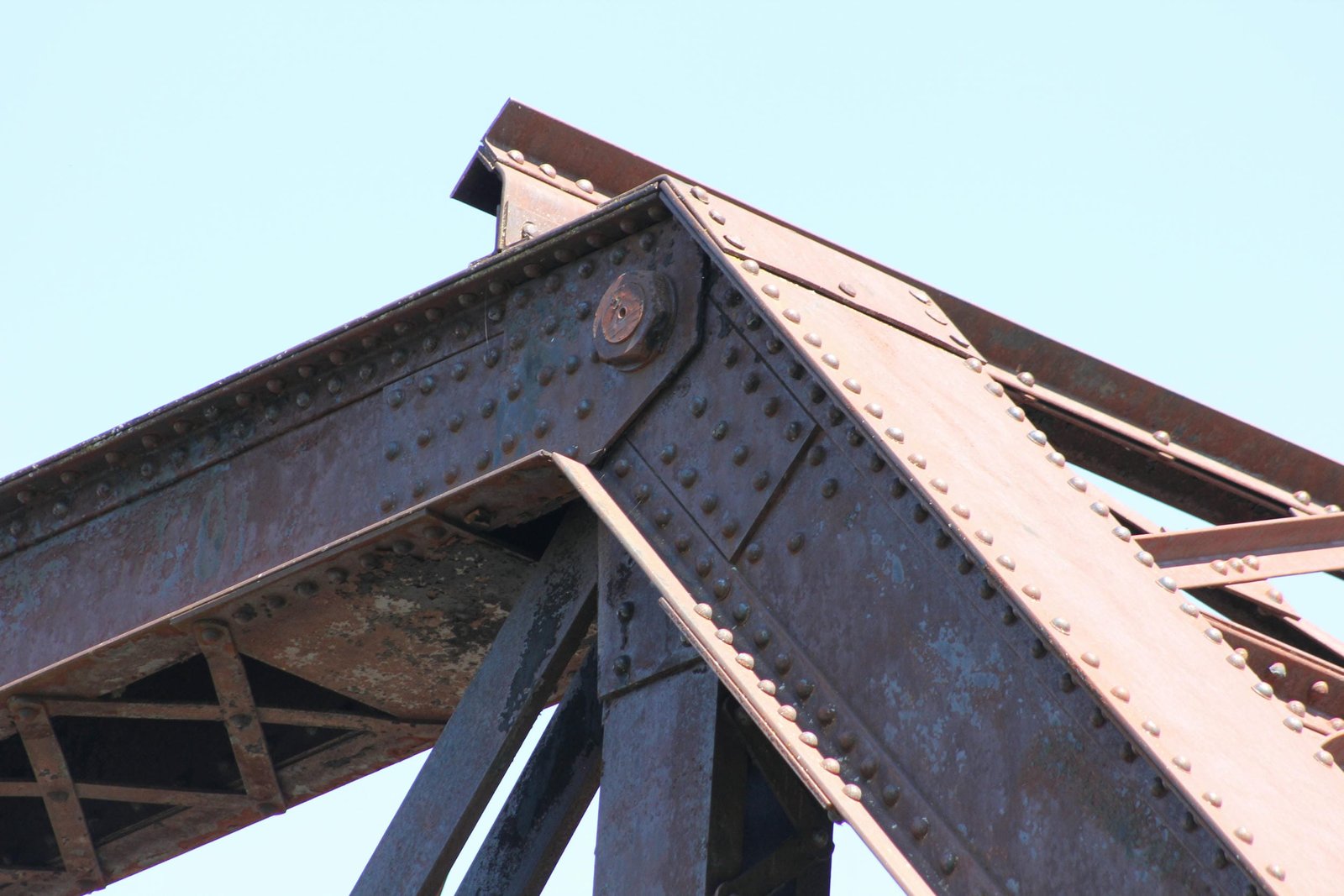

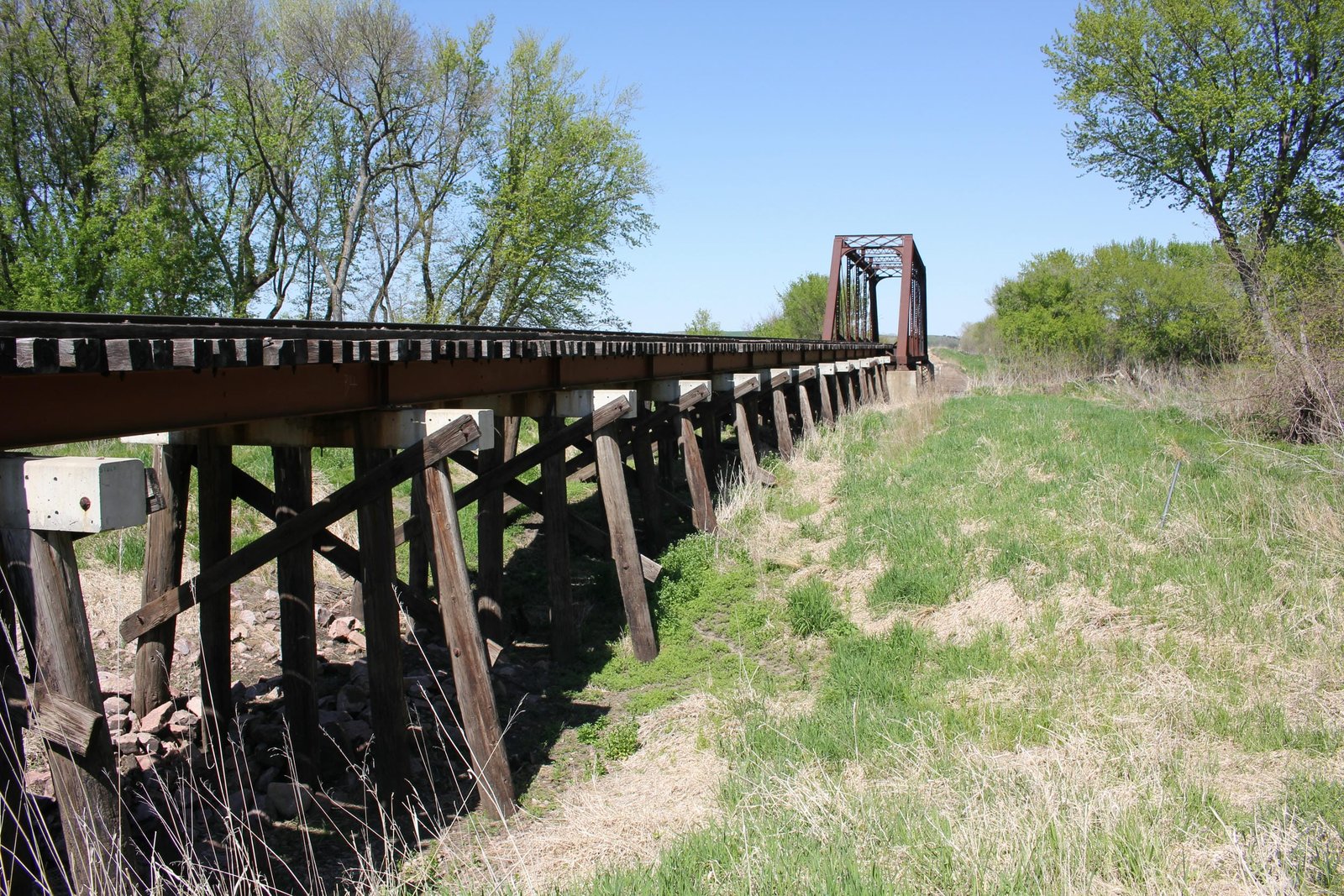

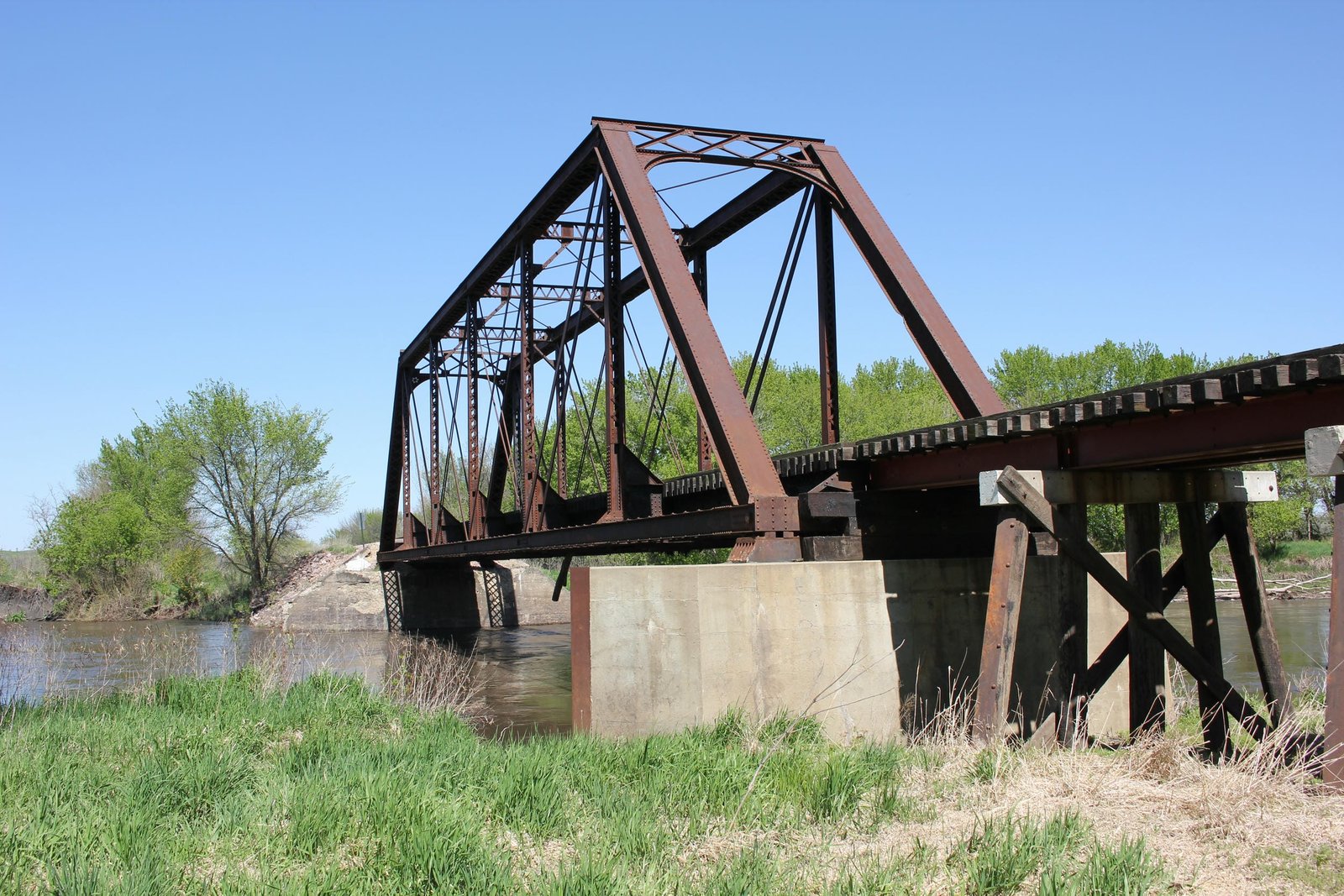

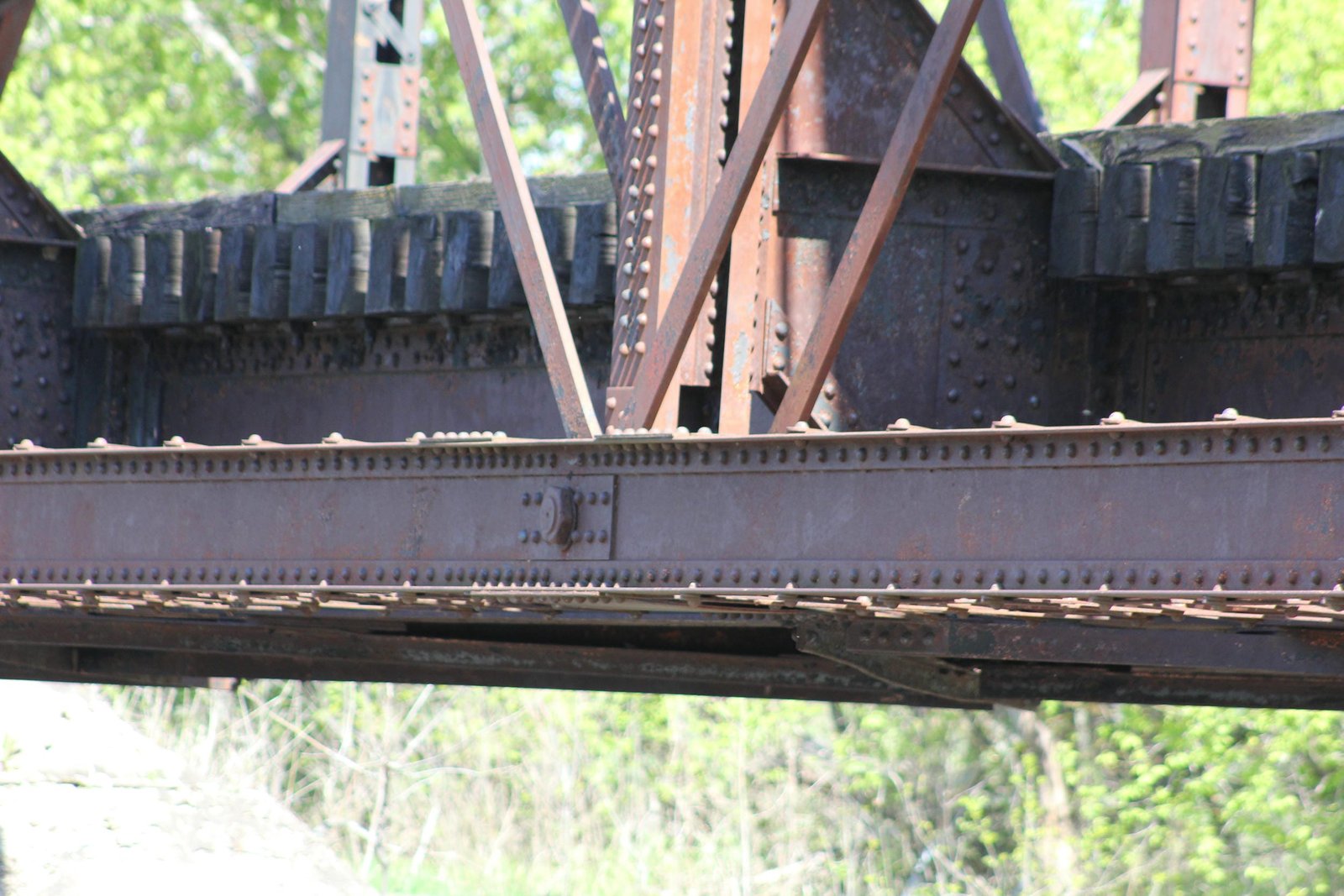

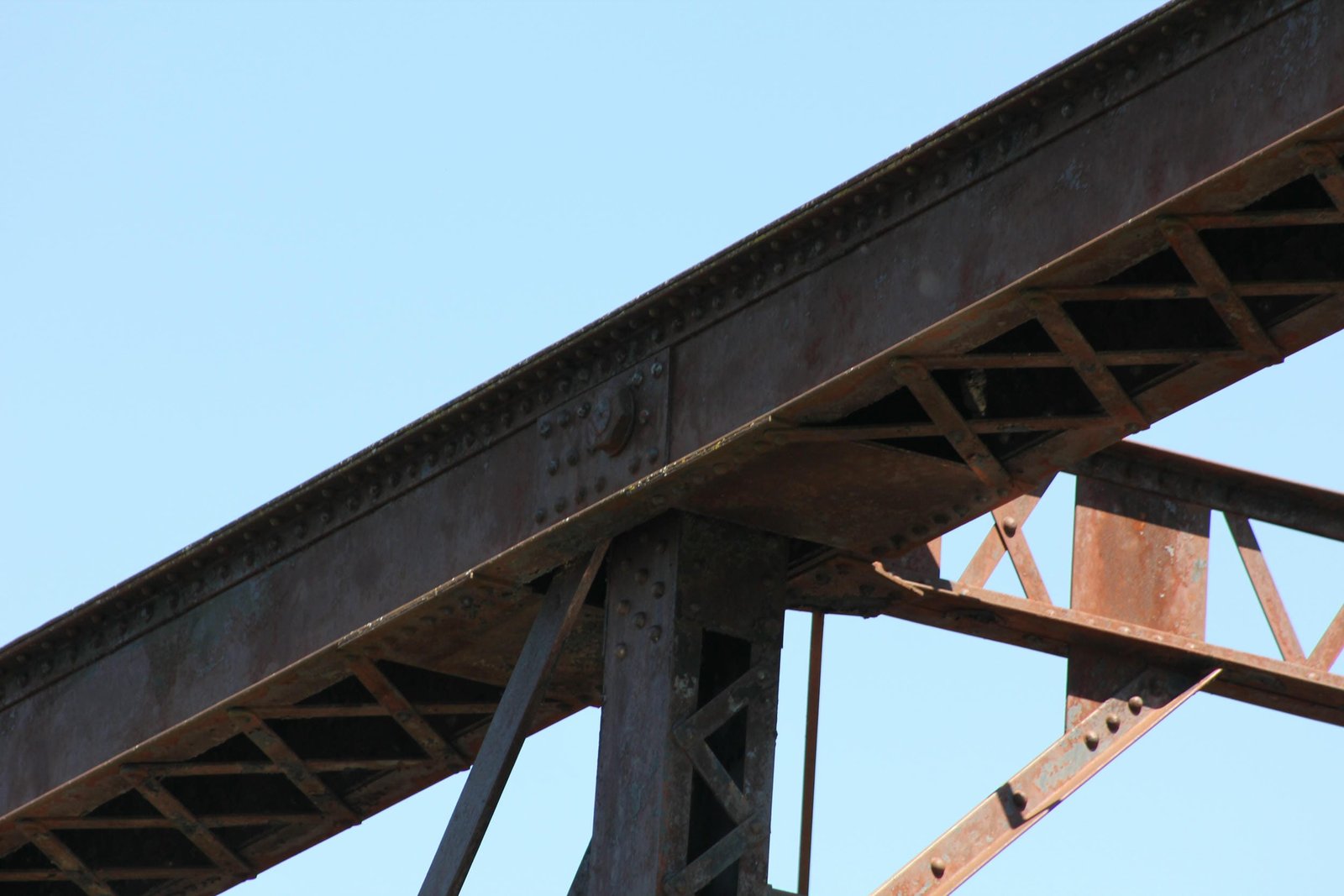

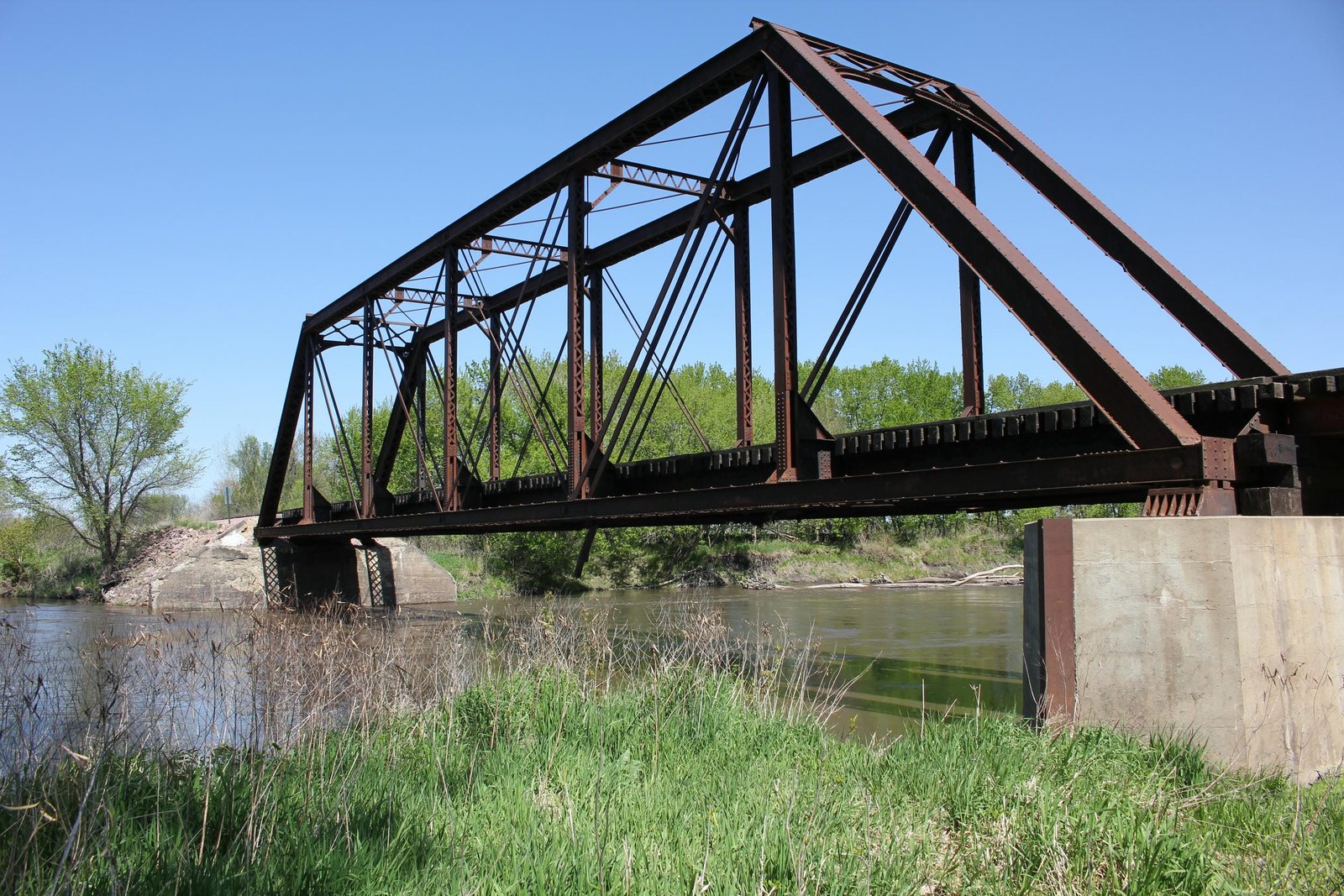

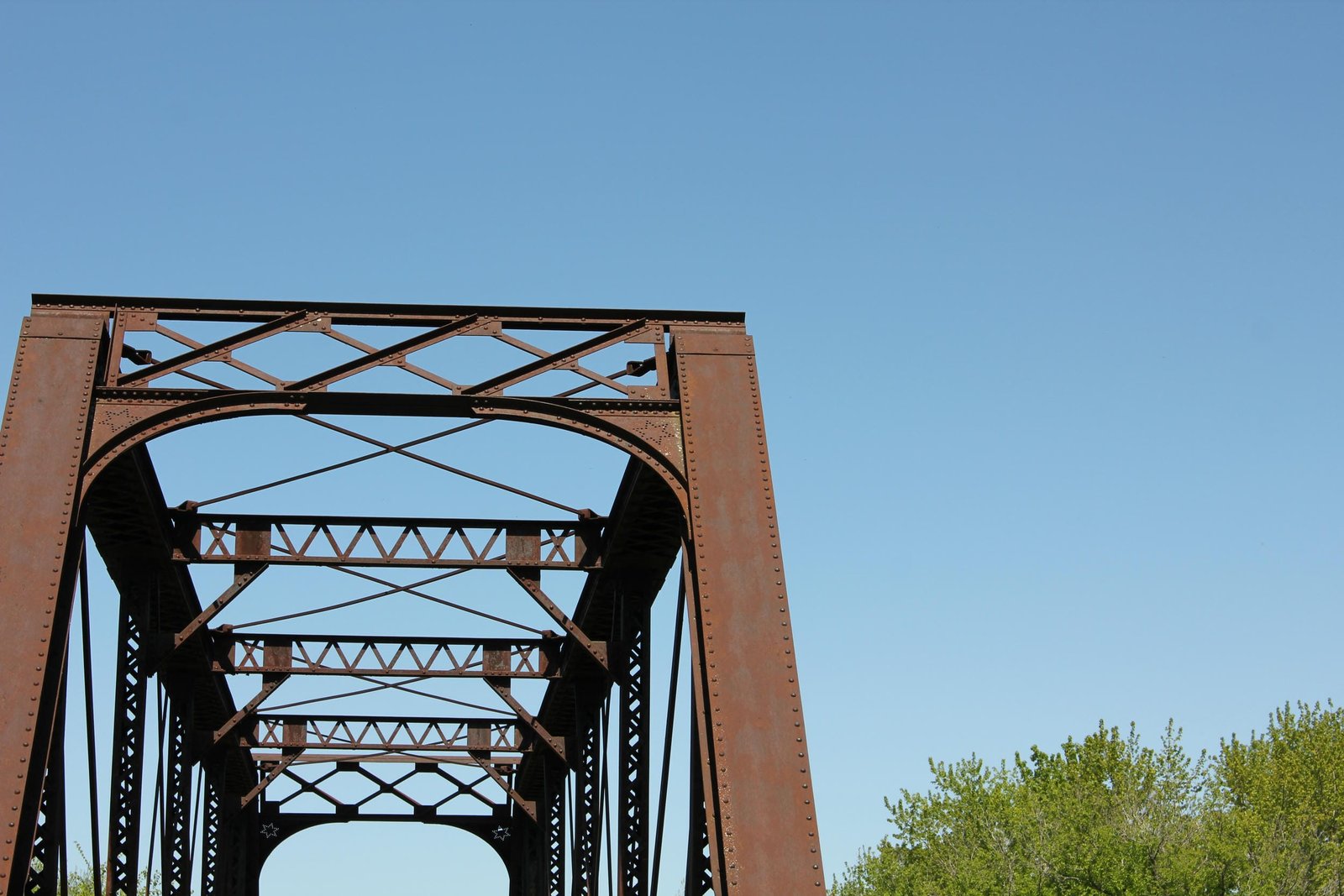

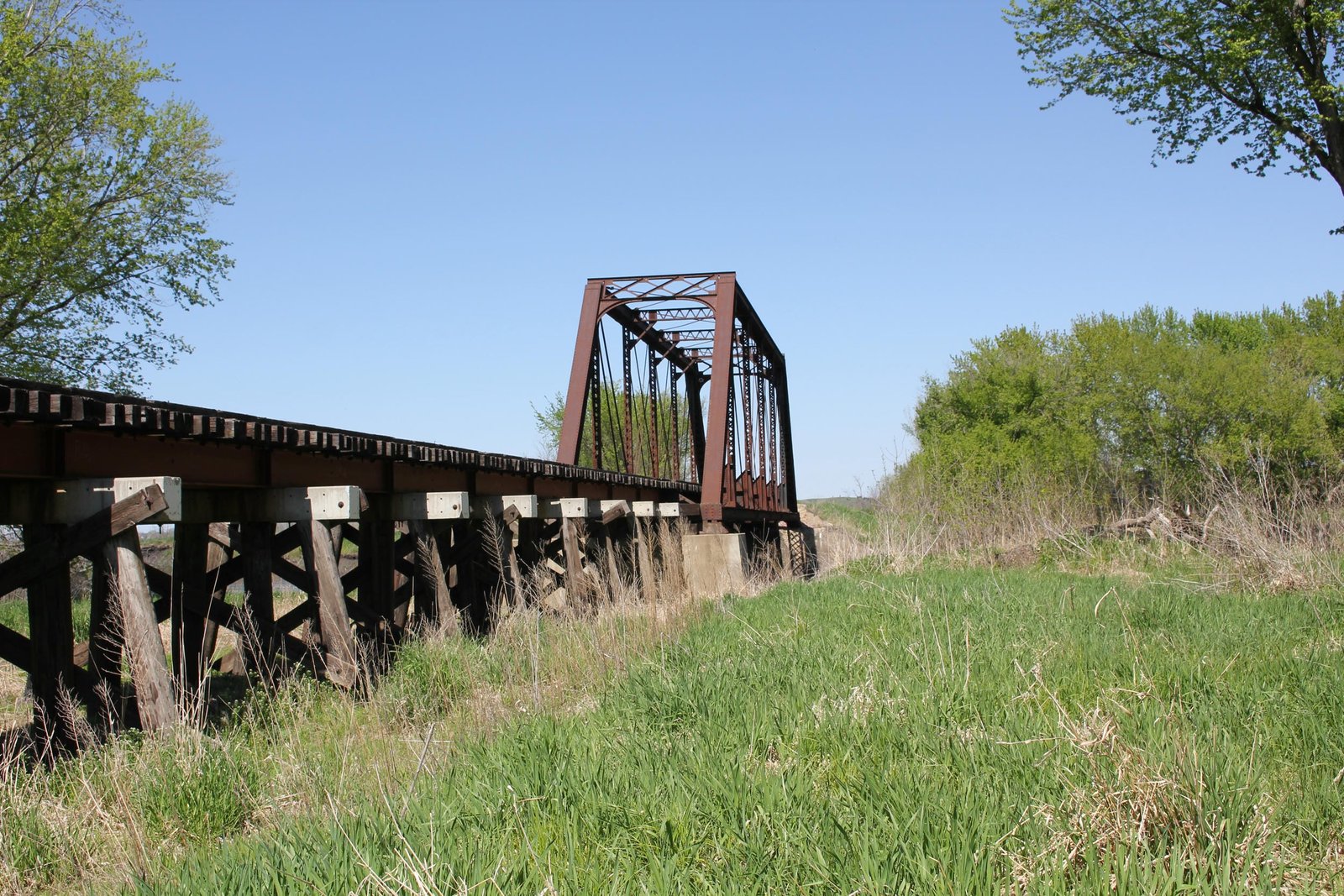

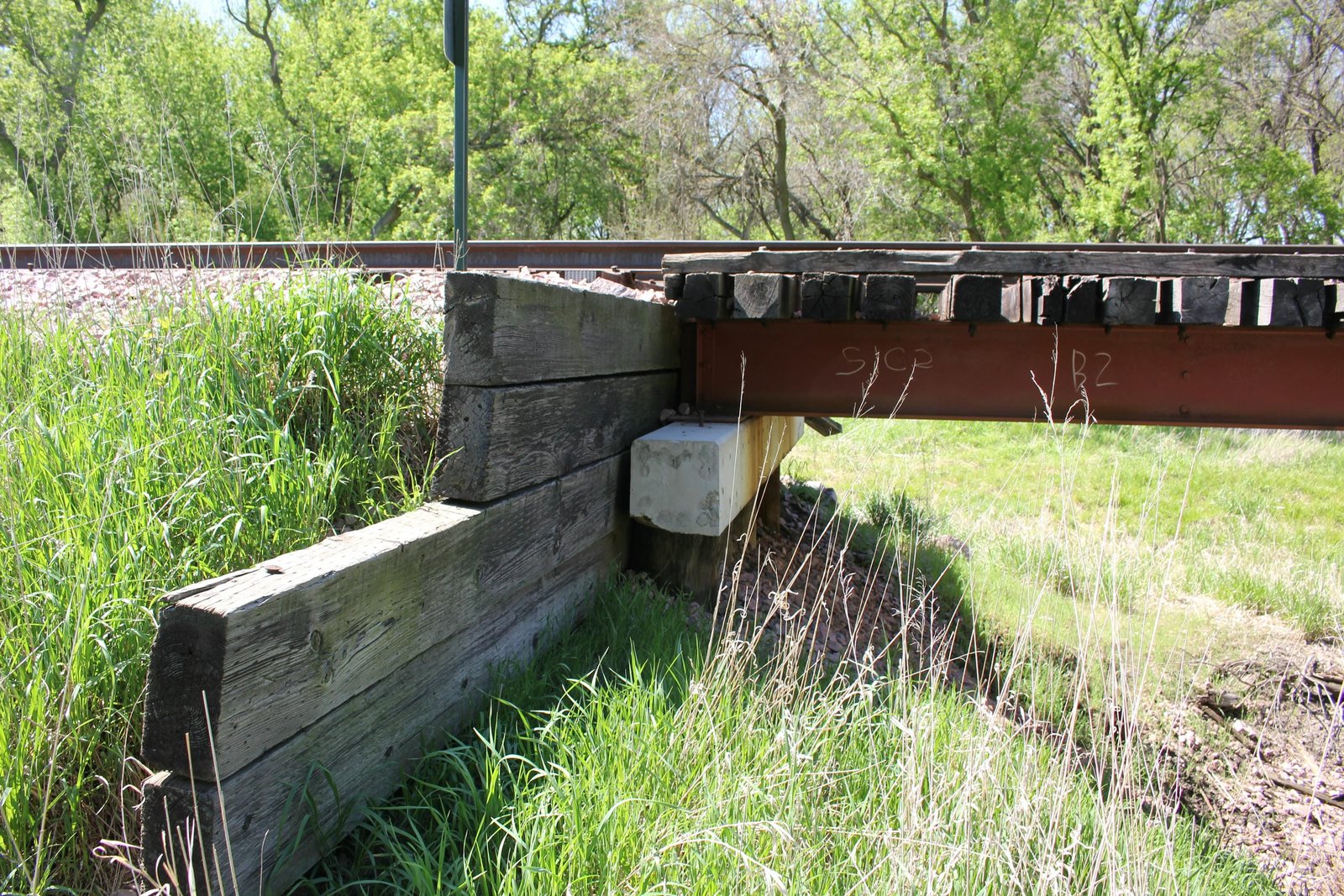

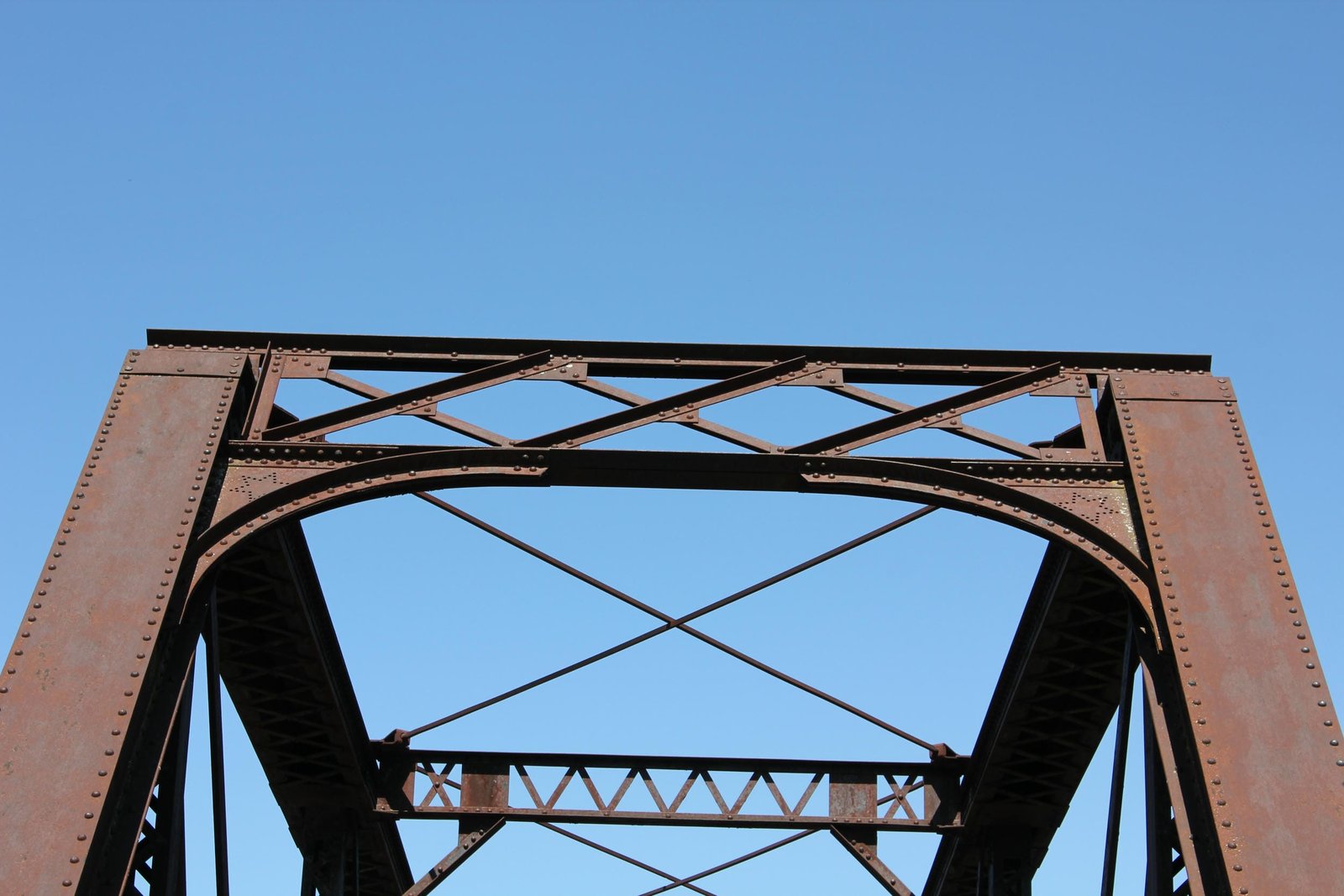

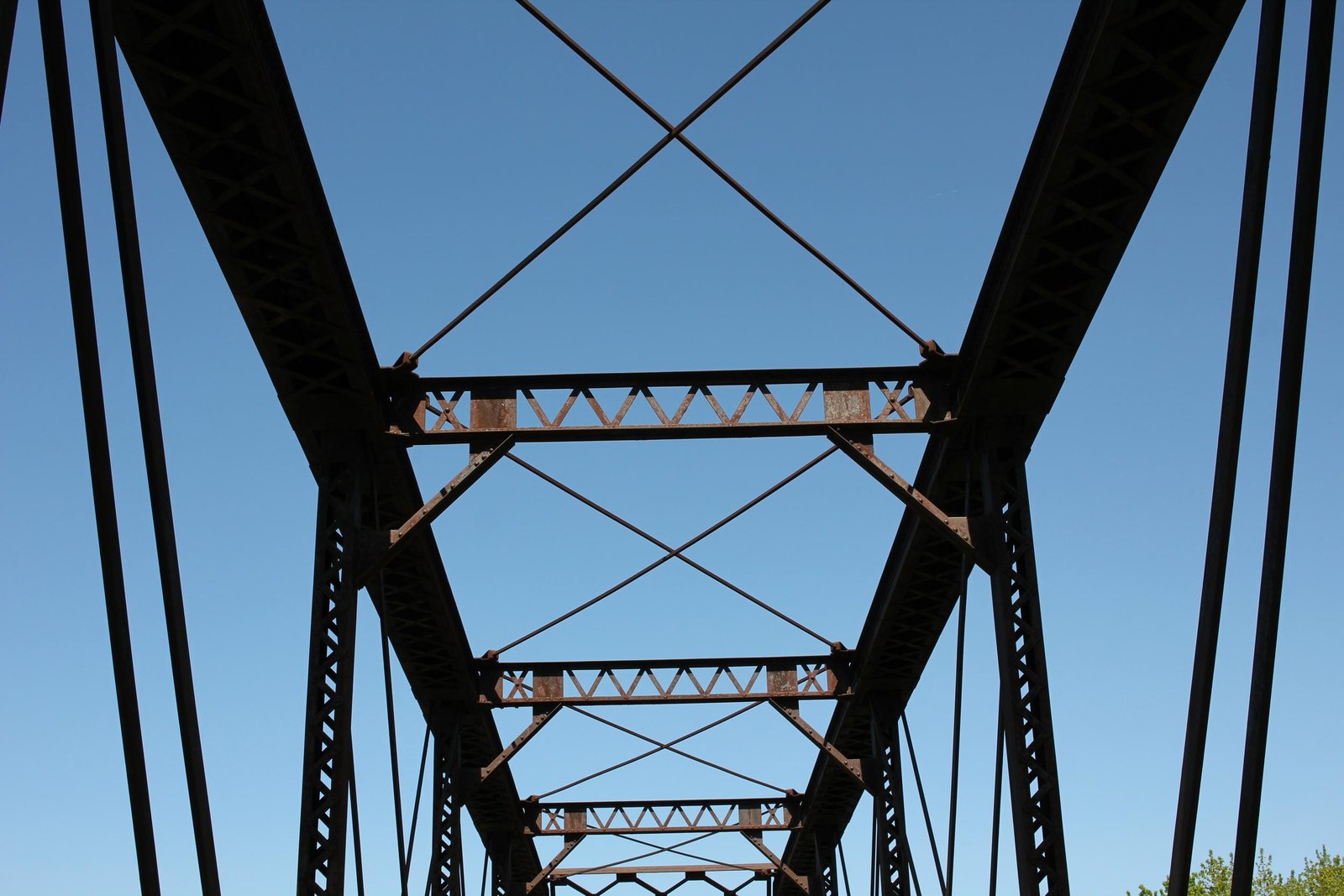

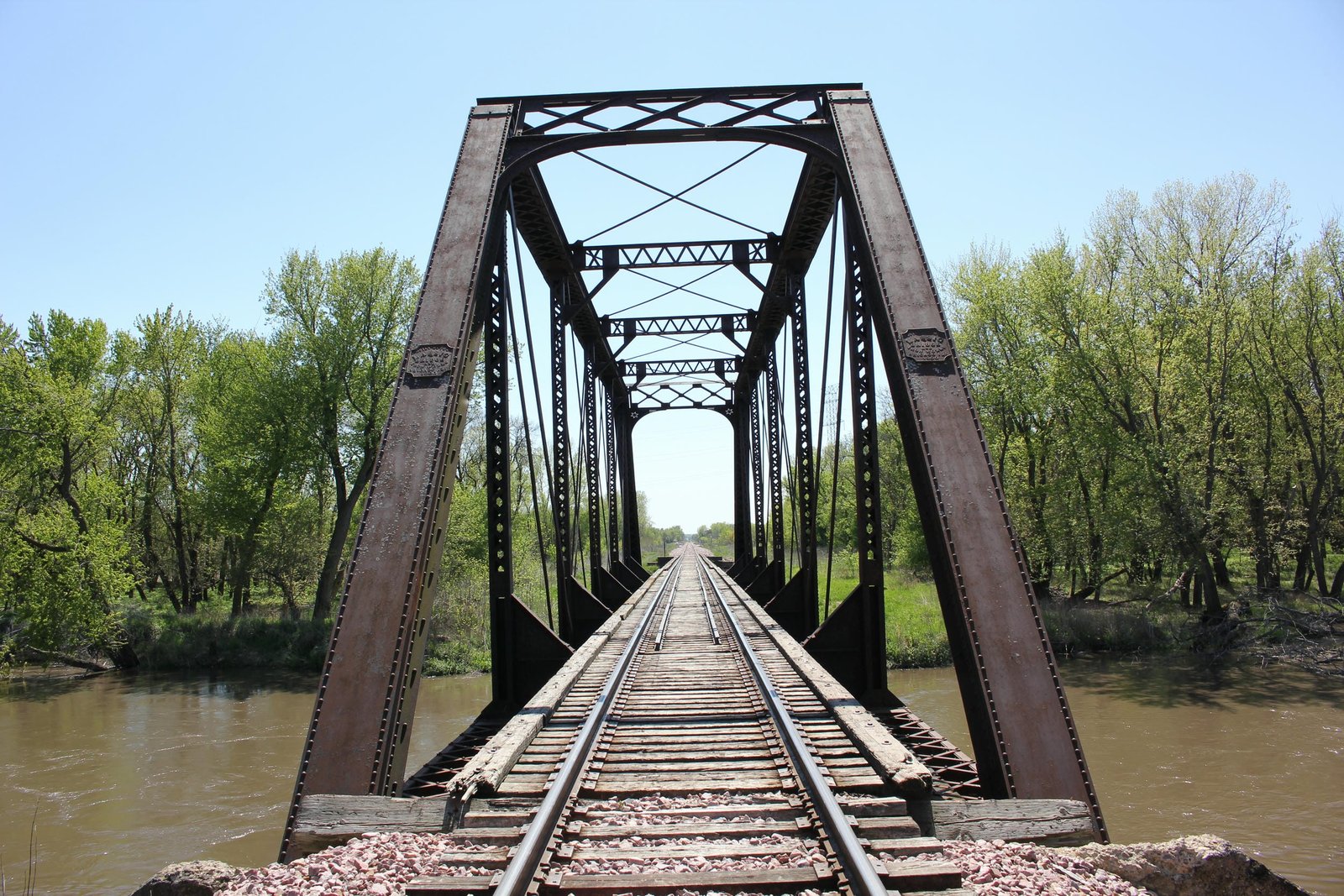

Located between Elk Point and Akron, this through truss bridge crosses the Big Sioux River. The previous bridge at this location was likely a wooden truss bridge. In 1908, it was decided to rebuild the bridge with a steel truss span. A 152-foot 6-panel pin connected Pratt through truss span was installed on concrete substructures, and a trestle approach constructed on the south end of the bridge. The truss was originally fabricated in 1900 as part of the single track crossing of the Cedar River at Bridge #Z-814 near Cedar Rapids, Iowa. The truss span utilize typical details seen in standard Milwaukee Road bridges, such as lattice portals and decorative heel bracings. This particular bridge utilizes a cutout star shape on the heel bracings. The south approach of the bridge was reconstructed in 2011, replacing the timber stringers with steel stringers. A concrete girder approach was added to the north end after a flooding related washout in 2019.

Railroads often reused steel and iron spans to save costs on bridge replacements along branch lines. When the truss was installed here, it was less than seven years old. The original single track through truss bridge at Bridge #Z-814 was replaced in 1906 with a new deck truss bridge upstream. Two additional truss spans from this bridge was reused at Bridge #T-252 at North Sioux City, South Dakota. Overall, this bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked the bridge as being regionally significant, due to the truss design and relocation history.


Citations

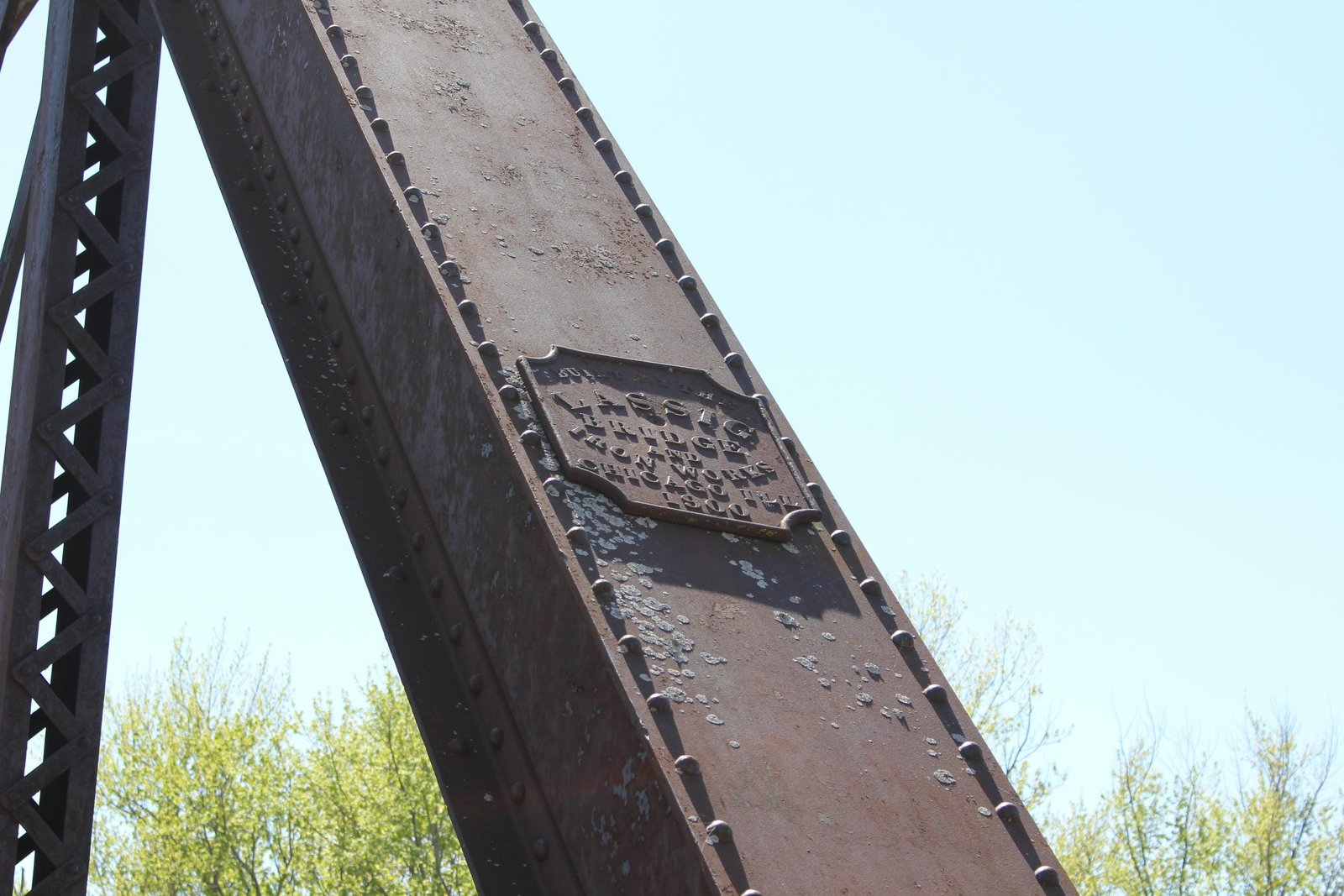

Builder and build date Lassig Bridge & Iron Works plaque
Relocation Information Milwaukee Road Bridge Index, located at the Milwaukee Road Archives at the Milwaukee Public Library
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
