Name IAIS Cub Creek Bridge (Carnforth)
Chicago, Rock Island & Pacific Railroad Bridge #2822
Built By Chicago, Rock Island & Pacific Railway
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor Lassig Bridge & Iron Works of Chicago, Illinois (Main Span)
American Bridge Company of New York (Approach Spans)
Substructure Contractor Unknown
Length 118 Feet Total, 52 Foot Main Span
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder and Steel Stringer
Substructure Design Stone Masonry and Concrete
Date Built 1892 (Main Span)
c. 1920 (Approach Spans)
Original Location (Additional Main Span Girders) Unknown
Traffic Count 5 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 2822
Iowa Interstate Railroad Bridge Number 282.20
Significance Local Significance
Documentation Date 11/13/2016

In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed 55 miles of new railroad, extending from Davenport, Iowa to Iowa City, Iowa.  As part of the work, a wooden bridge was constructed across the Mississippi River, connecting Rock Island, Illinois and Davenport.  In 1862, the line was extended an additional 31 miles to Marengo, Iowa; followed by an additional 20 miles to Brooklyn, Iowa in 1863 and 26 miles to Kellogg, Iowa in 1864.  In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island), which constructed an additional 44 miles to Des Moines, Iowa in 1867.  In 1869, the line would continue to be extended west towards the Missouri River.  At Davenport, this line connected to an existing Rock Island line, which extended east to Chicago, Illinois.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.

In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.  Due to heavy traffic over this line, portions of the line between Davenport and West Liberty was double tracked in the late 1890s.  The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs, Iowa; including the Davenport to Des Moines section.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Iowa City Subdivision between Davenport and South Amana, as well as the Newton Subdivision between South Amana and Des Moines.

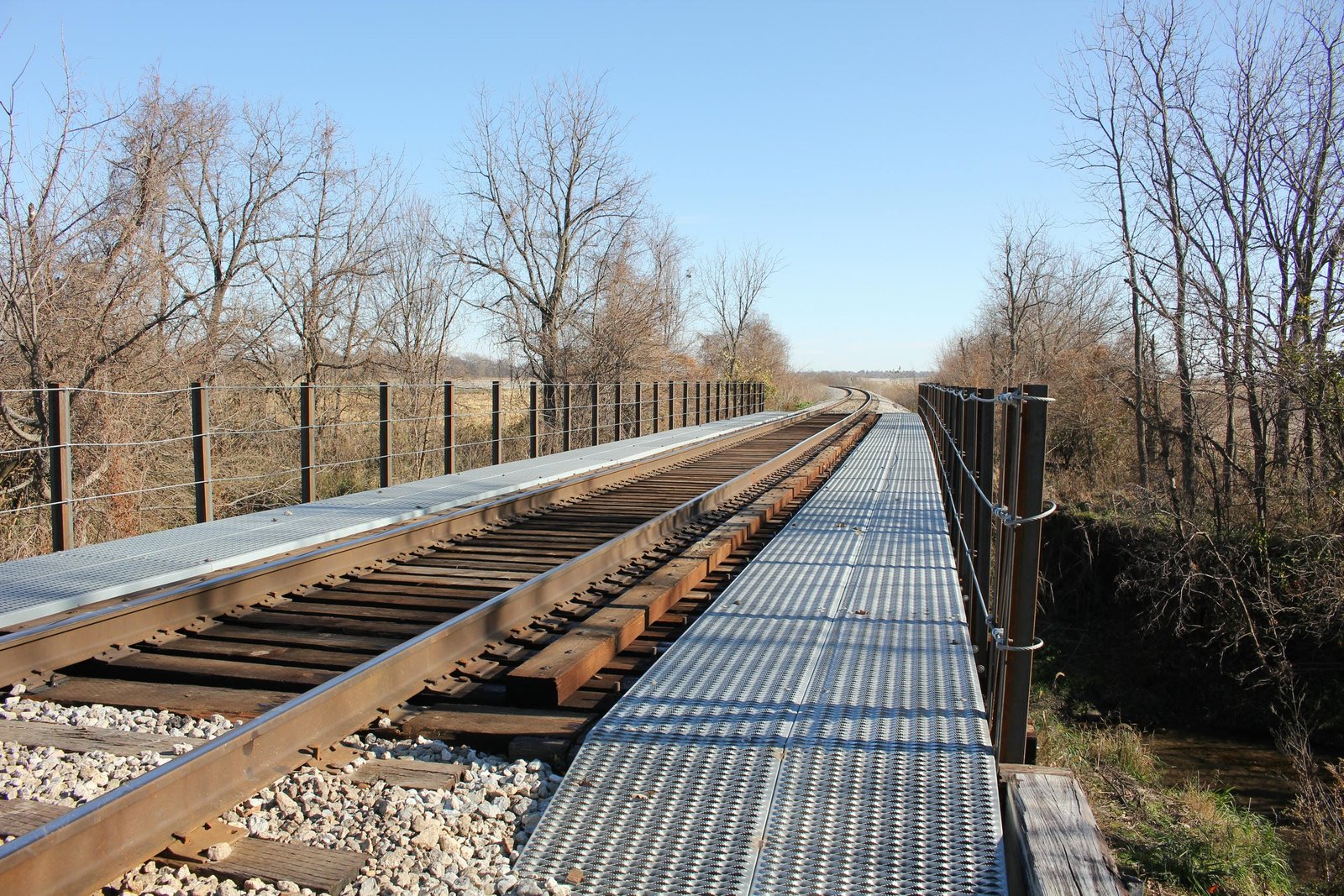

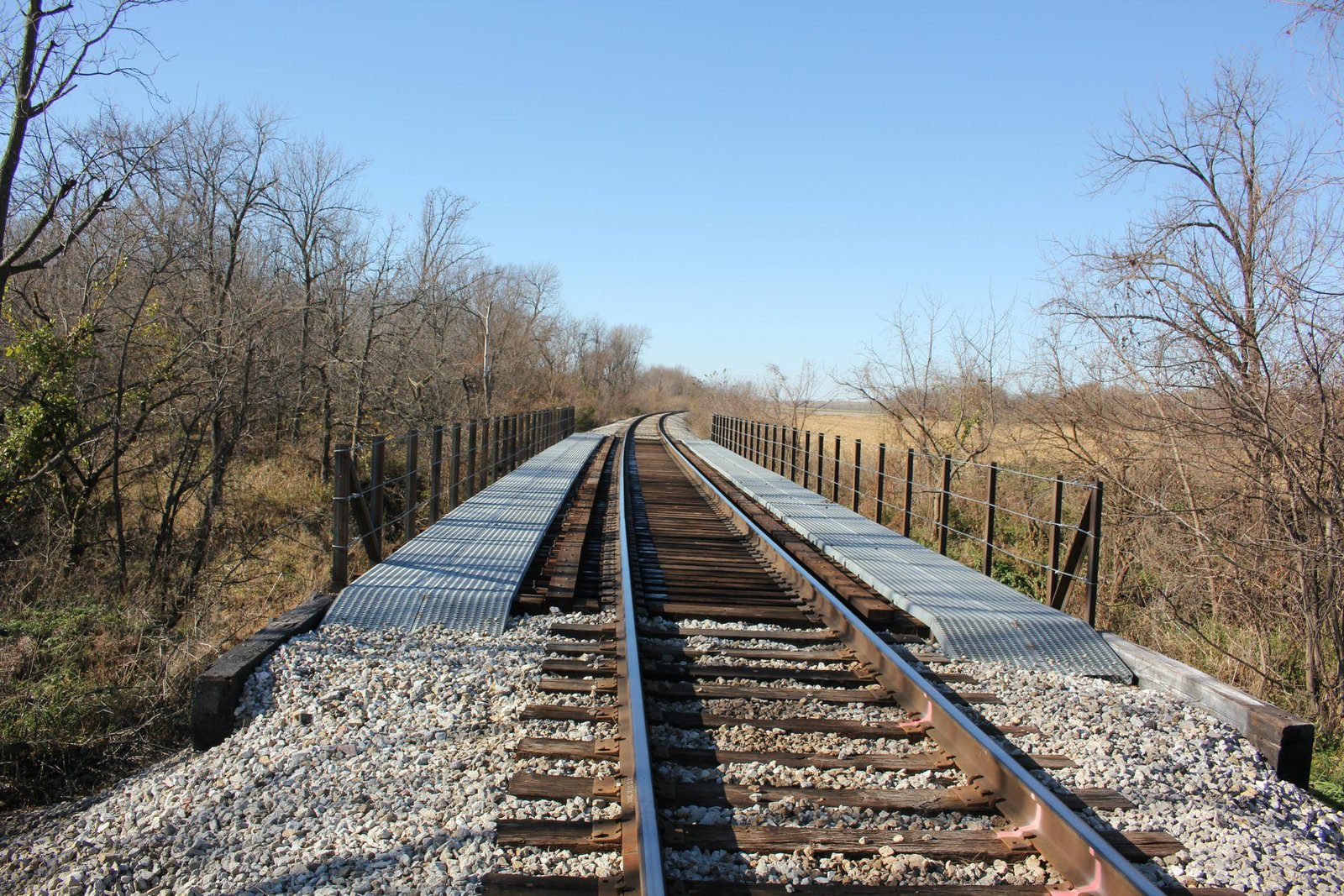

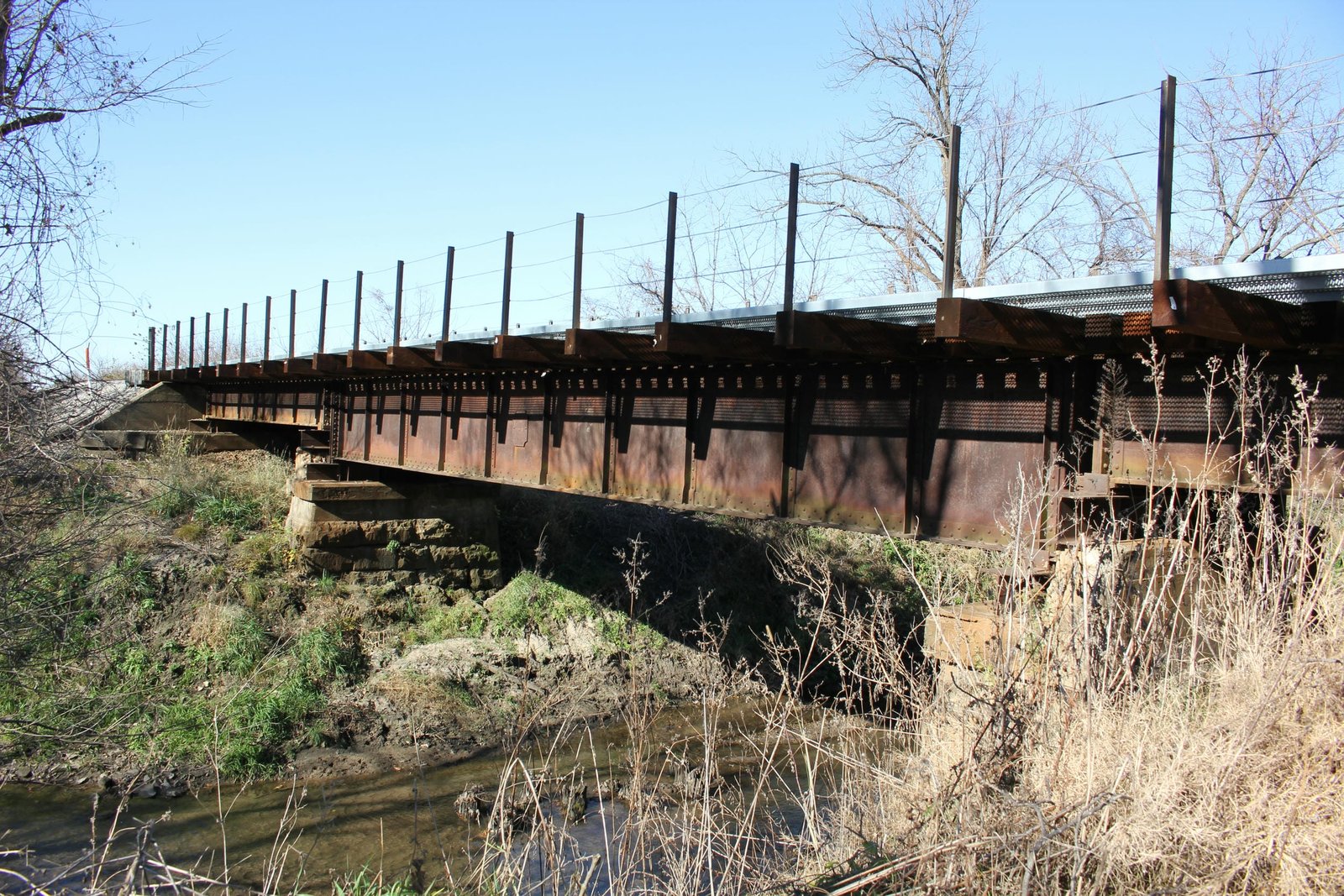

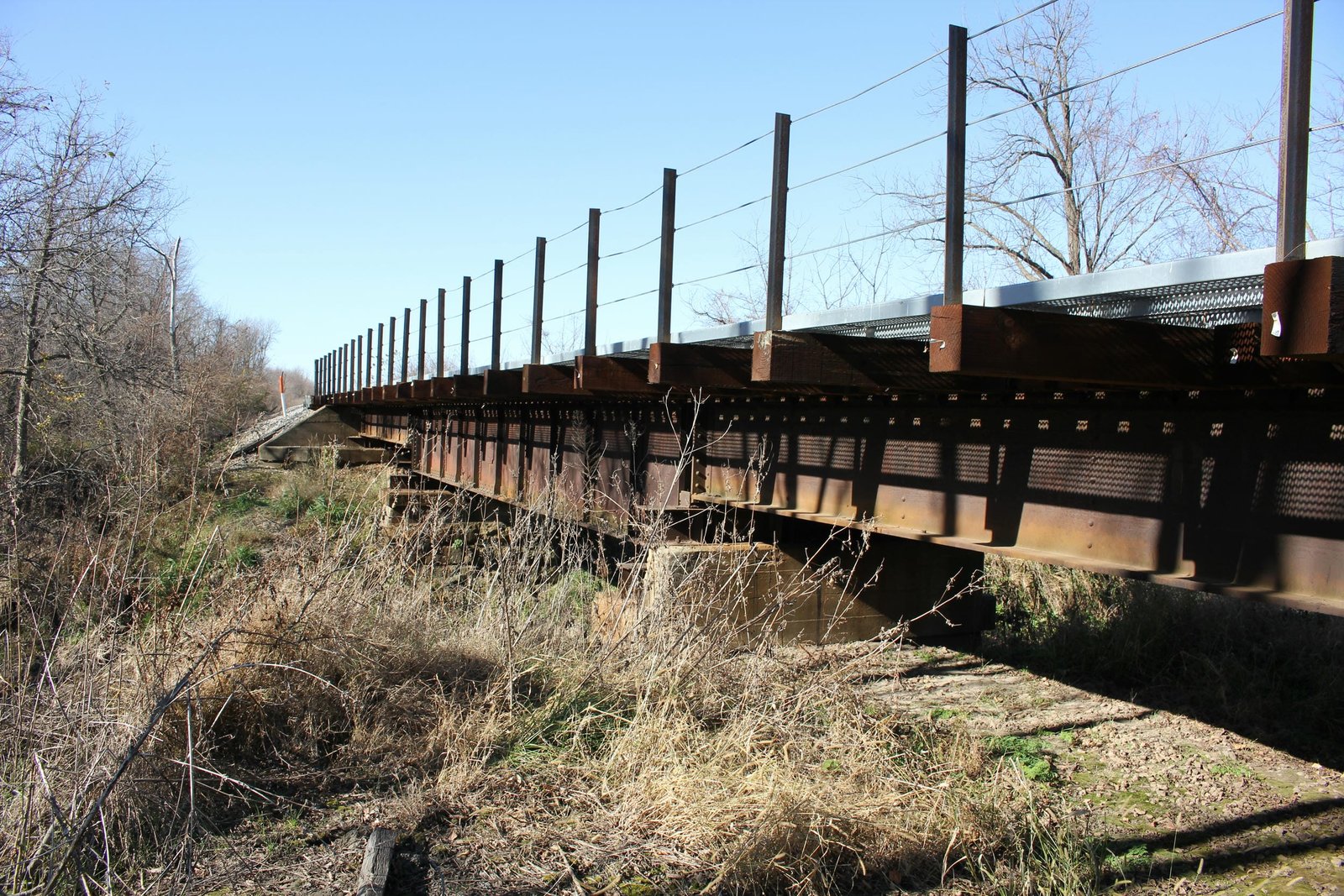

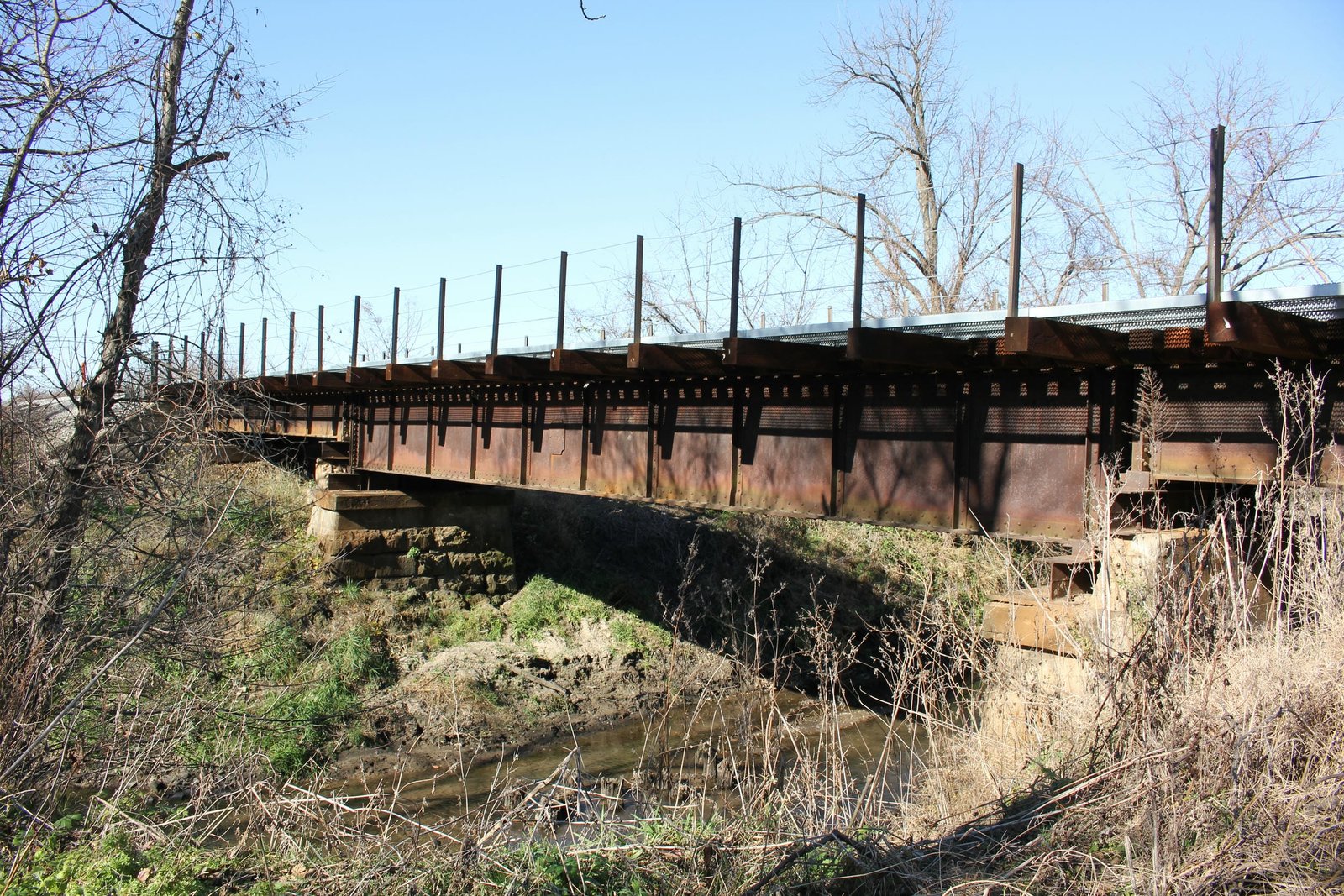

Located between Victor and Brooklyn near the former station of Carnforth, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over Cub Creek near 230th Street. The first bridge at this location was likely a timber pile trestle, constructed when the line was first built. It is believed the timber pile trestle was renewed periodically through the 1870s and 1880s. Starting in the early 1890s, the Rock Island began a series of improvements to this line, replacing outdated timber bridges with new steel and stone structures. In 1892-93, a new deck plate girder bridge was constructed at this location. Initially, this bridge consisted of one 52-foot and two 33-foot deck plate girder spans, set onto stone substructures. In approximately 1910, the main span of the bridge was strengthened by adding two additional girders, a typical practice of the time. The most recent alteration came in approximately 1920, when the approaches were replaced by newer steel stringer spans and the substructures repaired with concrete caps. It is unclear if the original approaches were reused at another location or if they were scrapped. Currently, the bridge consists of a 52-foot "twinned" deck plate girder span, approached by a 33-foot steel stringer span on either end. The entire bridge is set onto stone substructures, which are capped with concrete.

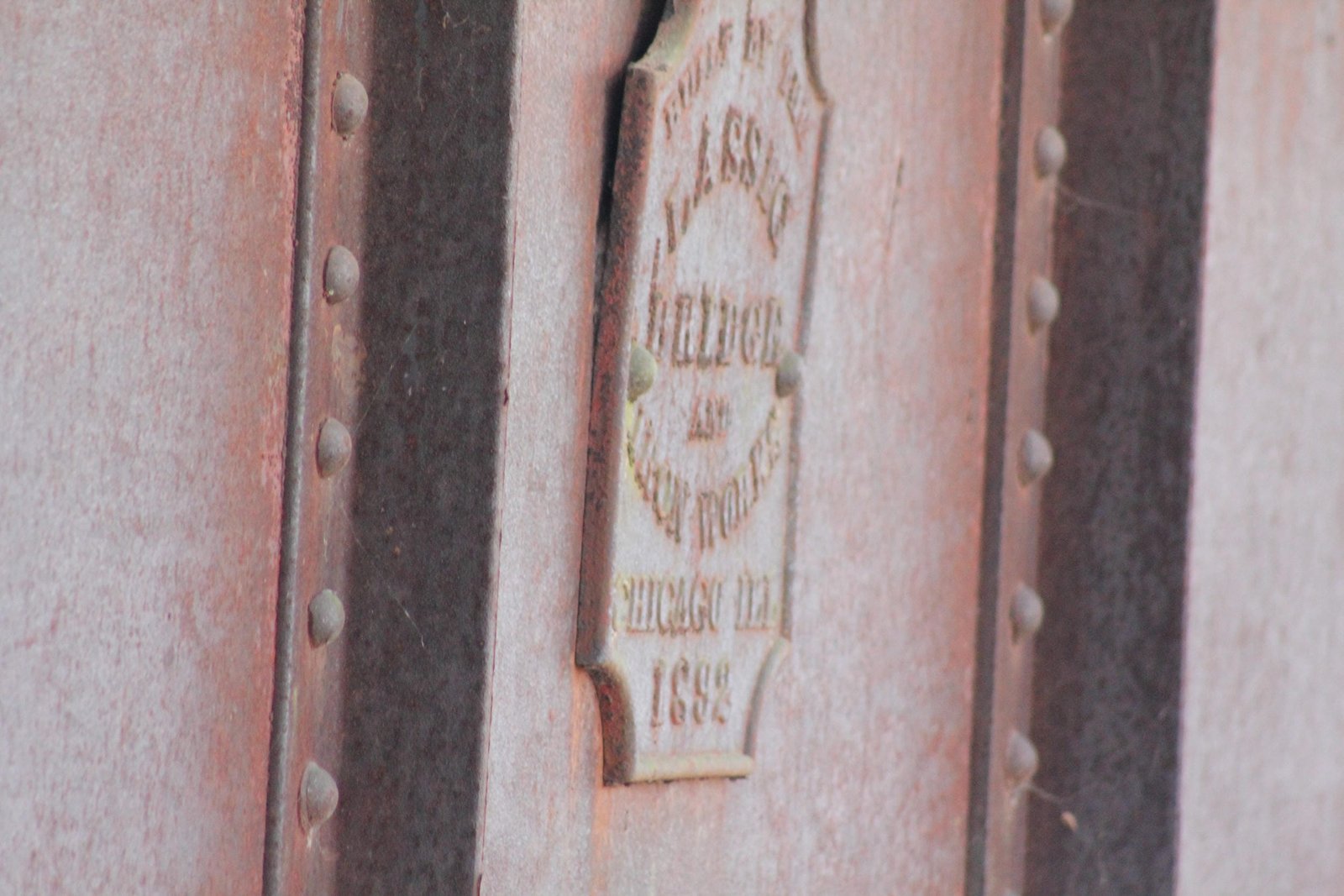

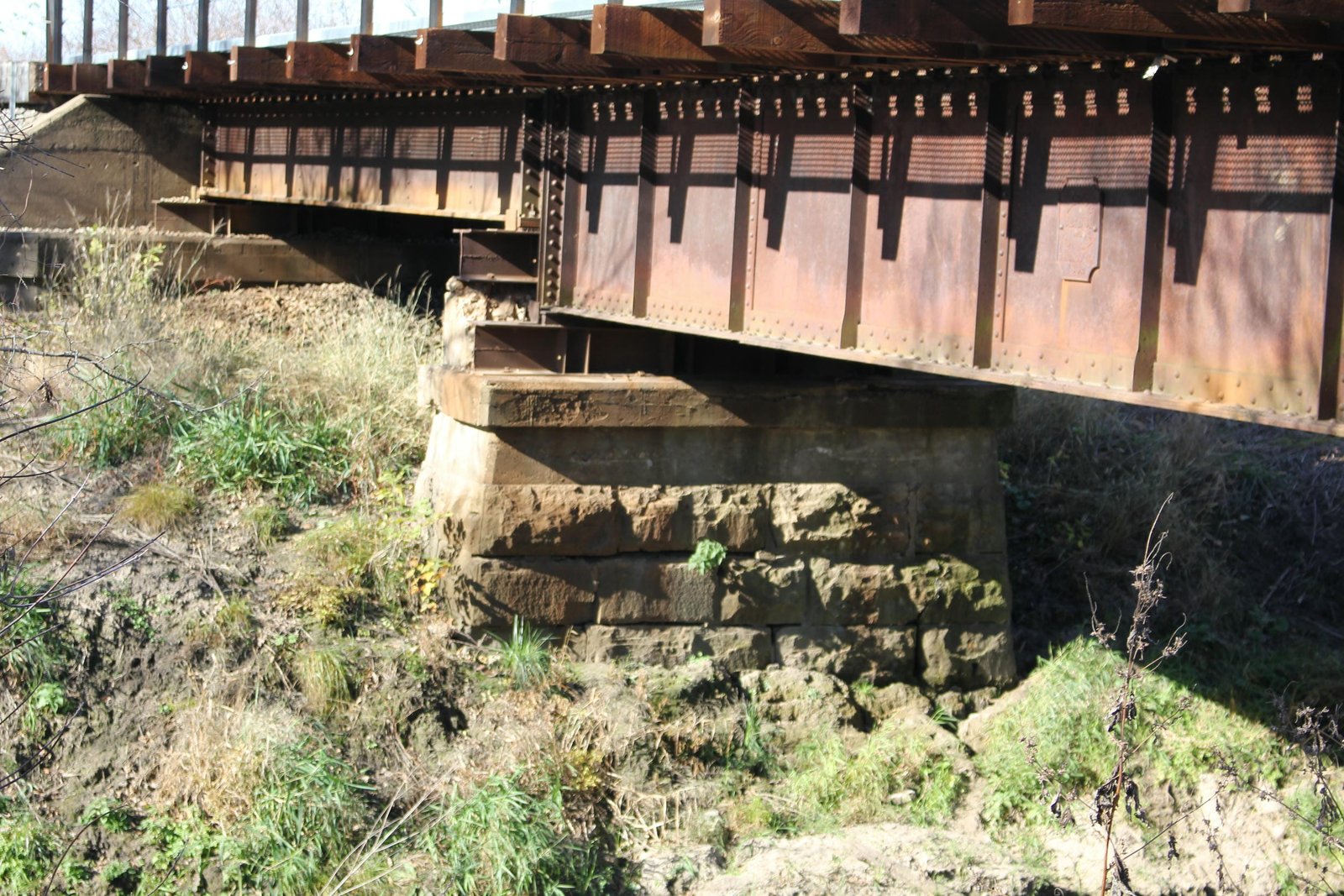

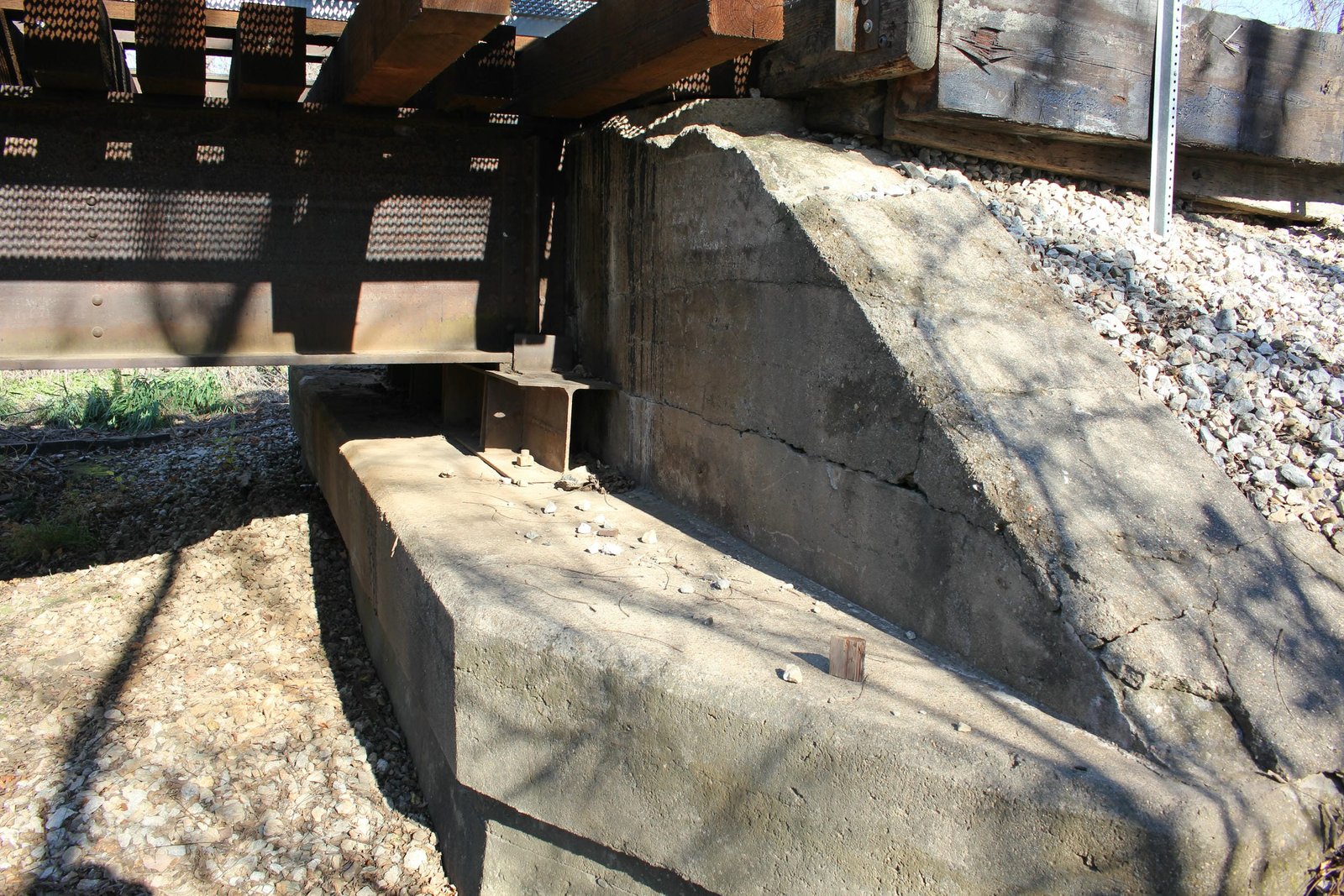

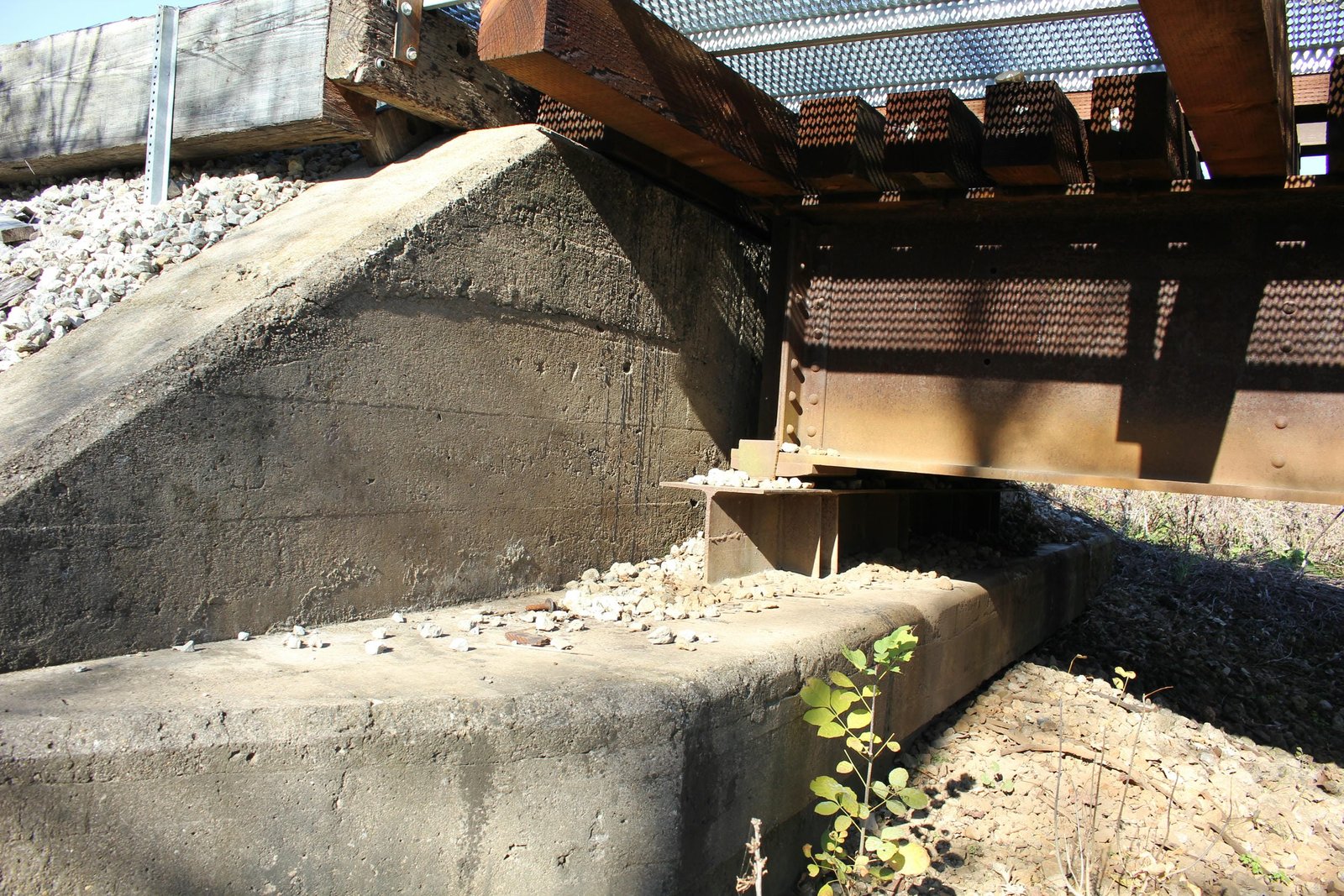

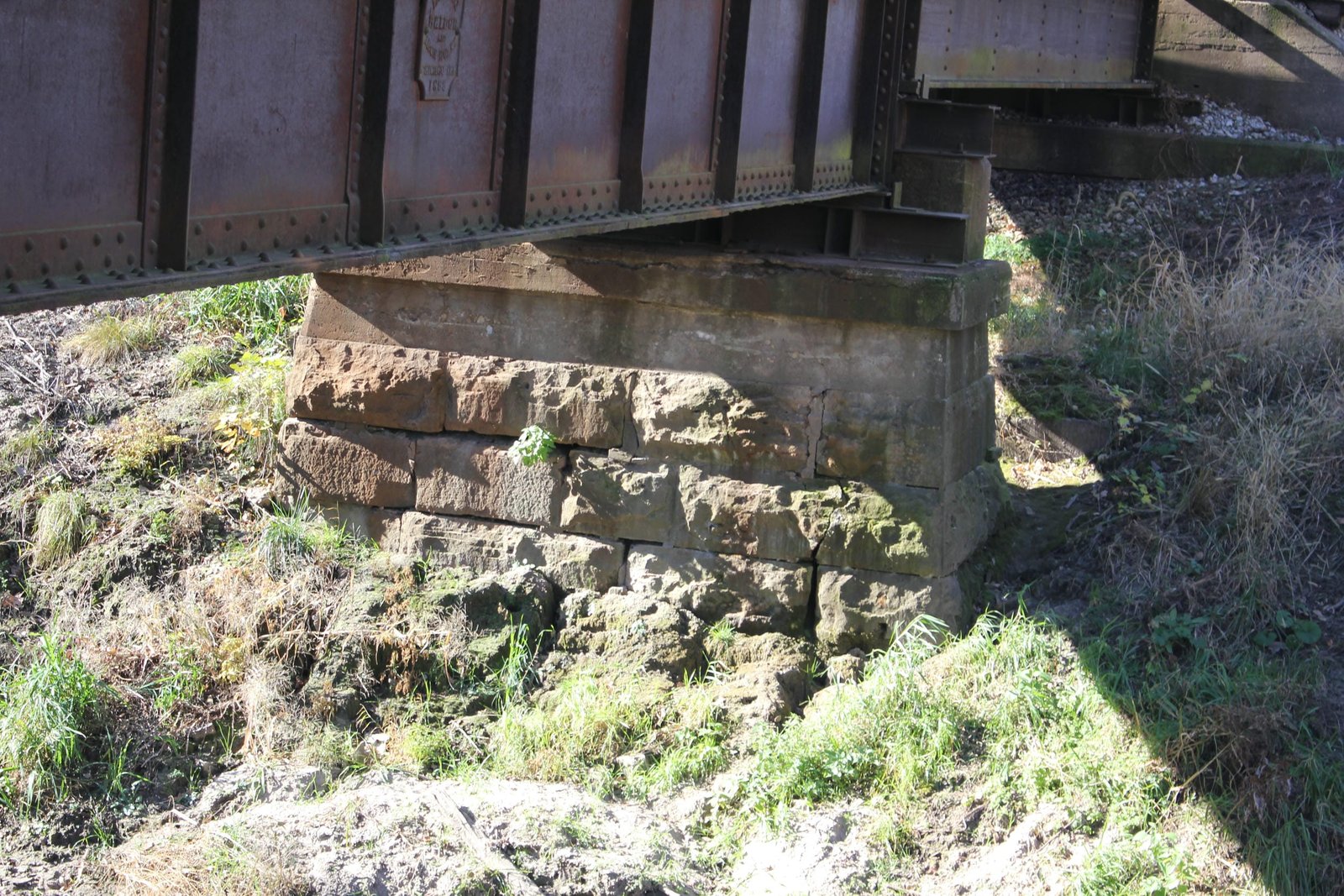

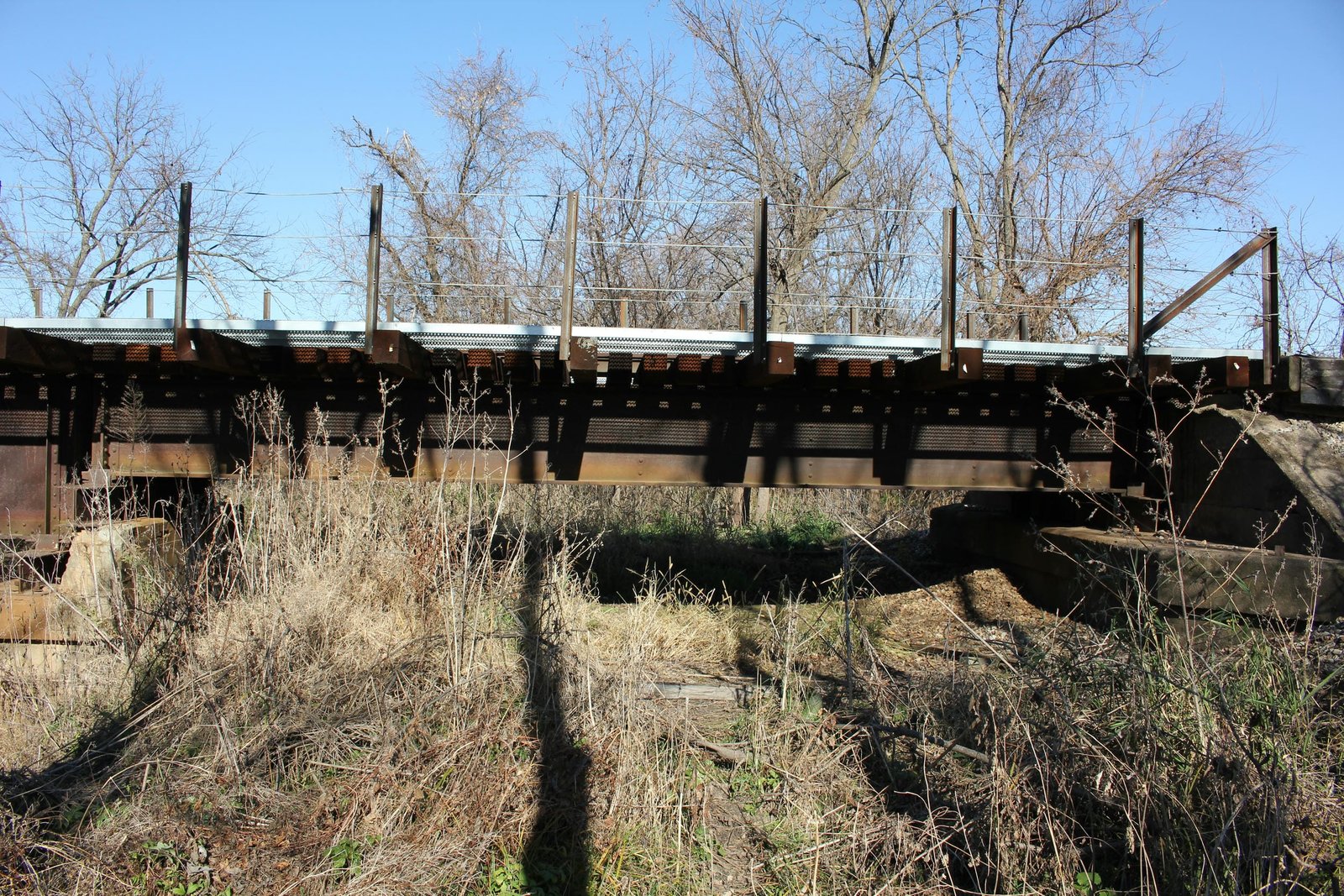

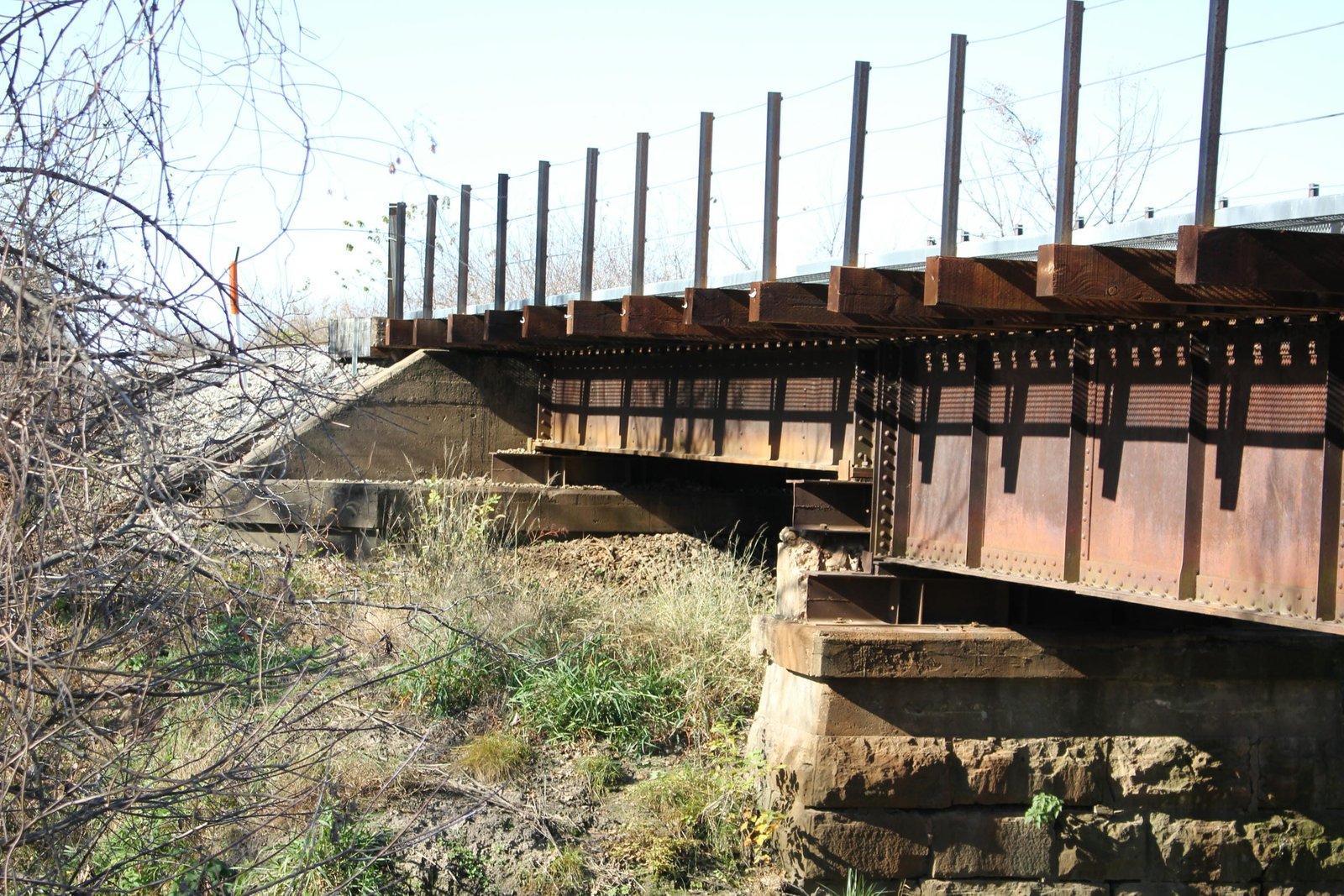

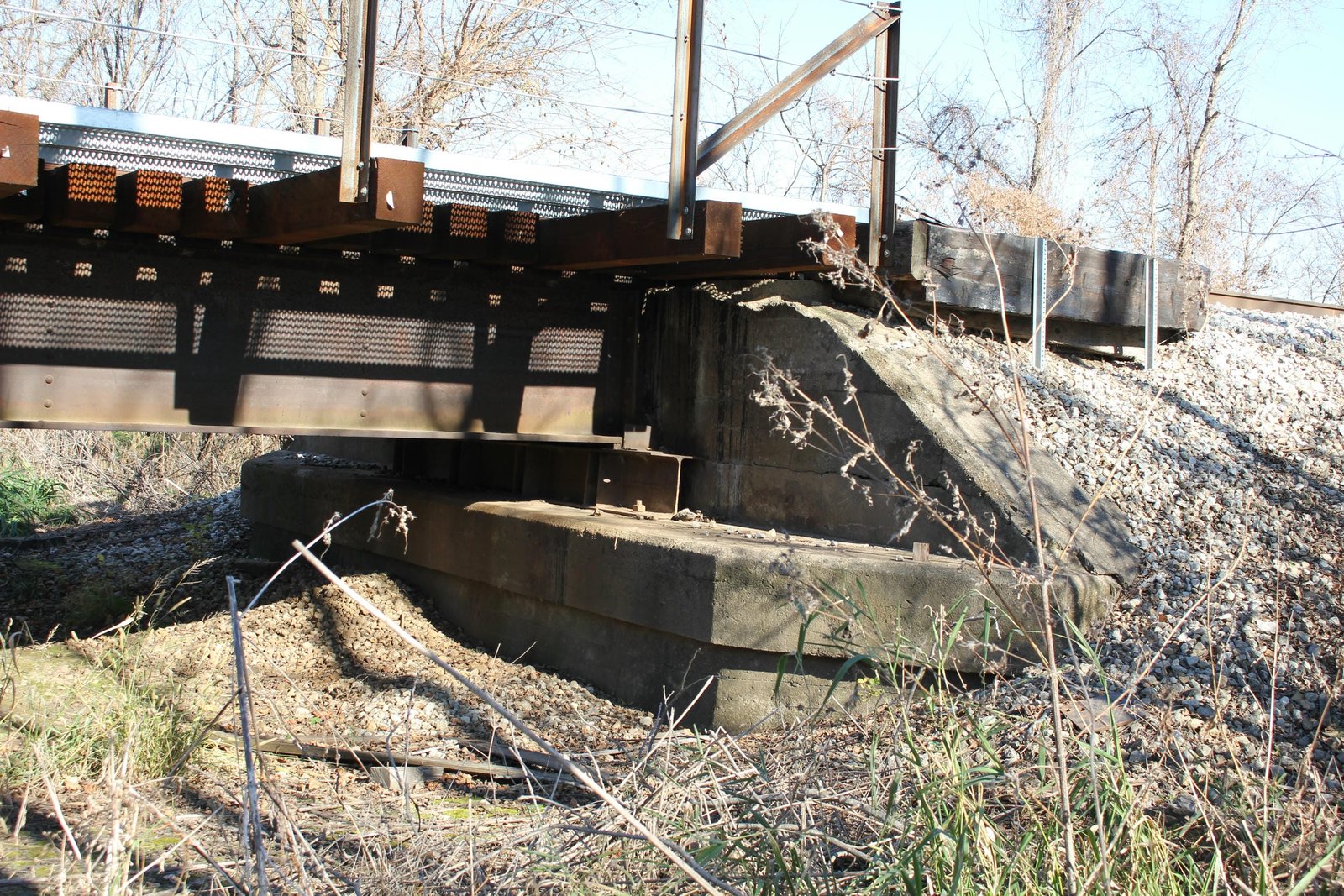

The main span follows a typical design for the era, with heavy plate girders and an open deck. It is unclear if the additional girders were fabricated new, or if they were reused from another location. The approach spans also follow a standard design, and consist of four shallow beams with an open deck. Both piers use a standard rectangular design, with stone beneath a concrete cap. The abutments are mostly buried, but also use a standard design with stone that is capped with a concrete structure with short sloped backwalls. Stone for the substructures consists of a tan limestone, quarried at an unknown location. Lassig Bridge & Iron Works fabricated the original portion of the main span, while American Bridge Company fabricated the approach spans. It is unclear if the additional girders of the main span were fabricated by the Lassig Bridge & Iron Works or by another firm. The substructures were constructed by an unknown contractor, and it is unclear if the concrete alterations were constructed by an unknown contractor or by railroad company forces. Deck plate girder spans were popular for railroad use, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations. Today, the bridge remains in regular use as part of an Iowa Interstate Railroad mainline. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design and unclear history.


Citations

Fabrication date and builder (main span) Chicago, Rock Island & Pacific Railway Valuation Engineering Field Notes at the National Archives

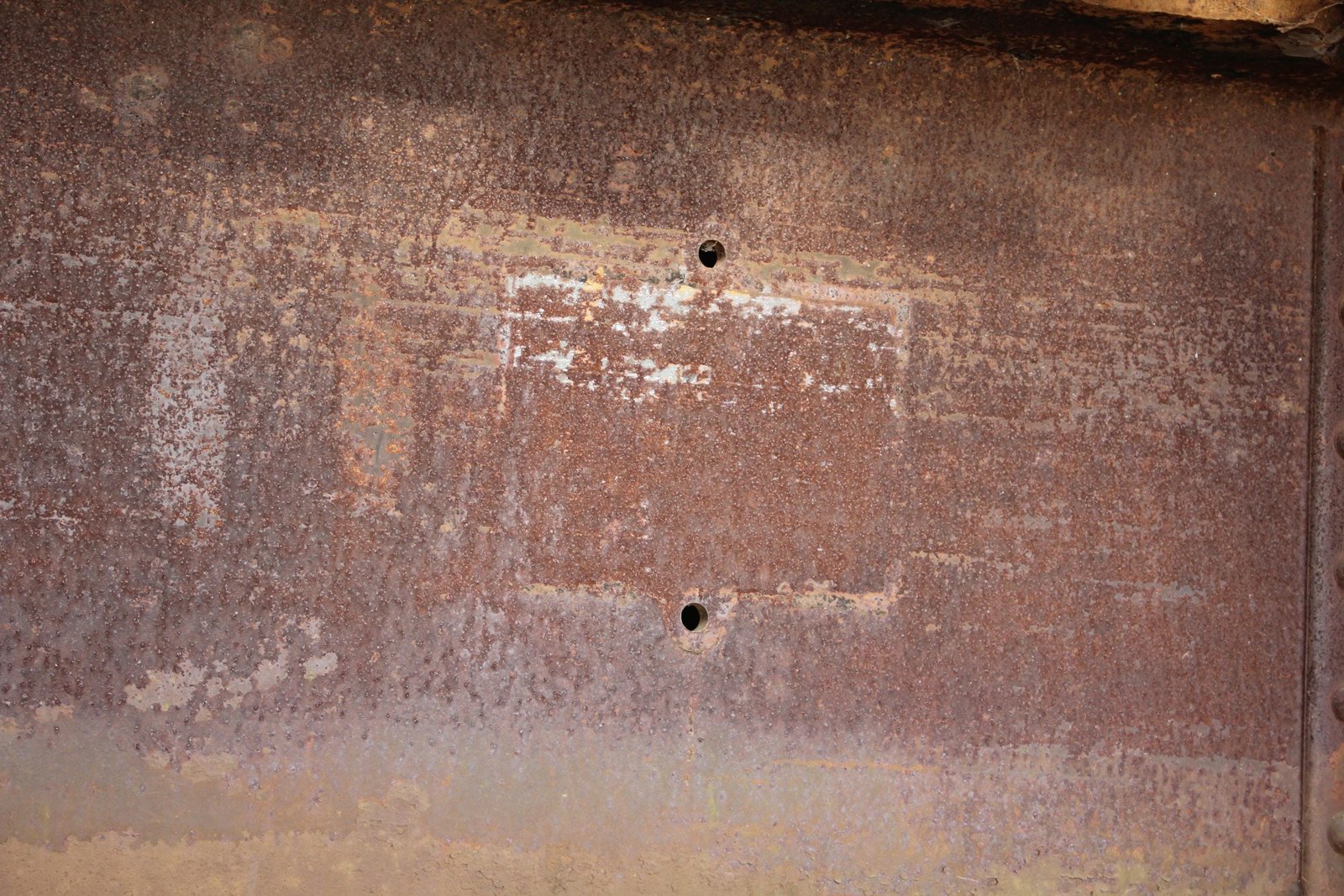

Builder (approach spans) Missing American Bridge Company plaque
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
