| Name | IAIS Little Bear Creek Bridge (Carnforth) Chicago, Rock Island & Pacific Railroad Bridge #2839 |
| Built By | Chicago, Rock Island & Pacific Railway |
| Currently Owned By | Iowa Interstate Railroad |
| Superstructure Contractor | Lassig Bridge & Iron Works of Chicago, Illinois (Original Girders) Unknown (Additional Girders) |
| Substructure Contractor | Unknown |
| Length | 220 Feet Total, 44 Foot Spans |
| Width | 1 Track |
| Height Above Ground | 15 Feet (Estimated) |
| Superstructure Design | Deck Plate Girder |
| Substructure Design | Stone Masonry and Concrete |
| Date Built | 1892; Altered c. 1910 and c. 1930 |
| Traffic Count | 5 Trains/Day (Estimated) |
| Current Status | In Use |
| Chicago, Rock Island & Pacific Railroad Bridge Number | 2839 |
| Iowa Interstate Railroad Bridge Number | 283.90 |
| Significance | Local Significance |
| Documentation Date | 11/13/2016 |
In 1856, the Mississippi and Missouri Rail Road Company (M&M) constructed 55 miles of new railroad, extending from Davenport, Iowa to Iowa City, Iowa. As part of the work, a wooden bridge was constructed across the Mississippi River, connecting Rock Island, Illinois and Davenport. In 1862, the line was extended an additional 31 miles to Marengo, Iowa; followed by an additional 20 miles to Brooklyn, Iowa in 1863 and 26 miles to Kellogg, Iowa in 1864. In 1866, the M&M and the Chicago and Rock Island Rail Road Company (C&RI) merged to form the Chicago, Rock Island & Pacific Railroad (Rock Island), which constructed an additional 44 miles to Des Moines, Iowa in 1867. In 1869, the line would continue to be extended west towards the Missouri River. At Davenport, this line connected to an existing Rock Island line, which extended east to Chicago, Illinois. In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway. The Rock Island constructed and acquired a large network of railroads, primarily in Iowa during the late 1880s. This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.
In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures. Due to heavy traffic over this line, portions of the line between Davenport and West Liberty was double tracked in the late 1890s. The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability. After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. By the mid-1970s, the railroad was in serious decline. The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability. Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations. In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island. During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated. Many of the lines and equipment were scrapped. Profitable sections of railroad were prepared for sale.
In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa. In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs, Iowa; including the Davenport to Des Moines section. In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees. Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984. After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa. Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations. Today, IAIS continues to operate the Iowa City Subdivision between Davenport and South Amana, as well as the Newton Subdivision between South Amana and Des Moines.

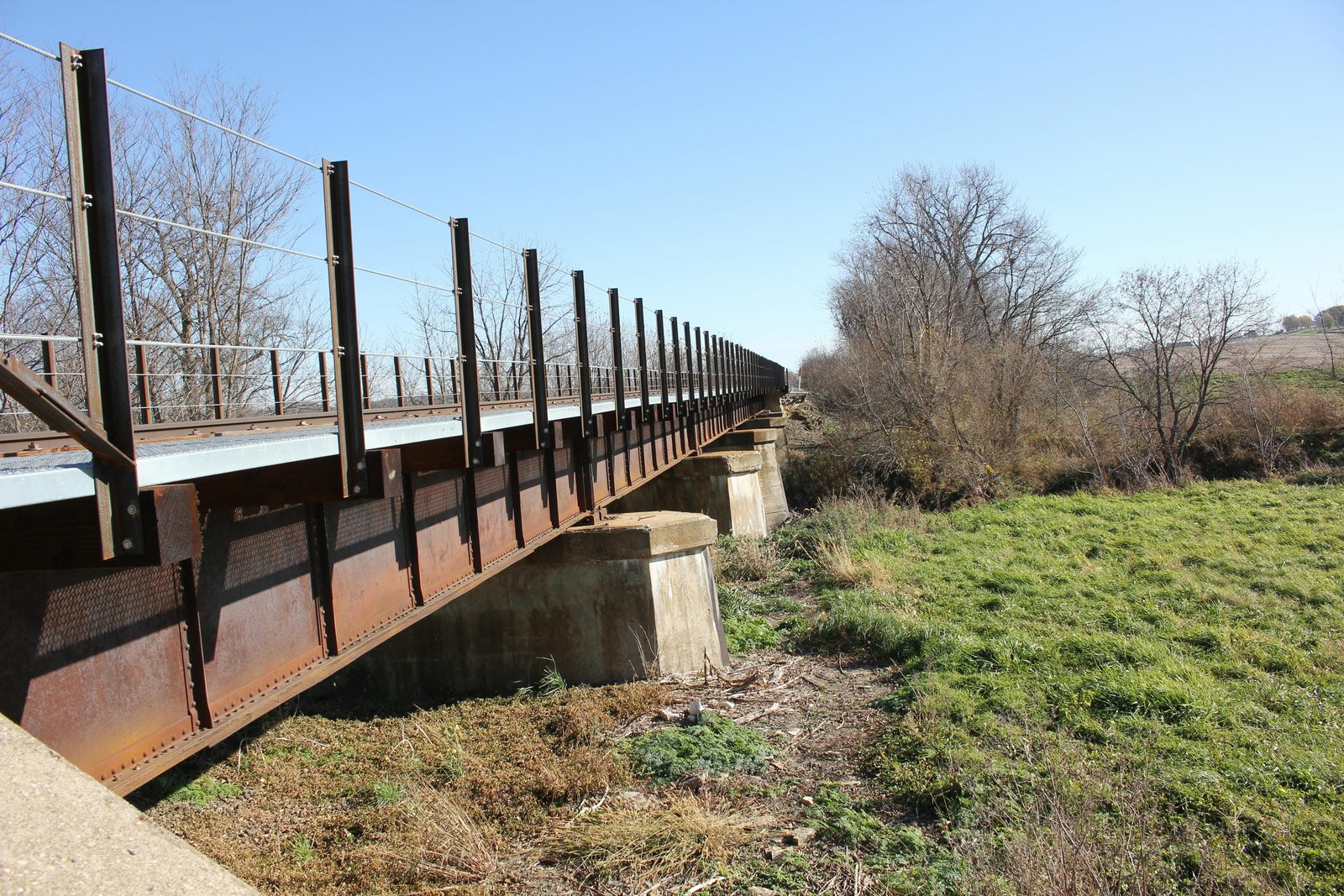

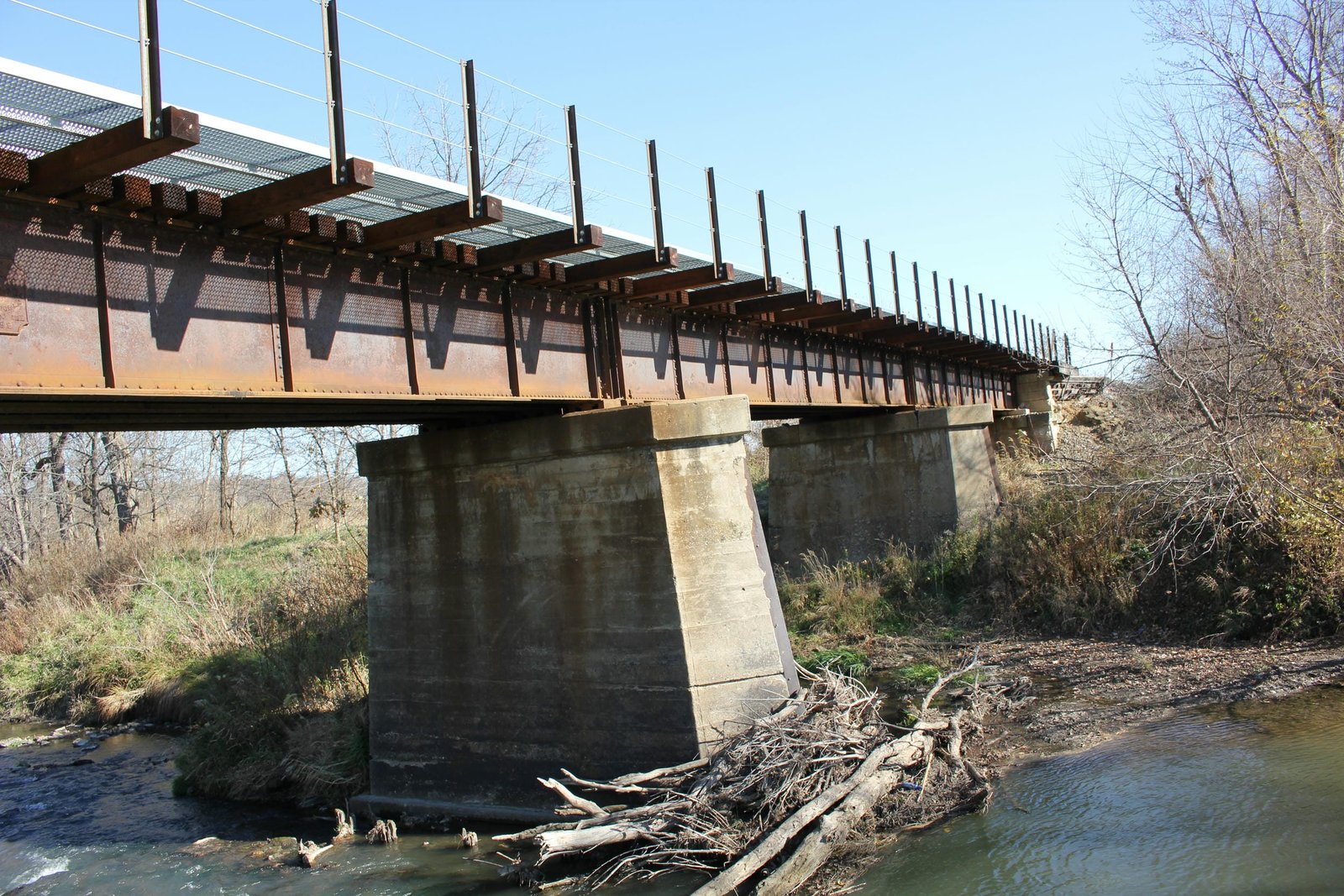

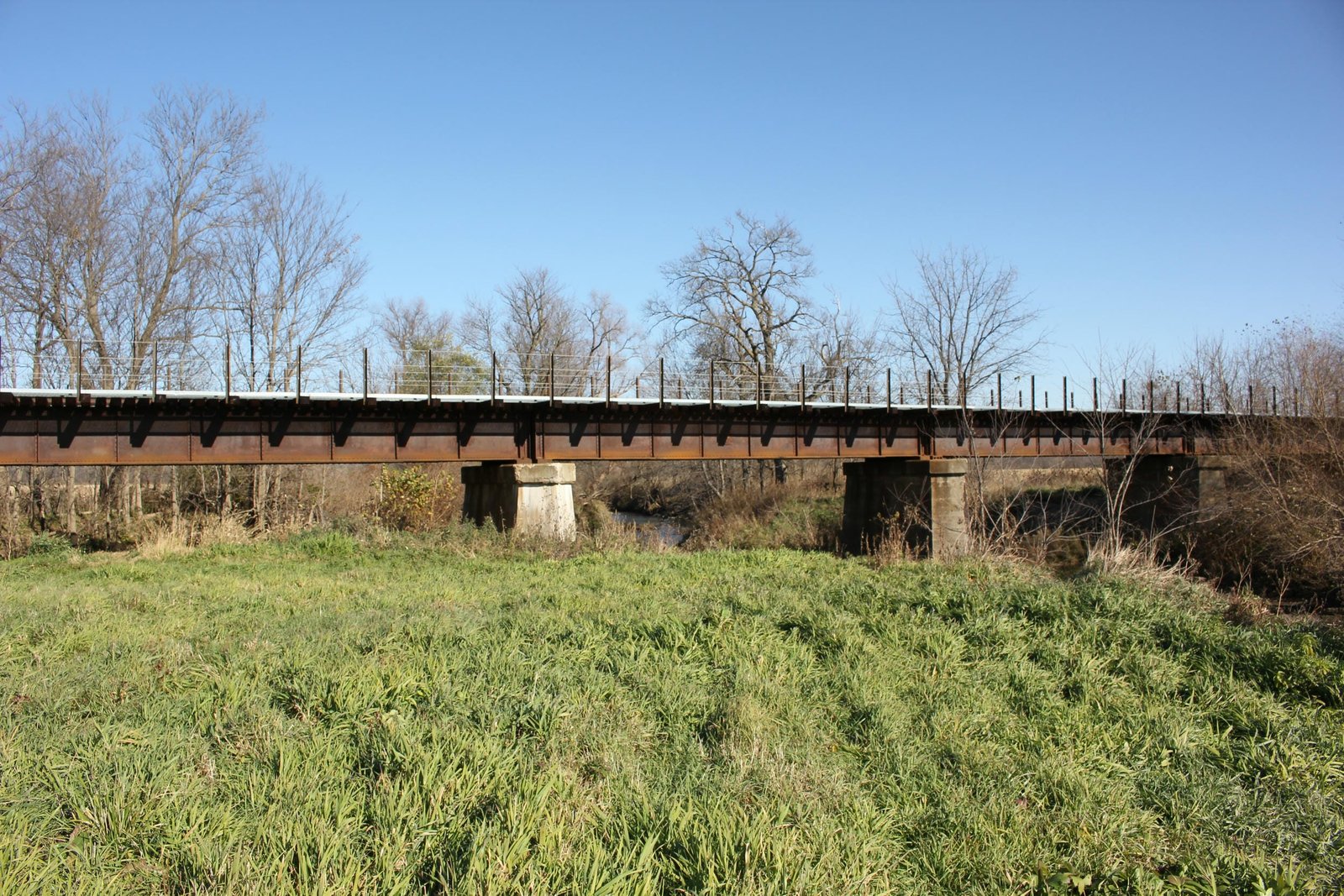

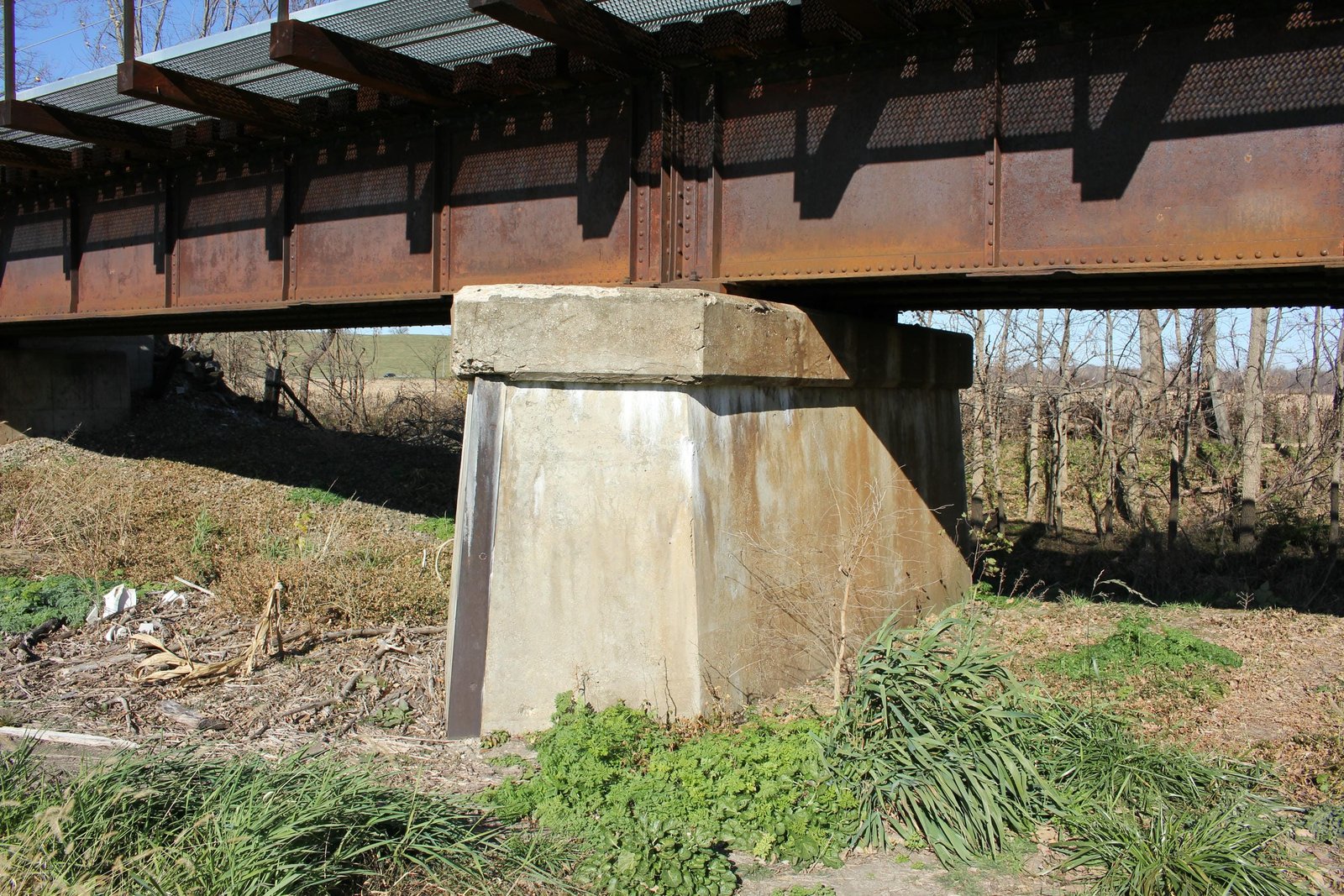

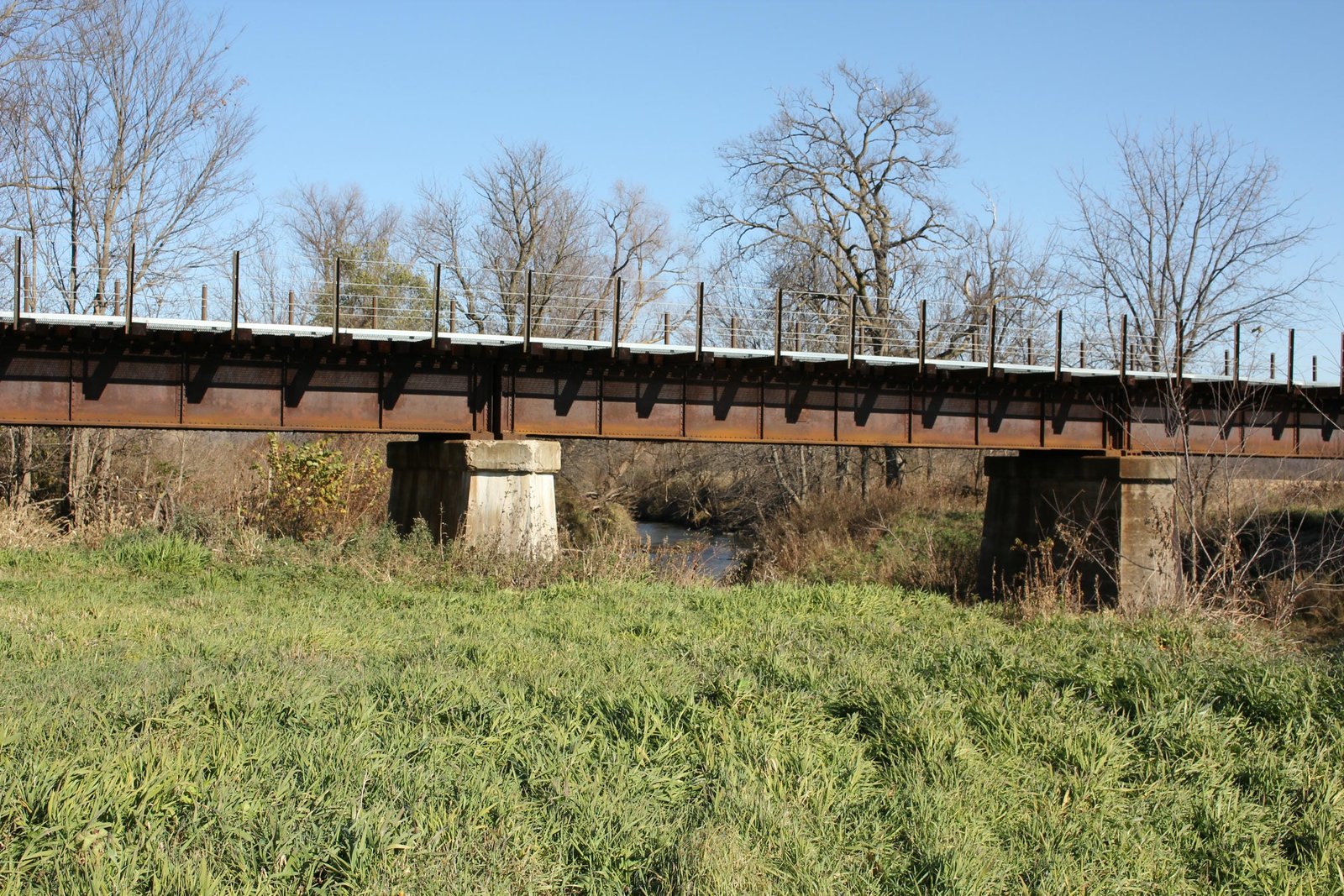

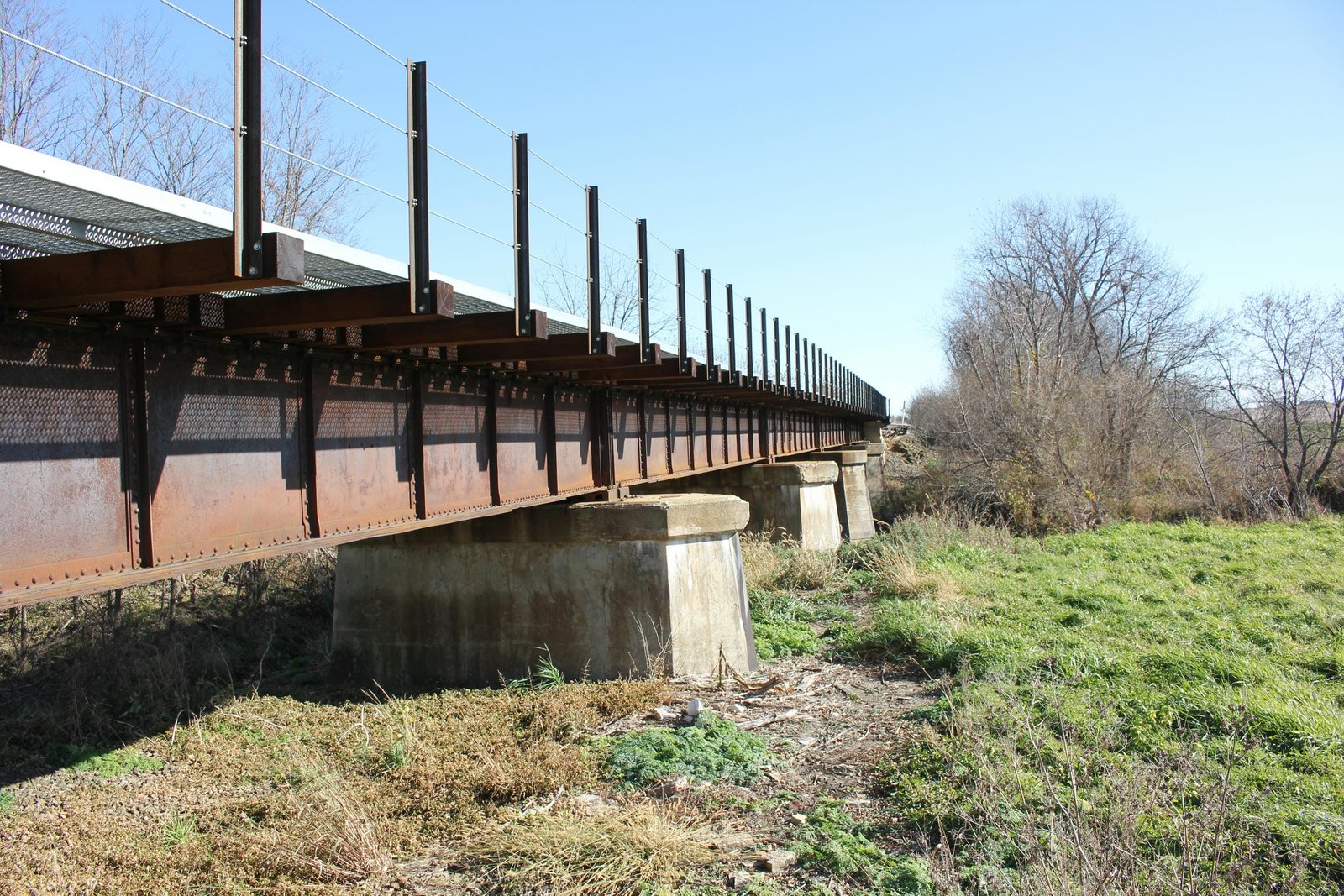

Located between Victor and Brooklyn near the former station of Carnforth, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over Cub Creek near 385th Avenue. The first bridge at this location was likely a timber pile trestle, constructed when the line was first built. It is believed the timber pile trestle was renewed periodically through the 1870s and 1880s. Starting in the early 1890s, the Rock Island began a series of improvements to this line, replacing outdated timber bridges with new steel and stone structures. In 1892, a new deck plate girder bridge was constructed at this location. Initially, this bridge consisted of five 44-foot deck plate girders, set onto stone substructures. In approximately 1910, it is believed that the bridge was strengthened by adding two additional girders to each span, a typical practice of the time. The most recent alteration came in approximately 1930, when the piers and west abutment were reconstructed with concrete, giving the bridge its present configuration. Currently, the bridge consists of five 44-foot "twinned" deck plate girder spans, set onto a stone east abutment, concrete piers and a concrete west abutment.

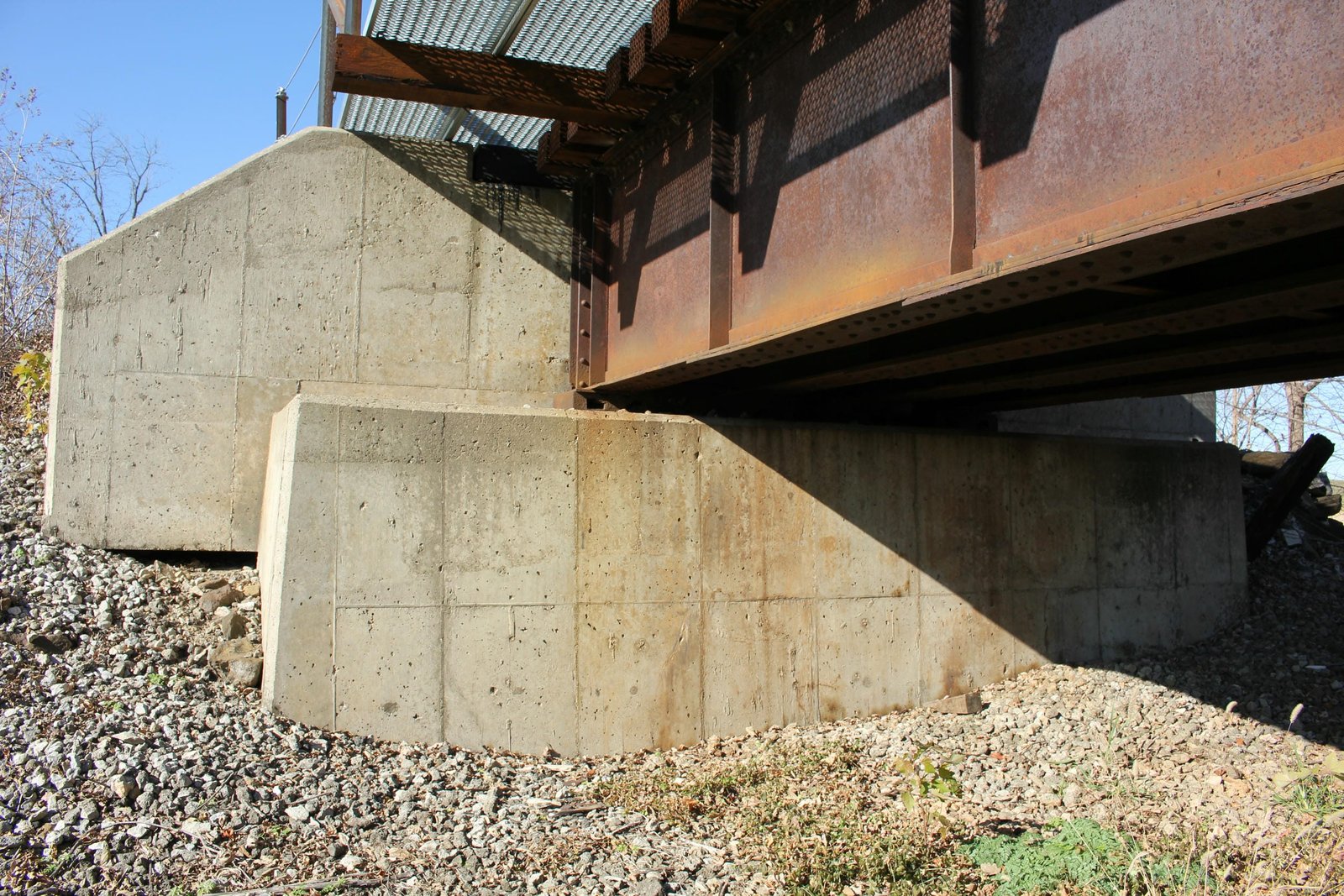

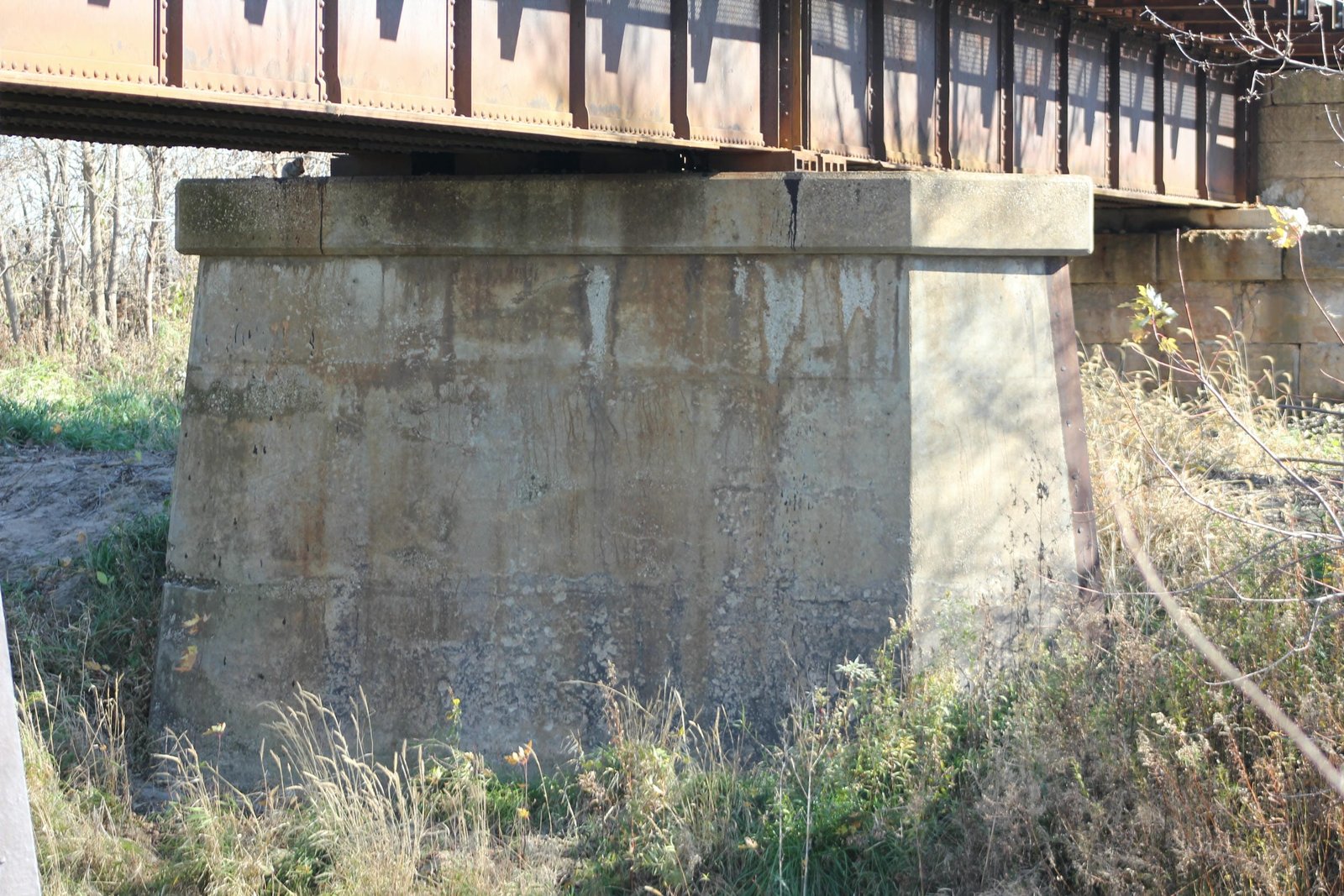

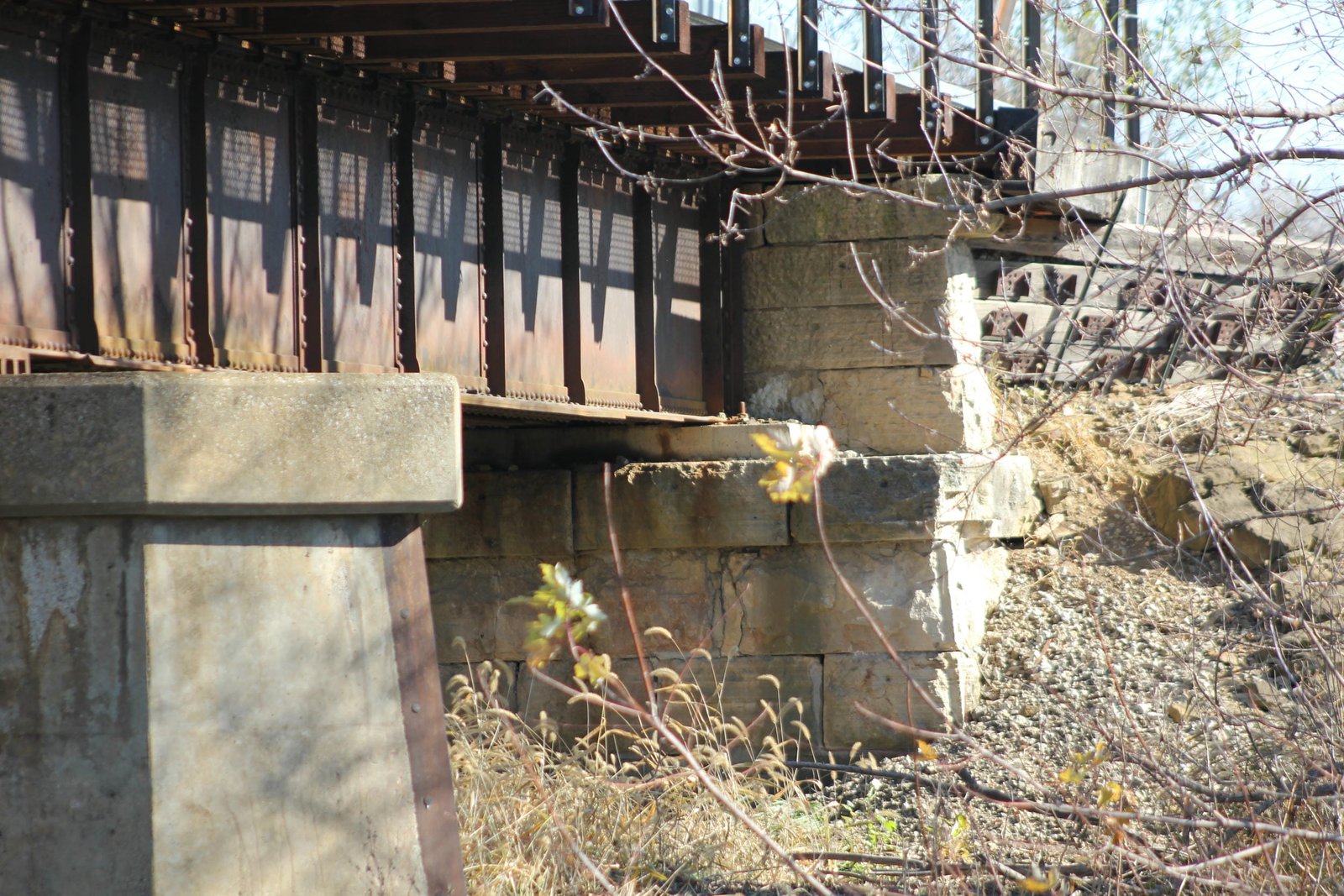

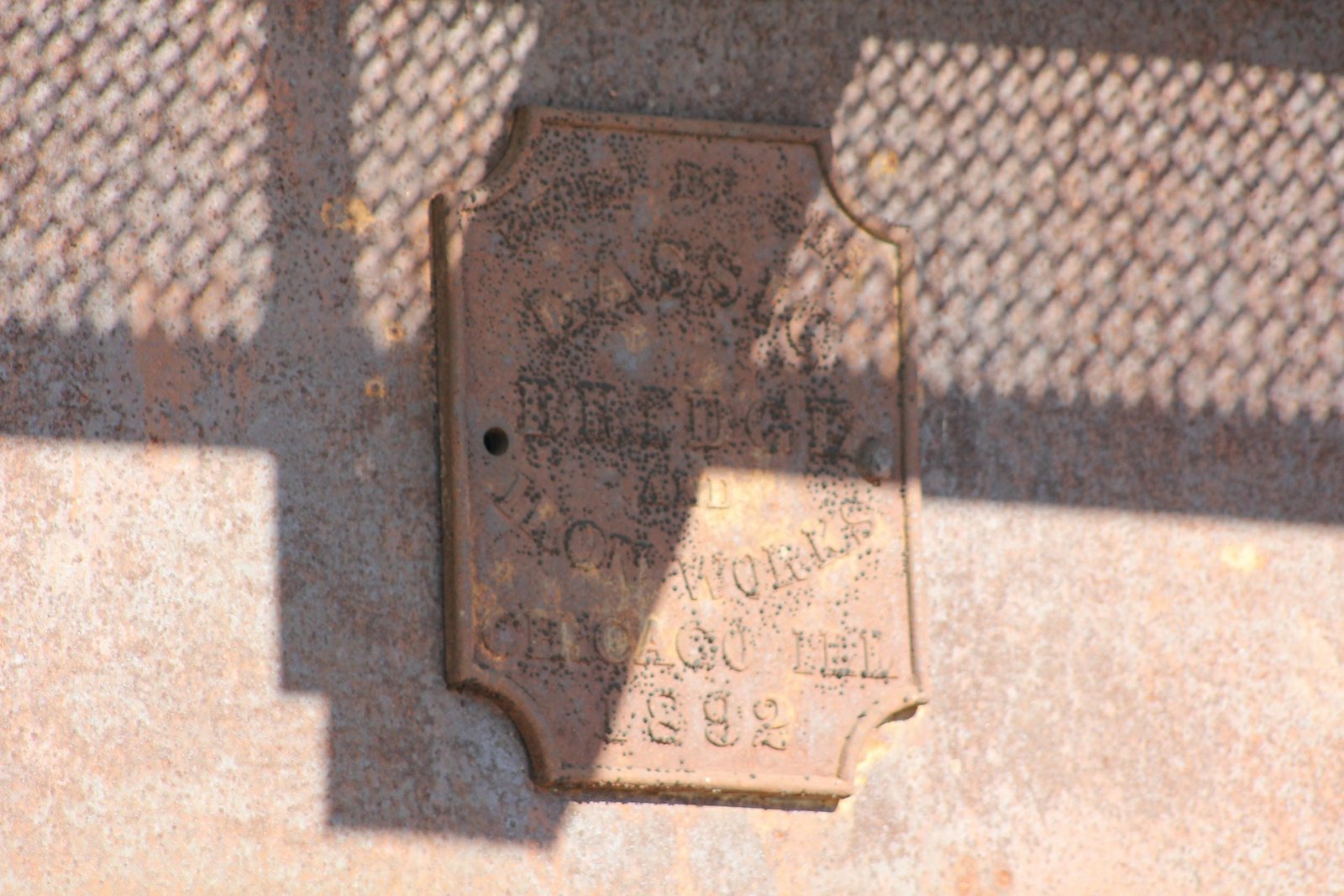

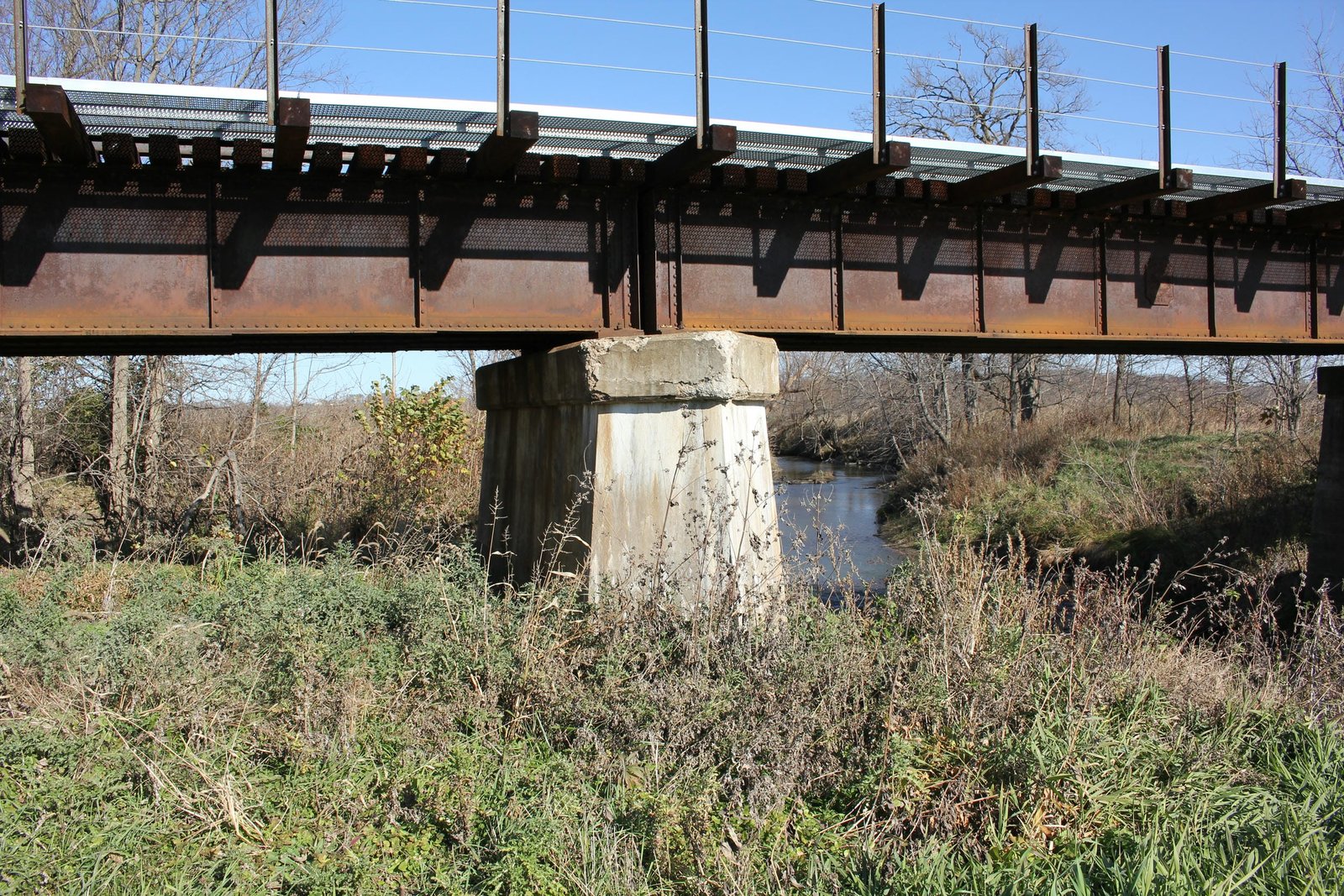

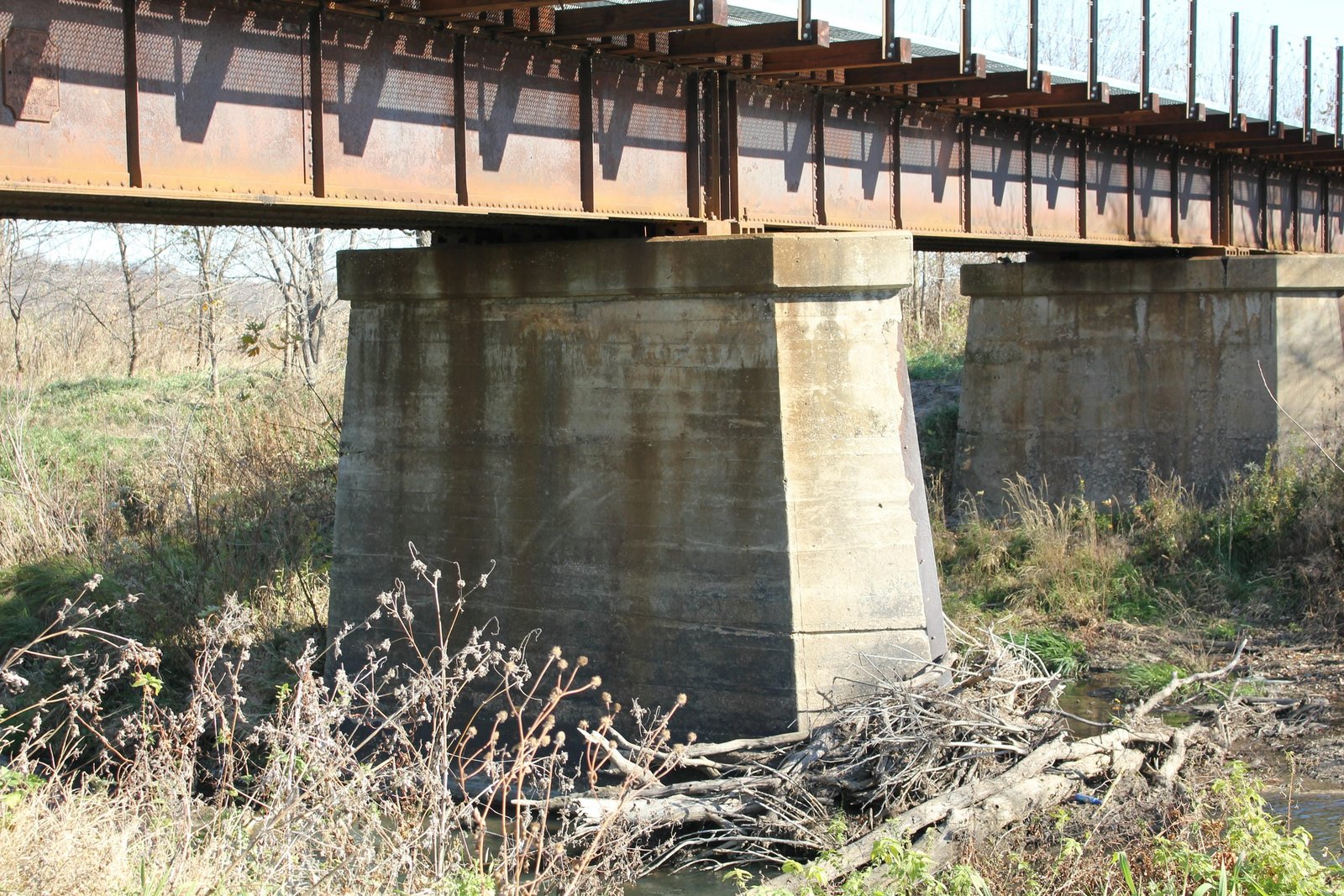

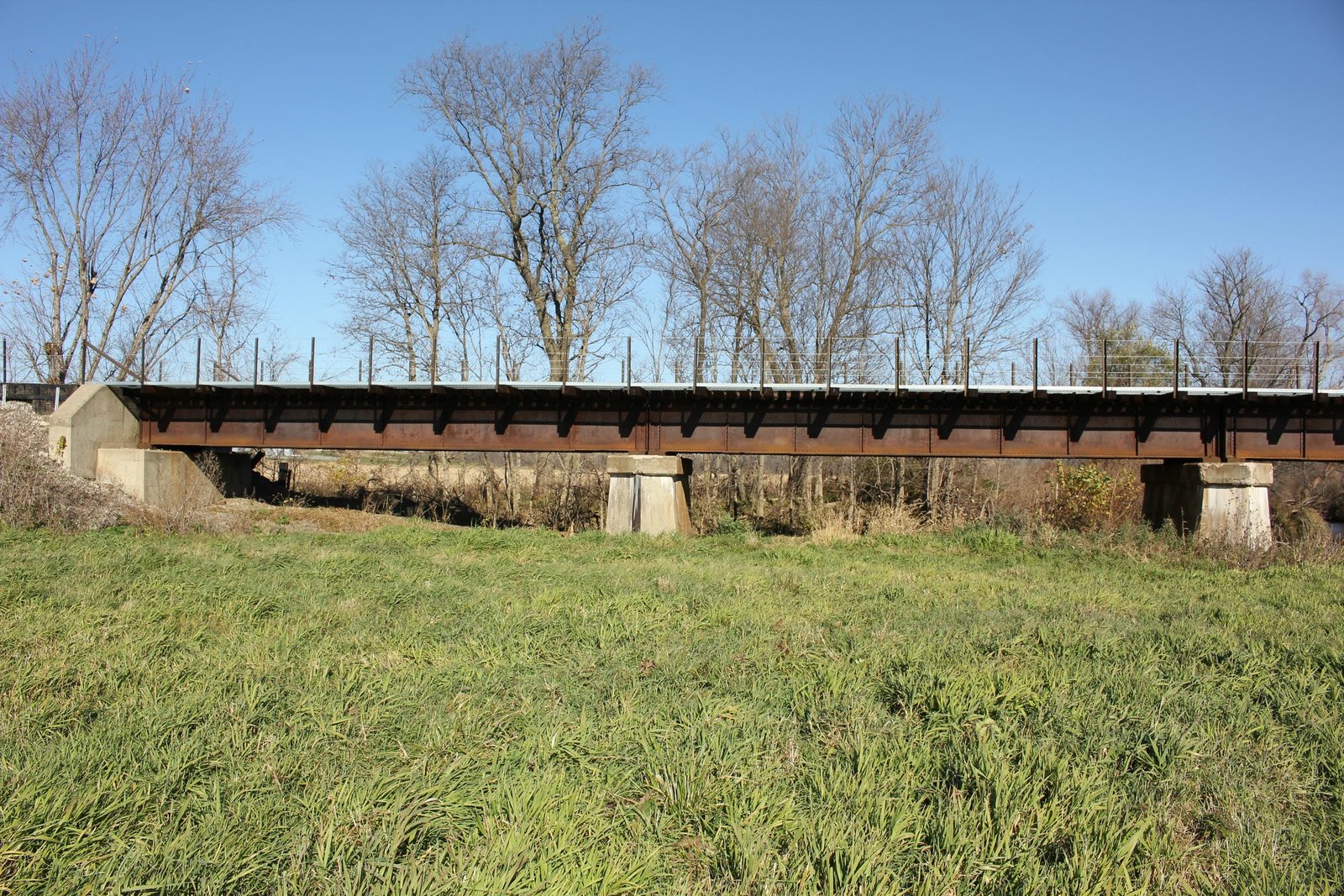

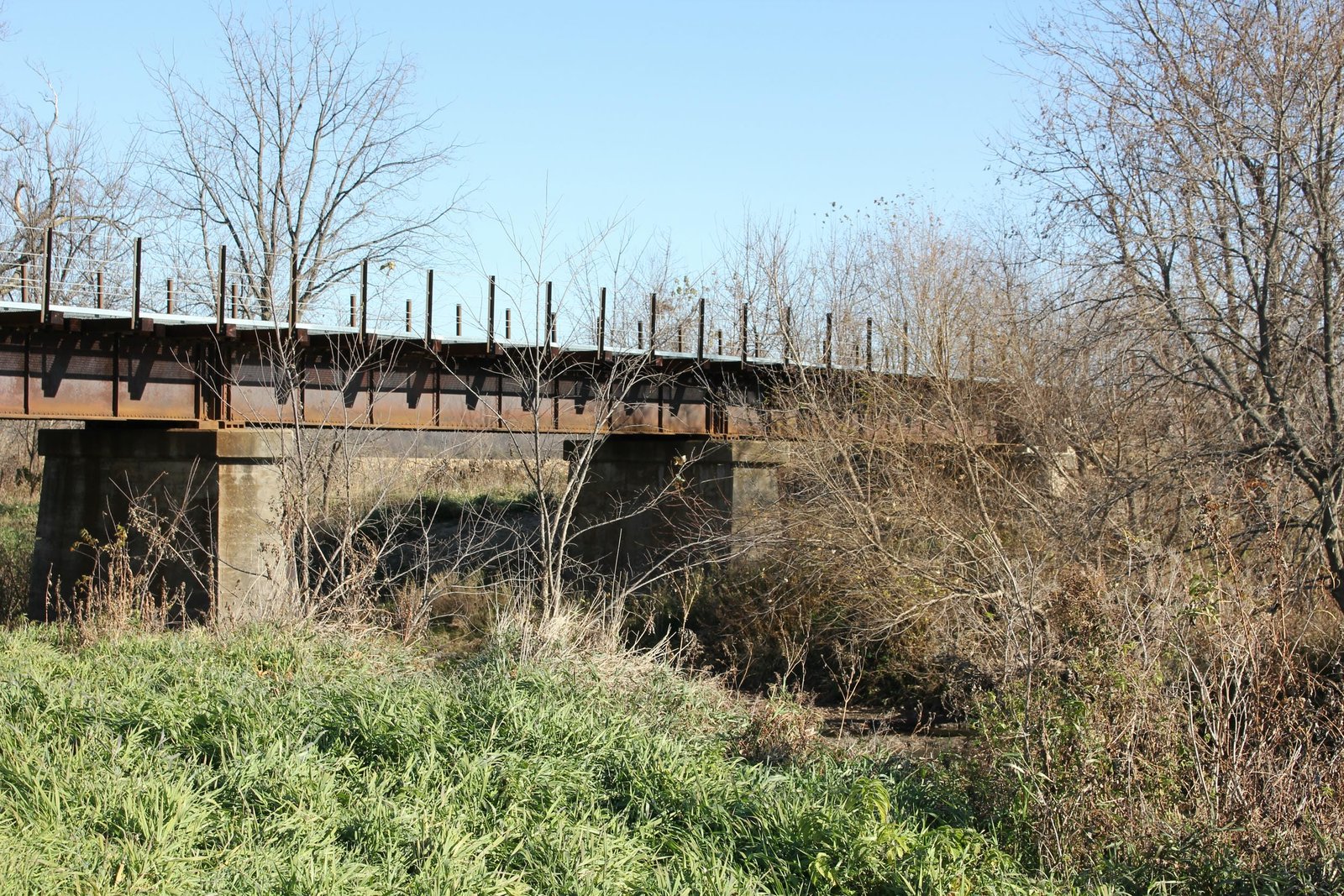

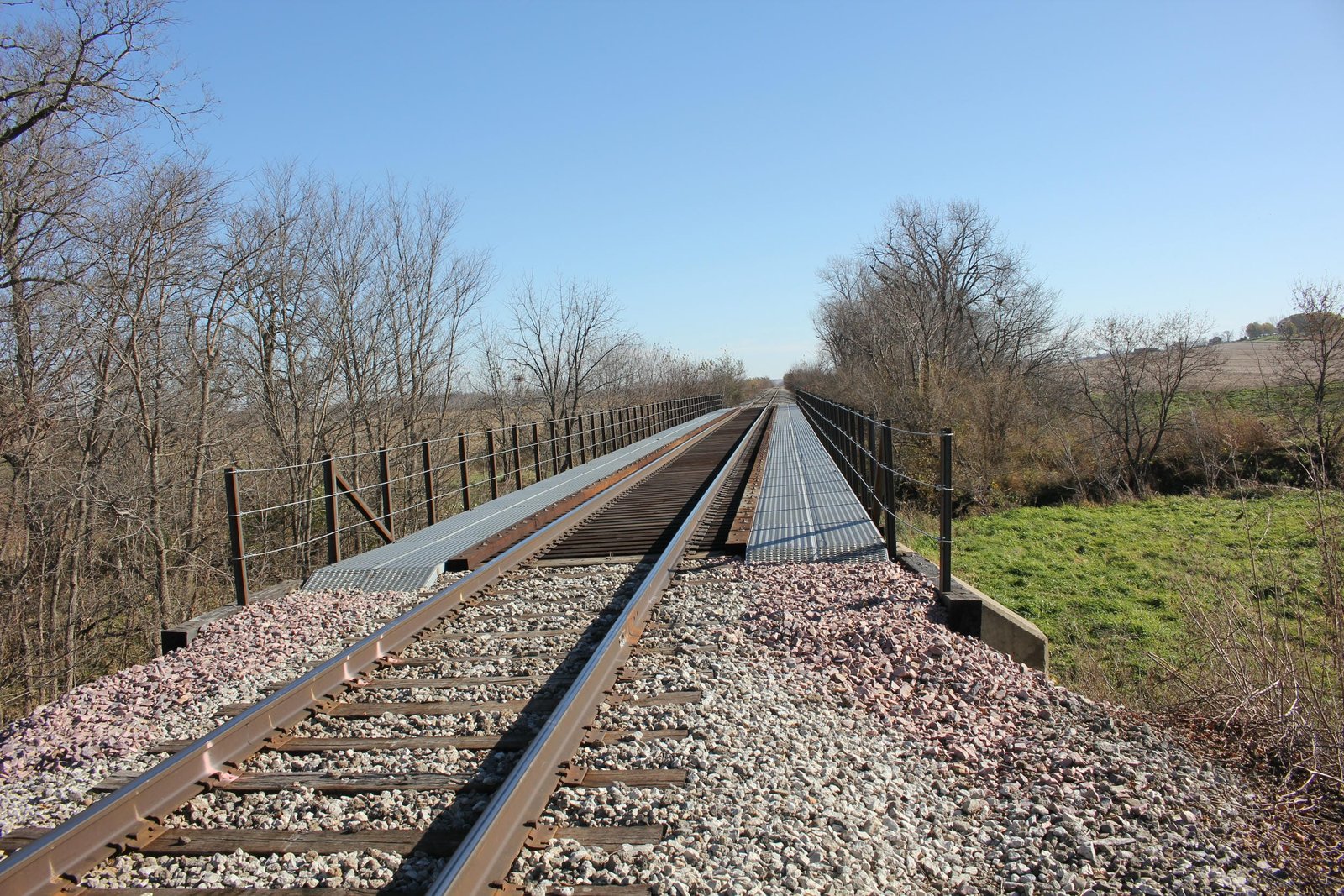

The superstructure follows a typical design for the era, with four modest sized plate girders and an open deck. It is unclear if the additional girders were fabricated new, or if they were reused from another location. Valuation records indicate that the bridge used four girders per span by 1917. The Rock Island often strengthened girder spans by adding additional girder lines, effectively doubling the loading capacity. The east abutment uses a standard rectangular design, while the west abutment uses a standard design with short sloped wing walls. All of the piers use a standard rectangular design with angled noses that are reinforced with scrap rail. Stone for the substructures consists of a tan limestone, quarried at an unknown location. Lassig Bridge & Iron Works fabricated the original portion of the superstructure, while it is unclear if the additional girders were fabricated by the Lassig Bridge & Iron Works or by another firm. The substructures were constructed by an unknown contractor, and it is unclear if the concrete reconstruction was constructed by an unknown contractor or by railroad company forces. Deck plate girder spans were popular for railroad use, as they were durable and easy to construct. Since the initial construction, the bridge has seen no significant alterations. Today, the bridge remains in regular use as part of an Iowa Interstate Railroad mainline. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design and unclear history.
Citations
| Fabrication date and builder (superstructure) | Chicago, Rock Island & Pacific Railway Valuation Engineering Field Notes at the National Archives |
| Railroad History Citation | ICC Valuation Information, Compiled by Richard S. Steele |
