IAIS Turkey Creek Bridge


Click the photo to view the full-size version

1/9
Date Taken:
Author:
Caption:

Name IAIS Turkey Creek Bridge
Chicago, Rock Island & Pacific Railroad Bridge #4193
Built By Chicago, Rock Island & Pacific Railroad
Currently Owned By Iowa Interstate Railroad
Superstructure Contractor Lassig Bridge & Iron Works of Chicago, Illinois (East Span)
Unknown (Center Span and West Span)
Substructure Contractor Iowa Bridge Company of Des Moines, Iowa
Length 138 Feet Total, 50 Foot Main Span
Width 1 Track
Height Above Ground 15 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1954, Using Spans Fabricated c. 1900
Original Locations Unknown
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
Chicago, Rock Island & Pacific Railroad Bridge Number 4193
Iowa Interstate Railroad Bridge Number 419.30
Significance Local Significance
Documentation Date 11/9/2016

In 1869, the Chicago, Rock Island & Pacific Railroad (Rock Island) constructed 142 miles of new railroad, extending from the end of the existing mainline at Des Moines, Iowa to Council Bluffs, Iowa.  Originally, the line went west to Atlantic, Iowa; before turning northwest and going through Avoca, Iowa and Shelby, Iowa.  At Shelby, the line would turn back southwest, and run through Neola, Iowa and Underwood, Iowa before arriving in Council Bluffs.  In 1880, the Rock Island was reorganized as the Chicago, Rock Island & Pacific Railway.  The Rock Island constructed and acquired a large network of railroads during the late 19th Century, covering much of the central United States.  This line became part of the principal mainline of the Rock Island, and allowed for further development of branch lines throughout central Iowa and eventual expansion west of the Missouri River.  In the late 19th Century, several improvements were made to the line, including revising grades, curves and replacing wooden bridges with stone and iron structures.

The Rock Island struggled financially throughout much of its history, experiencing repeated bankruptcies and chronic instability.  After World War II, the Rock Island struggled to survive, proposing mergers and deferring maintenance on their routes. The railroad reorganized as the Chicago, Rock Island & Pacific Railroad in 1948. During the early 1950s, the Rock Island undertook a series of improvements in Western Iowa to eliminate harsh grades and shorten the line.  Between 1952 and 1953, the Rock Island constructed the Atlantic Cutoff, which included constructing 34 miles of new railroad between Atlantic and McClelland, Iowa.  West of McClelland, the Rock Island used the Chicago Great Western Railway (CGW) tracks to reach Council Bluffs. The new route saved 10 miles, and much of the old route was abandoned in 1953.  A short segment was retained between Walnut, Iowa and Shelby, which was abandoned in 1966.  An additional revision was made near Adair in 1954, which involved straightening the route.  By the mid-1970s, the railroad was in serious decline.  The railroad secured loans to eliminate slow orders, acquired new equipment, and attempted to restore profitability.  Several sections of this line had fallen into serious disrepair, hampering the Rock Islands ability to maintain efficient operations.  In 1978, the railroad came close to profit, but creditors were lobbying for a complete shutdown of the Rock Island.  During the fall of 1979, a strike crippled the railroad, and by January of 1980, the entire system was ordered to be shut down and liquidated.  Many of the lines and equipment were scrapped.  Profitable sections of railroad were prepared for sale.

In November 1981, the Iowa Railroad Company (IARR) began operations over the former Rock Island mainline in western Iowa.  In June 1982, the IARR entered into a two-year lease for the entire Rock Island mainline between Bureau, Illinois and Council Bluffs.  In 1983, concerns had grown over the ability of the IARR to provide reliable service to shippers along the line, and several industries came together to form Heartland Rail Corporation, which purchased the line between Bureau and Council Bluffs from the Rock Island trustees.  Iowa Interstate Railroad (IAIS) was chosen to operate the line, and began operations in late 1984.  After years of thin profit margins, IAIS began making significant financial strides in the 1990s and early 2000s, eventually becoming a major railroad in central Iowa.  Increased profit margins and large grants meant IAIS could rebuild deteriorated track, improve bridges and expand operations.  Today, IAIS continues to operate the Council Bluffs Subdivision between Des Moines and Council Bluffs.  Except for a short portion near Shelby, the entirety of the original mainline between Atlantic and Council Bluffs remains abandoned.

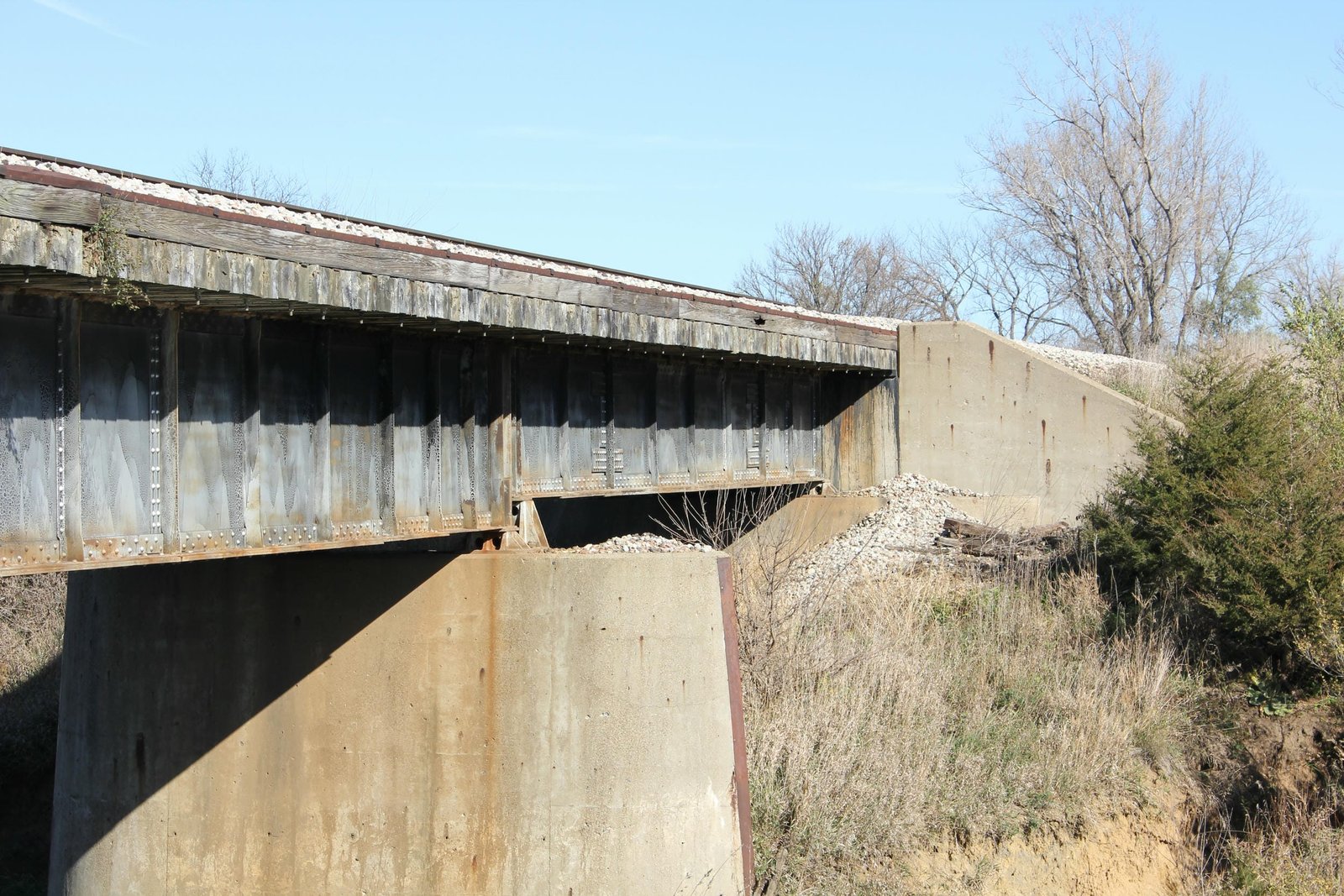

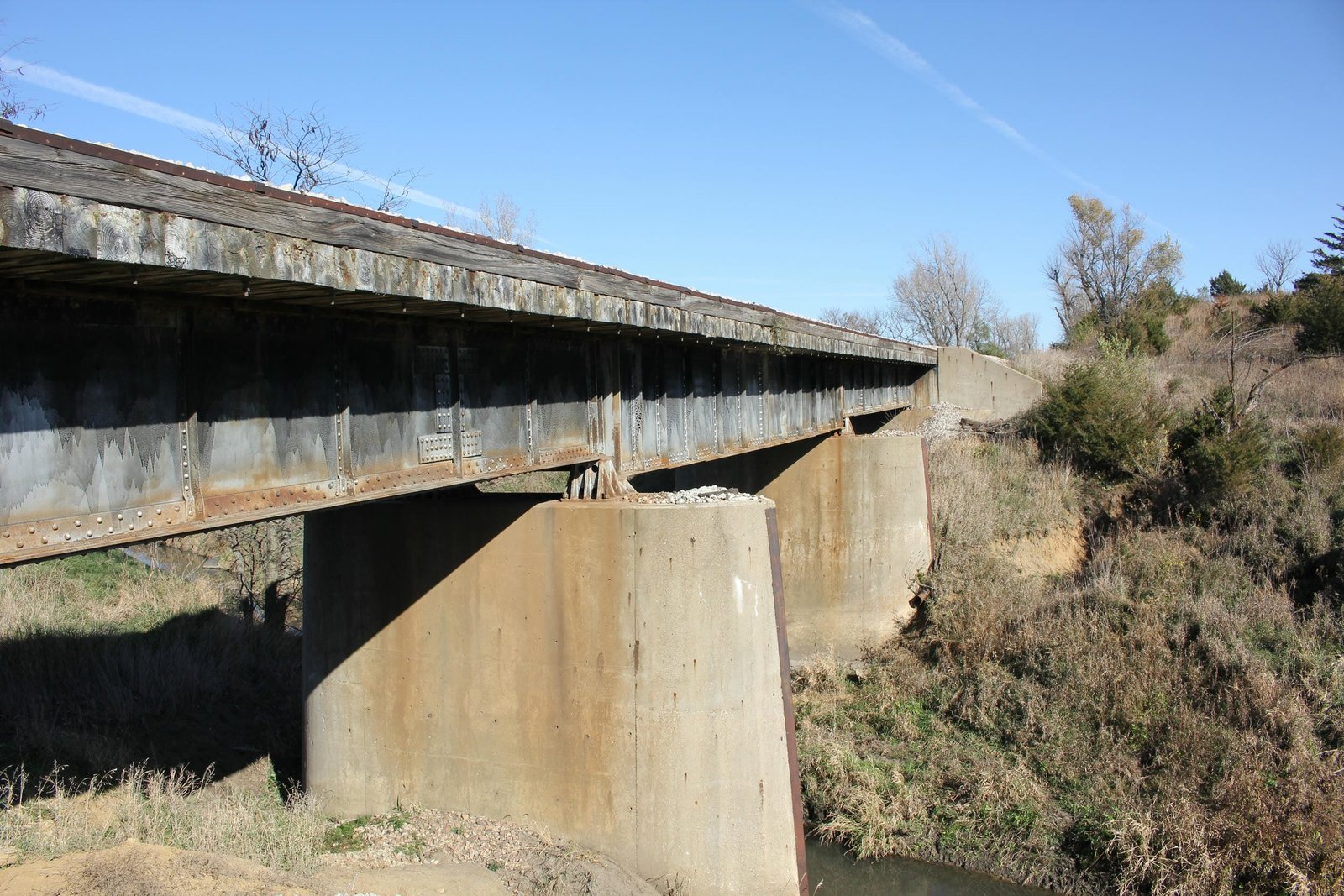

Located west of Adair, this deck plate girder bridge carries a former Chicago, Rock Island & Pacific Railroad (Rock Island) mainline over Turkey Creek. Originally, the line followed present-day White Pole Road, and crossed Turkey Creek further north. The first bridge across Turkey Creek likely consisted of a timber pile trestle bridge, constructed when the line was first built. It is likely that the timber bridge was replaced by a steel structure in the late 19th or early 20th Century. In the early 1950s, the Rock Island undertook a large improvement program along this line. As part of the work, a 6-mile section of railroad near Adair was relocated. The project and this bridge were completed in mid-1954. Currently, the bridge consists of one 50-foot and two 44-foot deck plate girder spans, set onto concrete substructures. The deck plate girder spans were reused from other locations, and were originally fabricated in approximately 1900. Upon reuse, the spans were "twinned" by adding two additional girders per spans, and rehabilitated with new paint. The two 44-foot spans appear identical, while the 50-foot span is slightly different. It is possible that the two 44-foot spans were reused from the same location, while the 50-foot span likely came from another location. It is also unclear if the additional girders came from the same locations, or if they were moved from additional locations. The girders follow a standard design, with deep girders and a timber ballast deck. The substructures also follow a standard design, with rounded piers and abutments constructed with sloped wing walls. Lassig Bridge & Iron Works fabricated outer girders of the east span, while the inner east span girders, center span and west span were fabricated by unknown contractor(s). It is believed that Iowa Bridge Company constructed the substructures and erected the superstructure. Deck plate girder spans were commonly used by railroads, as they were durable and easy to construct. Railroads often reused steel spans, as it provided a cost effective way to build bridges without requiring large amounts of new material. Railroads often strengthened deck girder spans by adding additional girders, a practice which was common in the 20th Century. During the relocation projects in the early 1950s, the Rock Island built many new bridges, with several structures reusing deck girders which were twinned. Since the initial construction, no significant alterations have been made to the structure. Today, the bridge remains in regular use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being locally significant, due to the common design.

Authors Note:
The original bridge was also the site where the Jesse James gang staged the first robbery of a moving train. On July 21, 1873, a rope was tied to a rail near the Turkey Creek bridge and pulled out of alignment, derailing the train. The gang collected about $3,000 from the train. A locomotive wheel and commemorative plaque was erected by the Rock Island in 1954.


Citations

Build date Relocation of line
Builder (east span superstructure) Missing Lassig Bridge & Iron Works plaque
Builder (substructure) Des Moines Tribune; October 19, 1953
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
