Chicago & North Western Railway Culvert #328


Click the photo to view the full-size version

1/15
Date Taken:
Author:
Caption:

Name Chicago & North Western Railway Culvert #328
Built By Chicago & North Western Railway
Currently Owned By Private Owner
Superstructure Contractor Unknown
Length 9 Feet Total
Width 1 Track
Height Above Ground 10 Feet (Estimated)
Superstructure Design Stone Arch Culvert
Substructure Design Stone Masonry
Date Built 1886
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned and Deteriorating
Chicago & North Western Railway Bridge Number 328
Significance Local Significance
Documentation Date 11/5/2016

In 1864, 50 miles of new railroad was completed from Winona to Rochester, Minnesota by the Winona and Saint Peter Railway (W&StP). The following year, an additional 55 miles was completed to Waseca. The Chicago & North Western Railway (C&NW) would purchase a controlling stake in the W&StP in 1867. Construction would continue in 1870, with an additional 11 miles completed between Waseca and Janesville. The following year, 23 additional miles were opened to Mankato, followed by 30 additional miles completed to New Ulm in 1872. 62 more miles were completed to Tracy, Minnesota in 1879.
From Tracy, the route would be continued westwards in 1879, with numerous branch lines built off the main line. In 1900, the Mankato & New Ulm Railway (M&NU) would complete a new route, 26 miles in length between Mankato and New Ulm. This new line bypassed the old line, which used two large iron bridges to cross the Minnesota River. The W&StP and M&NU would be consolidated into the C&NW in June 1900. The C&NW operated this route as the main line of the Dakota Division, eventually operating the passenger train the "Dakota 400" over the route. Because the original line between Mankato and New Ulm was not considered necessary, the line was abandoned in stages. The first segment abandoned was between Burdette (Mankato) and Kasota, followed by the Kasota to St. Peter segment in 1957. The line was further abandoned between St. Peter and Traverse in 1963, and between Traverse and the New Ulm Quarry in 1970.
As the line became less profitable in the 1970s and 1980s, the C&NW was considering abandoning the route. In 1986, the line between Winona and Rapid City, South Dakota would be sold to the Dakota, Minnesota & Eastern Railroad. The DM&E would be purchased by Canadian Pacific Railway (CP) in 2008. In 2023, CP merged with Kansas City Southern to form Canadian Pacific Kansas City Limited, commonly known as CPKC. CPKC continues to operate the Winona to Waseca segment as the Waseca Subdivision.

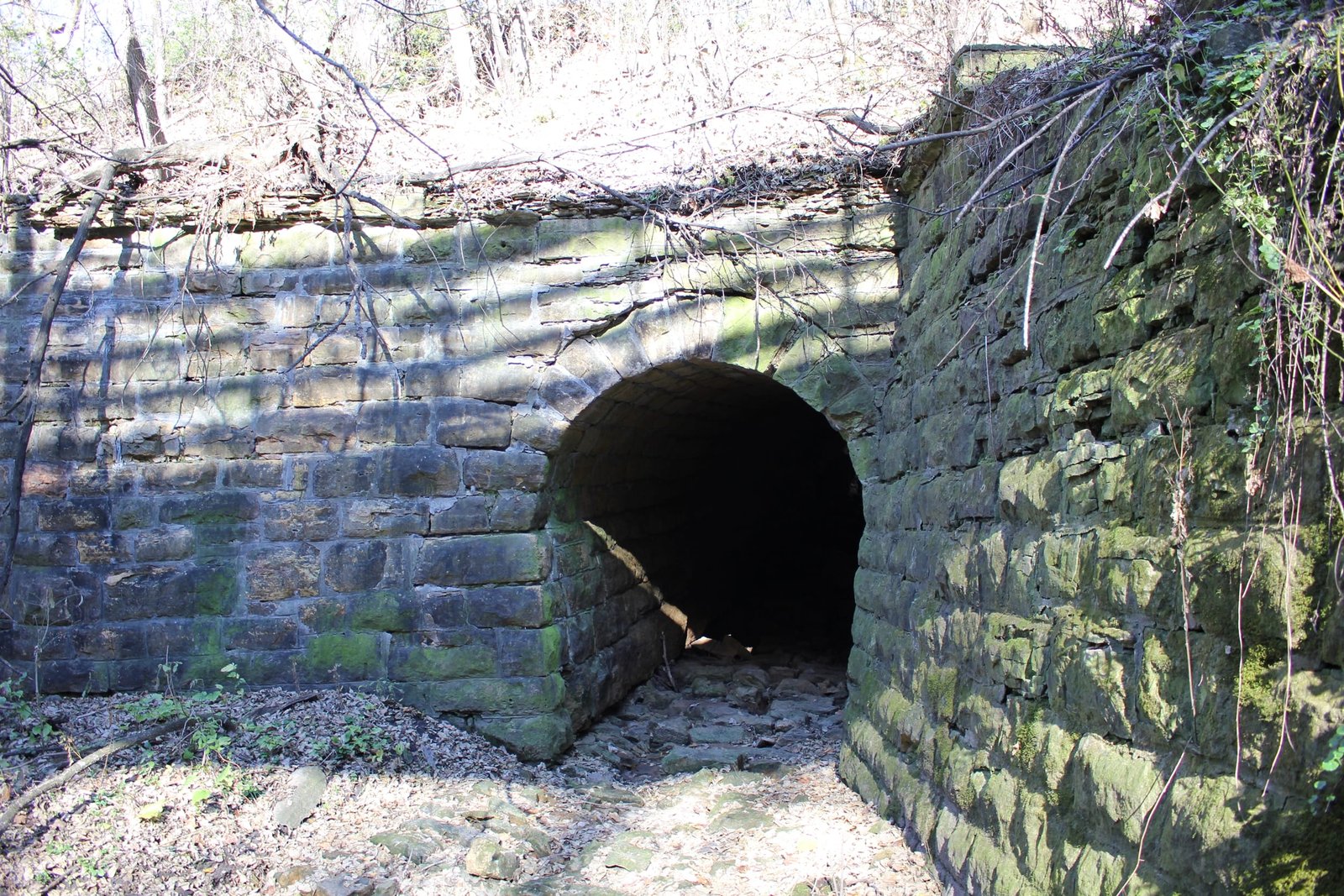

Located near the former station of Burdette, this small stone arch culvert carries an abandoned leg of a Chicago & North Western Railway wye above a small ravine. Built in 1886 to replace a timber trestle, this bridge features a single 9-foot stone arch culvert, set onto stone substructures. The culvert uses a standard semicircular design. The north face is relatively low to the ground, while the south face is significantly taller. The north face also utilizes no wing walls, while the south face uses wing walls. The southwest wing wall of the bridge is rather long, approximately 50 feet in length, and extends at an 80-degree angle from the bridge. The southeast wing wall extends at a more traditional 30-degree angle. The floor inside the arch is paved with cobblestones. It is currently unknown what contractor constructed this culvert. Stone arch culverts like this were often constructed to replace trestles, due to the durability. Overall, this bridge appeared to be in poor condition at the time of documentation, with a collapse possible in the coming years. Several sections of the walls inside the arch have failed, and the arch line is beginning to fail as well. The author has ranked this bridge as being locally significant, due to the common design.


Citations

Build date Chicago & North Western Valuation Notes at the Chicago & North Western Historical Society Archives
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
