CPKC Clearwater River Bridge


Click the photo to view the full-size version

1/26
Date Taken:
Author:
Caption:

Name CPKC Clearwater River Bridge
Built By Minneapolis, St. Paul & Sault Ste. Marie Railroad
Currently Owned By Canadian Pacific Kansas City Limited
Superstructure Contractor Unknown
Substructure Contractor Unknown
Length 415 Feet Total, 60 Foot Largest Span
Width 1 Track
Height Above Ground 60 Feet (Estimated)
Superstructure Design Deck Plate Girder
Substructure Design Concrete
Date Built 1906
Traffic Count 20 Trains/Day (Estimated)
Current Status In Use
Significance Moderate Significance
Documentation Date 1/10/2022

In 1886, the Minneapolis and Pacific Railway (M&P) began construction on a new 216-mile railroad extending from Minneapolis, Minnesota to Lidgerwood, North Dakota, completing it the same year.  The following year, 70 additional miles would be constructed to Boynton.  The M&P was consolidated into the Minneapolis, St. Paul & Sault Ste. Marie Railway (Soo Line) in 1888.  The Soo Line continued construction on the route in 1891, completing 81 miles from Hankinson, North Dakota to Valley City, North Dakota.  An additional 80 miles to Cathay were completed in 1892, and an additional 183 miles to the Canadian Border and Canadian Pacific Railway connection at Portal, North Dakota was completed in 1893.  The route was constructed primarily to serve as a connection for wheat from Canada and North Dakota to reach the mills at Minneapolis, and became a backbone for the Soo Line.  The Soo Line was a smaller railroad in the Midwest, with routes extending through Minnesota, Wisconsin, Michigan and North Dakota, with subsidiary routes extending to Chicago.  It was operated as a subsidiary of Canadian Pacific Railway (CP).  By 1937, the Soo Line had entered bankruptcy, and it would be reorganized as the Minneapolis, St. Paul & Sault Ste. Marie Railroad in 1944.

By 1961, the Soo Line would be merged with other CP subsidiaries Duluth, South Shore & Atlantic Railroad and Wisconsin Central Railroad to form Soo Line Railroad, a company controlled by CP.  In 1984, the Soo Line would be reorganized as the Soo Line Corporation, and the railroad would be fully merged into CP in 1990.  In 1990, the line between Hankinson and Moffit, North Dakota was sold to the Dakota, Missouri Valley and Western Railroad (DMVW).  In 2023, CP would merge with Kansas City Southern Railway to form CPKC, which currently operates the Paynesville Subdivision between Minneapolis and Glenwood; the Elbow Lake Subdivision between Glenwood and Enderlin, North Dakota; the Carrington Subdivision between Enderlin and Harvey, North Dakota; and the Portal Subdivision between Harvey and Portal.  The DMVW continues to operate the Dakota Subdivision over the Hankinson to Mottit segment.  The CPKC segment of this line is expected to grow in significance after the CPKC merger was finalized.

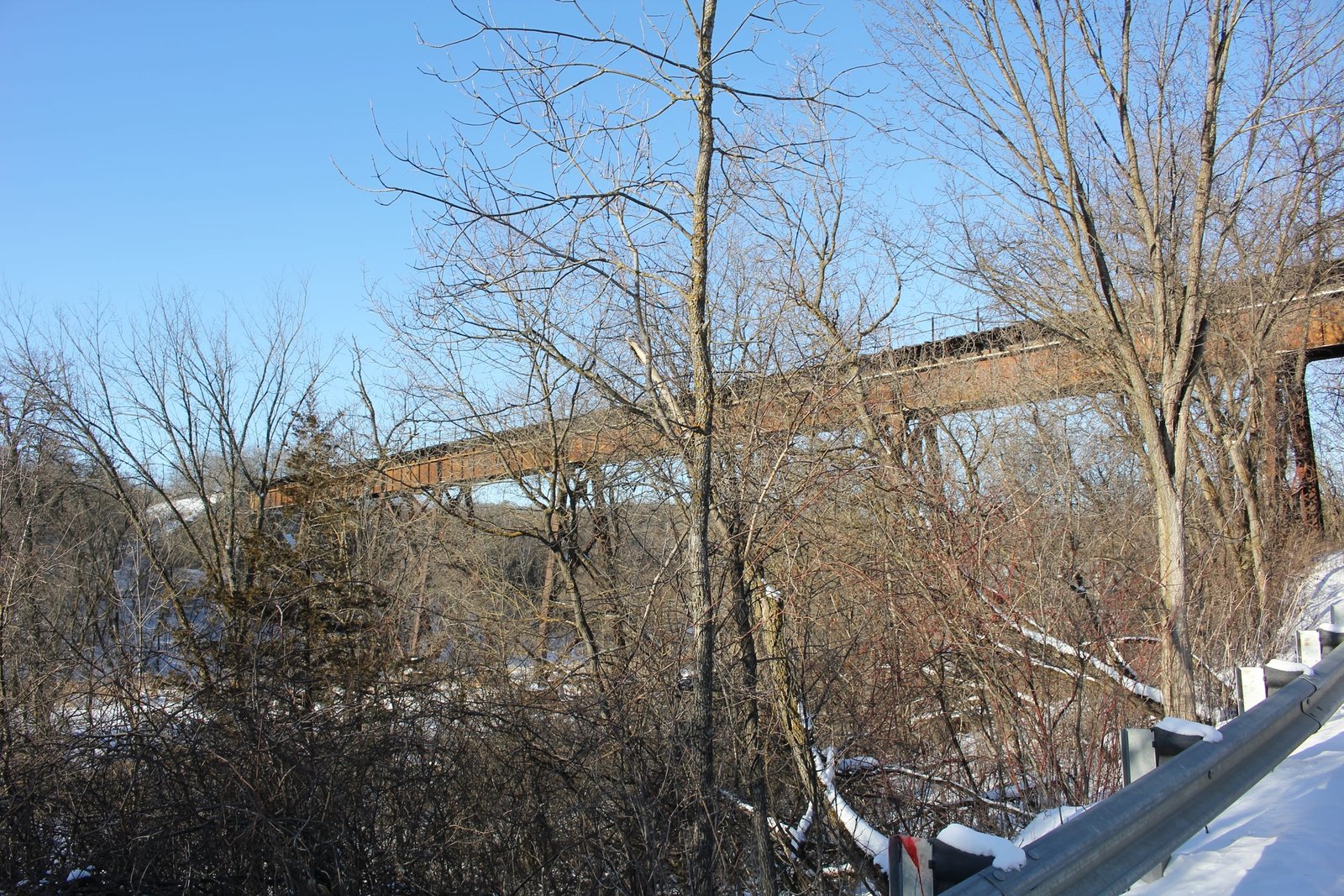

Located between South Haven and Kimball, this large deck plate girder viaduct crosses the Clearwater River and Rockwood Avenue. Built in 1906, the bridge consists of eight deck plate girder spans, set onto steel bents and towers. The towers are set onto concrete footings, and the abutments are constructed of concrete. Viaducts such as this were occasionally used by railroads throughout the United States, particularly where large fills where otherwise be required. Unfortunately, no plaques were found on the bridge, and no builder can be found. Overall, the bridge appears to be in fair condition, with some deterioration noted to the concrete. The author has ranked this bridge as being moderately significant, due to the large scale design.


Citations

Build Date Soo Line Historical and Technical Society
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
