Name CN Yellow River Bridge (Babcock)
Chicago, Milwaukee & St. Paul Railway Bridge #G-158
Built By Chicago, Milwaukee & St. Paul Railway
Currently Owned By Canadian National Railway
Superstructure Contractor Federal Bridge Company of Waukesha, Wisconsin (Truss Span)
Unknown (Steel Stringer Span)
Length 781 Feet Total, 105 Foot Main Span
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Design Warren Pony Truss, Steel Stringer and Timber Pile Trestle
Substructure Design Timber Pile
Date Built 1916, Steel Stringer Added c. 1980
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
Chicago, Milwaukee & St. Paul Railway Bridge Number G-158
Canadian National Railway Bridge Number 31.83
Significance Regional Significance
Documentation Date 7/18/2016

In 1873, the Wisconsin Valley Railroad (WV) constructed 43 miles of new railroad, extending from Tomah, Wisconsin to Wisconsin Rapids, Wisconsin.  The following year, an additional 41 miles would be constructed to Wausau, Wisconsin.  In 1877, the Necedah & Camp Douglas Railroad (N&CD) constructed 12 miles of new railroad, extending from the existing Chicago, Milwaukee & St. Paul Railway (Milwaukee Road) line at New Lisbon, Wisconsin to Necedah, Wisconsin, Wisconsin.  In 1878, the N&CD was acquired by the Milwaukee Road, which completed the tracks to Necedah.  In 1879, the WV constructed an additional 19 miles north to Merrill, Wisconsin.  The Milwaukee Road also acquired the WV in 1880.  A 54 mile extension was opened to Minocqua, Wisconsin in 1887.  In 1890, the Lisbon, Necedah & Lake Superior Railway (LN&LS) began construction on 22 miles of additional track, connecting Necedah to Babock, Wisconsin.  This construction was funded by the Milwaukee Road, and by the following year, the railroad was absorbed into the Milwaukee Road.  In 1895, the railroad extended further to Star Lake, Wisconsin, near the Michigan border.

By the early 20th Century, the Milwaukee Road was among the largest railroads in the United States, operating a network of railroad lines over 10,000 miles in length.  The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928.  This line served as a secondary route for the Milwaukee Road, and allowed for the construction of numerous branch lines.  A portion of the line between Tomah and Norway was abandoned in 1925, followed by the Norway to Babcock segment in 1934.  The line mainly served the timber industry in northern Wisconsin.  As the logging industry died out, portions of the line would be abandoned.  The line was abandoned between Star Lake and Woodruff in 1944.  Despite the diminishing importance of forestry, the line remained well used by passengers to reach the scenic lakes of north central Wisconsin.  In 1972, the line was abandoned between Minocqua and Tomahawk, and acquired by the State of Wisconsin for trail use.

The Milwaukee Road again entered bankruptcy in 1977 and was forced to liquidate unprofitable lines.  The southern portion of the line remained a core line for the Milwaukee Road, and saw some upgrades in the early 1980s.  By 1985, a suitor for the Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986.  In 1987, the line was sold to the Wisconsin Central, Ltd. (WC).  The WC was formed to purchase a number of secondary routes in eastern Wisconsin from the Soo Line, which included Soo Line and former Milwaukee Road trackage.  In 2001, the WC was purchased by Canadian National Railway (CN).  In January 2022, the line north of Wausau would be sold to the Fox Valley & Lake Superior Rail System (FOXY), owned by Watco.  Today, CN operates the line between New Lisbon and Wausau as the Valley Subdivision; while FOXY operates the line between Wausau and Tomahawk.  The Tomahawk to Woodruff segment is part of the Bearskin Trail.

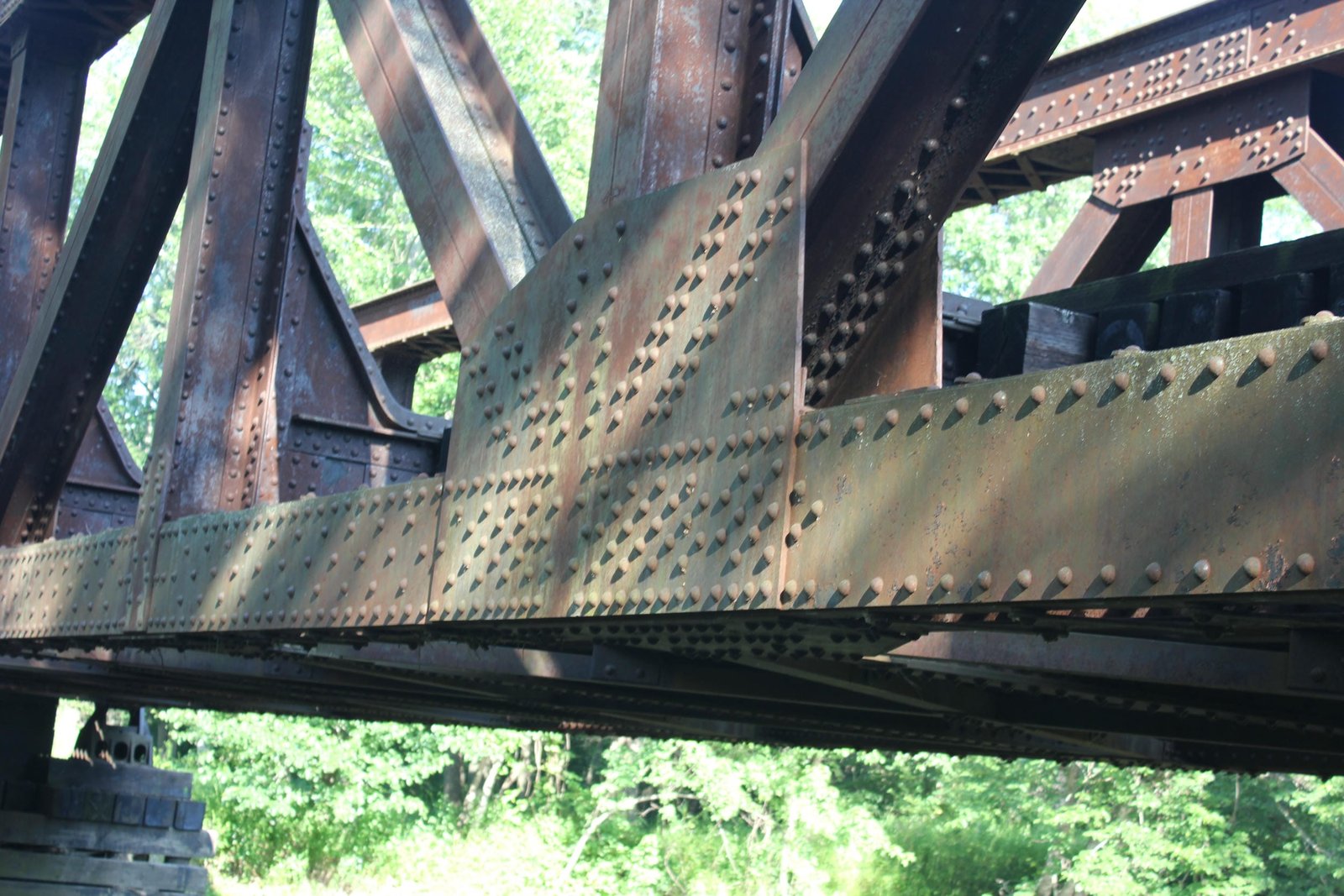

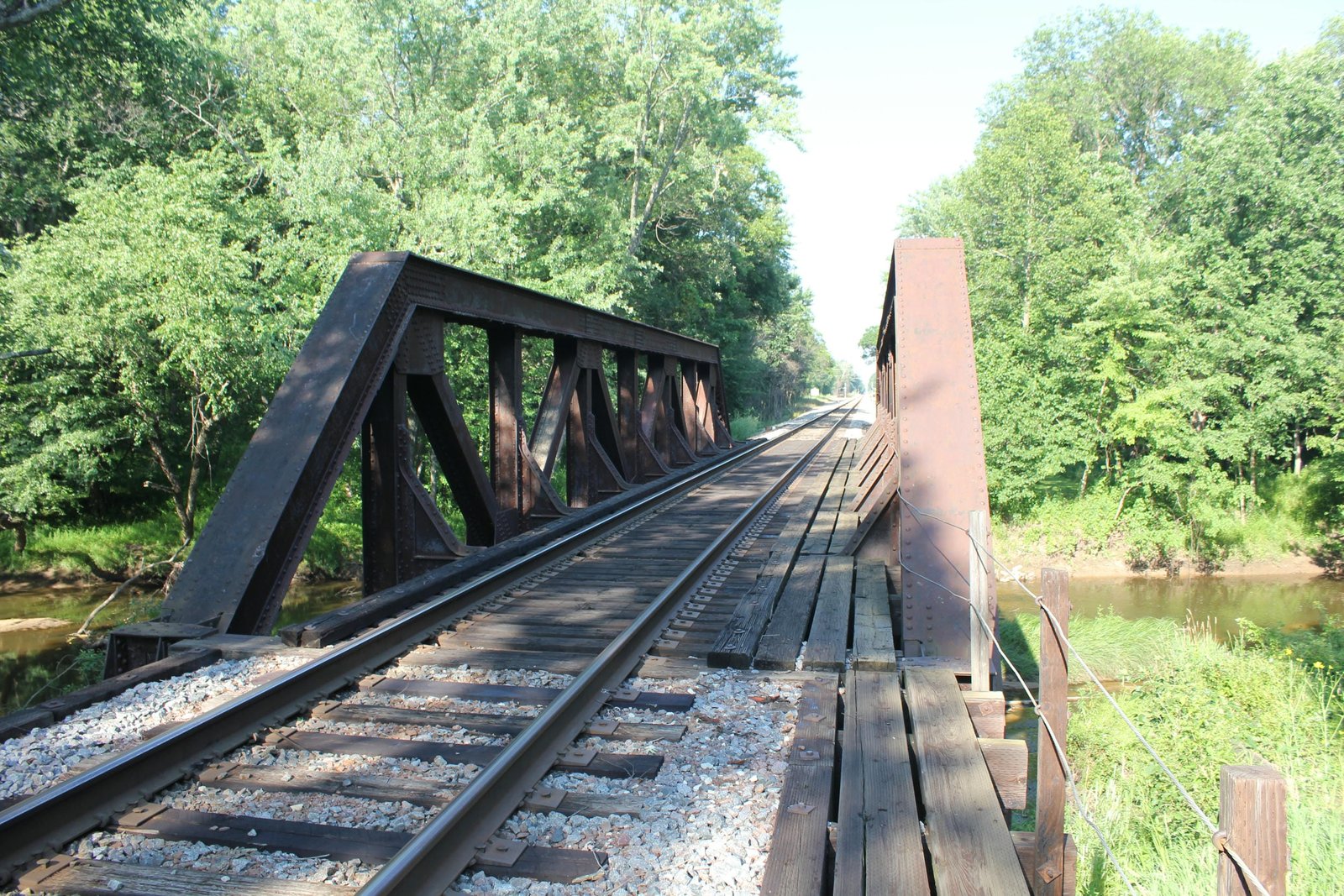

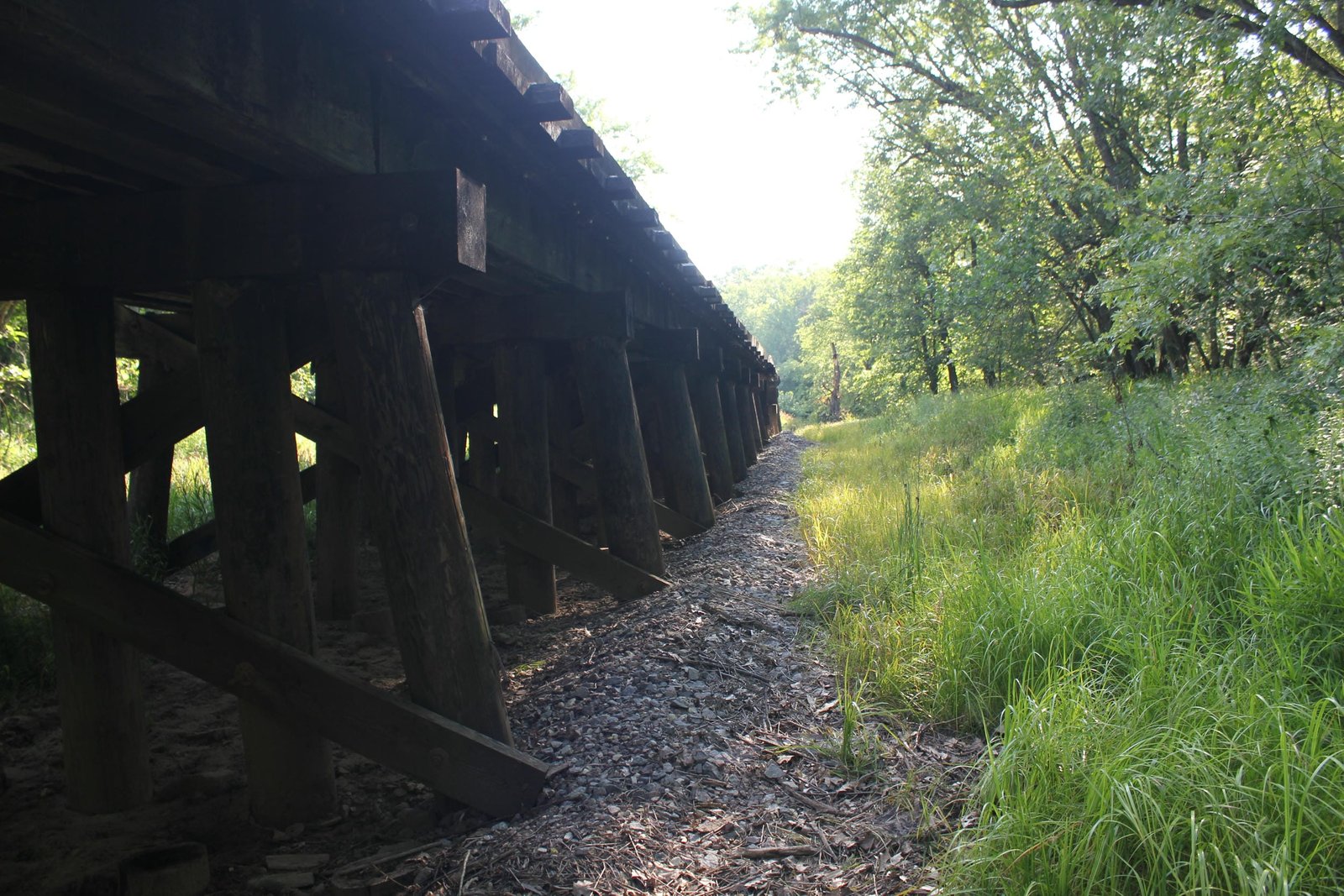

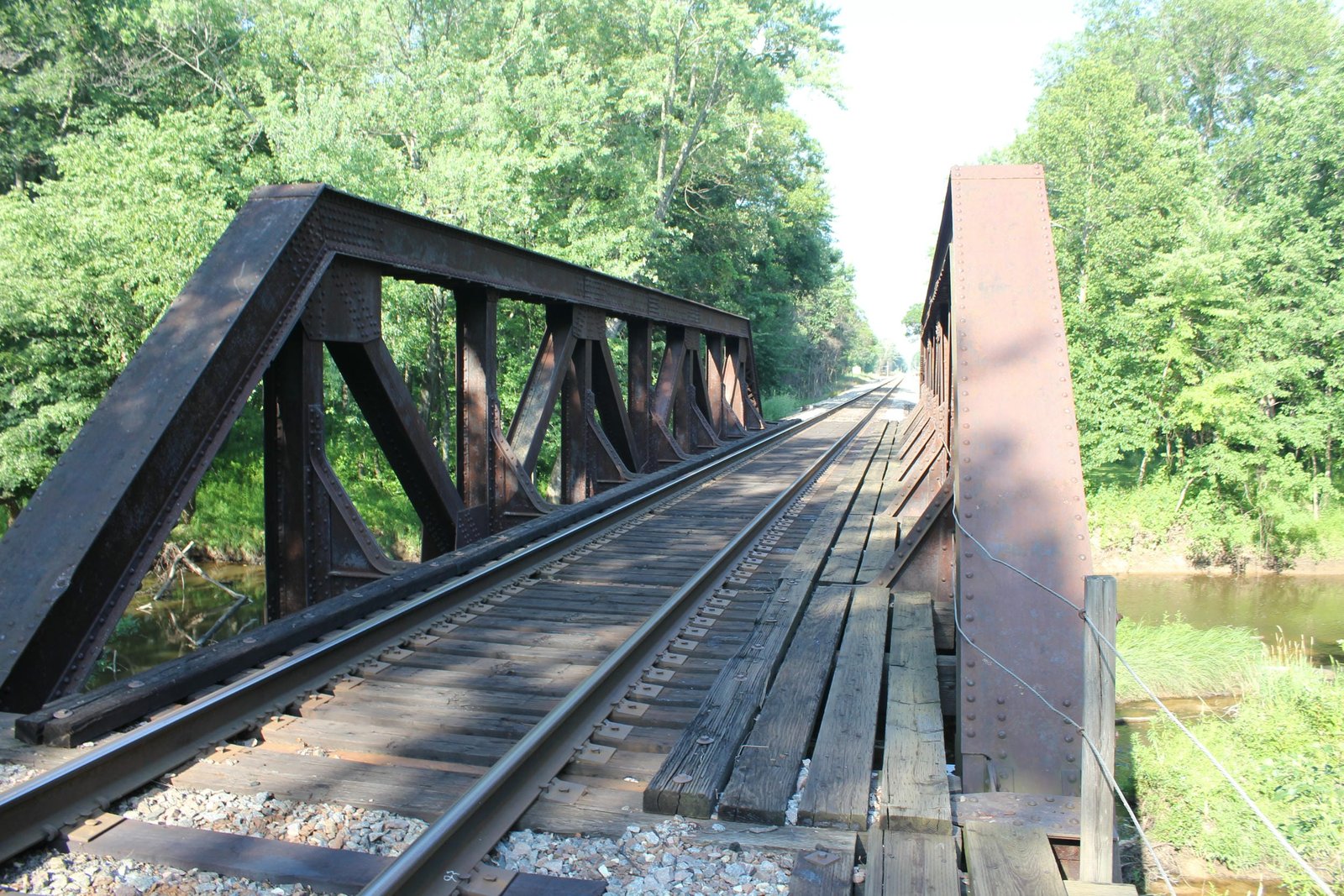

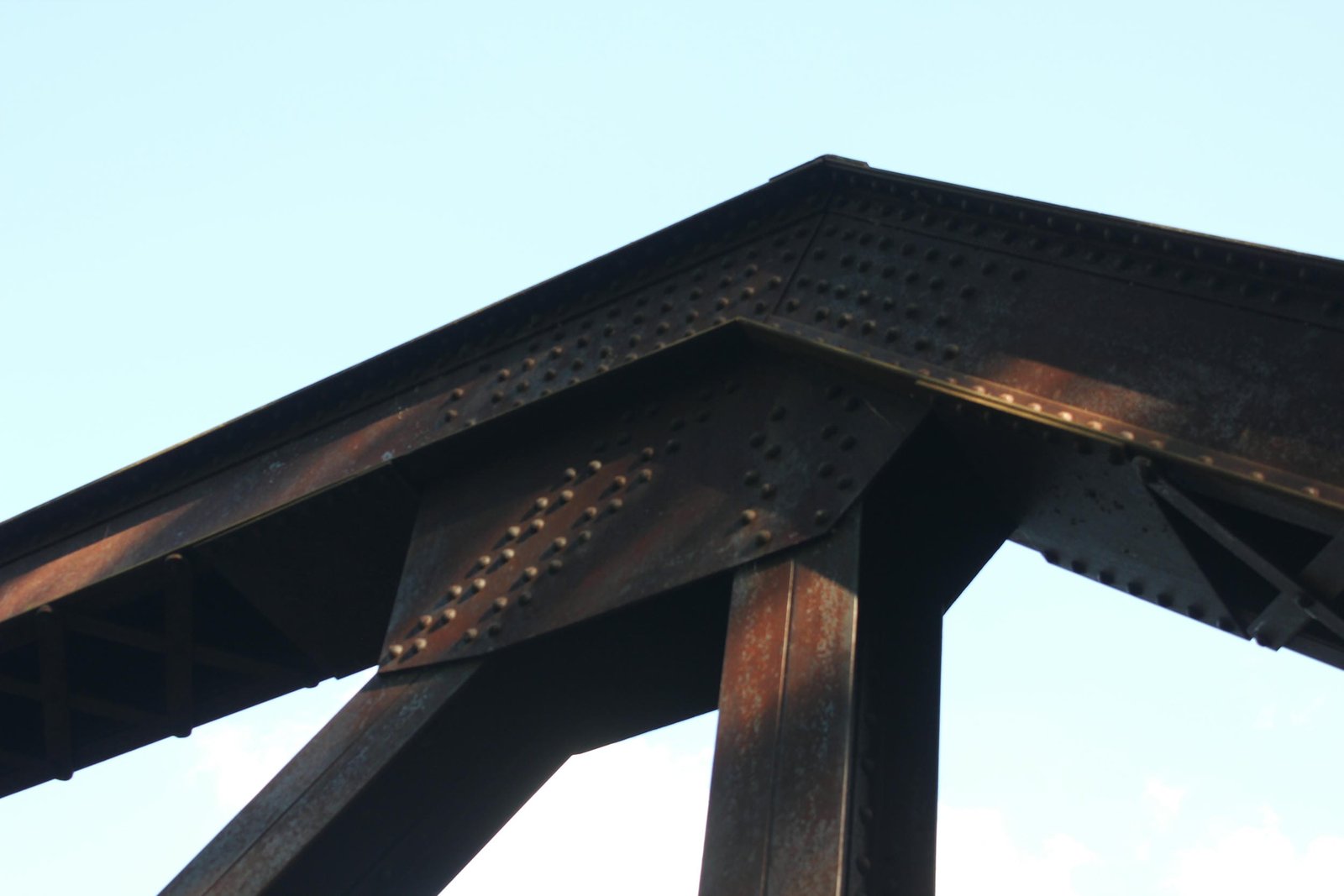

Located near Babock, this large pony truss bridge carries the former Chicago, Milwaukee, St. Paul & Pacific Railroad over the Yellow River. The first bridge at this location was a wooden Howe through truss, last reconstructed in 1897. In 1916, the bridge would be replaced with the present structure. Currently, the bridge consists of a large 105-foot, 8-panel, riveted Warren pony truss span, approached by timber pile trestle spans on either end. In approximately 1980, a 30-foot steel stringer span was added to the south approach, replacing two trestle spans. The entire bridge is set onto timber pile substructures, and the south/west end of the bridge is set onto a slight curve. The truss span is heavily constructed, using large rolled beams, massive endposts and a traditionally composed floor. Federal Bridge Company fabricated the span as part of an order of five 105-foot pony truss spans. It is unknown if the steel stringer span was reused from another location, or what contractor fabricated that span. The Federal Bridge Company was a relatively obscure builder, having been reorganized from the Modern Structural Steel Company in 1915. This company built a limited number of bridges, and an even smaller number of railroad bridges. Warren pony truss spans became popular in the early 20th Century, as the design provided a strong, durable and economical span. Overall, the bridge appears to be in fair condition, with no significant deterioration noted. The author has ranked this bridge as being regionally significant, due to the truss design and obscure builder.


Citations

Build date Milwaukee Road Bridge Index, located at the Milwaukee Road Archives at the Milwaukee Public Library
Builder (truss span) Railway Age Gazette; Volume 59, Issue 1
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
