WSOR Troy Drive Bridge

I-Beam Bridge over Troy Drive
Mendota, Dane County, Wisconsin

Click the Photo Above to See All Photos of This Bridge!
Name WSOR Troy Drive Bridge
Built By Chicago & North Western Railway
Contractor Unknown
Currently Owned By State of Wisconsin
Currently Operated By Wisconsin & Southern Railroad
Length 43 Feet Total
Width 2 Tracks, 1 In Use
Height Above Ground 10 Feet 6 Inches
Superstructure Type I-Beam
Substructure Type Stone Masonry
Date Built Ca. 1965
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
WSOR Bridge Number 259
Significance Minimal Significance
Documentation Date June 2018
A brief history of the Chicago & North Western route from Beloit to Winona:


This small I-Beam bridge crosses Troy Drive on the north side of Madison.
Originally built in 1896 as a dual track deck girder, that bridge would later be replaced with the current I-Beam span.

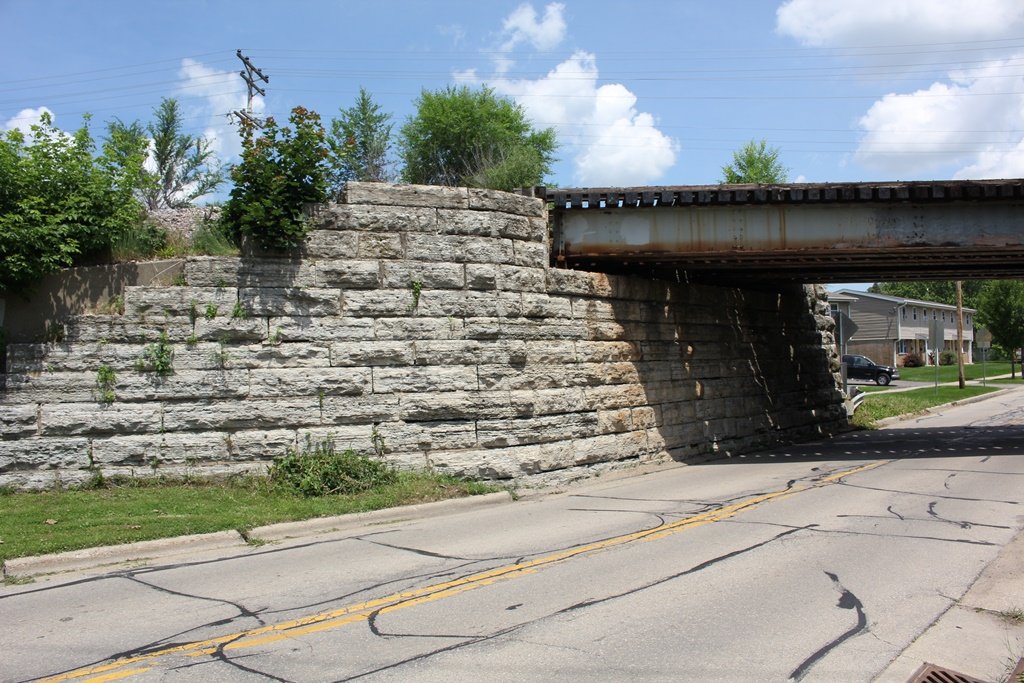

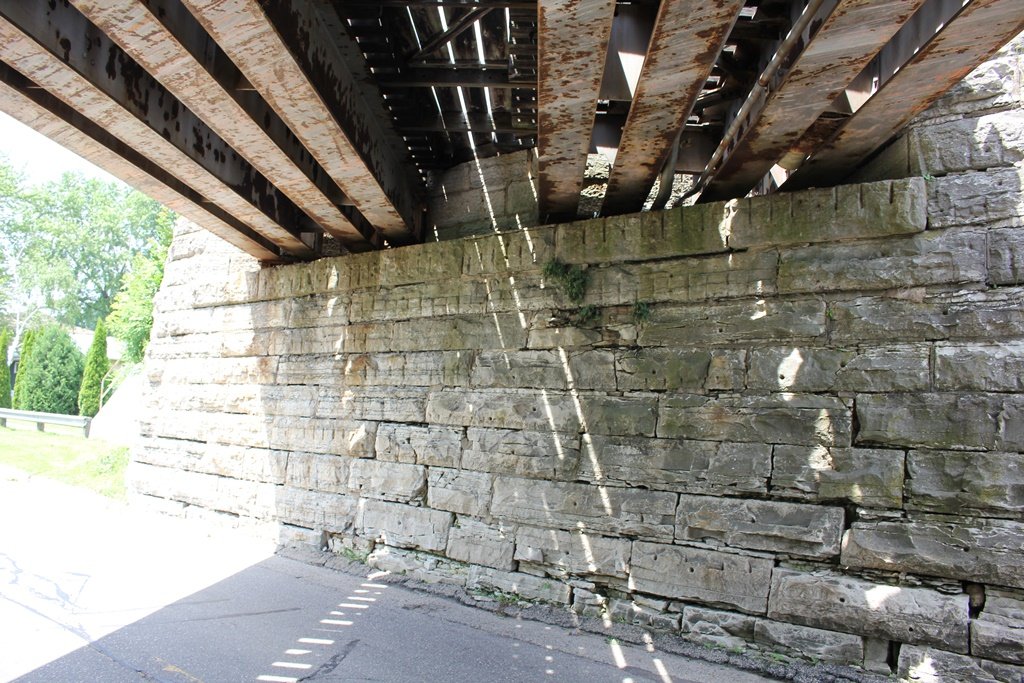

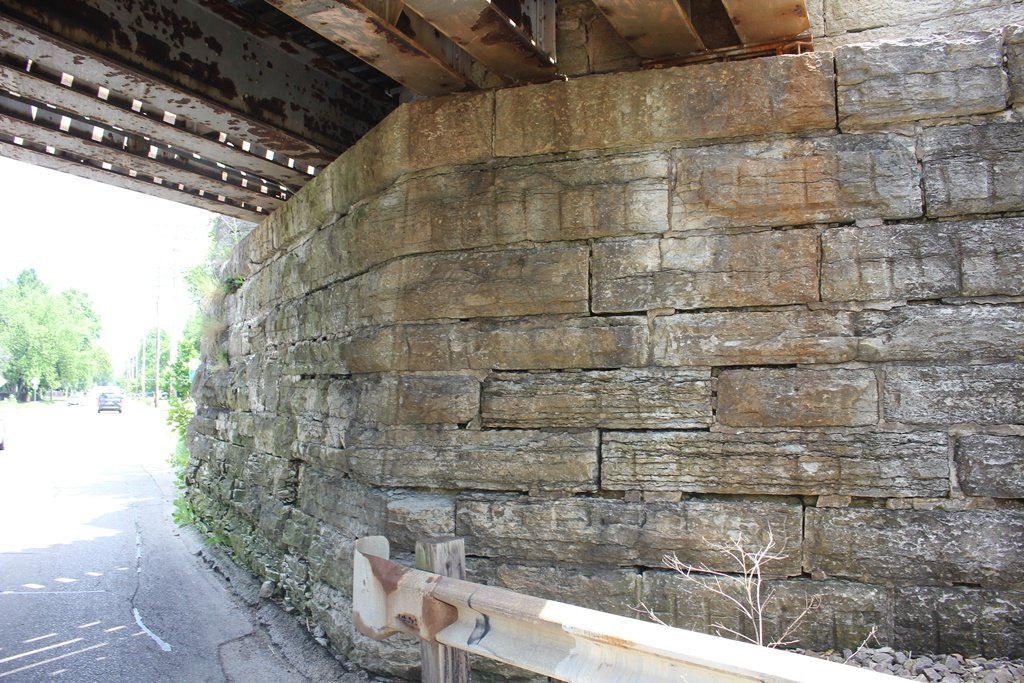

Significant work was done between 1960 and 1966 through this area. Part of this could have been the replacement of the older girder span with the current span. The bridge continues to rest on the 1896 stone abutments.
Overall, the bridge appears to be in good condition.

The author has ranked this bridge as being minimally significant, due to the common design.

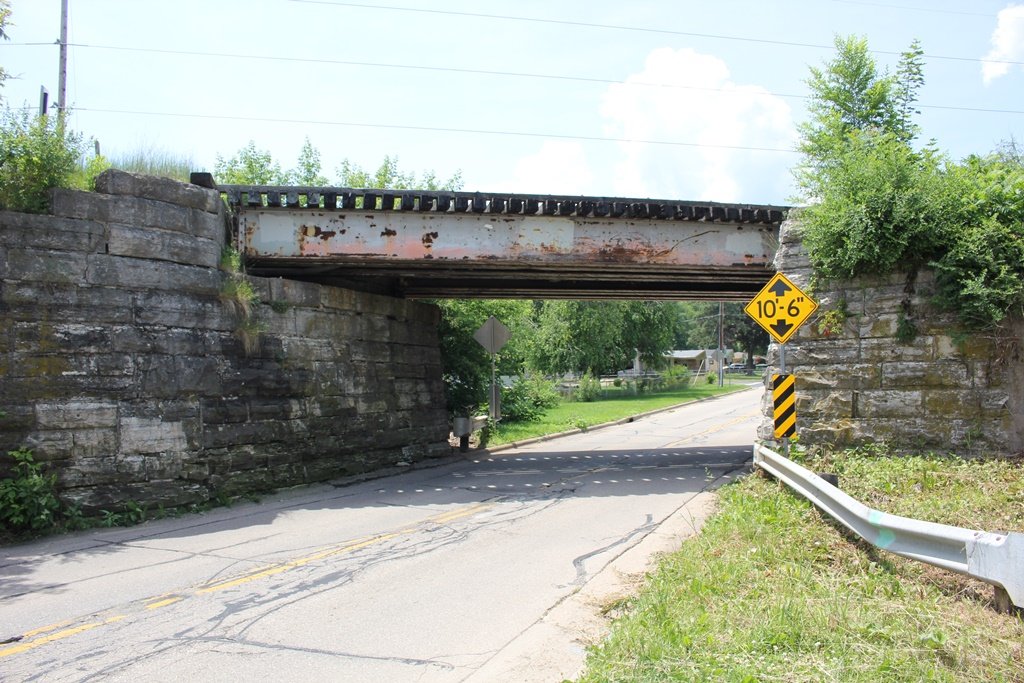

The photo above is an overview. The bridge can be accessed from the road below.


Source Type


Build Date Based on similar bridges
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
