Eagle Grove Trail Bridge

Deck Plate Girder Bridge over Boone River
Eagle Grove, Wright County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name Eagle Grove Trail Bridge
Built By Chicago & North Western Railway
Contractor American Bridge Company of New York
Currently Owned By Wright County
Length 280 Feet Total, 80 Foot Main Spans
Width 1 Track
Height Above Ground 25 Feet (Estimated)
Superstructure Type Deck Plate Girder and Trestle
Substructure Type Stone Masonry and Timber Pile
Date Built 1902
Traffic Count 0 Trains/Day (Estimated)
Current Status Rail to Trail
C&NW Bridge Number 2505
Significance Local Significance
Documentation Date January 2019
A brief history of the Chicago & North Western line from Eagle Grove to Hawarden:


06/26/21


Located west of Eagle Grove, this large deck girder bridge crosses the Boone River near Calhoun Avenue.

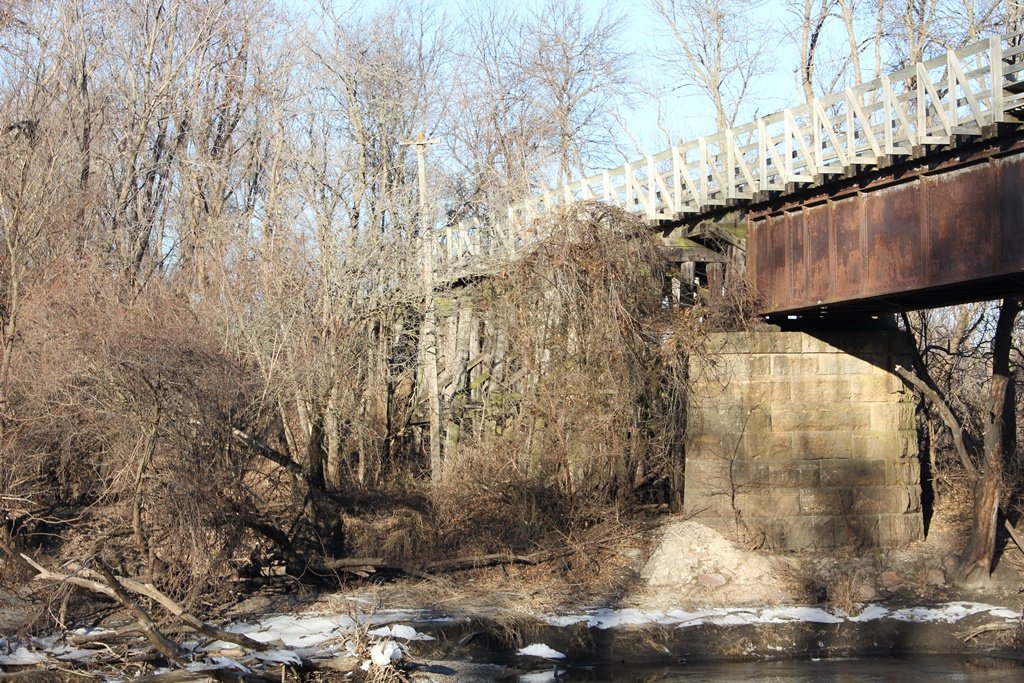

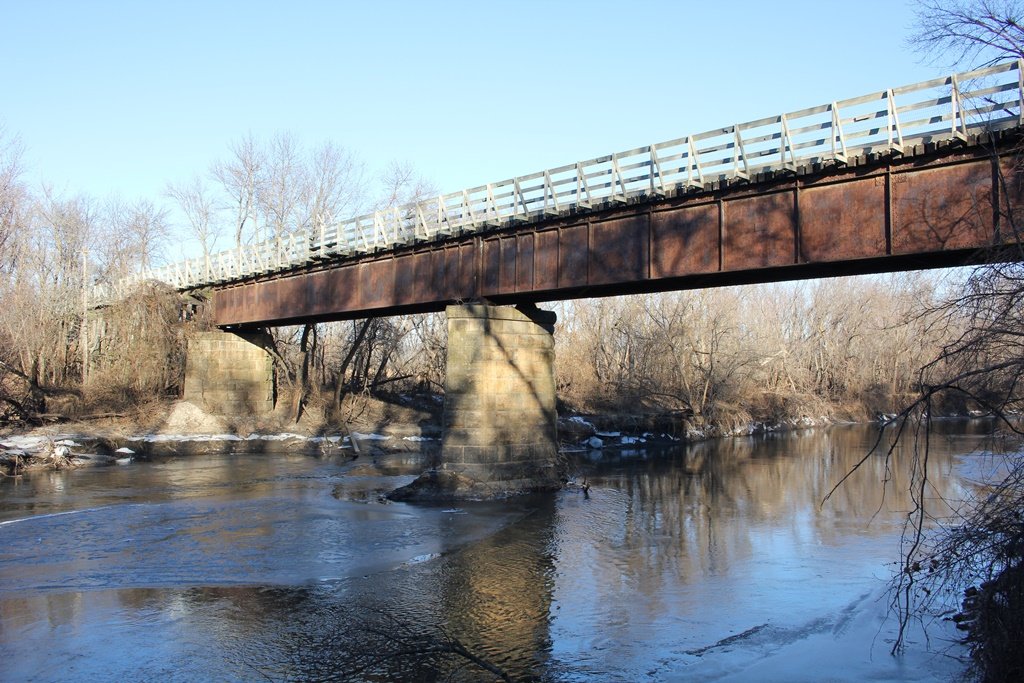

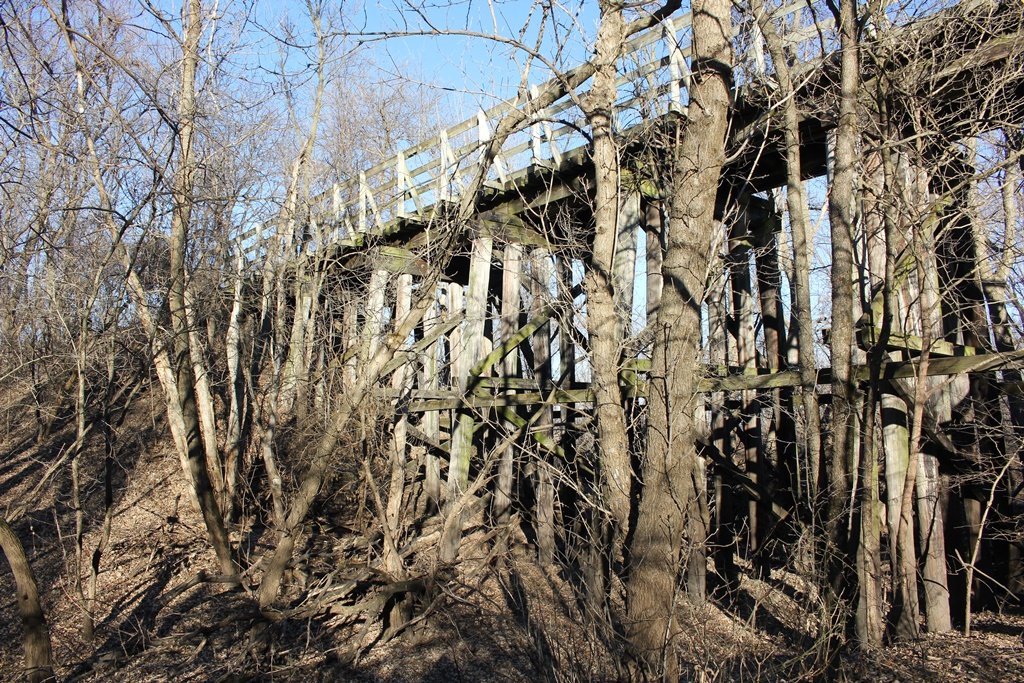

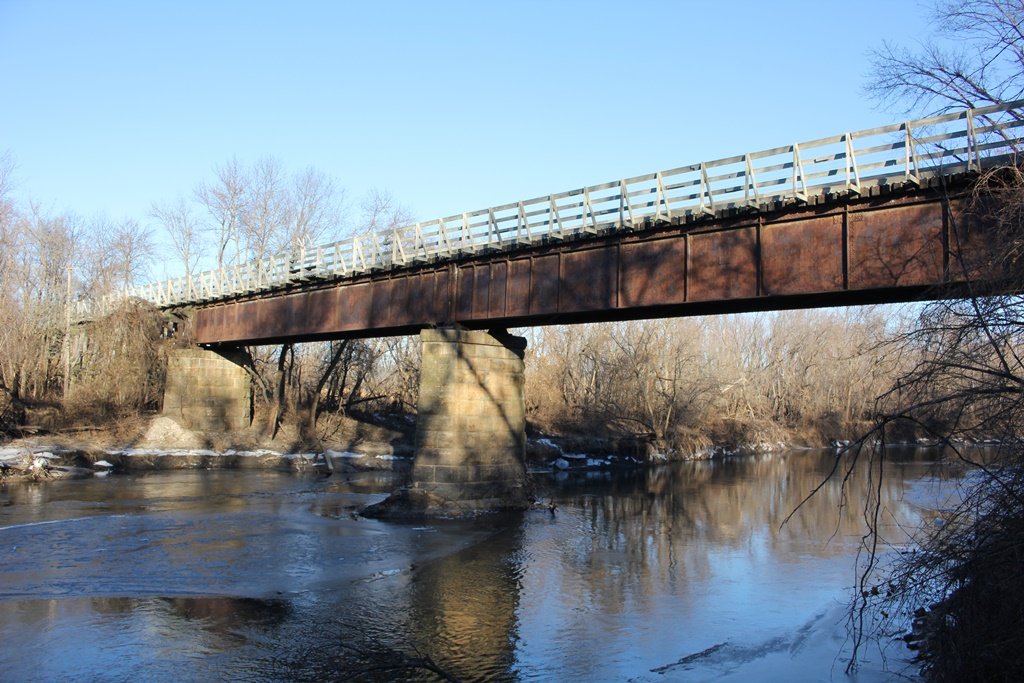

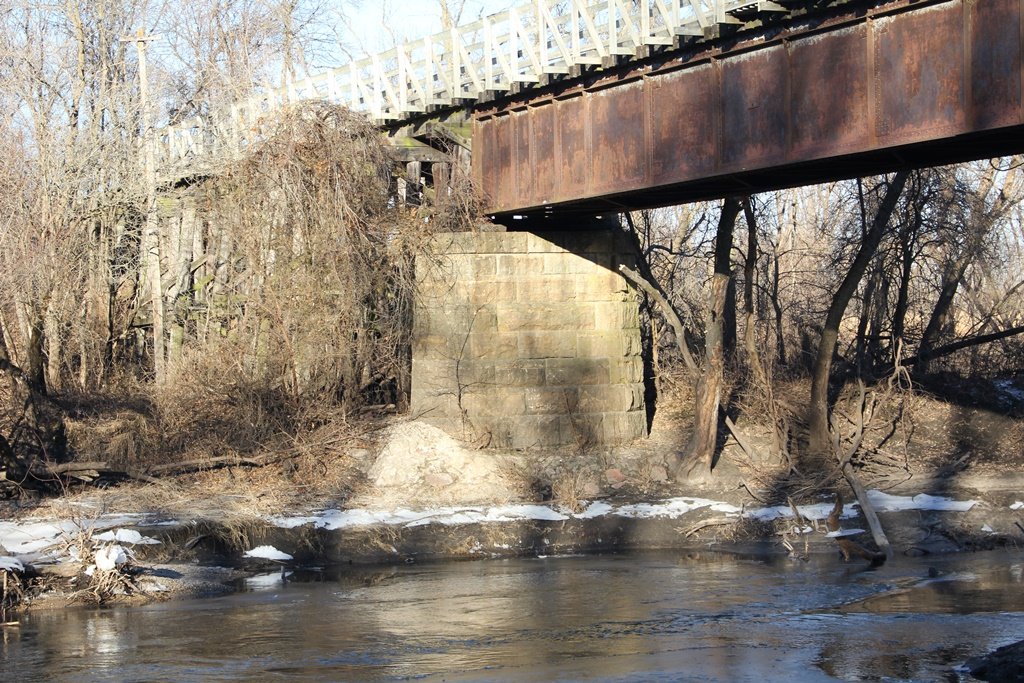

Built in 1902 to replace an earlier bridge, this structure features two standard deck girder spans, set onto stone piers. It is approached by trestle on the west side.
This is the first large bridge along the Three Rivers Bike Trail, which begins using this grade at Calhoun Avenue. The bridge features girders built in 1902, a year which this route saw major upgrades.
Overall, the bridge appears to be in good condition, as most bridges along this trail are.

The author has ranked this bridge as being locally significant, due to the common design.

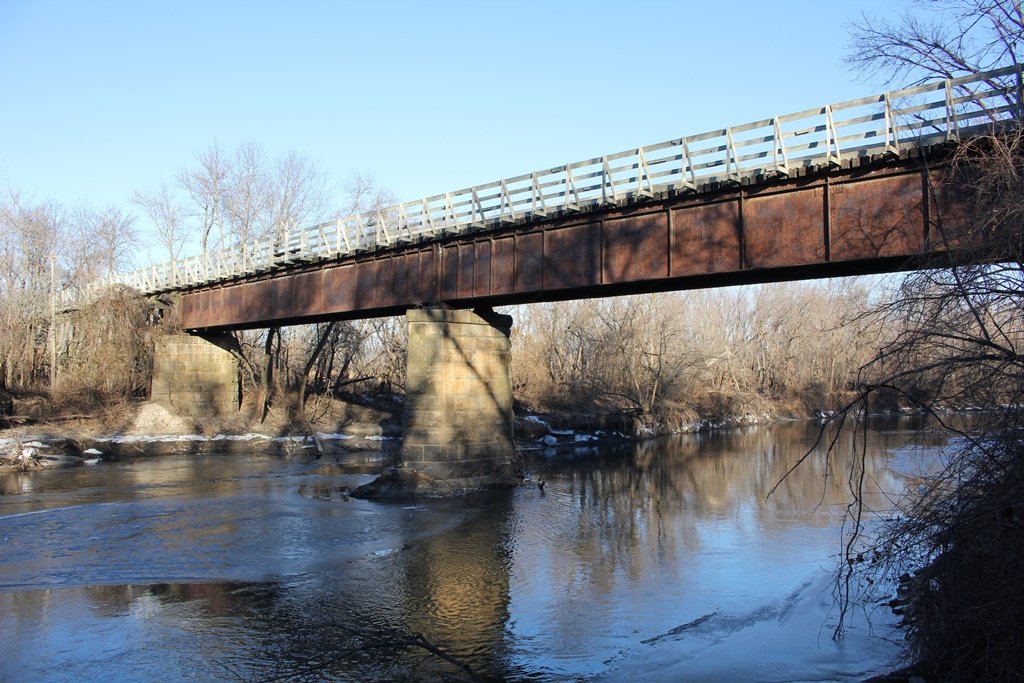

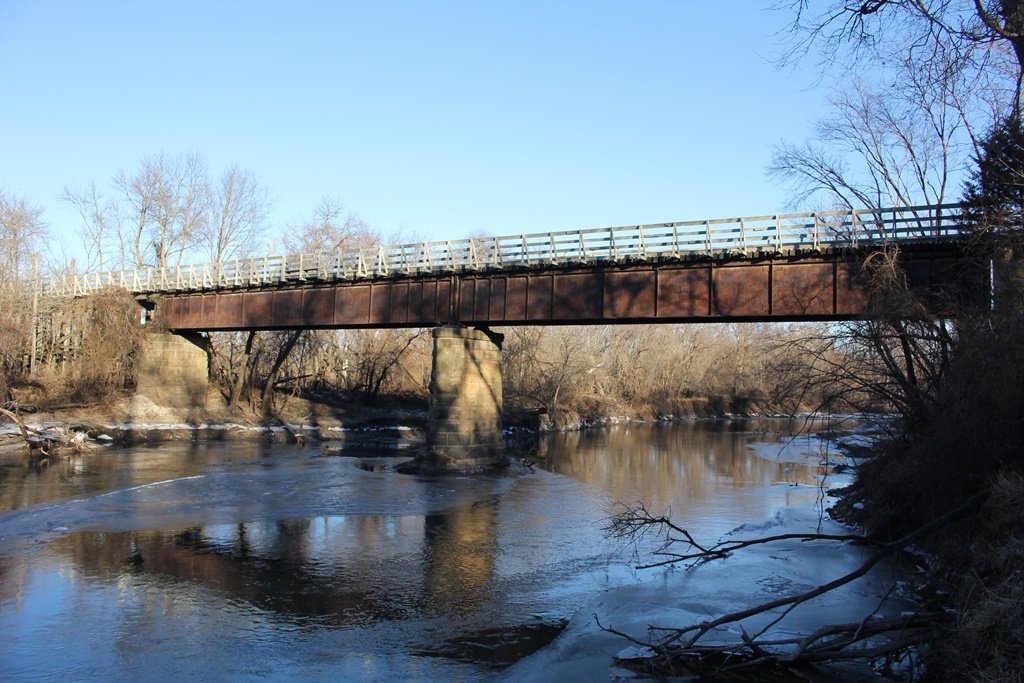

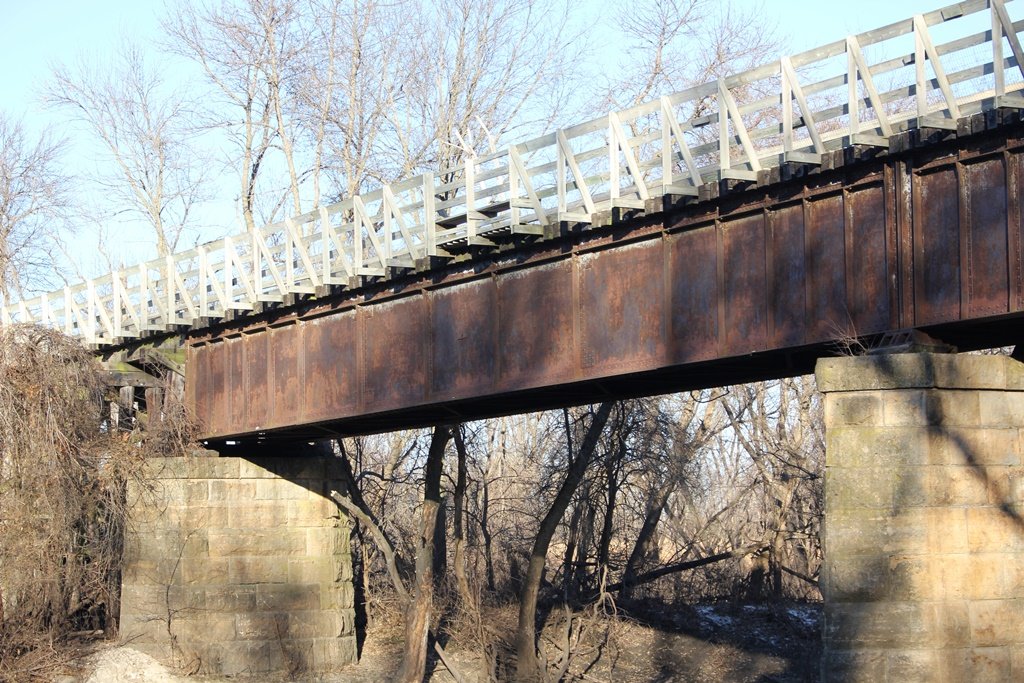

The photo above is an overview.

Boone River Railroad Bridges
Upstream Goldfield Rail Bridge
Downstream UP Boone River Bridge (Eagle Grove)

Citations

Source Type

Source

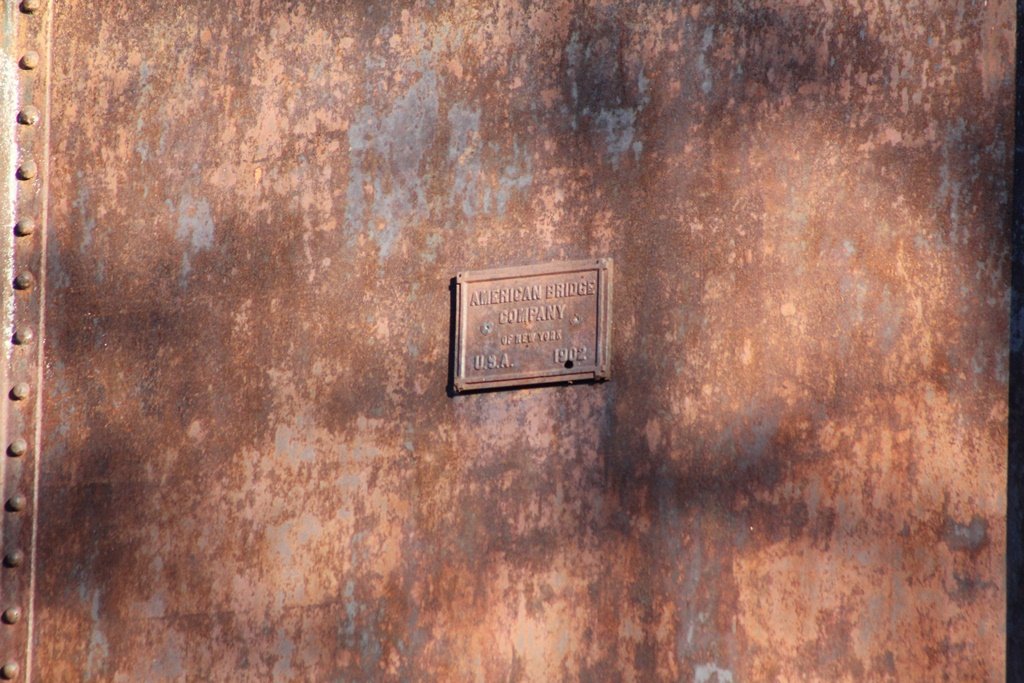

Build Date American Bridge Company plaque
Contractor American Bridge Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
