DM&E Dogwood Avenue Bridge

Concrete Deck Girder Bridge over Dogwood Avenue
Rubio, Washington County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name DM&E Dogwood Avenue Bridge
Built By Chicago, Milwaukee & St. Paul Railway
Contractor Unknown
Currently Owned By Dakota, Minnesota & Eastern Railroad
Length 112 Feet Total, 32 Foot Largest Span
Width 1 Track
Height Above Ground 12 Feet 0 Inches
Superstructure Type Concrete Deck Girder
Substructure Type Concrete
Date Built 1909
Traffic Count 8 Trains/Day (Estimated)
Current Status In Use
MILW Bridge Number I-1088
Significance Local Significance
Documentation Date January 2018
In 1882, the Chicago, Milwaukee & St. Paul Railway began building a line from Savanna, Illinois to Kansas City.
The line in Iowa was completed at a majority by 1885. The route crossed the Mississippi River from Savanna to Sabula, Iowa on a large swing bridge between the two towns.
The line quickly turned south, paralleled the Mississippi River through Clinton, Davenport and Muscatine. Then the line turned southwest, crossing the Cedar and Iowa rivers near Conesville before arriving in Washington, where it crossed a Rock Island line towards Des Moines.
From here, it continued southwest, crossing the Skunk River before arriving in Ottumwa, where it would cross the Des Moines River, and a pair of rail lines.
Continuing on the same southwest trajectory, the line would cross a Rock Island line near Moravia. The line became increasingly hilly and curvy as it approached the Missouri border near Sewal.
By 1887, the Milwaukee Road reached Kansas City; crossing through Missouri and such towns as Chillicothe.
The CM&StP became the Chicago, Milwaukee St. Paul & Pacific in 1912 with newly completed Pacific Extension. By 1931, the Rock Island Railroad requested trackage rights along this line between Polo and Lawson, Missouri; as well as from Mosby to Kansas City.
The 1887 Choteau Bridge over the Missouri River was replaced in 1945 by the present Harry S. Truman Bridge.
The line was considered a mainline, connecting to Kansas City to Davenport and Chicago. Few changes were ever seen on the line, although the major one was in 1981. The Milwaukee Road purchased the former Rock Island alignment between Muscatine and Washington and scrapped their own. The Rock Island had fallen the year before.

In 1985, the Milwaukee Road was purchased by Soo Line, who operated the line until 1997 when they sold it to I&M Rail Link. The line then changed hands again in 2002 when Iowa, Chicago & Eastern purchased it, and IC&E was purchased by Canadian Pacific along with Dakota, Minnesota & Eastern in 2008.
Canadian Pacific currently operates this line, although they have continued to explore potential buyers. The line still connects Chicago to Kansas City.

Located east of Rubio, this concrete deck girder bridge crosses Dogwood Avenue.

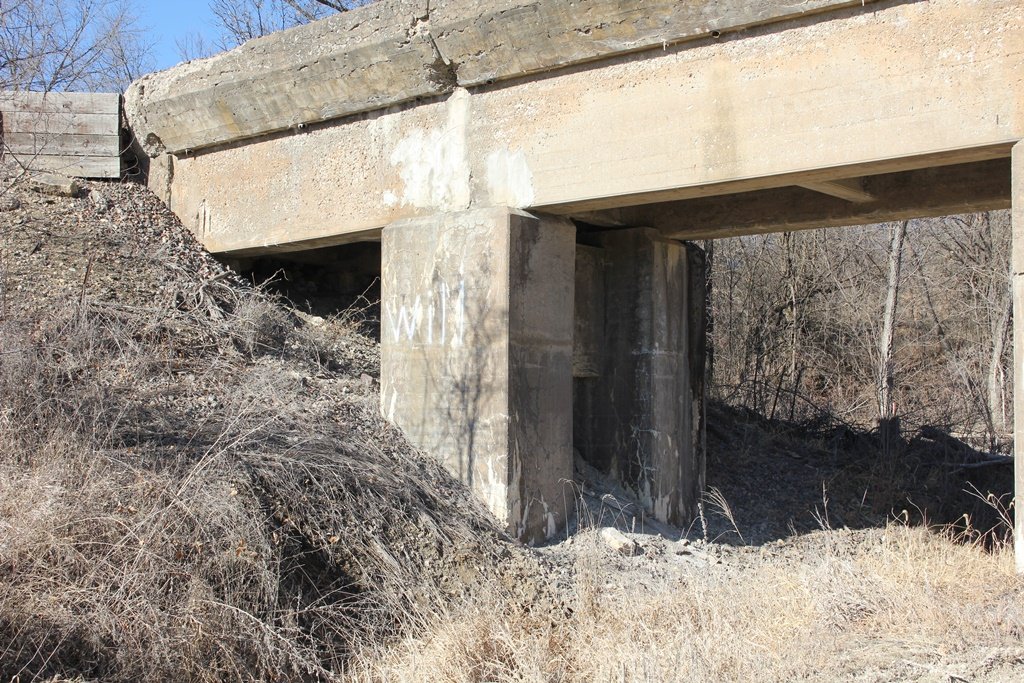

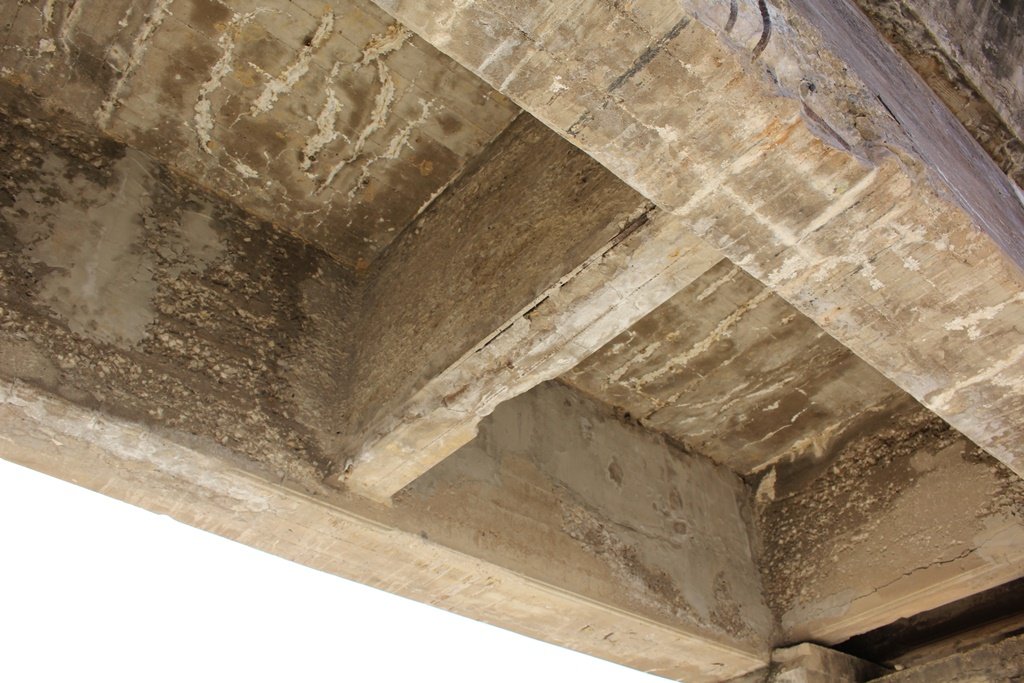

Built in 1909, the bridge features five spans of concrete deck girder, set onto concrete substructures.
During the upgrading of this line during 1909 and 1910, several unique designs were used, from double layered arches to cutting edge concrete bridges.
A majority of the concrete bridges were various slabs and concrete girders. The concrete deck girders never really caught on outside of select spans on Milwaukee Road mainlines, while slabs became the new standard.
Overall, the bridge appears to be in fair condition. Less than normal deterioration was noted on the bridge, and rehabilitation work was done on the bridge sometime around 1990.

The author has ranked this bridge as being locally significant, due to the common design.

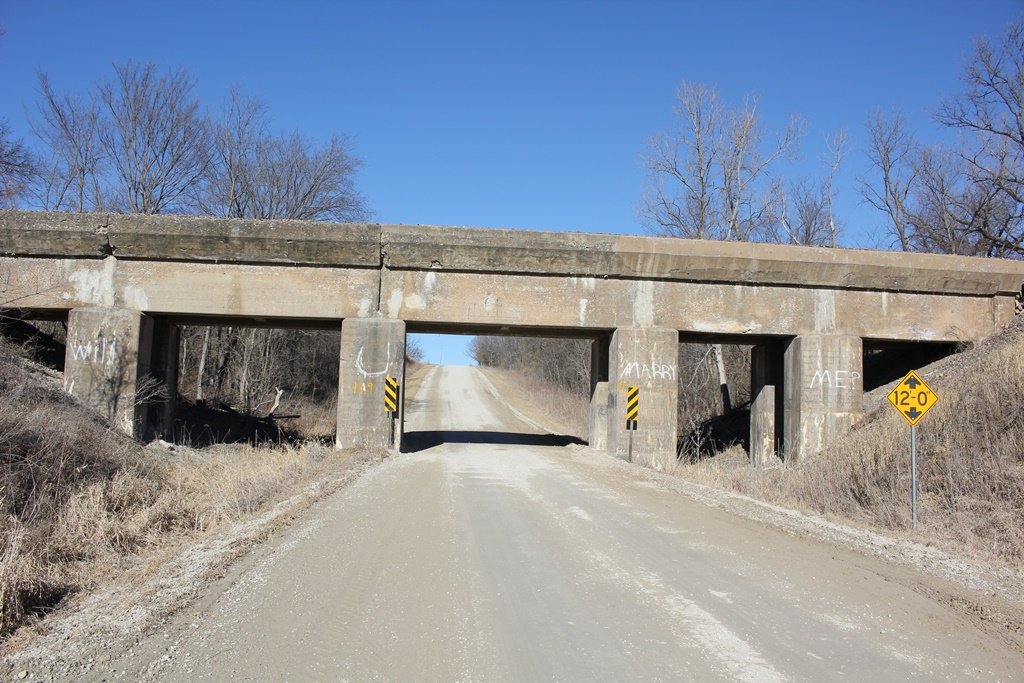

The photo above is an overview.


Source Type


Build Date Milwaukee Road Archives at the Milwaukee Central Library
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
