Abandoned Clanton Creek Bridge (North)

Deck Plate Girder Bridge over Clanton Creek
St. Charles, Madison County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name Abandoned Clanton Creek Bridge (North)
Built By Chicago Great Western Railway
Contractor Unknown
Currently Owned By Private Owner
Length 175 Feet Total, 50 Foot Main Spans
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Type Deck Plate Girder
Substructure Type Stone Masonry and Concrete
Date Built Ca. 1905
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned
Significance Local Significance
Documentation Date November 2016
A brief history of the Chicago Great Western route to Kansas City:


06/26/21


Located near St. Charles, this large girder bridge crosses Clanton Creek.
Built in approximately 1905, likely to replace an older iron bridge, this structure features four deck girder spans, set onto concrete and stone substructures.

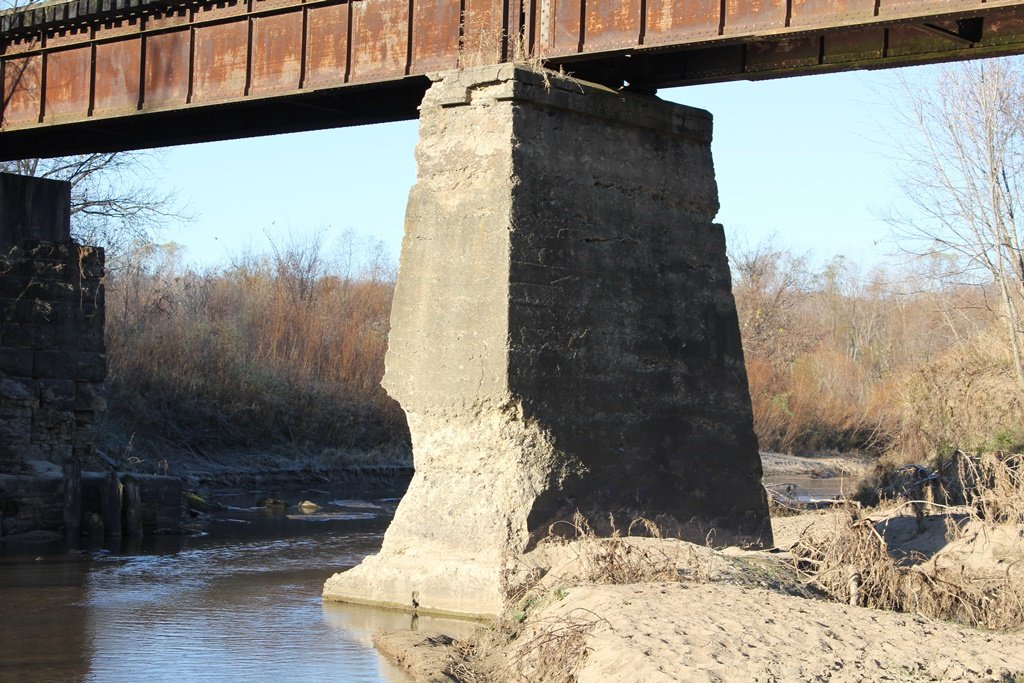

Unfortunately, no date could be found on the bridge. While the majority of the bridge is in good condition, the center pier has been seriously cut into by water, and has a large gash in it.
Overall, the bridge appears to be in fair condition. It is currently privately owned, and was accessed with permission.

The author has ranked this bridge as being locally significant, due to the common design.

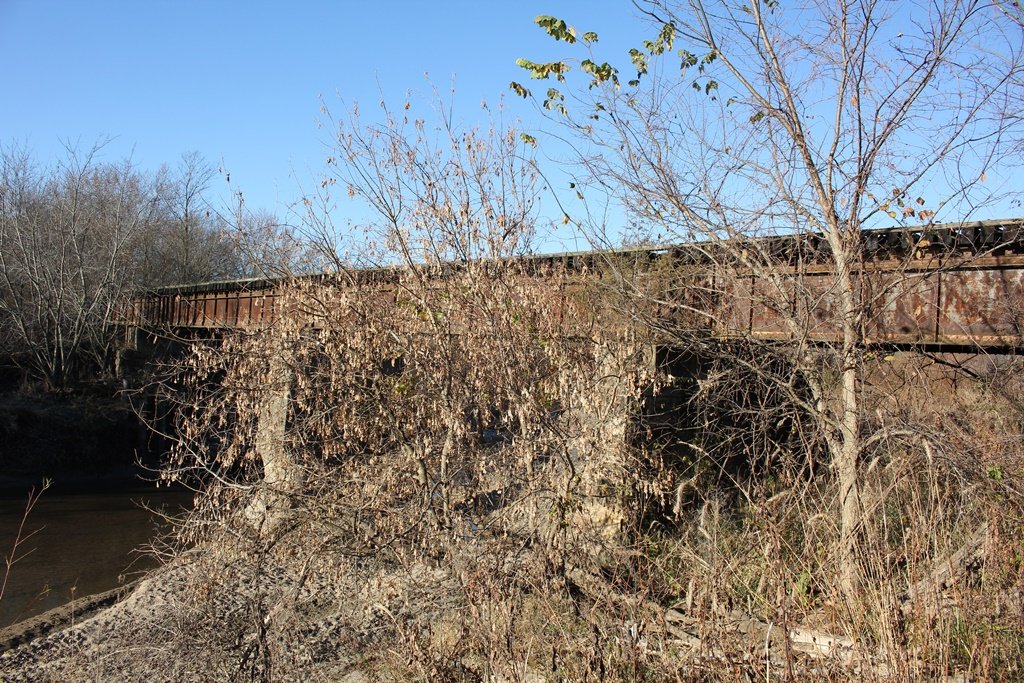

The photo above is an overview.

Citations

Source Type

Source

Build Date Estimated
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
